Sachs engine & gearbox

Here you will find spare parts and tuning parts such as clutches, crankshafts, bearings, seals and oil seals, as well as cylinders, individual pistons or complete overhaul kits for the restoration of your Sachs 502, 50/2, 50/3, 50/4, 503, 504 or 505 engines with 1- or 2-speed automatic transmission and with 2-, 3- or 4-speed manual or foot-operated transmission. These legendary Fichtel & Sachs engines with manual or automatic gearstick were installed in Hercules, Rixe, Pony Junior, KTM and many other mopeds.

For: Sachs

21219

Sachs 50/3, 50/4 dabber rod with lever

Component group Carburetor: Adjusting screws, float, etc. · Material: Aluminum · Material: Steel · Carburetor type: SSB · Total length: 150 mm

EUR 41.70

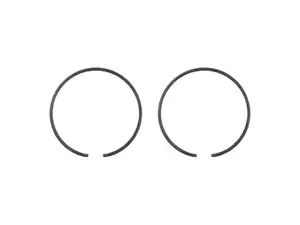

Piston rings 38 mm (pair) | Sachs 50/3 & 50/4

For: Sachs

21192

Piston rings 38 mm (pair) | Sachs 50/3 & 50/4

Nominal diameter: 38 mm · Piston ring impact: Flank safety device (FS) · Height: 2 mm

EUR 11.80

Surflex starter disk | Sachs 503 AAL, 502 Saxonette (A2738)

For: Sachs

21206

Surflex starter disk | Sachs 503 AAL, 502 Saxonette (A2738)

Manufacturer: Surflex · Material: Steel · Area of application: Original · Pony OEM number: A2738 · Sachs OEM no.: 0286 348 000

EUR 35.70

Meteor piston rings 38 x 2 mm (FS) (pair) | Sachs 50/2, 503

For: Sachs

21304

Meteor piston rings 38 x 2 mm (FS) (pair) | Sachs 50/2, 503

Manufacturer: Meteor · Nominal diameter: 38 mm · Thick piston ring: 1.6 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Height: 2 mm · Pony OEM number: A1091 · Sachs OEM no.: 0215 009 000

EUR 13.00

Set

swiing® ingenious tuning cylinder 40 mm | Sachs 503

For: Sachs

21019

swiing® ingenious tuning cylinder 40 mm | Sachs 503

Nominal diameter: 40 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 37 x 37 · Decompressor: No · Camouflaged: No · Area of application: Tuning

EUR 202.80

Not in stock

Set

swiing® ingenious tuning set 40 mm | Sachs 503 (fan-cooled)

For: Sachs

21018

swiing® ingenious tuning set 40 mm | Sachs 503 (fan-cooled)

Nominal diameter: 40 mm · Manufacturer: GPO · Manufacturer: NGK · Manufacturer: swiing® ingenious parts · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 60 x 40 · Decompressor: No · Camouflaged: No · Area of application: Tuning

EUR 543.00

Not in stock

Set

swiing® ingenious tuning set 38 mm | Sachs 503 (fan-cooled)

For: Sachs

21017

swiing® ingenious tuning set 38 mm | Sachs 503 (fan-cooled)

Nominal diameter: 38 mm · Manufacturer: GPO · Manufacturer: NGK · Manufacturer: swiing® ingenious parts · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 60 x 40 · Decompressor: No · Camouflaged: No · Area of application: Tuning

EUR 531.00

Not in stock

Set

swiing® ingenious tuning cylinder 38 mm | Sachs 503

For: Sachs

21021

swiing® ingenious tuning cylinder 38 mm | Sachs 503

Nominal diameter: 38 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 37 x 37 · Decompressor: No · Camouflaged: No · Area of application: Tuning

EUR 196.80

Not in stock

For: Sachs

20294

Engine mount set | Sachs 504/1

Manufacturer: NTN · Number of components: 5 pcs · Area of application: Standard

EUR 41.70

For: Sachs

20293

Engine bearing set | Sachs 504/2

Manufacturer: NTN · Number of components: 5 pcs · Area of application: Standard

EUR 40.50

NTN 6202 Ball bearing 15/35/11 | Sachs 503 ADV/AB, 504, 535 (A1165)

For: Sachs · Hercules

20289

NTN 6202 Ball bearing 15/35/11 | Sachs 503 ADV/AB, 504, 535 (A1165)

Bearing type: Deep groove ball bearing · Stock number: 6202 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided

EUR 8.25

Set

swiing® revival engine revision set medium | Sachs 50/2 HG

For: Sachs

21573

swiing® revival engine revision set medium | Sachs 50/2 HG

Manufacturer: swiing® revival parts · Area of application: Standard

EUR 250.50

Set

swiing® revival engine revision set large | Sachs 50/2 HG

For: Sachs

21574

swiing® revival engine revision set large | Sachs 50/2 HG

Manufacturer: swiing® revival parts · Area of application: Standard

EUR 614.60

Not in stock

Set

Engine revision set small | Sachs 502, 50/2

For: Sachs

21569

Engine revision set small | Sachs 502, 50/2

Manufacturer: NSK · Number of components: 18 pcs · Area of application: Standard

EUR 101.40

Set

For: Sachs

21578

Engine revision set | Sachs 503 AB CH

Manufacturer: NSK · Manufacturer: NTN · Area of application: Standard

EUR 155.10

Set

For: Sachs

21579

Engine revision set | Sachs 503 AC CH

Manufacturer: NSK · Manufacturer: NTN · Area of application: Standard

EUR 125.20

Set

swiing® revival engine revision set medium | Sachs 503 HG

For: Sachs

21586

swiing® revival engine revision set medium | Sachs 503 HG

Manufacturer: swiing® revival parts · Area of application: Standard

EUR 250.50

Set

Engine overhaul kit | Sachs 503 ABL CH Automatic

For: Sachs

21582

Engine overhaul kit | Sachs 503 ABL CH Automatic

Manufacturer: NSK · Manufacturer: NTN · Area of application: Standard · Alternative version of the Pony OEM number: A2553 · Alternative version of the Sachs OEM number: 0286 125 050

EUR 131.20

NSK L17 shoulder ball bearing 17/40/10 | Sachs 50/3, 50/4

For: Sachs

21626

NSK L17 shoulder ball bearing 17/40/10 | Sachs 50/3, 50/4

Bearing type: Shoulder bearing · Stock number: L17 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 10 mm · Manufacturer: NSK

EUR 23.30

Surflex clutch 2nd gear | Sachs 503 AC, ADV (A2744)

For: Sachs

19328

Surflex clutch 2nd gear | Sachs 503 AC, ADV (A2744)

Manufacturer: Surflex · Number of jaws: 3 pcs · Number of springs: 3 pcs · Area of application: Original · Pony OEM number: A2742 · Sachs OEM no.: 0286 349 012

EUR 358.00

Not in stock

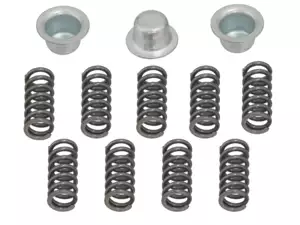

Reinforcement set 9 springs clutch | Sachs 50/2 & 503

For: Sachs

19339

Reinforcement set 9 springs clutch | Sachs 50/2 & 503

Spring design: Pressure spring · Number of components: 12 pcs

EUR 47.60

For: Sachs

21845

Sealing cap (Ø 30.8 mm) Sachs (A2185)

Ø outside: 30.8 mm · Height: 5.5 mm · Alternative version of the Pony OEM number: A2185 · Alternative version of the Sachs OEM number: 0270 030 000

EUR 5.85

Clutch basket / pedal axle lock washer | Sachs 50/2, 503 2AL/2BL, 505/2 (A1555)

For: Sachs · Hercules

21841

Clutch basket / pedal axle lock washer | Sachs 50/2, 503 2AL/2BL, 505/2 (A1555)

Material: Steel · Surface: galvanized (blue) · Ø inside: 21 mm · Ø outside: 32 mm · Thickness: 0.5 mm · Pony OEM number: A1555 · Sachs OEM no.: 0244 052 000

EUR 9.45

Flat nut M21x1 LH pedal start mechanism | Sachs

For: Sachs

22385

Flat nut M21x1 LH pedal start mechanism | Sachs

Nut type: Hexagon flat nut · Thread type: MF21x1 LH (fine/left-hand thread) · Drive: External hexagon · Width across flats SW: 26 mm

EUR 8.95

Flat nut M21x1 LH clutch | Sachs 50/2, 503 AB/ABL/2AL/2BL (A1504)

For: Sachs

22384

Flat nut M21x1 LH clutch | Sachs 50/2, 503 AB/ABL/2AL/2BL (A1504)

Nut type: Hexagon flat nut · Thread type: MF21x1 LH (fine/left-hand thread) · Drive: External hexagon · Width across flats SW: 26 mm · Pony OEM number: A1504 · Sachs OEM no.: 0242 030 005 · Sachs OEM no.: 0242 030 105

EUR 8.95

Nos

38 mm cylinder kit diaphragm 2 warts NOS | Sachs Saxonette

For: Sachs

23204

38 mm cylinder kit diaphragm 2 warts NOS | Sachs Saxonette

Nominal diameter: 38 mm · Manufacturer: Sachs · Material: Gray cast iron · Surface: sandblasted · Crankshaft stroke: 42 mm · Displacement: 50 ccm · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 67 mm · Outlet type: Union nut · Number of fixing points: 4 pcs · Thread outlet: M35x2 (standard thread) · Hole pattern [mm]: 51 x 40 · Area of application: Original

EUR 525.10

NTN needle roller bearing 14/20/12 clutch | Sachs 503 ABL, AB (A1164)

For: Sachs

23493

NTN needle roller bearing 14/20/12 clutch | Sachs 503 ABL, AB (A1164)

Bearing type: Needle sleeve · Stock number: HK1412 · Manufacturer: NTN · Ø inside: 14 mm · Width: 12 mm · Ø outside: 20 mm · Dimension needle bearing: 14/20 x 12

EUR 11.80

Inox

For: Sachs

23829

Seeger ring 16 mm pedal start mechanism Sachs Inox

Nominal diameter: 16 mm · Fuse type: Outside · Manufacturer: Sachs · Material: Chrome steel (known as Nirosta®)

EUR 3.10

For: Sachs

22599

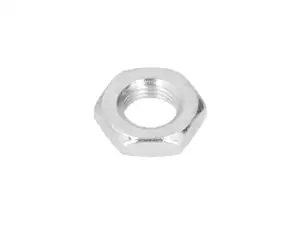

Nut M10x1 | Sachs 504, 535 (A1493)

Manufacturer: Sachs · Nut type: Hexagon nut · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Pony OEM number: A1493 · Sachs OEM no.: 0242 000 001

EUR 2.85

Set

Large clutch overhaul set | Sachs 50/2, 503 2AL / 2BL

For: Sachs

24132

Large clutch overhaul set | Sachs 50/2, 503 2AL / 2BL

Area of application: Standard · Number of springs: 9 pcs · Number of slats: 2 pcs

EUR 381.90

Not in stock

Set

Clutch revision set small | Sachs 50/2, 503 2AL / 2BL

For: Sachs

24131

Clutch revision set small | Sachs 50/2, 503 2AL / 2BL

Area of application: Standard · Number of springs: 9 pcs · Number of slats: 2 pcs

EUR 119.20

Not in stock

Airsal piston rings 43.5 mm (pair) | Sachs 504, 505, 535

For: Sachs · Hercules

24542

Airsal piston rings 43.5 mm (pair) | Sachs 504, 505, 535

Manufacturer: Airsal · Area of application: Racing · Nominal diameter: 43.5 mm · Piston ring impact: Internal fuse (IS)

EUR 14.20

swiing® revival gasket set cylinder with head gasket slot version | Sachs 50/2

For: Sachs

24551

swiing® revival gasket set cylinder with head gasket slot version | Sachs 50/2

Manufacturer: swiing® revival parts · Area of application: Standard · Ø cylinder: 38 mm · Number of components: 4 pcs · Ø outlet inside: 28 mm · Hole spacing inlet: 31 mm · Hole pattern [mm]: 60 x 40 mm / 37 x 37 mm

EUR 17.30

16 mm circlip pedal start mechanism Sachs

For: Sachs

24758

16 mm circlip pedal start mechanism Sachs

Fuse type: Outside · Manufacturer: Sachs · Nominal diameter: 16 mm

EUR 1.80

swiing® ingenious piston rings 40 mm (pair) | Sachs 503

For: Sachs

24509

swiing® ingenious piston rings 40 mm (pair) | Sachs 503

Height: 1.5 mm · Manufacturer: swiing® ingenious parts · Area of application: Tuning · Surface: hard chrome plated · Nominal diameter: 40 mm · Piston ring impact: Internal fuse (IS)

EUR 16.60

swiing® revival gasket set cylinder with head gasket diaphragm version | Sachs 50/2

For: Sachs

24550

swiing® revival gasket set cylinder with head gasket diaphragm version | Sachs 50/2

Manufacturer: swiing® revival parts · Area of application: Standard · Ø cylinder: 38 mm · Number of components: 6 pcs · Ø outlet inside: 28 mm · Hole spacing inlet: 31 mm · Hole spacing inlet: 67 - 31 mm · Hole pattern [mm]: 60 x 40 mm / 37 x 37 mm

EUR 23.30

Set

NSK crankshaft bearing set | Sachs 503 ABL CH

For: Sachs

22307

NSK crankshaft bearing set | Sachs 503 ABL CH

Manufacturer: NSK · Area of application: Standard

EUR 69.10

NTN 608 Ball bearing 8/22/7 Clutch cover | Sachs 503 AC, ABL (A5603)

For: Sachs

25724

NTN 608 Ball bearing 8/22/7 Clutch cover | Sachs 503 AC, ABL (A5603)

Bearing type: Deep groove ball bearing · Stock number: 608 · Manufacturer: NTN · Width: 7 mm · Ø inside: 8 mm · Ø outside: 22 mm · Pony OEM number: A5603 · Sachs OEM no.: 0232 166 001

EUR 15.40

NSK 6201 ball bearing 12/32/10 | Sachs 503 ABL, AB, AC, ADV (A5604)

For: Sachs

25726

NSK 6201 ball bearing 12/32/10 | Sachs 503 ABL, AB, AC, ADV (A5604)

Bearing type: Deep groove ball bearing · Stock number: 6201 · Manufacturer: NSK · Width: 10 mm · Ø inside: 12 mm · Ø outside: 32 mm · Pony OEM number: A5604 · Sachs OEM no.: 0231 171 001

EUR 10.10

NSK 6000 ball bearing 10/26/8 | Sachs 50/2, 503 (A1177)

For: Sachs

25728

NSK 6000 ball bearing 10/26/8 | Sachs 50/2, 503 (A1177)

Bearing type: Deep groove ball bearing · Stock number: 6000 · Manufacturer: NSK · Width: 8 mm · Ø inside: 10 mm · Ø outside: 26 mm · Pony OEM number: A1177 · Sachs OEM no.: 0232 139 001

EUR 11.80

swiing® ingenious connecting rod bearing 16/21/9.7 "Racing" silver cage | Sachs

For: Sachs

26917

swiing® ingenious connecting rod bearing 16/21/9.7 "Racing" silver cage | Sachs

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 16/21 x 9.7 · Manufacturer: swiing® ingenious parts · Width: 9.7 mm · Ø inside: 16 mm · Ø outside: 21 mm

EUR 13.50

Set

GPO 41 mm cylinder kit (square intake) | Sachs 50/3, 50/4 fan-cooled

For: Sachs

26918

GPO 41 mm cylinder kit (square intake) | Sachs 50/3, 50/4 fan-cooled

Manufacturer: GPO · Material: Gray cast iron · Camouflaged: No · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Ø piston pin (B): 12 mm · Nominal diameter: 41 mm · Thread inlet: M5x0.8 (standard thread) · Area of application: Tuning · Number of fixing points: 4 pcs · Outlet type: Union nut · Hole spacing inlet: 31 mm · Thread outlet: MF40x1.5 (fine pitch thread) · Hole pattern [mm]: 51 x 40

EUR 178.90

Set

swiing 41 mm tuning set diaphragm | Sachs 50/2 (CH)

For: Sachs

27105

swiing 41 mm tuning set diaphragm | Sachs 50/2 (CH)

Manufacturer: GPO · Manufacturer: NGK · Manufacturer: swiing · Manufacturer: swiing® ingenious parts · Manufacturer: swiing® revival parts · Camouflaged: Yes · Area of application: Tuning · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 41 mm · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 60 x 40 · Outlet type: Union nut · Hole spacing inlet: 31 mm · Thread outlet: M35x2 (standard thread) · Decompressor: No

EUR 775.70

Set

Hot

swiing® ingenious 38 mm cylinder kit tuning diaphragm | Sachs 50/2 (CH)

For: Sachs

27103

swiing® ingenious 38 mm cylinder kit tuning diaphragm | Sachs 50/2 (CH)

Manufacturer: Meteor · Manufacturer: swiing® ingenious parts · Material: Gray cast iron · Camouflaged: Yes · Surface: sandblasted · Area of application: Tuning · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 38 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 60 x 40 / 37 x 37 · Outlet type: Union nut · Hole spacing inlet: 31 mm · Thread outlet: M35x2 (standard thread)

EUR 184.90

Meteor piston ring 38 x 1.5 (IS) | Sachs 503 AB, AC

For: Sachs

21297

Meteor piston ring 38 x 1.5 (IS) | Sachs 503 AB, AC

Manufacturer: Meteor · Area of application: Original · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm · Thick piston ring: 1.6 mm · Pony OEM number: A1101 · Sachs OEM no.: 0215 100 100

EUR 11.80

Set

GPO 41 mm cylinder kit square inlet | Sachs 50/3, 50/4 LKH

For: Sachs

27620

GPO 41 mm cylinder kit square inlet | Sachs 50/3, 50/4 LKH

Nominal diameter: 41 mm · Manufacturer: GPO · Material: Gray cast iron · Camouflaged: No · Area of application: Tuning · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Surface: sandblasted · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Hole pattern [mm]: 51 x 40

EUR 182.50

Spacer washer 16/22/0.5 pinion shaft / pedal shaft | Sachs

For: Sachs

27829

Spacer washer 16/22/0.5 pinion shaft / pedal shaft | Sachs

Nominal diameter inside: 16 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Thickness: 0.5 mm · Ø inside: 16.1 mm · Ø outside: 22 mm · Pony OEM number: A1574 · Sachs OEM no.: 0244 081 002

EUR 2.25

swiing® revival gasket 2 mm inlet Ø 16 mm | Sachs 50/2

For: Sachs

25890

swiing® revival gasket 2 mm inlet Ø 16 mm | Sachs 50/2

Manufacturer: swiing® revival parts · Place of use: Admission · Hole spacing inlet: 32 mm · Ø outlet inside: 16 mm · Thickness: 2 mm · Ø screw holder: 6.8 mm

EUR 4.05

Set

swiing 38 mm cylinder kit Racing fan-cooled | Sachs 50/2 (CH)

For: Sachs

28745

swiing 38 mm cylinder kit Racing fan-cooled | Sachs 50/2 (CH)

Manufacturer: swiing · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 42 mm · Displacement: 50 ccm · Hole spacing inlet: 31 mm · Nominal diameter: 38 mm · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 60 x 40 · Number of fixing points: 4 pcs · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Area of application: Racing

EUR 262.50

Set

Hot

swiing 38 mm cylinder kit Racing fan-cooled | Sachs 50/2, 50/3, 50/4 (DE)

For: Sachs

28747

swiing 38 mm cylinder kit Racing fan-cooled | Sachs 50/2, 50/3, 50/4 (DE)

Manufacturer: swiing · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 42 mm · Displacement: 50 ccm · Hole spacing inlet: 31 mm · Nominal diameter: 38 mm · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 51 x 40 · Number of fixing points: 4 pcs · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Area of application: Racing

EUR 262.50

Page 1 of 19
