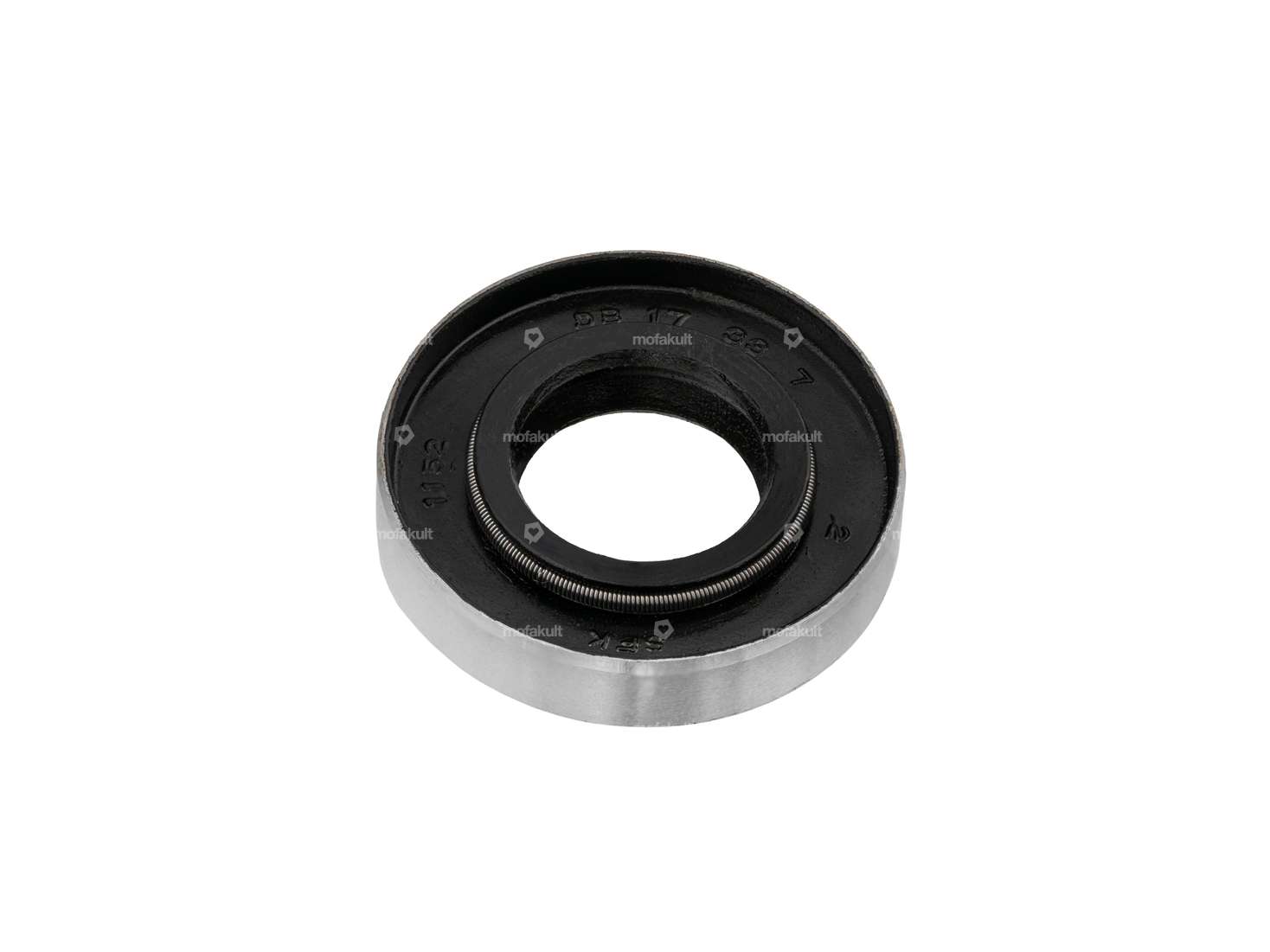

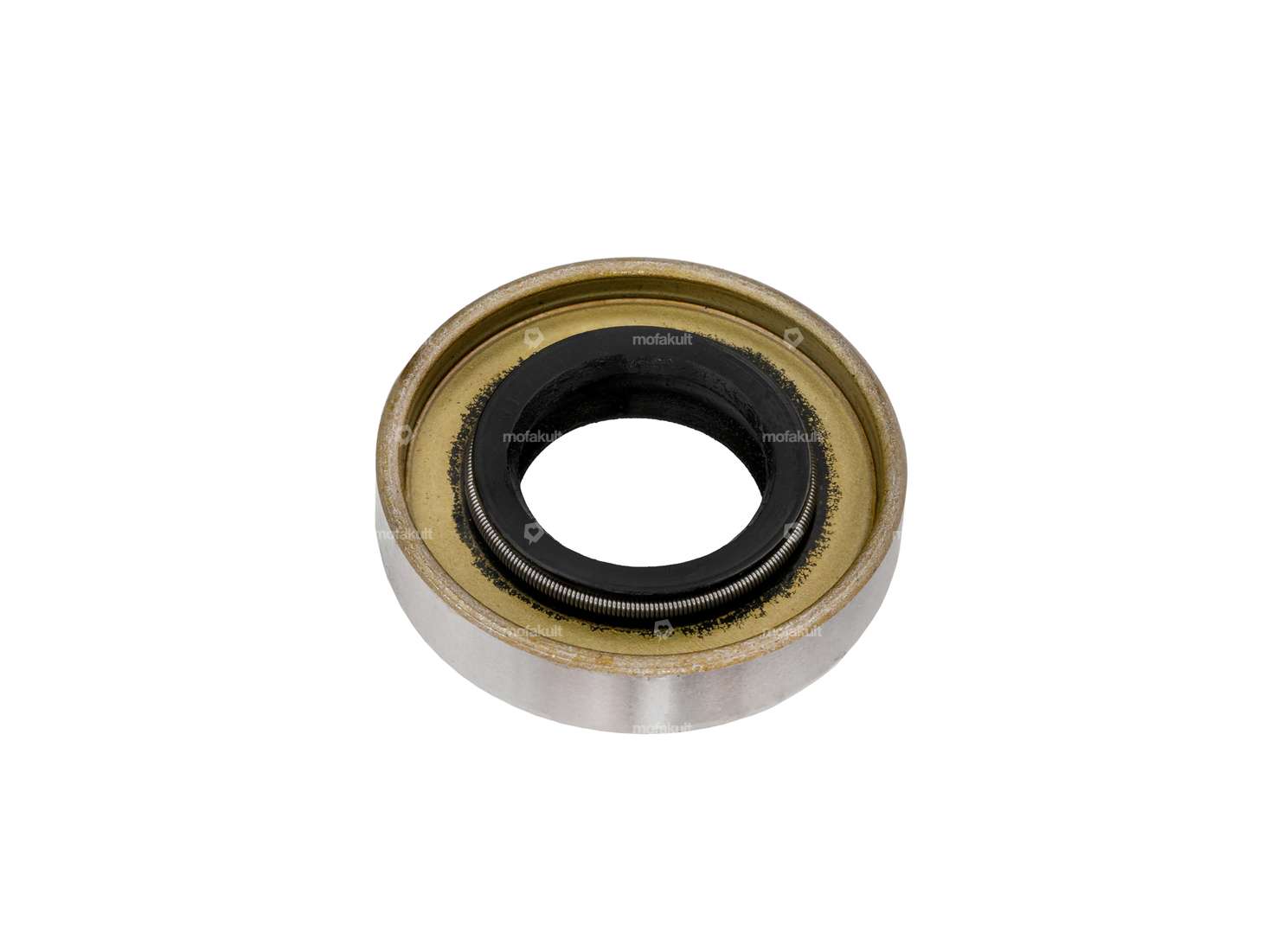

Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV

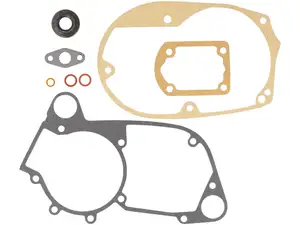

GPO gasket set engine small | Sachs 503

Manufacturer: GPO · Number of components: 8 pcs · Area of application: Standard · Hole spacing inlet: 32 mm · Hole pattern [mm]: 60 x 40

Large gasket set with shaft seals Engine | Sachs 503

Material: Aluminum · Material: Copper · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Number of components: 14 pcs · Area of application: Standard · Ø outlet inside: 13.3 mm · Hole spacing inlet: 32 mm · Hole pattern [mm]: 60 x 40

swiing® revival gasket set | Sachs 503 ADV wide wall Cat.

Material: Copper · Material: Fiber · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Manufacturer: swiing® revival parts · Number of components: 15 pcs · Area of application: Standard · Ø outlet inside: 23.3 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 56 x 56 · Decompressor: No

Engine revision set | Sachs 503 ADV wide screen Cat.

Manufacturer: NSK · Manufacturer: NTN · Area of application: Standard

Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C

Temperature resistance (min.): -60 - 315 °C · Manufacturer: Elring · Material: Silicone · Contents [ml]: 70 ml · Color: gray · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Area of application: Chemistry · Gap dimension (max.): 2 mm

swiing® ingenious assembly aid 14.1/15/10 oil seal / crankshaft | Sachs 503 AAL, ABL, AB

Material: Aluminum · Surface: anodized · Total length: 10 mm · Manufacturer: swiing® ingenious parts · Ø outside: 15 mm · Ø inside: 14.1 mm · Area of application: Special tool

NSK 6201 ball bearing 12/32/10

Bearing type: Shoulder bearing · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Area of application: Standard · Material: Steel · Surface: blank · Ø inside: 12 mm · Width: 10 mm · Stock number: 6201 · Ø outside: 32 mm · Ball bearing closed: No

Shaft seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)

Temperature resistance (min.): -30 - 100 °C · Width: 3.5 mm · Place of use: Pinion shaft · Manufacturer: Sachs · Material: NBR · Surface: coated · Ø inside: 14.96 mm · Ø outside: 31.5 mm · Area of application: Standard · Pony OEM number: A1134 · Sachs OEM no.: 0230 011 100 · Sachs OEM no.: 0230 011 200

Jasil crankshaft | Sachs 503 AC / ADV (A3337 / A2904)

Material: Steel · Dimension needle bearing: 12 / 15 x 12.8 mm (axe 12) · Manufacturer: Jasil · Cheek type: standard · Crankshaft stroke: 44 mm · Connecting rod length center-center: 86 mm · Total length of crankpin on clutch side: 97 mm · Area of application: Standard · Total length crankpin ignition side: 62 mm · Ø crank webs: 83 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 12 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 7 mm · Thread length: 11 mm · Wide crank webs: 34.2 mm · Length 1st paragraph: 9.4 mm · Length 2nd paragraph: 19.4 mm · Length 3rd paragraph: 74 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Ø 3rd step (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 32 mm · Weight: 964 g · Number of gears: 2 pcs

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)

Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Width: 7 mm · Manufacturer: Sachs · Material: NBR · Ø inside: 15 mm · Ø outside: 30 mm · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

NTN 6202 C3 ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6202 · Width: 11 mm · Inner ring width: 11 mm · Manufacturer: NTN · Ø outside: 35 mm · Bearing clearance: C3 · Ø inside: 15 mm · Puch OEM number: 900.4.6202

NTN needle roller bearing 8/12/10 | Sachs 50/2, 503 (A1176)

Bearing type: Needle sleeve · Stock number: HK0810 · Dimension needle bearing: 8/12 x 10 · Width: 10 mm · Manufacturer: NTN · Ø outside: 12 mm · Ø inside: 8 mm · Pony OEM number: A1176 · Sachs OEM no.: 0232 137 000

NSK 6000 ball bearing 10/26/8

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6000 · Width: 8 mm · Inner ring width: 8 mm · Manufacturer: NSK · Ø outside: 26 mm · Bearing clearance: CN (standard) · Ø inside: 10 mm

Oil seal NBR 15/30/9 B DUO crankshaft | Sachs 503 ADV, AB, AC (A1832)

Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Width: 9 mm · Place of use: Crankshaft · Manufacturer: Sachs · Material: NBR · Ø inside: 15 mm · Ø outside: 30 mm

swiing® revival gasket set | Sachs 503 ADV wide wall Cat.

Material: Copper · Material: Fiber · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Manufacturer: swiing® revival parts · Number of components: 15 pcs · Area of application: Standard · Ø outlet inside: 23.3 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 56 x 56 · Decompressor: No

Engine revision set | Sachs 503 ADV wide screen Cat.

Manufacturer: NSK · Manufacturer: NTN · Area of application: Standard
