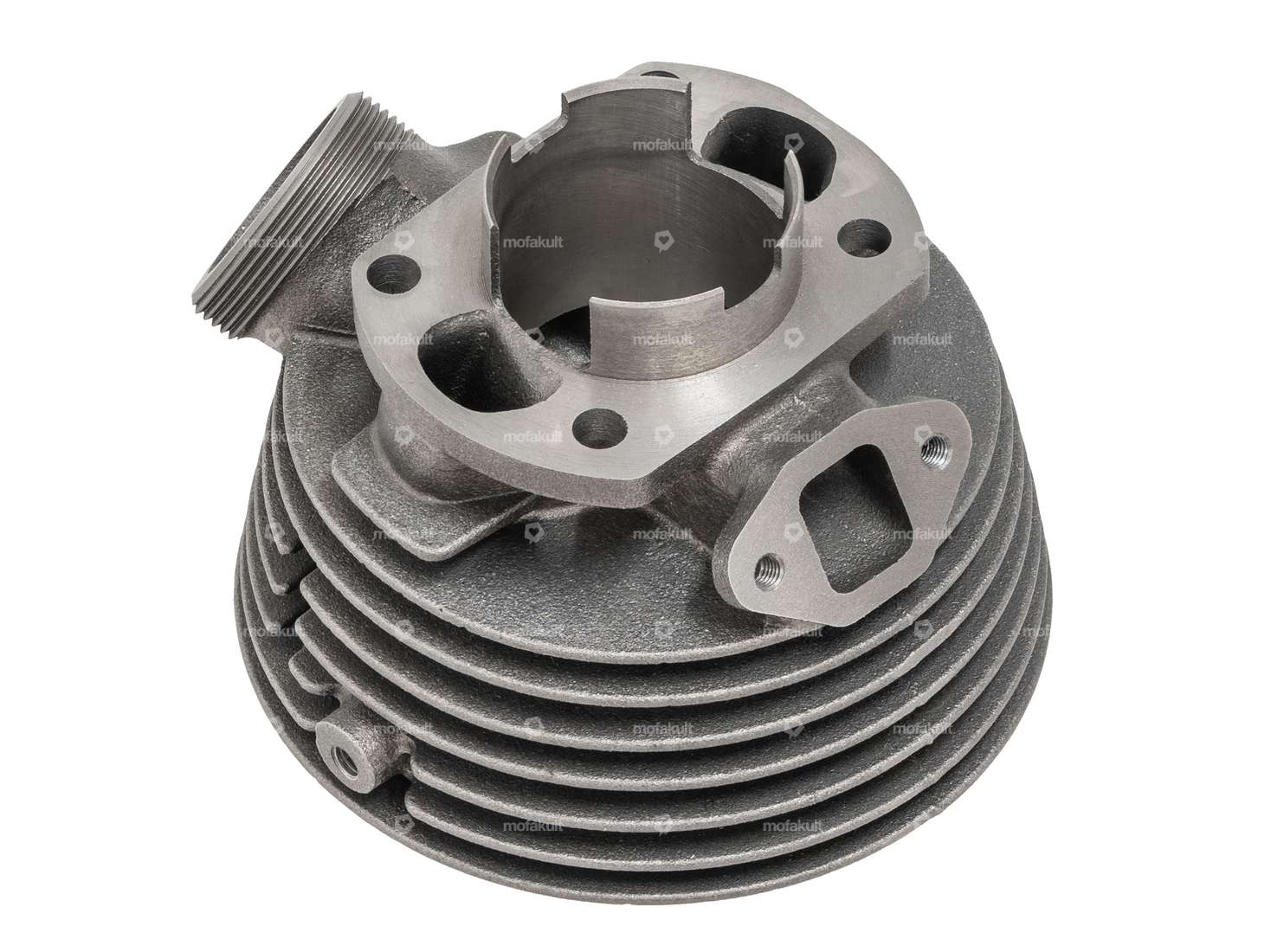

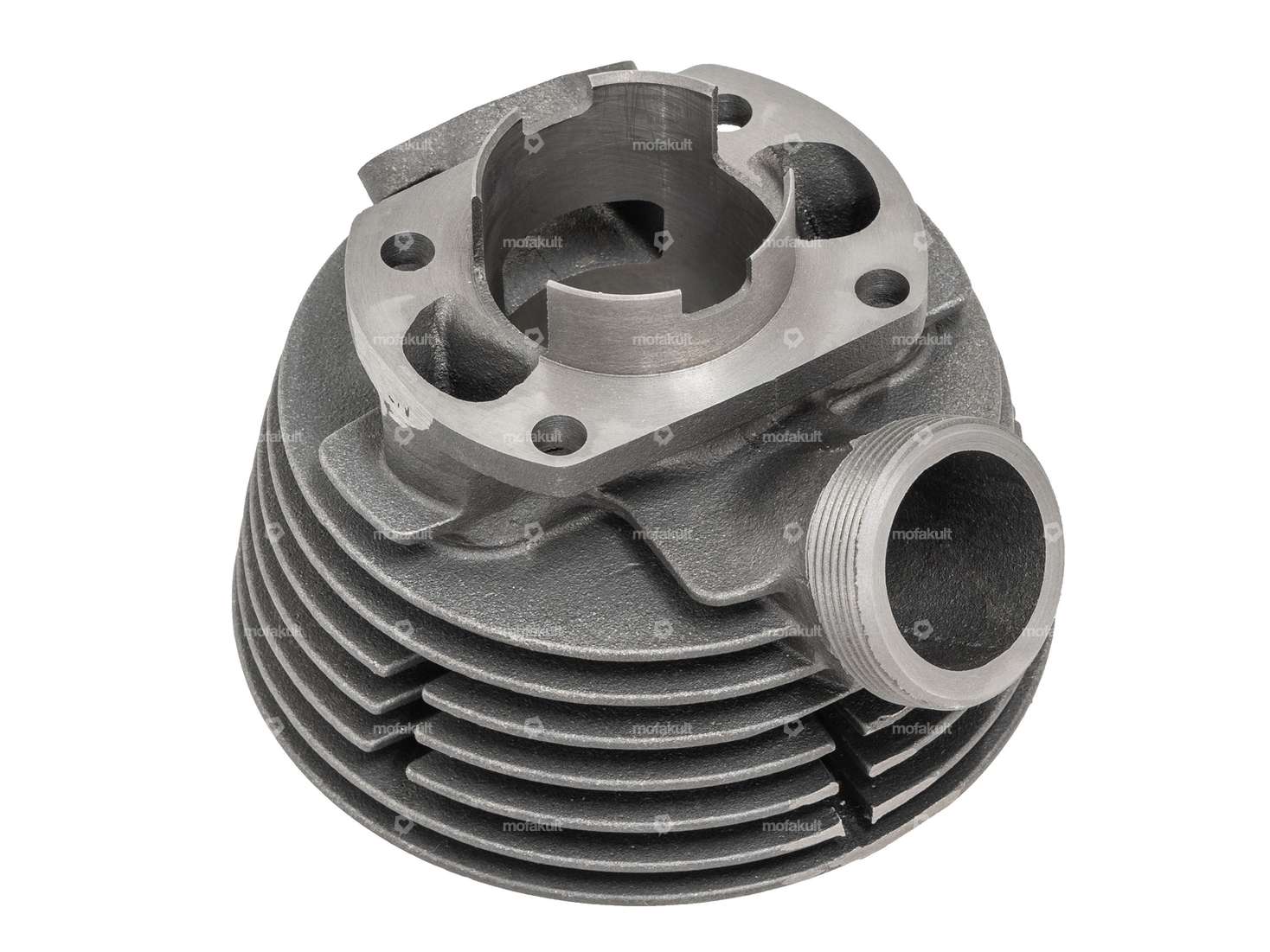

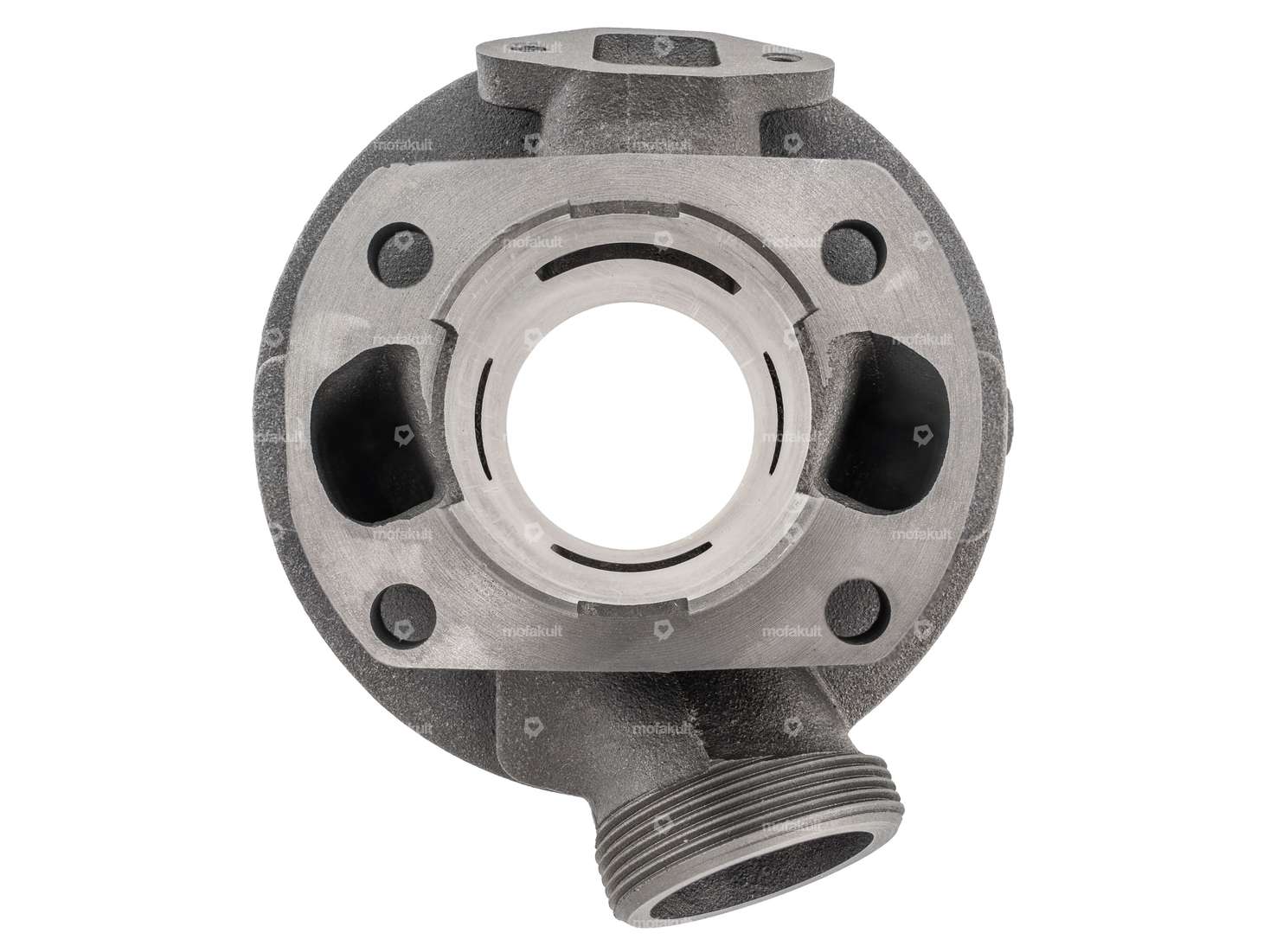

Fan-cooled 41 mm tuning cylinder with a square intake, suitable for your small motorcycle equipped with a Sachs 50/3 (DE) or 50/4 (DE) engine with large fan cooling.
The cylinder is suitable for Sachs 3- and 4-speed engines, which were installed in models such as the Hercules 50/3 LS, 50/4 LKH, Gritzner, and other small motorcycles. The square inlet is designed for use with a 17 mm Bing SSB carburetor.
Exhaust thread: M40x1.5 mm
Note: The cylinder is shipped loose and does not include a piston, gasket set, studs, or other mounting parts.
You can find the matching 17 mm Bing SSB carburetor and other mounting parts in the accessories section.
A good, affordable standard replacement part. GPO – GOOD PARTS ONLY.
| Manufacturer | GPO |
| Material | Gray cast iron |
| Displacement | 55 ccm |
| Crankshaft stroke | 42 mm |
| Nominal diameter | 41 mm |
| Hole spacing inlet | 31 mm |
| Camouflaged | No |
| Number of fixing points | 4 pcs |
| Outlet type | Union nut |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) |
