Intermediate plate "Triple Clutch" | Puch E50

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival gearbox cover gasket 0.3 mm engine | Puch E50

Thickness: 0.35 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Number of components: 1 pcs · Color: sand-colored · Ø inside: 106 mm · Ø outside: 116 mm · Number of fixing points: 4 pcs · Puch OEM number: 349.1.10.349.1

Centrifugal multi-plate clutch "Triple-Clutch" High End | Puch E50

Manufacturer: Made in Switzerland · Area of application: Cross · Area of application: High End · Area of application: Racing · Area of application: Tuning

Clutch cover "Triple-Clutch" | Puch E50

Manufacturer: Made in Switzerland · Material: Aluminum · Surface: anodized · Color: black · Ø inside: 30 mm · Ø inside: 107 mm · Height: 38.5 mm · Total length: 116 mm · Ø outside: 116 mm · Number of fixing points: 4 pcs · Width: 116 mm

Clutch lining "Triple Clutch" Carbon | Puch E50

Manufacturer: Made in Switzerland · Material: Carbon · Area of application: Racing · Material: Steel · Thickness: 2.6 mm · Ø inside: 50.9 mm · Ø outside: 73.9 mm · Ø outside: 80.3 mm · Number of slats: 1 pcs

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Cable length: 2200 mm · Area of application: Standard

Rito Crankshaft Racing | Puch E50

Material: Steel · Manufacturer: Rito · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Weight: 970 g · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Thread length: 11 mm · Thread length: 14 mm · Ø crank webs: 69.9 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Area of application: Racing · Area of application: Tuning · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm

swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage

Bearing cage: Silver cage · Ø inside: 12 mm · Manufacturer: swiing® ingenious parts · Ø outside: 15 mm · Bearing type: Needle roller and cage assembly · Width: 16.2 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos OEM number: 035548

Cable sheath Ø 5 mm black (per meter) PTFE inner sheath

Ordering unit: Per meter · Color: black · Total length: 1000 mm · Coating: PTFE (colloquially known as Teflon) · Ø cable: 1.5 mm · Ø inside: 1.8 mm · Ø outside: 5 mm

swiing® revival gasket gearbox cover engine 0.5 mm | Puch E50

Thickness: 0.5 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Number of components: 1 pcs · Color: sand-colored · Ø inside: 106 mm · Ø outside: 116 mm · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® ingenious crankshaft "High End" | Puch E50

Manufacturer: swiing® ingenious parts · Thread length: 11 mm · Thread length: 15 mm · Material: Aluminum · Area of application: High End · Area of application: Racing · Material: Steel · Area of application: Tuning · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Weight: 968 g · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm

BGS steel brush with wooden handle

Manufacturer: BGS · Material: Steel · Area of application: Workshop accessories · Total length: 300 mm

swiing® ingenious plain bearing 15/17/21.75 Clutch basket "Racing" | Puch E50

Manufacturer: swiing® ingenious parts · Material: special bearing bronze · Nominal diameter inside: 15 mm · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 21.75 mm

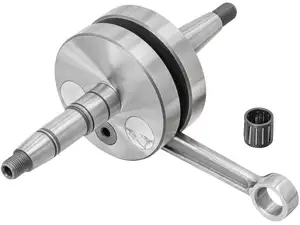

Jasil Evo Hi-Tech crankshaft full cheeks (new model) | Puch E50

Manufacturer: Jasil · Area of application: Racing · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Weight: 947 g · Total length crankpin ignition side: 68 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Thread type: MF10x1 (fine pitch thread) · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 10 mm · Thread length: 14 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 23.3 mm · Length 2nd paragraph: 25 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm

Rito crankshaft Racing (version 2023) (old model) | Puch E50

Manufacturer: Rito · Material: Aluminum · Area of application: Racing · Material: Steel · Area of application: Tuning · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Weight: 975 g · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Thread type: MF10x1 (fine pitch thread) · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 10.5 mm · Thread length: 12.5 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Alternative version of the Puch OEM number: 349.1.10.015.0
