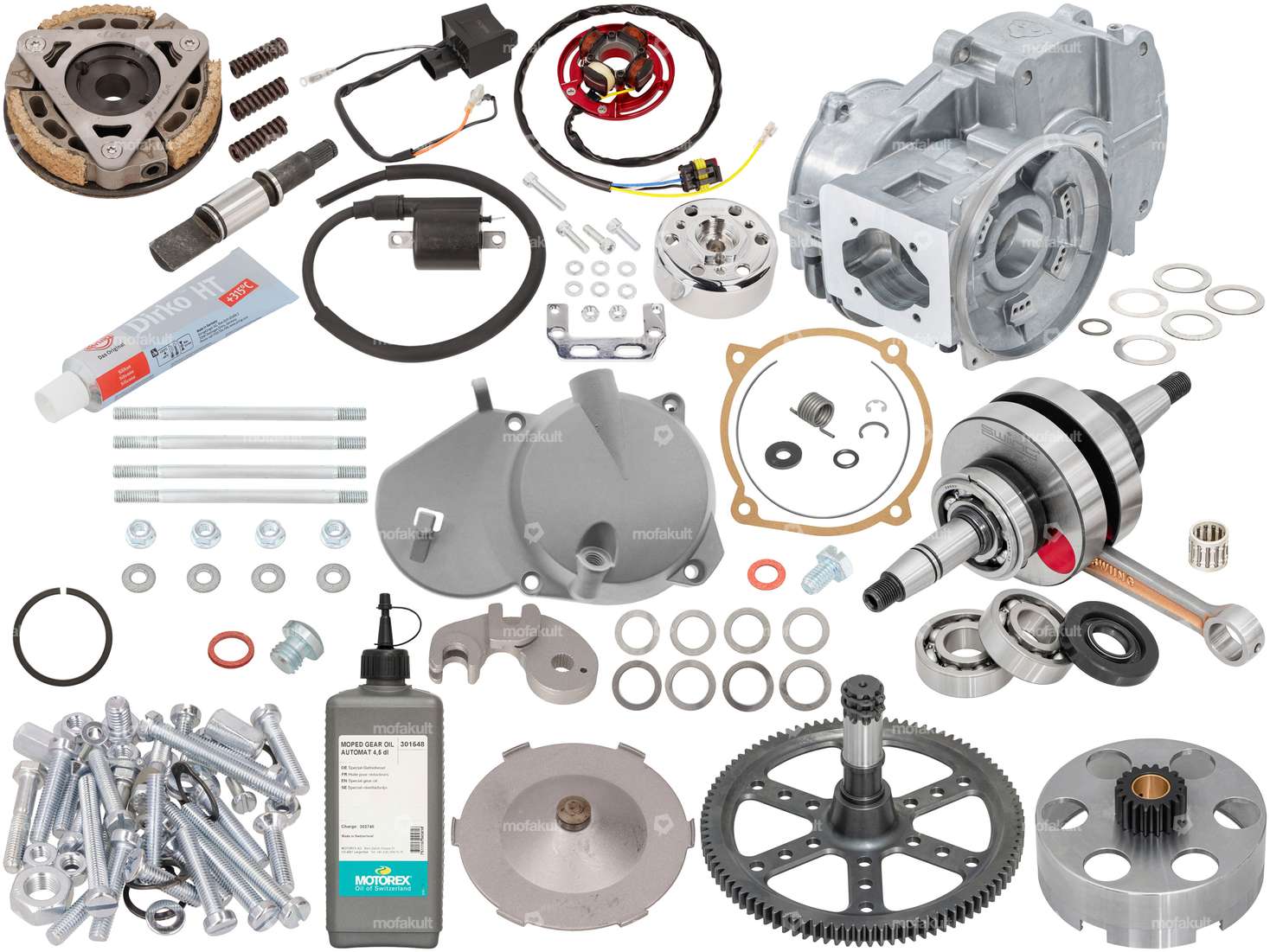

E50 racing engine kit with electronic ignition, compatible with your Puch Maxi S & N and Supermaxi moped.
This engine kit comes with all the necessary racing parts—not just to make semmelknödel with your Austrian rocket, but to catapult your racing moped all the way to the moon.
The ADDY racing crankcase in the 4-bearing version features various improvements and optimizations over the original crankcase, such as an enlarged sealing surface, preparation for GME intake systems, extra-large cooling fins, and more space for larger overflow channels.
For the drivetrain, a 3-jaw clutch with aramid linings and a straight-toothed clutch basket with a spur gear in an 18:94 ratio from the manufacturer MBR ensure that the power delivered by the engine is properly transferred to the asphalt.
To make installation and commissioning of the engine block set even easier for you, the package also includes a high-quality crankshaft with pre-mounted bearings and a 12V electronic racing ignition system.
In the selection field, you can choose between a housing with a cylinder neck diameter of Ø 48.4 mm and a tapered version with a Ø 52 mm mounting.
Please also select the desired racing ignition system, crankshaft, tuning clutch, and clutch lever from the selection field.
Notes:
This base engine kit is shipped in individual parts. A cylinder kit is not included.
The straight-cut gear components are matched to each other and must be installed and used as a set.
When you purchase this complete set, you’ll receive a substantial discount on the retail price of the individual parts.
You can find matching racing cylinders and complete tuning sets in the accessories section.
Manufacturer: Elring · Area of application: Chemistry · Contents: 70 ml · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Material: Silicone · Color: gray · Gap dimension (max.): 2 mm · Temperature resistance (min.): -60 - 315 °C
Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Area of application: Standard · Ø inside: 15 mm, 17 mm · Ø outside: 22 mm, 24 mm · Thickness: 1.1 mm, 1.3 mm, 1.5 mm, 1.7 mm
Manufacturer: Surflex · Material: Steel · Surface: galvanized (blue) · Ø outside: 100 mm, 94.5 mm · Area of application: Original
Manufacturer: swiing® revival parts · Material: Spring steel · Area of application: Original · Place of use: Clutch · Ø inside: 100 mm · Ø outside: 104 mm · Thickness: 2 mm · Puch OEM number: 349.1.12.009.1
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Total length: 106 mm · Thread length: 13 mm, 18.5 mm · Width across flats: 10 mm · Drive: External hexagon · Alternative version of the Puch OEM number: 360.1.10.034.1 · Nominal diameter (thread): 6 mm
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue)
Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002
Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Thickness: 0.5 mm · Ø inside: 106 mm · Ø outside: 116 mm · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1
Material: Aluminum · Number of fixing points: 4 pcs · Puch OEM number: 349.5.10.335.1
Material: Steel · Surface: galvanized (blue) · Thread type: M10x1.5 (standard thread) · Drive: Slot · Screw head: Lens head · Ø External head: 14 mm · Total length: 14.6 mm · Thread length: 6 mm · Number of components: 2 pcs · Puch OEM number: 364.1.10.660.1 · Manufacturer: swiing® revival parts · Nominal diameter (thread): 10 mm
Material: Steel · Total length: 79.2 mm · Ø outside: 13.95 mm · Area of application: Standard
Manufacturer: swiing® revival parts
Manufacturer: swiing® revival parts · Material: Steel, Fiber · Surface: galvanized (blue) · Area of application: Standard · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Width across flats: 13 mm · Total length: 12 mm · Puch OEM number: 901.1053 · Nominal diameter (thread): 8 mm
Manufacturer: Puch · Puch OEM number: 901.4656
Manufacturer: MBR · Material: Steel · Recording type: Interlocking · Toothing type: straight toothed · Number of teeth: 18 pcs · Ø Receptacle: 31 mm · Ø inside: 15 mm, 17 mm · Ø outside: 99.5 mm · Height: 49 mm · Area of application: Tuning
Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Number of teeth: 94 pcs · Recording type: Interlocking · Ø outside: 145 mm · Ø axle: 17 mm
| Puch | E50 |
