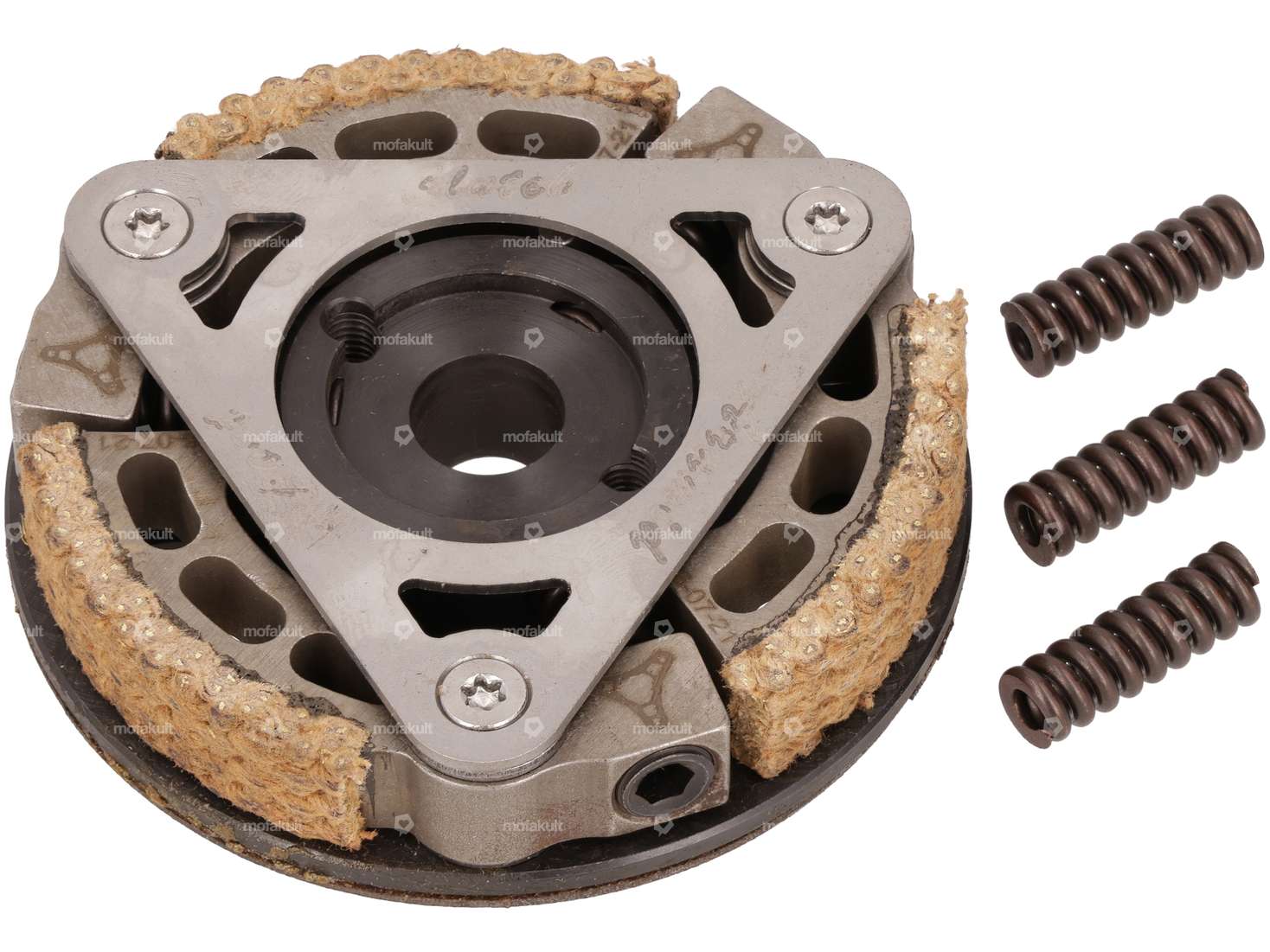

High-quality three-jaw special clutch with woven aramid linings (commonly known as Kevlar) for your Puch moped with an E50 engine.
The plates of the centrifugal clutch feature larger lubrication holes, which minimize wear and reduce the weight to just 265 g. All metal parts are made of tough, high-quality S355 steel, which guarantees exceptional durability even under high loads.
We deliberately omitted retaining rings from the clutch plates and replaced them with 1.5 mm-thick washers. The entire E50 clutch is secured with a reinforcement plate and Torx countersunk screws, making the engine-clutch assembly 1 mm thinner overall. This also prevents the reinforcement plate from rubbing against the clutch bells.
Note: This clutch is not suitable for kick-start engines.
You can find individual clutch plates as well as alternative tuning or racing clutches in the accessories section.
A quality product from the Austrian manufacturer A.S.P. – Puch Parts.
| Ø outside | 91.5 mm |
| Thickness | 21.5 mm |
| Manufacturer | ASP |
| Material | Steel |
| Area of application | Tuning, Racing |
| Material addition | Aramid (colloquially known as Kevlar) |
| Number of jaws | 3 pcs |
| Recording type | Cone mounting |
| Number of springs | 6 pcs |
| Puch | E50 |
