DR 38.4 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nut M7 Inox

Material: Chrome steel (colloquially known as stainless steel) · Thread type: M7x1 (standard thread) · Nut type: Hexagon nut · Width across flats: 11 mm · Drive: External hexagon · Height: 5.5 mm · Piaggio OEM number: 020107, 1107, 226745

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green · Area of application: Standard

Stud bolt M7 x 120 (budget)

Total length: 120 mm · Material: Steel · Surface: galvanized (blue) · Thread length: 25 mm · Thread type: M7x1 (standard thread)

38 mm cylinder head (reproduction) | Piaggio Ciao, Bravo, Boxer

Total length: 120 mm · Height: 62 mm · Ø cylinder: 38 mm · Width: 78 mm · Decompressor: Yes

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing cage: Sheet steel cage · Manufacturer: Malossi · Bearing type: Needle roller and cage assembly · Ø outside: 1 mm · Ø inside: 13 mm · Width: 14.5 mm · Dimension needle bearing: 10/13 x 14.5

Gasket cylinder base aluminum original | Piaggio Ciao, SI, Bravo, Boxer

Material: Aluminum · Place of use: Cylinder base · Thickness: 0.25 mm · Area of application: Original

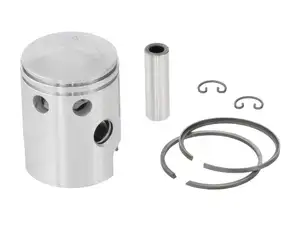

DR piston Ø 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: DR Racing Parts · Ø outside piston (A): 38.33 mm · Compression height (C): 26.4 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 10 mm · Weight piston kit: 78 g

NGK B5HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No

swiing® revival 0.3 mm cylinder base gasket | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Place of use: Cylinder base · Material: Oiled paper · Ø cylinder: 38 - 43 mm · Ø inside: 46 mm · Thickness: 0.3 mm · Piaggio OEM number: 182519

swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Material: Brass · Quantity: 10 pcs · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Total length: 8 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Ø axle: 5 mm · Material: Steel · Cable available: No · Ø mounting hole: 4.5 mm · Number of fixing points: 1 pcs · Area of application: Original · Area of application: Standard · Piaggio OEM number: 103133

SITO exhaust Ø 20 mm | Piaggio Ciao, Bravo

Manufacturer: SITO · Material: Steel · Surface: varnished · Total length: 605 mm · Color: black · Ø Silencer: 65 mm · Ø Internal connection: 22.5 mm · Ø Flame tube outside: 20 mm · Exhaust type: Cylindrical · Mounting type: Welded lug · Number of fixing points: 1 pcs · Flame tube attachment: Plug connection clamped

38 mm cylinder head (reproduction) | Piaggio Ciao, Bravo, Boxer

Total length: 120 mm · Height: 62 mm · Ø cylinder: 38 mm · Width: 78 mm · Decompressor: Yes

Air filter 2 hp replica | Piaggio Ciao, SI, Bravo, Boxer

Ø outside: 52 mm · Material: Plastic · Color: black · Filter type: Grille · Width: 98 mm · Height: 93 mm · Mounting type: Plug connection clamped · Ø Internal connection: 49.5 mm · Camouflaged: Yes · Area of application: Standard

Dell'Orto 12/12 SHA carburetor hand choke | Piaggio Ciao PX, C24

Nominal diameter: 12 mm · Color: black · Manufacturer: Dell'Orto · Total length: 55 mm · Width: 60 mm · Height: 110 mm · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: Tuning · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 18 mm · Nozzle size: 48 · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Ø Internal connection: 16 mm · Mixed oil connection: No · Vacuum connection: No · Mounting type: Plug connection clamped

SITO Exhaust Plus Ø 22 mm | Piaggio SI, KS, FL2, Boss

Manufacturer: SITO · Material: Steel · Mounting type: Welded lug · Color: black · Ø Flame tube outside: 22 mm · Exhaust type: Cylindrical · Number of fixing points: 1 pcs · Flame tube attachment: Plug connection clamped

Dell'Orto 12/12 SHA carburetor | Piaggio SI

Nominal diameter: 12 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Carburetor type: SHA (Piaggio) · Total length: 55 mm · Color: black · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 12 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.7 mm · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 49 · Area of application: Tuning · Width: 59 mm · Height: 117 mm

DR 38 mm everyday tuning set | Piaggio Ciao, SI

Nominal diameter: 38 mm · Manufacturer: DR Racing Parts · Manufacturer: Dell'Orto · Manufacturer: NGK · Manufacturer: SITO · Material: Gray cast iron · Displacement: 50 ccm
