For: Piaggio

20180

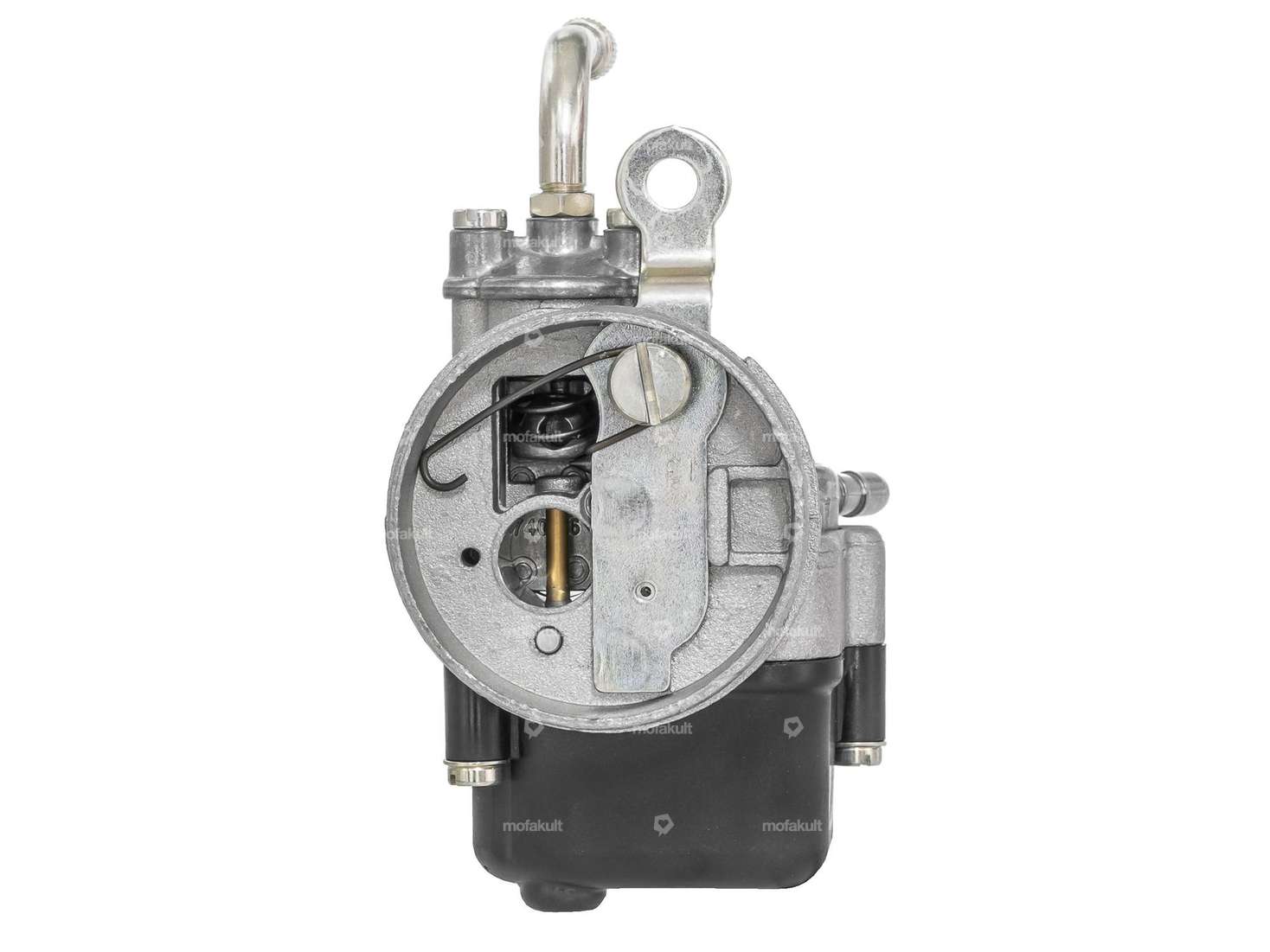

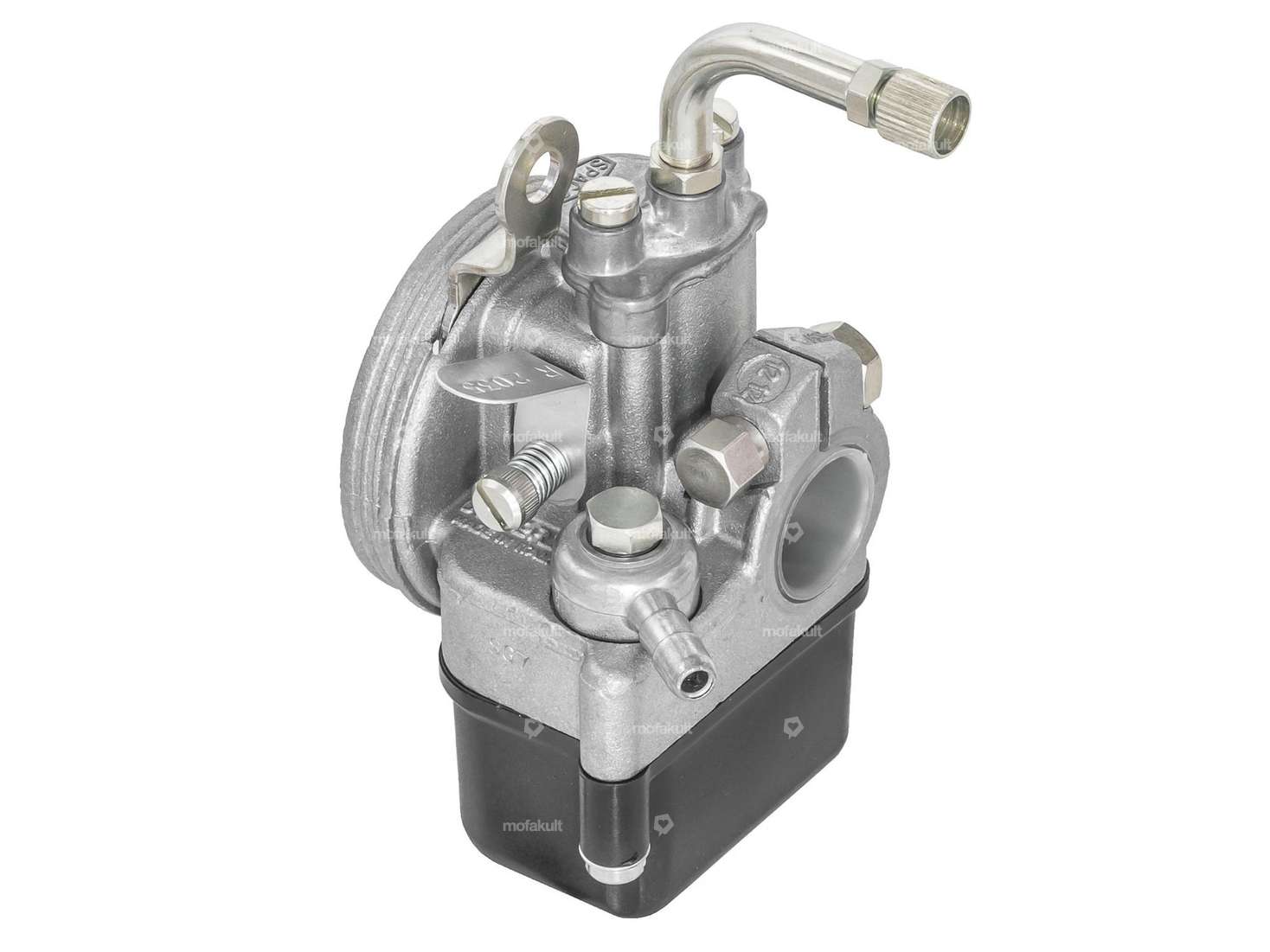

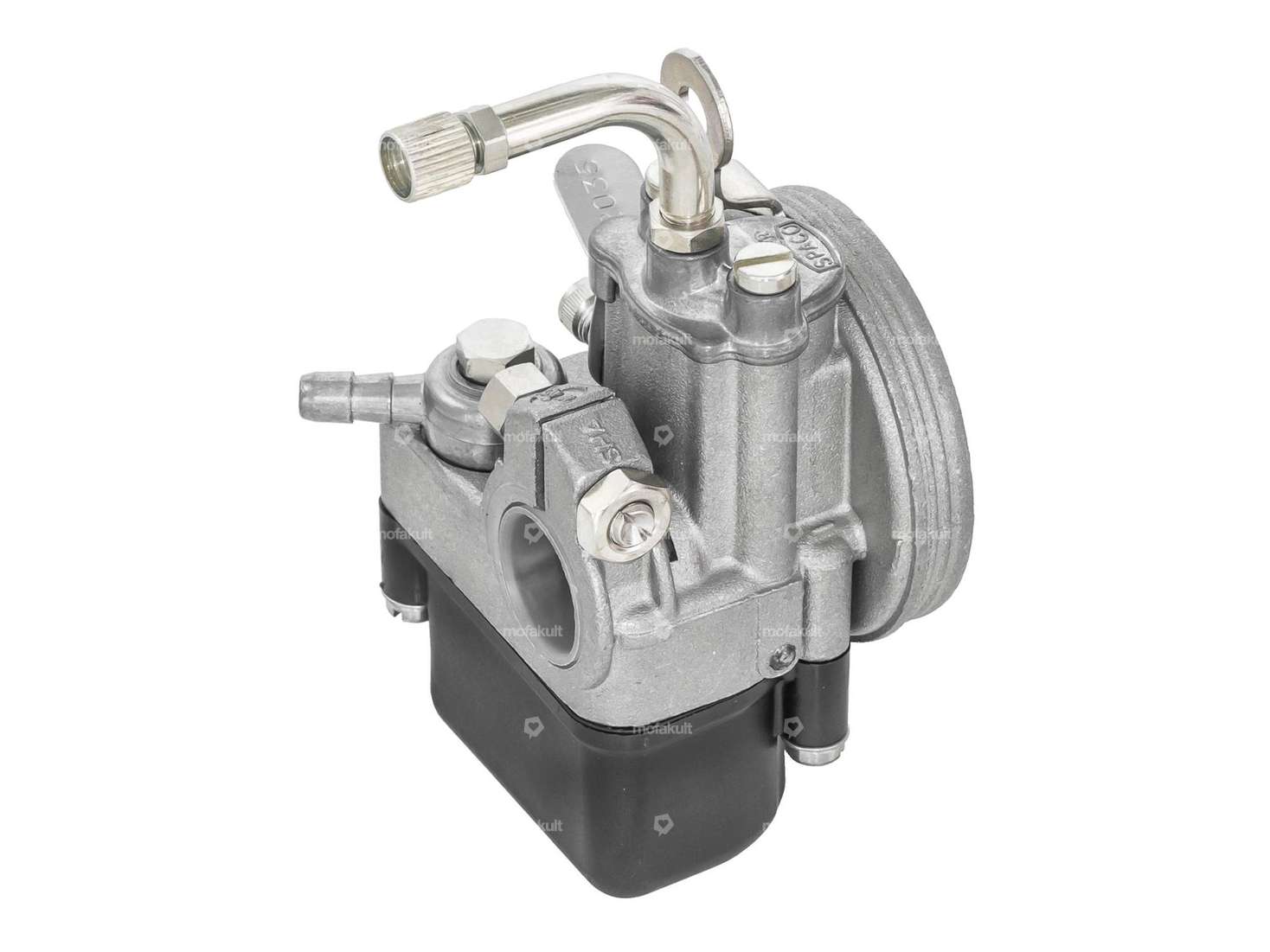

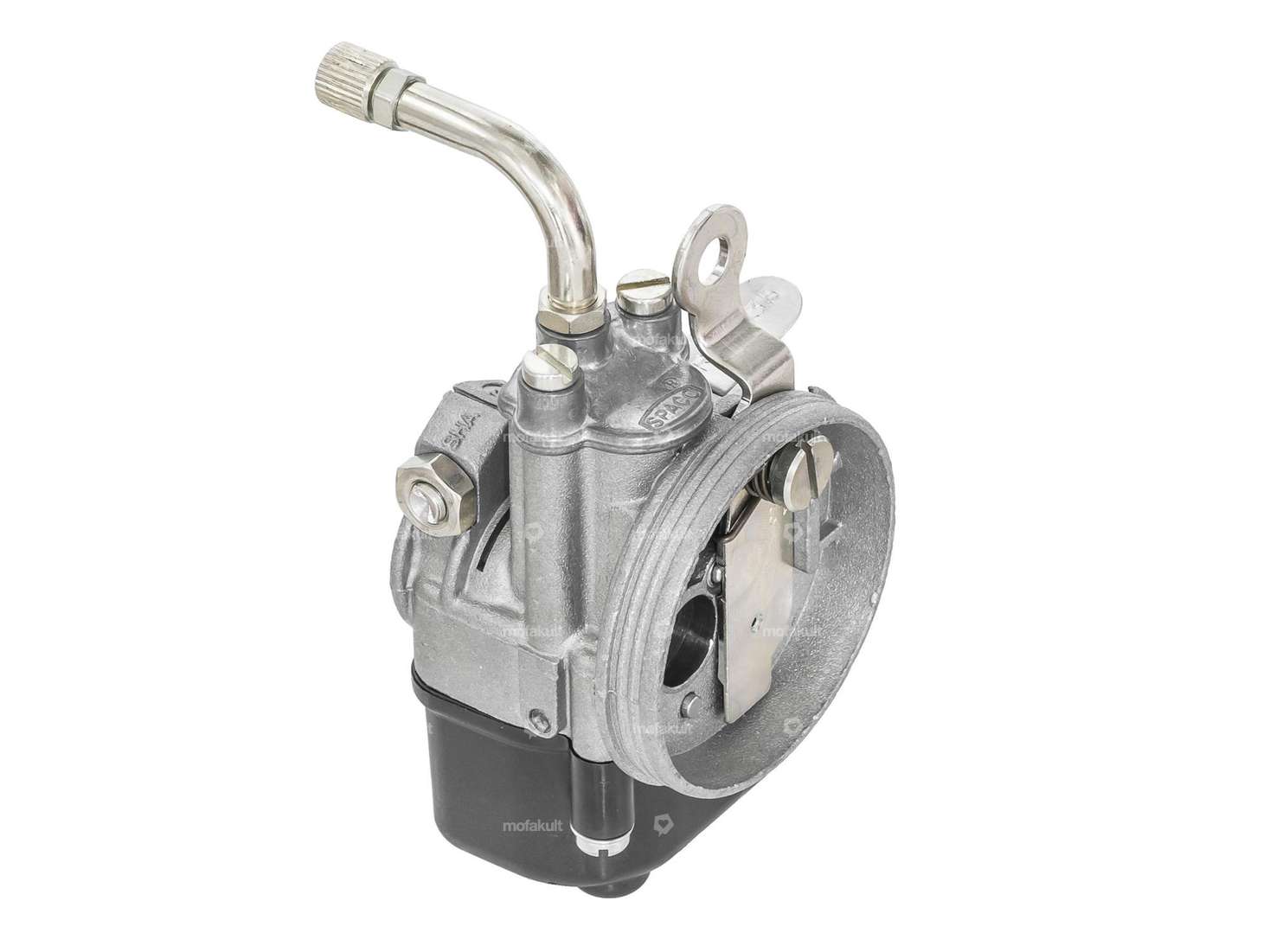

Dell'Orto 12/12 SHA carburetor hand choke | Piaggio Ciao PX, C24

EUR 77.60

Incl. 22% VAT.

Description

The Dell'Orto 12 / 12 SHA racing carburetor impresses with its compact design and can also be used universally for various mopeds, mopeds and small motorcycles in addition to your Piaggio Ciao.

The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).

Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 48
Inlet connection diameter: 16 mm (or 18 mm after removing the reduction sleeve)
Ø external air filter connection: 50.6 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 12 mm
Total height: 95 mm (without pipe bend)
Total length: 45 mm
Total width: 60 mm

You can find matching nozzles and air filters in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

Nominal diameter12 mm
Width60 mm
Height110 mm
ManufacturerDell'Orto
MaterialAluminum
Area of applicationTuning
Component group CarburetorCarburetor complete
Colorblack
Carburetor typeSHA (Piaggio)
Ø without reducing sleeve18 mm
Ø Internal connection16 mm
Ø Inside entrance12 mm
Ø Output inside12 mm
Ø Air filter connection50.6 mm
Ø fuel hose connection6 mm, 5.1 mm
Total length55 mm
Mixed oil connectionNo
Vacuum connectionNo
Mounting typePlug connection clamped
Choke controlHand choke
Nozzle threadM5x0.8 (standard thread)
Nozzle size48
CamouflagedNo
Piaggio

Ciao - PX , C24
