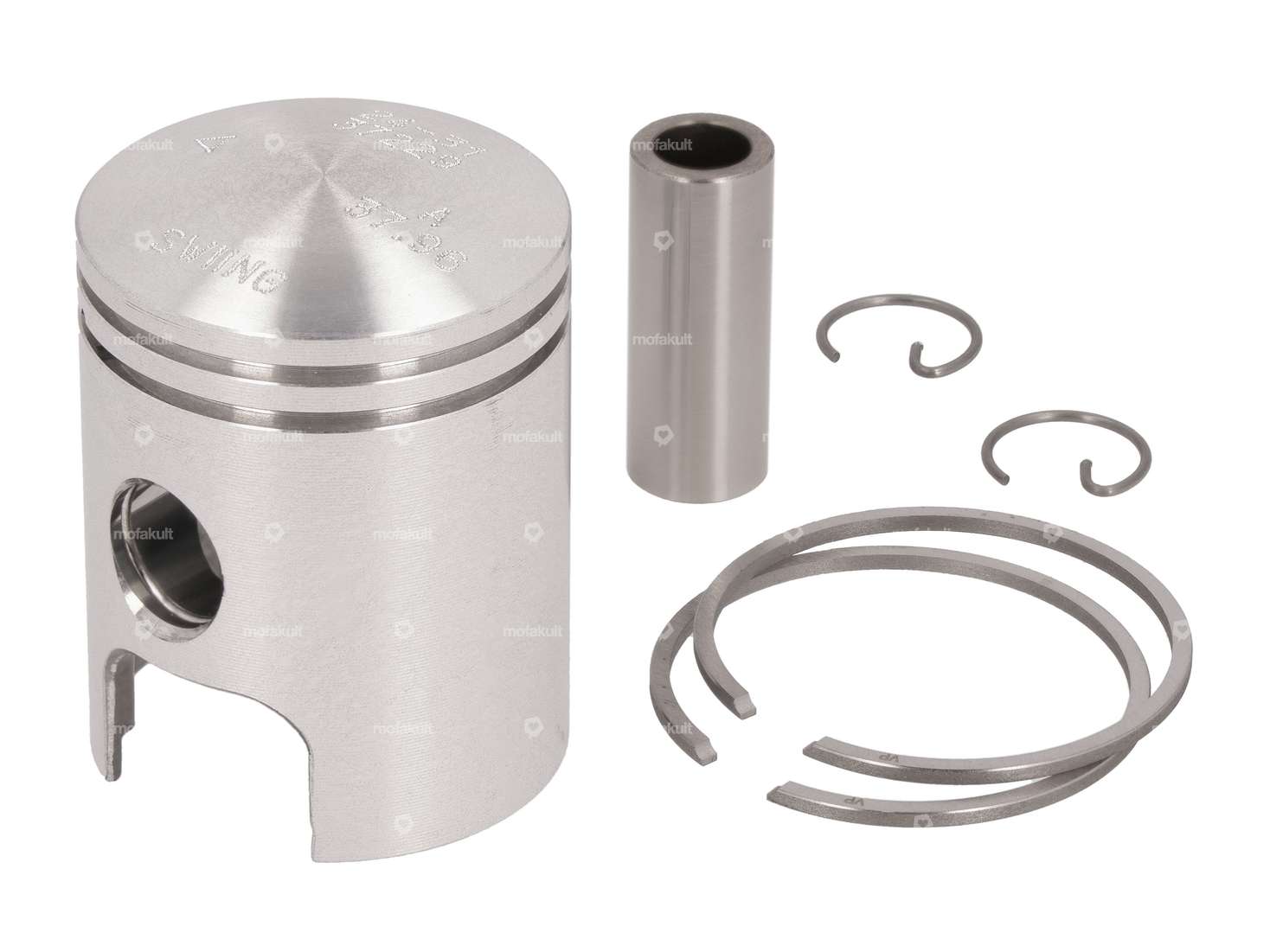

swiing® revival piston 38 mm Vertex | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 71.70

Incl. 22% VAT.

Description

38.0 mm Vertex piston with two 1.5 mm rectangular piston rings with flank lock (FS) suitable for Puch Maxi and X30 Sport NS/NL cylinders.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their positions and locking types on the legend in the pictures.
The piston is more durable and provides minimal additional power compared to the original piston. The Vertex piston manufactured for swiing is characterized by its high-quality and precise fit.

Manufacturerswiing® revival parts, Vertex
Nominal diameter38 mm
Ø outside piston (A)37.96 mm
Ø piston pin (B)12 mm
Compression height (C)22.45 mm
Curvature (D)3.5 mm
Total piston height (E)50.45 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Thick piston ring1.6 mm
Tolerance groupA
Weight piston kit71 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
