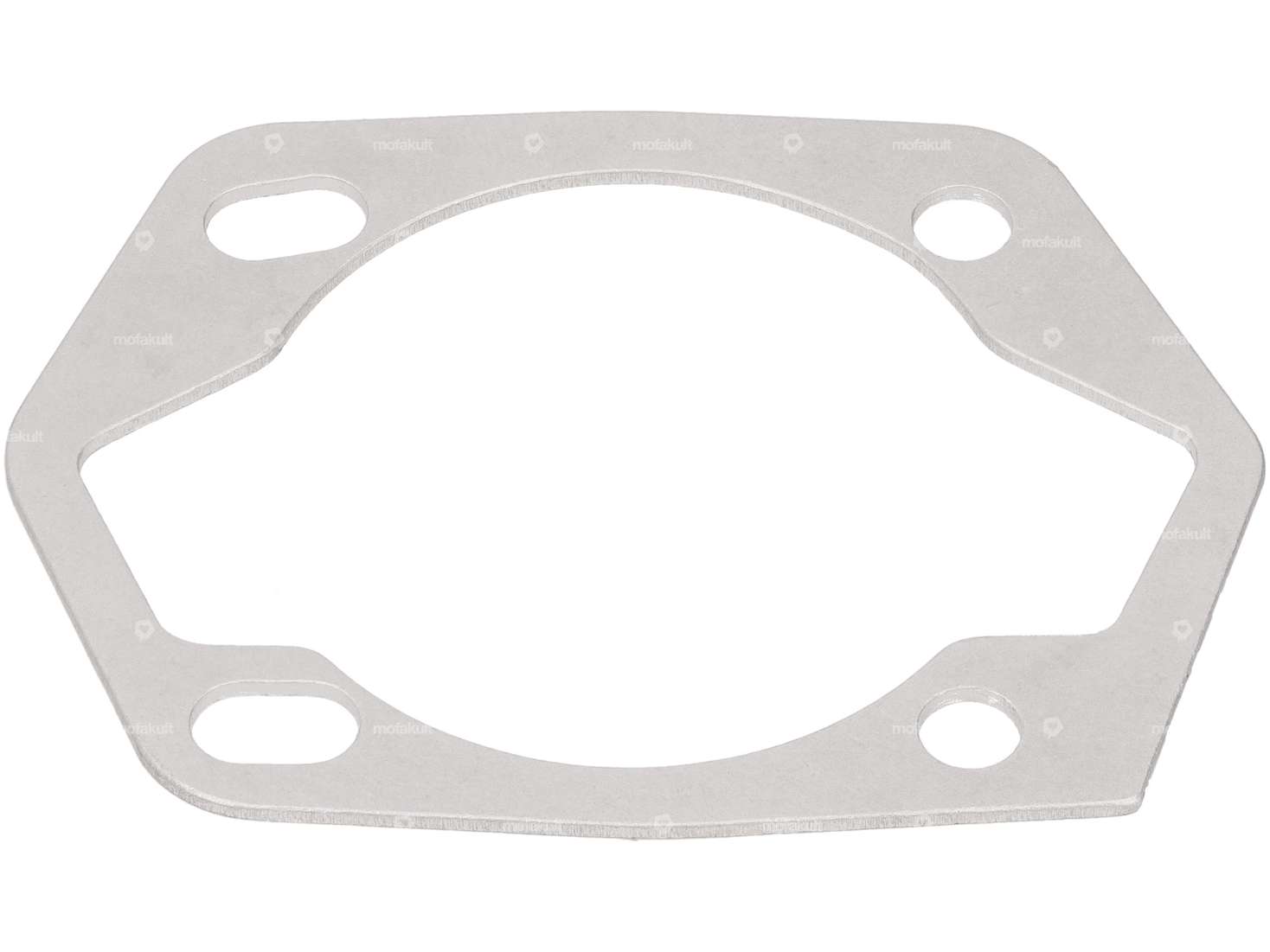

Aluminum stroke plate for your Zündapp Belmondo, Bergsteiger moped / moped with type 247 engine.
The spacer is mounted under the cylinder base. The "lifting" of the cylinder increases the intake and exhaust timing. Accordingly, the same distance of the spacer should be turned down at the top of the cylinder
so that the original squish edge dimension and compression ratio are maintained.
Material thickness (selection): 0.5 / 1.0 / 1.5 / 2.0 mm
Material: aluminum
Ø cylinder neck: 50 mm
Number of attachment points: 4 pieces
Matching cylinders, sealant and alternative stroke plates in various thicknesses can be found in the accessories section.
Exclusive product for the highest demands from the quality brand swiing®.
| Place of use | Cylinder base |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Surface | raw |
| Ø cylinder | 50 mm |
| Thickness | 0.5 mm, 1 mm, 1.5 mm, 2 mm |
| Area of application | Tuning |
| Zündapp | Belmondo (Type 247-71) Moped 25 (M 25) / Moped M 50 Bergsteiger (Type 247-434) |
