For: Puch

30785

Spare parts catalog | Puch Maxi N, S, S-Sport, SL (DE)

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 40.80

Incl. 22% VAT.

Description

Spare parts catalog (Germany) for Puch Maxi 1-speed and 2-speed automatic mopeds / mopeds.
The following types are described in the catalog:

  • Maxi N (1-speed)
  • Maxi S (1-speed)
  • Maxi S-Sport (1-speed)
  • Maxi SL (2-speed)

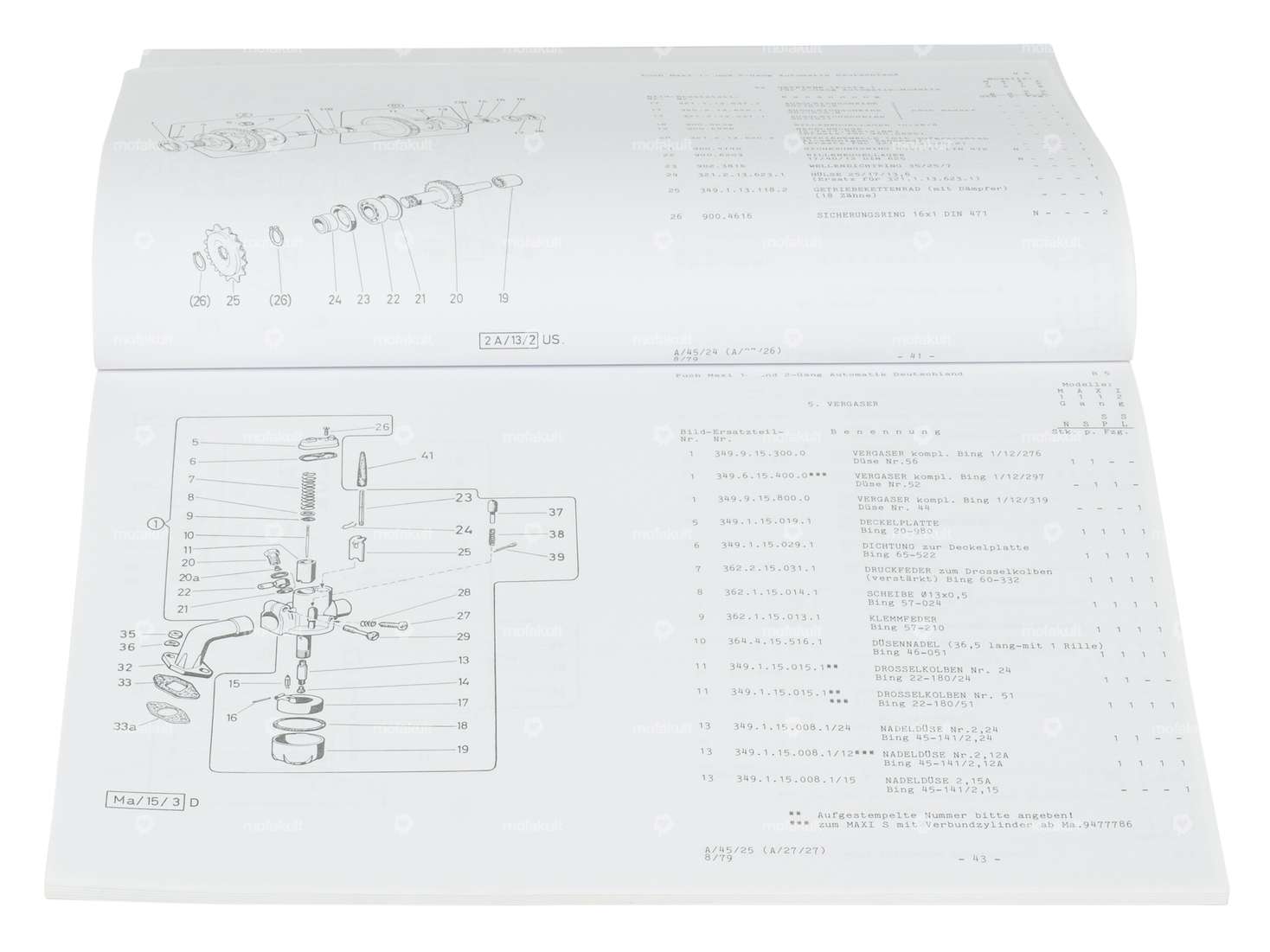

Each individual component is shown with the appropriate spare part number and the correct mounting location using numerous exploded drawings.

Format: A4 (210 x 297 mm)
Pages: 78
Language: German

High-quality facsimile (reproduction) of the original edition.

You can find more workshop manuals, operating and repair instructions in the accessories section.

MaterialPaper
DIN formatA4
Number of pages78 pcs
LanguageGerman
Width210 mm
Height297 mm
