Spare parts catalog for the Puch Maxi S model with catalytic converter.

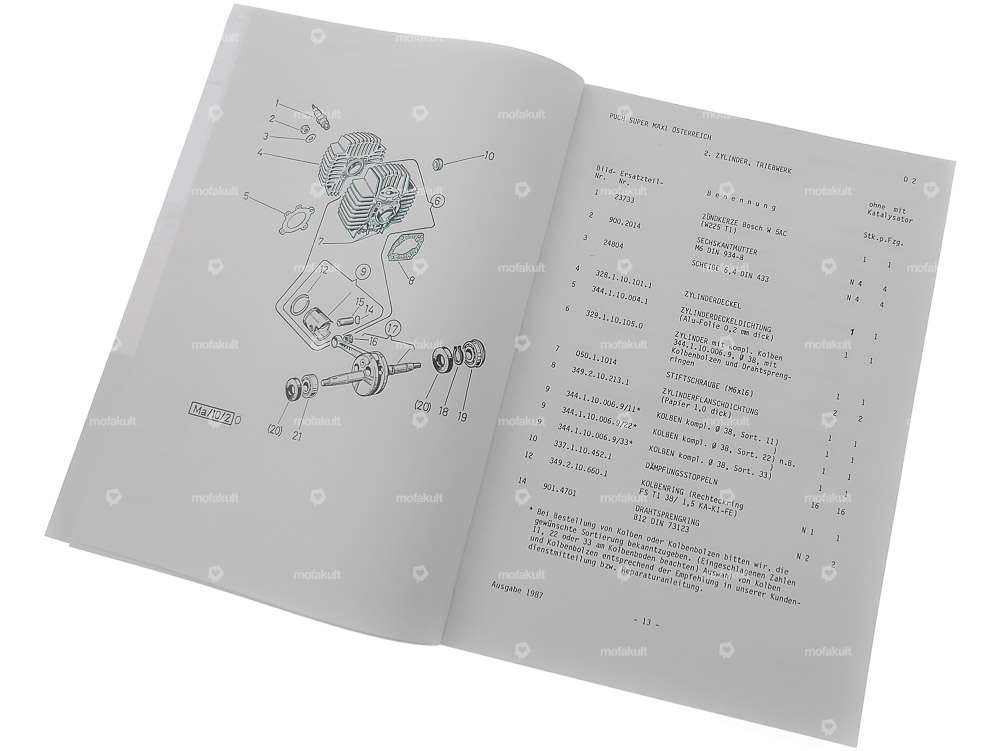

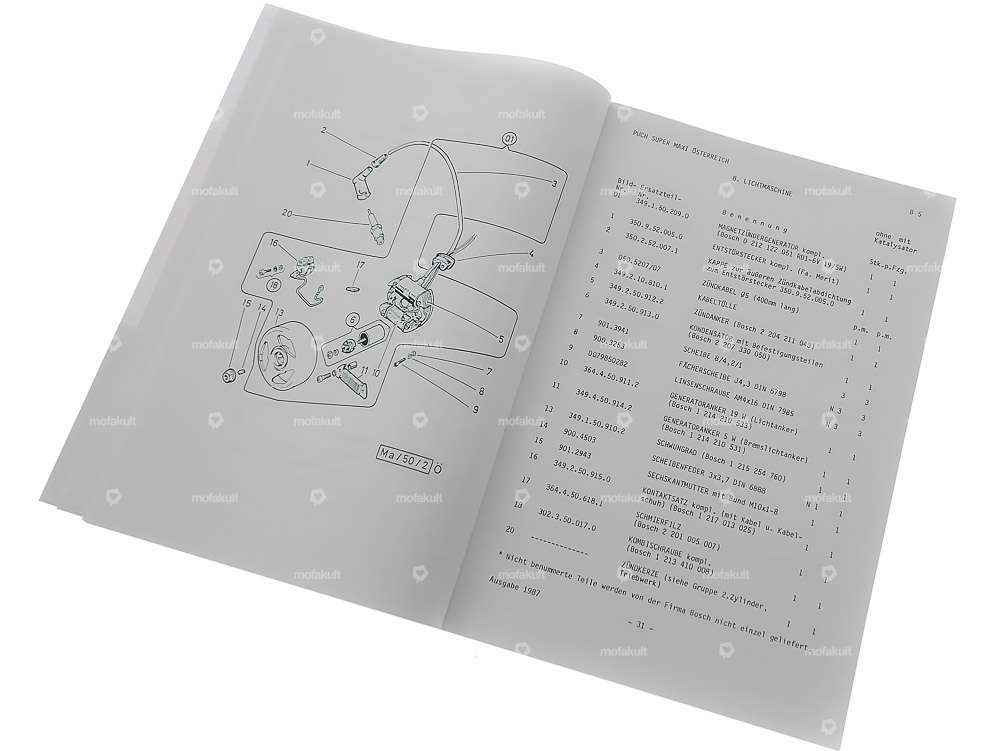

The complete moped was recorded in exploded drawings. Each individual component is provided with the quantity, spare part number and assembly location.
Superb Austrian catalog from 1987 with 78 interesting pages.
Details
| Material | Paper |
| DIN format | A4 |
| Number of pages | 78 pcs |
| Language | German |
Suitable for the following models
| Puch | E50 |
