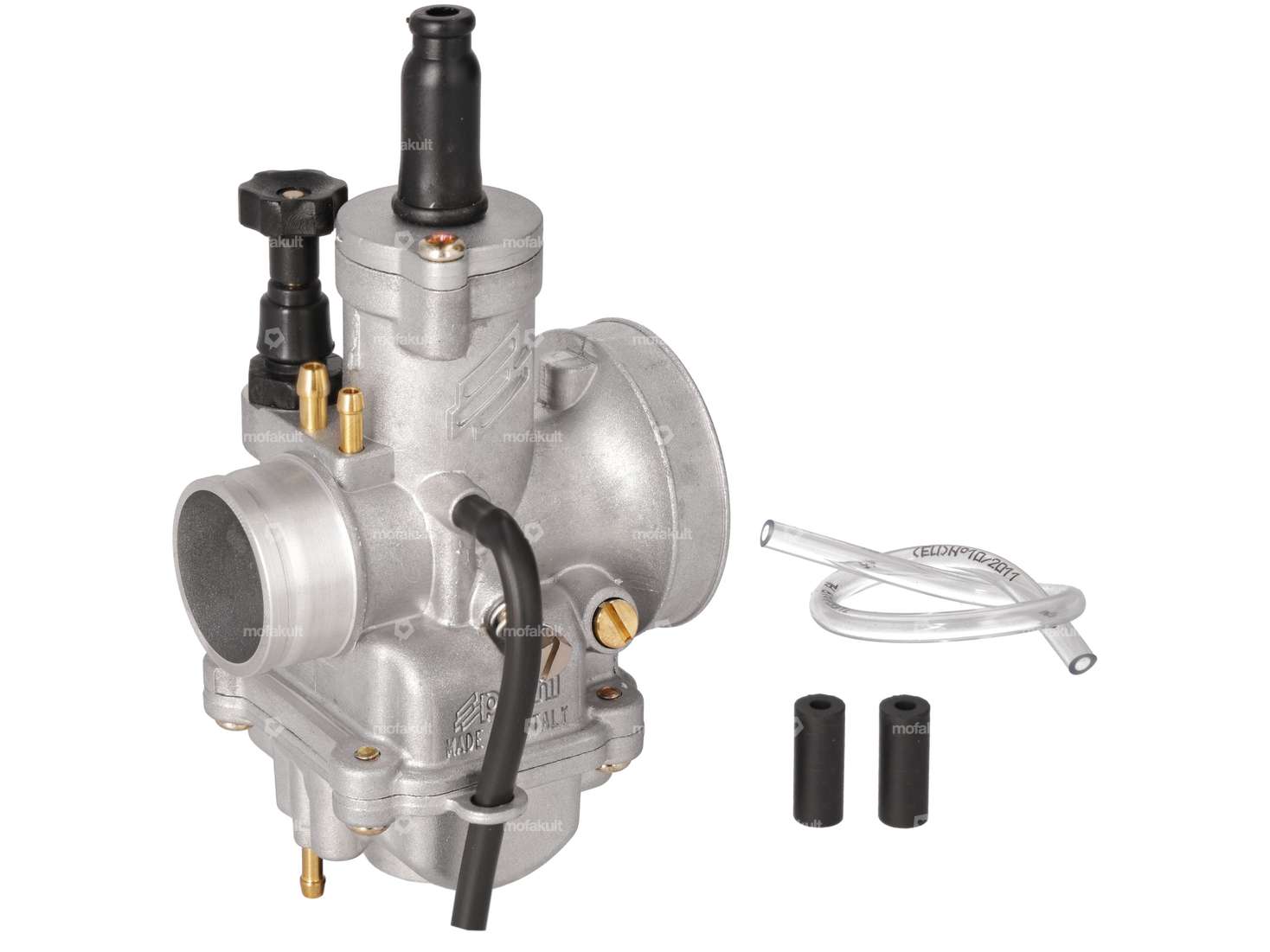

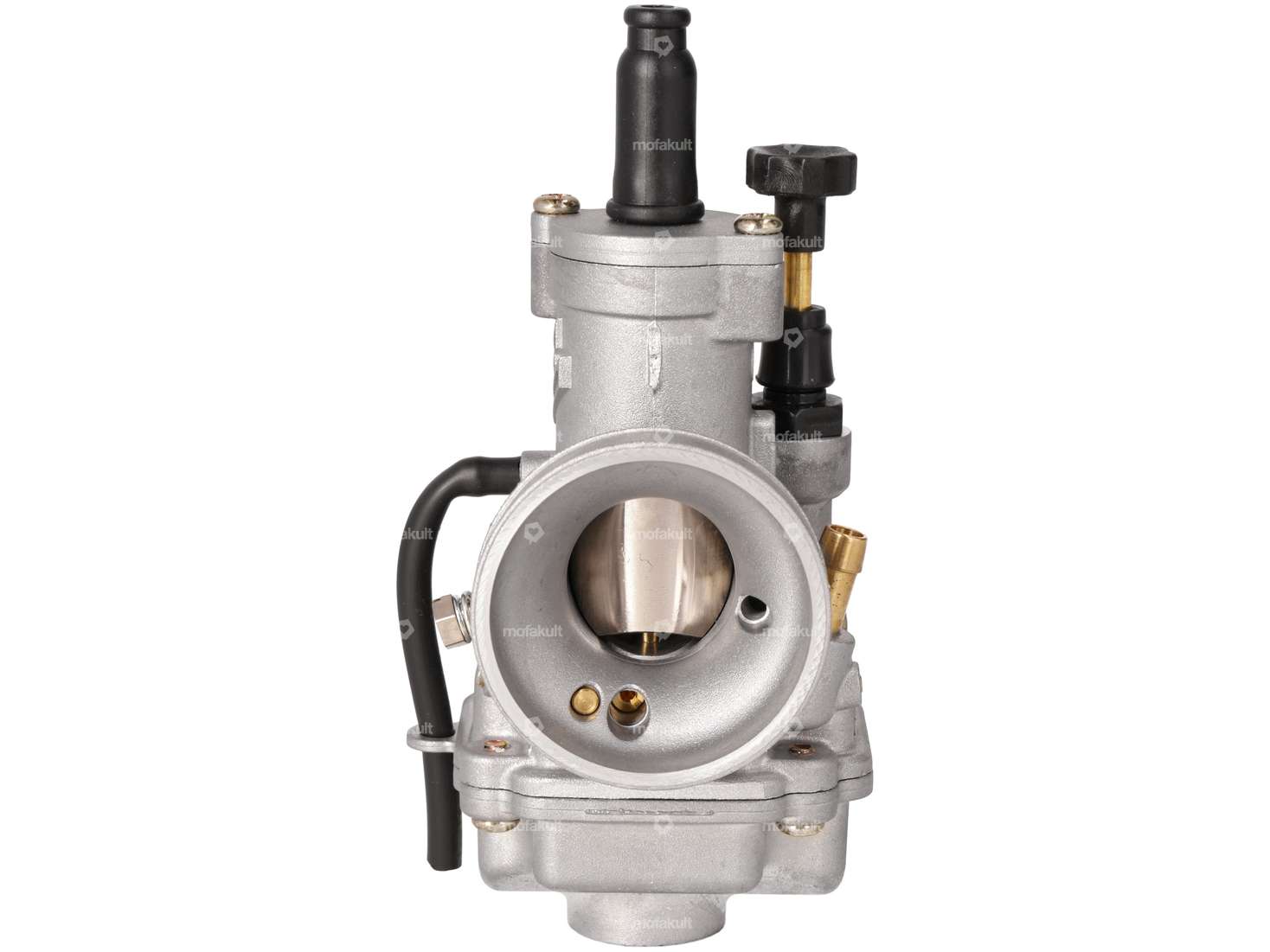

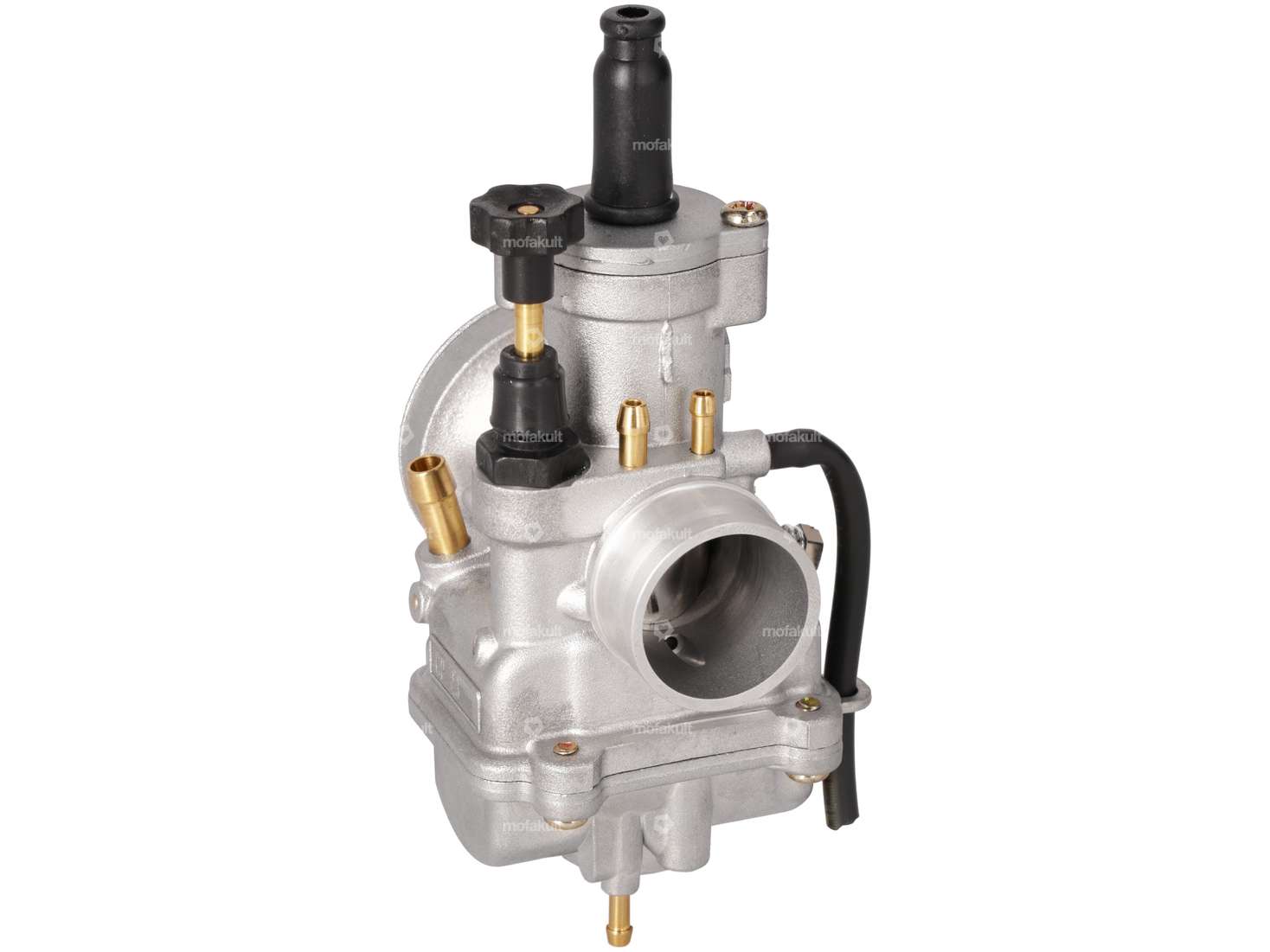

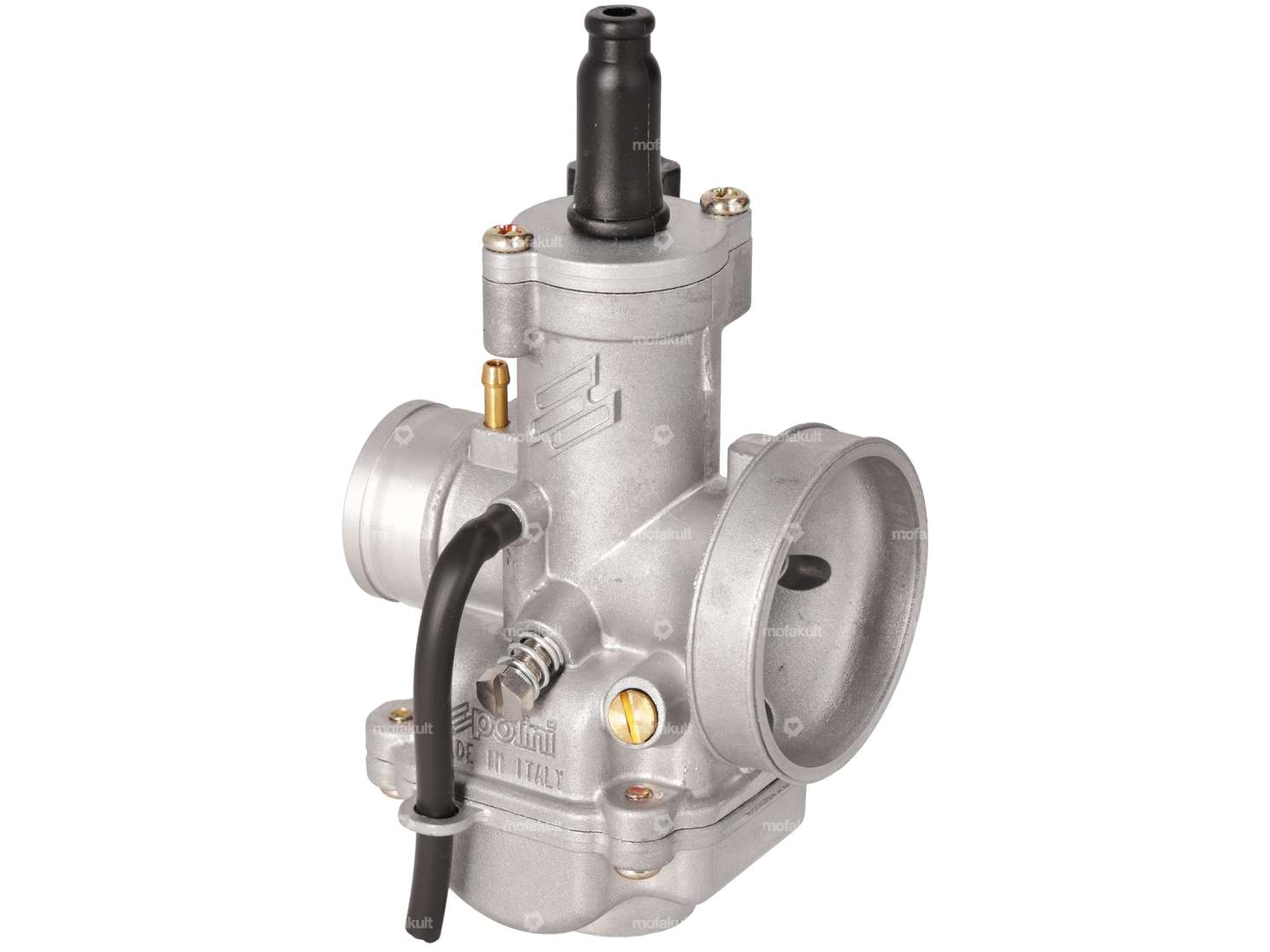

Polini has placed particular emphasis on size and weight in the development of the CP model; this carburettor is therefore particularly compact and around 40% lighter than traditional carburettors.
Due to the compact design, the intake path is very short. Unique is the concentric design of the passage, i.e. a circular passage instead of an oval one as with most other carburettors - a geometry that optimizes the air flow. Modifications to the mixing tube and the use of a larger needle ensure better atomization of the gas mixture.
This should simplify the tuning of the carburettor and enable high performance with low consumption. All CP carburettors have an oil and vacuum connection.
The choke is located directly on the carburettor and must be operated manually.
Quality product from the Italian manufacturer Polini.
| Manufacturer | Polini |
| Camouflaged | No |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Area of application | Tuning, Racing, High End, Performance |
| Carburetor type | CP |
| Mounting type | Plug connection clamped |
| Nominal diameter | 23 mm |
| Choke control | Hand choke |
| Width | 66 mm |
| Ø fuel hose connection | 7 mm, 6 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Height | 136 mm |
| Nozzle size | 110 |
| Total length | 71.3 mm |
| Ø Inside entrance | 23 mm |
| Ø Output inside | 23 mm |
| Ø Air filter connection | 46 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Size of secondary nozzle | 40 |
