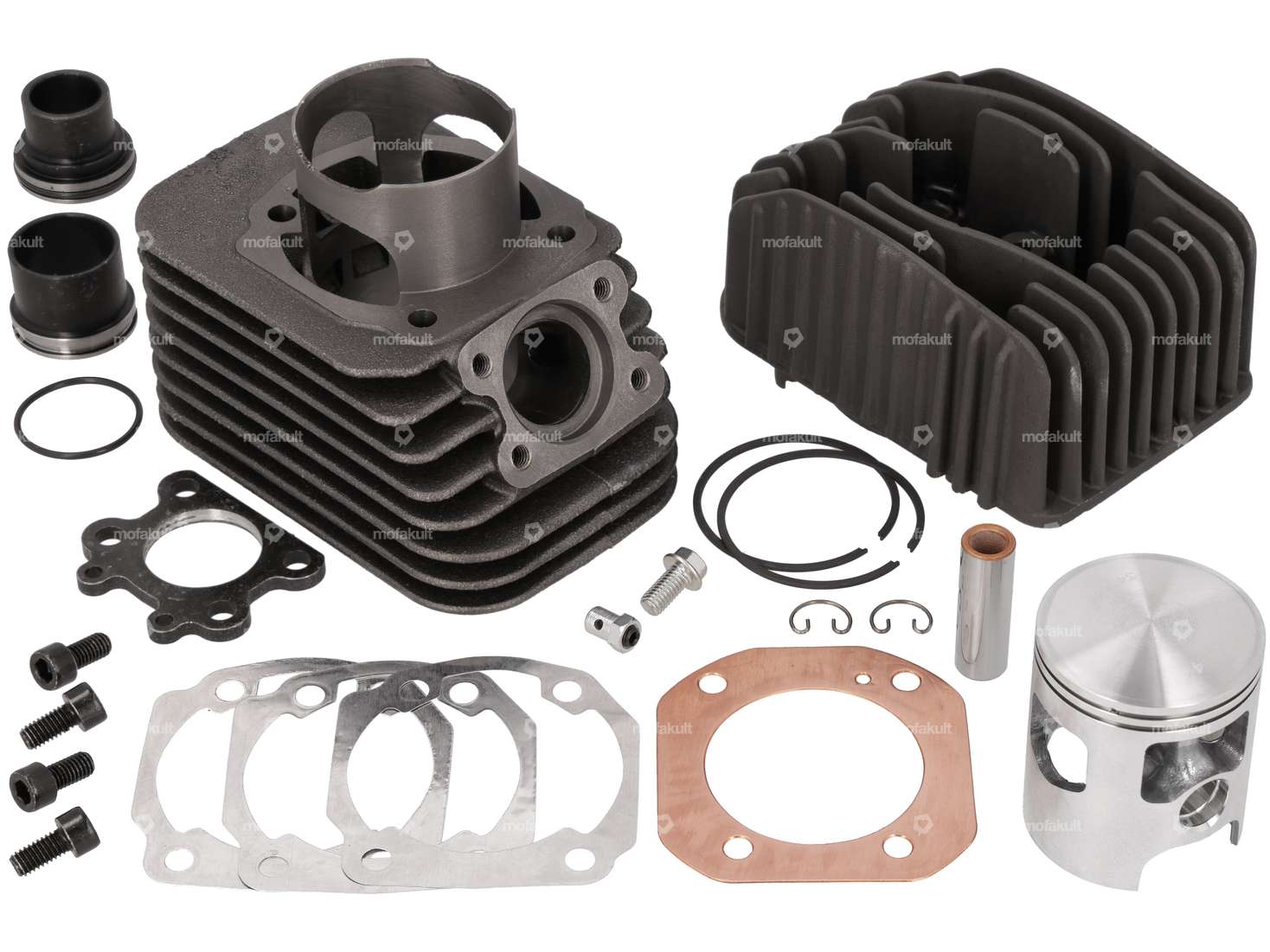

Polini racing kit with 47 mm diameter and approx. 75 cc displacement for your Piaggio Ciao, Si, Bravo and Grillo moped / moped with corresponding Polini EVO REED engine housing.

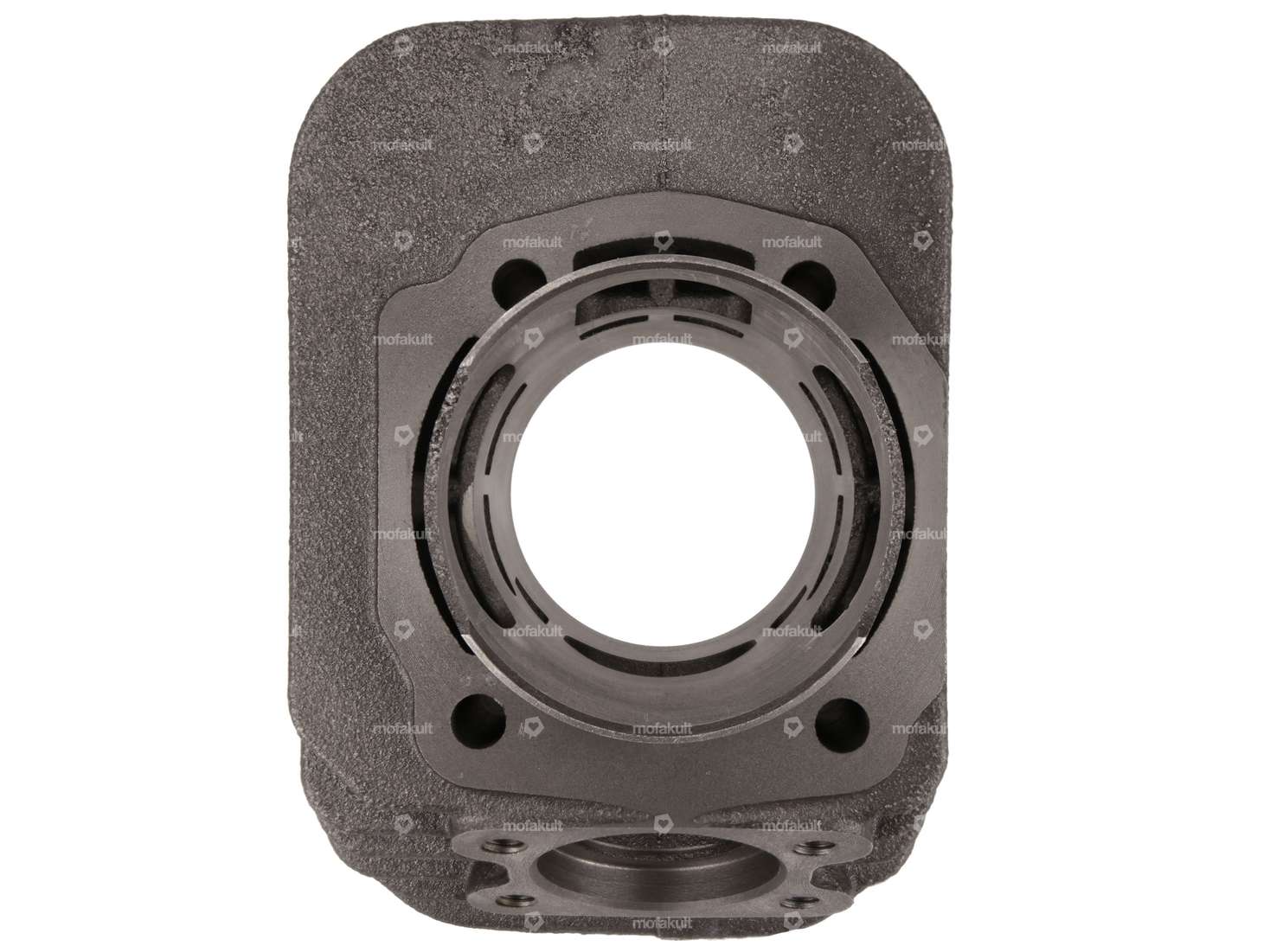

The generously dimensioned, symmetrical overflow ducts and the open boost ports ensure maximum power delivery. The exhaust is attached via a 4-fold bolted exhaust flange plate. Two different sleeves are included in the scope of delivery, which are suitable for exhaust pipes with connection diameters of 22 mm or 27 mm.

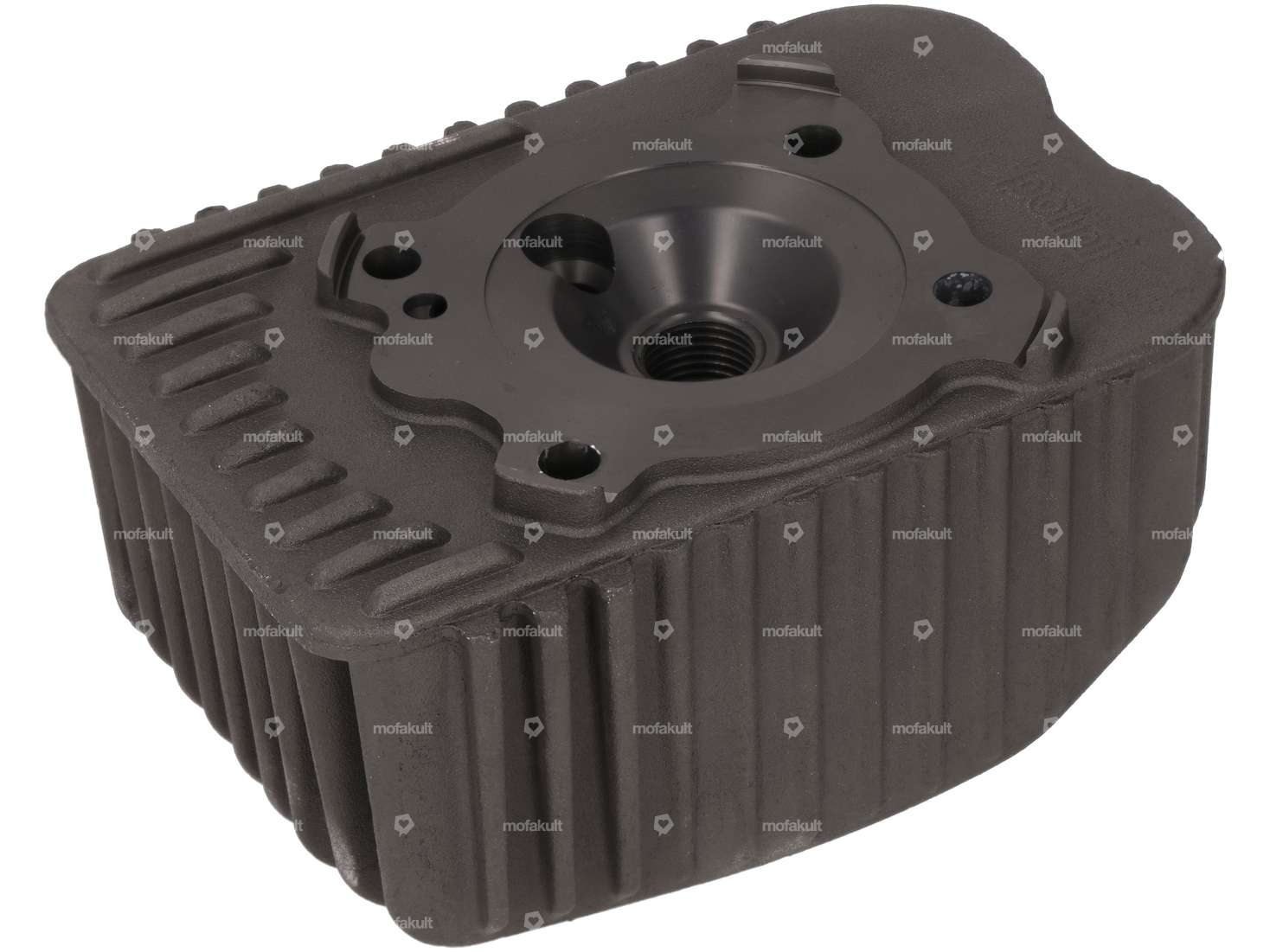

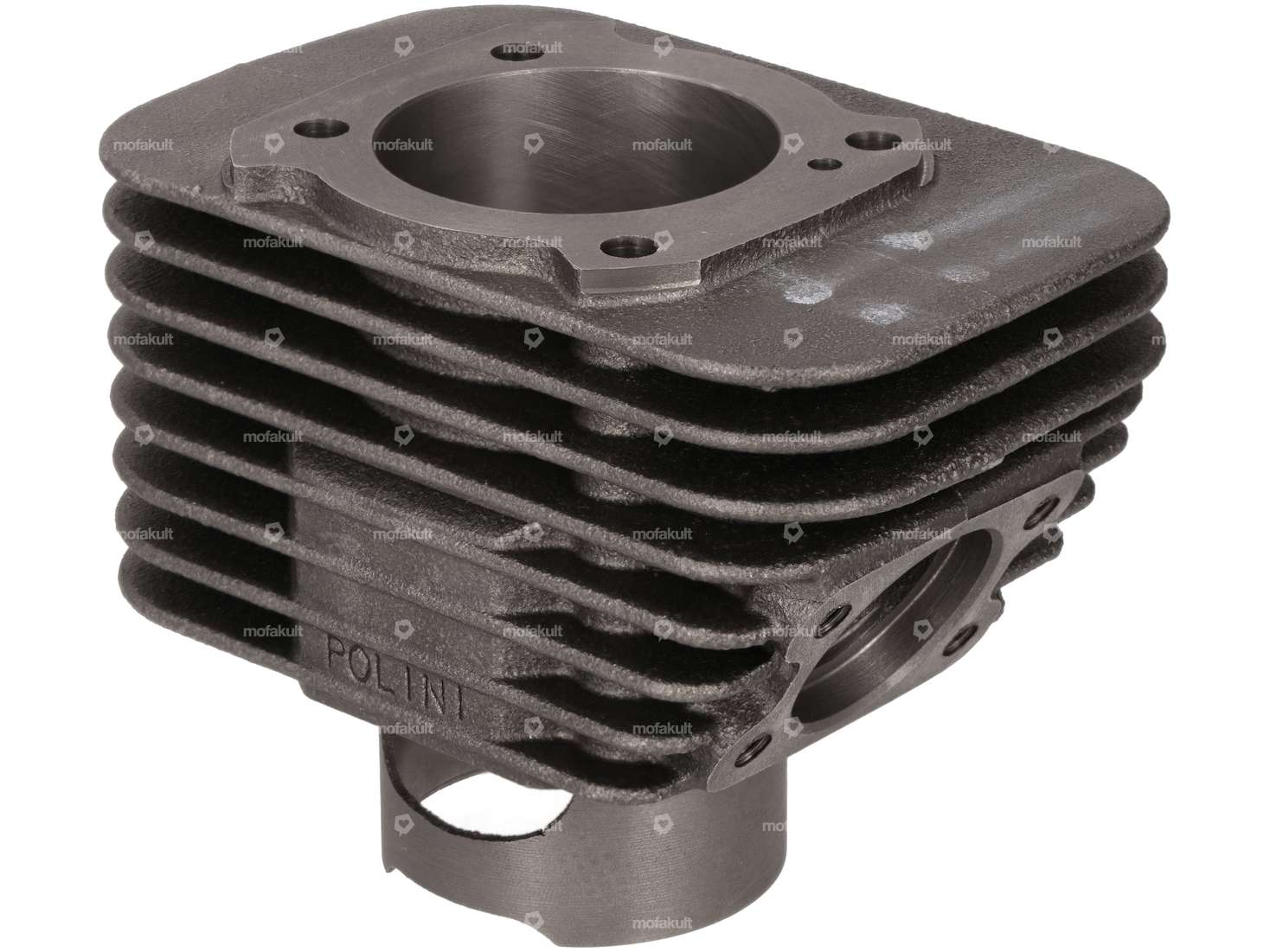

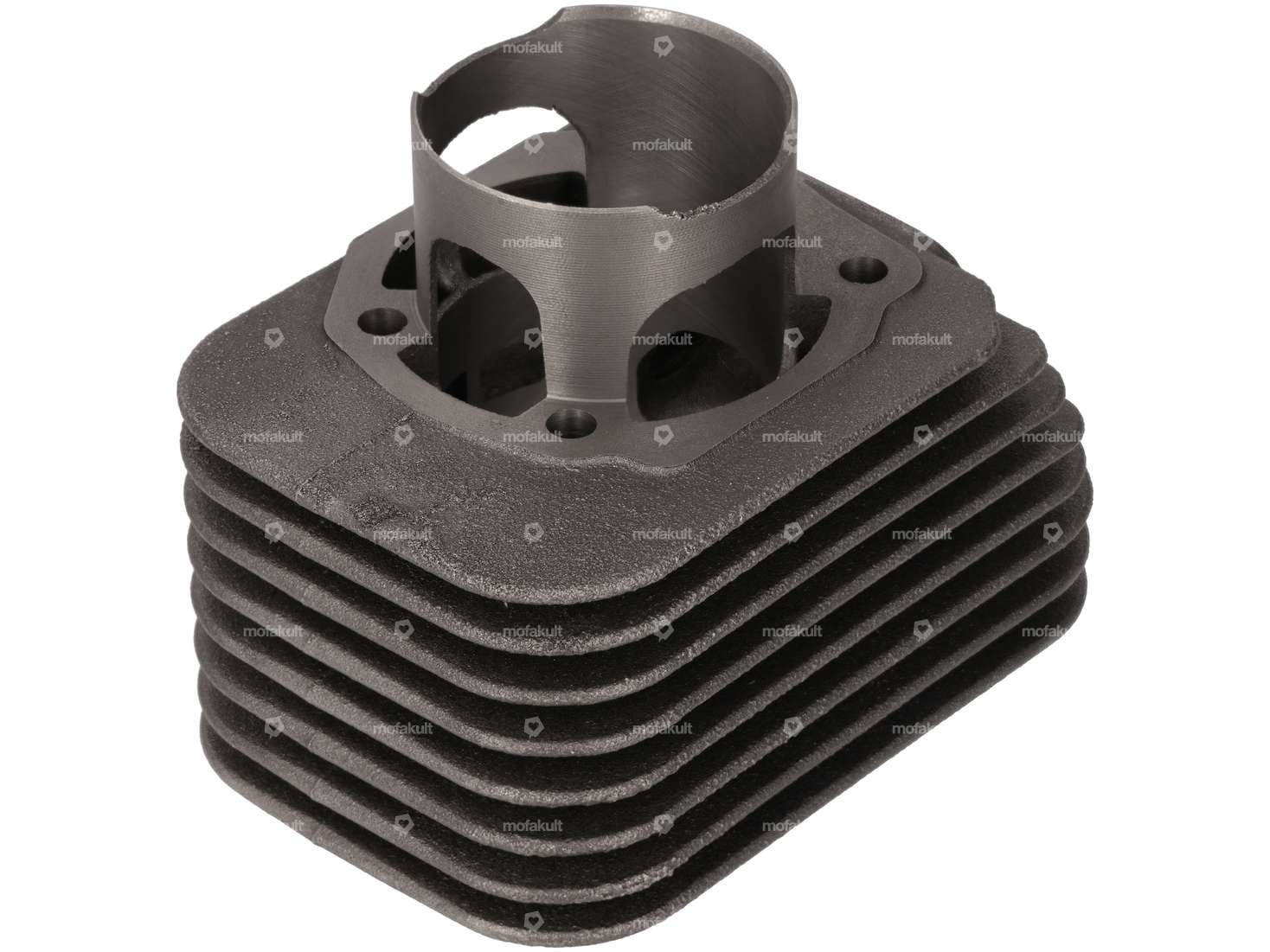

The cast iron tuning cylinder is equipped with four stud bolts and an exhaust with two secondary exhaust ports. In combination with the newly developed cylinder head and a piston with two piston rings, impressive compression and power are generated.
| Nominal diameter | 47 mm |
| Manufacturer | Polini |
| Material | Gray cast iron |
| Displacement | 75 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 49.8 mm |
| Ø Outlet outside | 22 mm, 27 mm |
| Ø piston pin (B) | 12 mm |
| Hole spacing outlet | 23 mm, 38 mm |
| Thread outlet | M5x0.8 (standard thread) |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 43 x 52 |
| Decompressor | Yes |
| Camouflaged | No |
| Area of application | Tuning, High End |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Grillo |
Accessories & related products
Polini EVO Electronic ignition | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Area of application: High End · Area of application: Racing · Area of application: Tuning · Light coil voltage: 12 V · Direction of rotation: right · Ø Internal flywheel: 80.5 mm · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 138.5 mm · Performance: 90 W · Number of fixing points: 2 pcs · Weight: 554 g
EUR 598.00
Polini EVO REED crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Grillo
Manufacturer: Polini · Area of application: High End · Area of application: Racing · Material: Steel · Area of application: Tuning · Cheek type: Full cheeks · Ø piston pin (B): 12 mm · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 70 mm · Thread length: 14 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Weight: 784 g · Ø Bearing seat (ignition side): 15 mm · Thread type: MF10x1.25 (fine pitch thread) · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.6 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44.7 mm · Length 3rd paragraph: 64 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Number of gears: 1 pcs
EUR 346.80
Not in stock
Polini CP 21 mm carburetor & air filter (hand choke) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Area of application: Racing · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: CP · Width: 66 mm · Nominal diameter: 21 mm · Total length: 71 mm · Height: 122 mm · Nozzle size: 82 · Nozzle size: 84 · Nozzle size: 86 · Ø Inside entrance: 42 mm · Mounting type: Rubber sleeve · Ø Output inside: 22.5 mm · Ø Air filter connection: 47 mm · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle block: 35-12 · Size of secondary nozzle: 40
EUR 203.30
Hot
Polini exhaust "EVO" (27 mm connection) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Aluminum · Material: Steel · Surface: blank · Surface: varnished · Color: black-matt · Color: graphite colors · Total length: 750 mm · Ø Silencer: 60 mm · Ø Internal connection: 27 mm · Ø outside: 83 mm · Mounting type: Tab for screwing · Number of fixing points: 2 pcs · Ø Flame tube outside: 27 mm · Exhaust type: Cone / double cone · Flame tube attachment: Plug connection
EUR 299.00

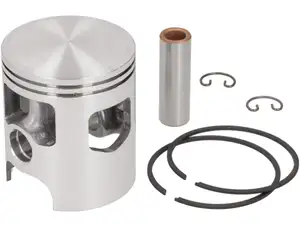

Polini piston 47 mm EVO cylinder (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer, Grillo
Manufacturer: Polini · Ø piston pin (B): 12 mm · Ø outside piston (A): 46.92 mm · Compression height (C): 31.6 mm · Curvature (D): 2 mm · Total piston height (E): 55.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 47 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Weight piston kit: 101 g
EUR 105.20

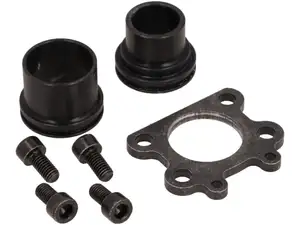

Polini exhaust flange EVO cylinder kit | Piaggio Ciao, Si, Bravo, Boxer
