For: Piaggio

38695

Polini 46 mm cylinder kit incl. head 10 mm KoBo | Piaggio Ciao, Bravo, Boxer

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 287.00

Incl. 22% VAT.

Description

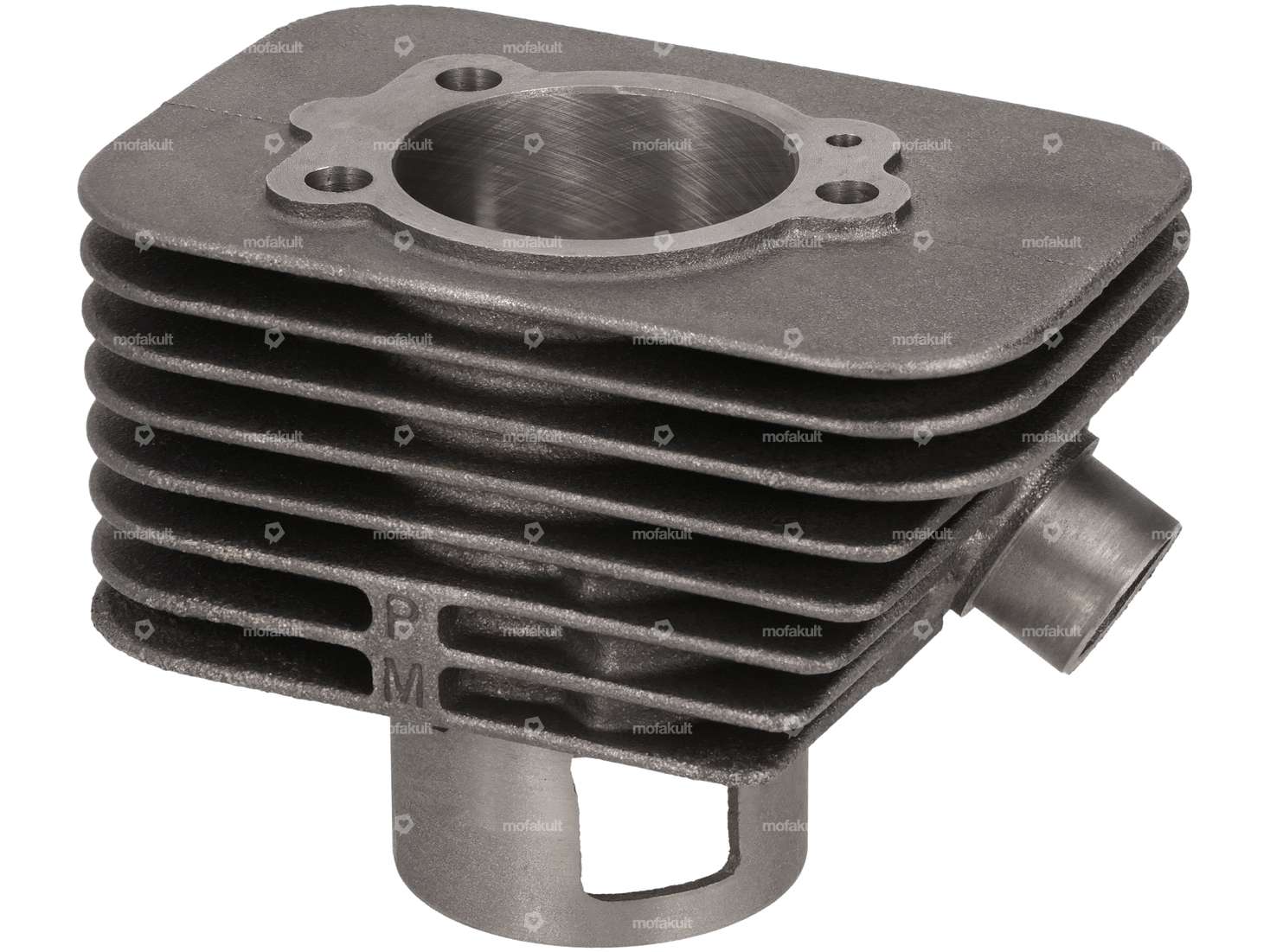

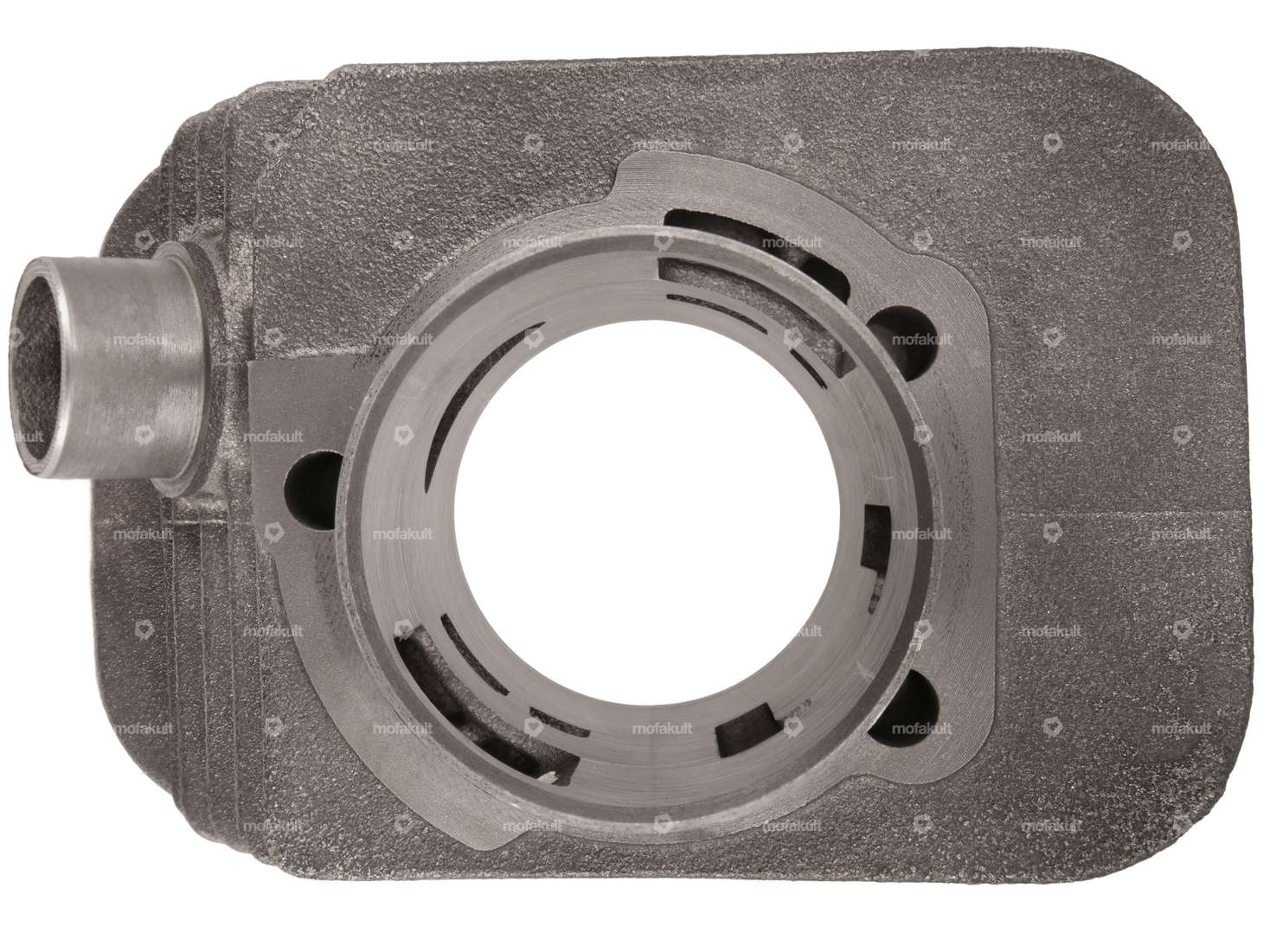

46 mm cylinder kit with 10 mm piston pins, compatible with your Piaggio Ciao, Bravo, and Boxer moped.

Excellent workmanship, durability, and exceptional value for the money make this cylinder kit one of the most popular on the market.

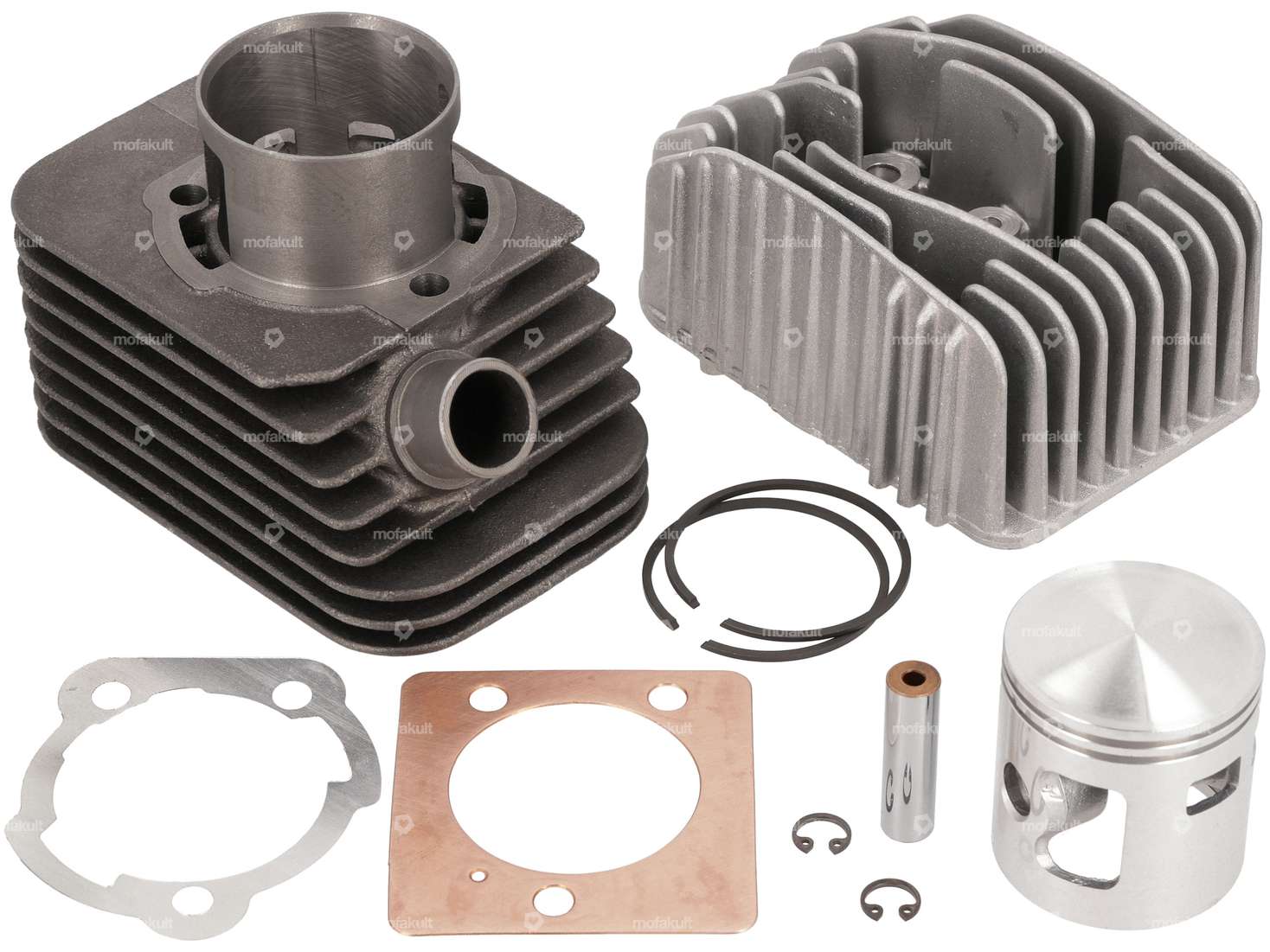

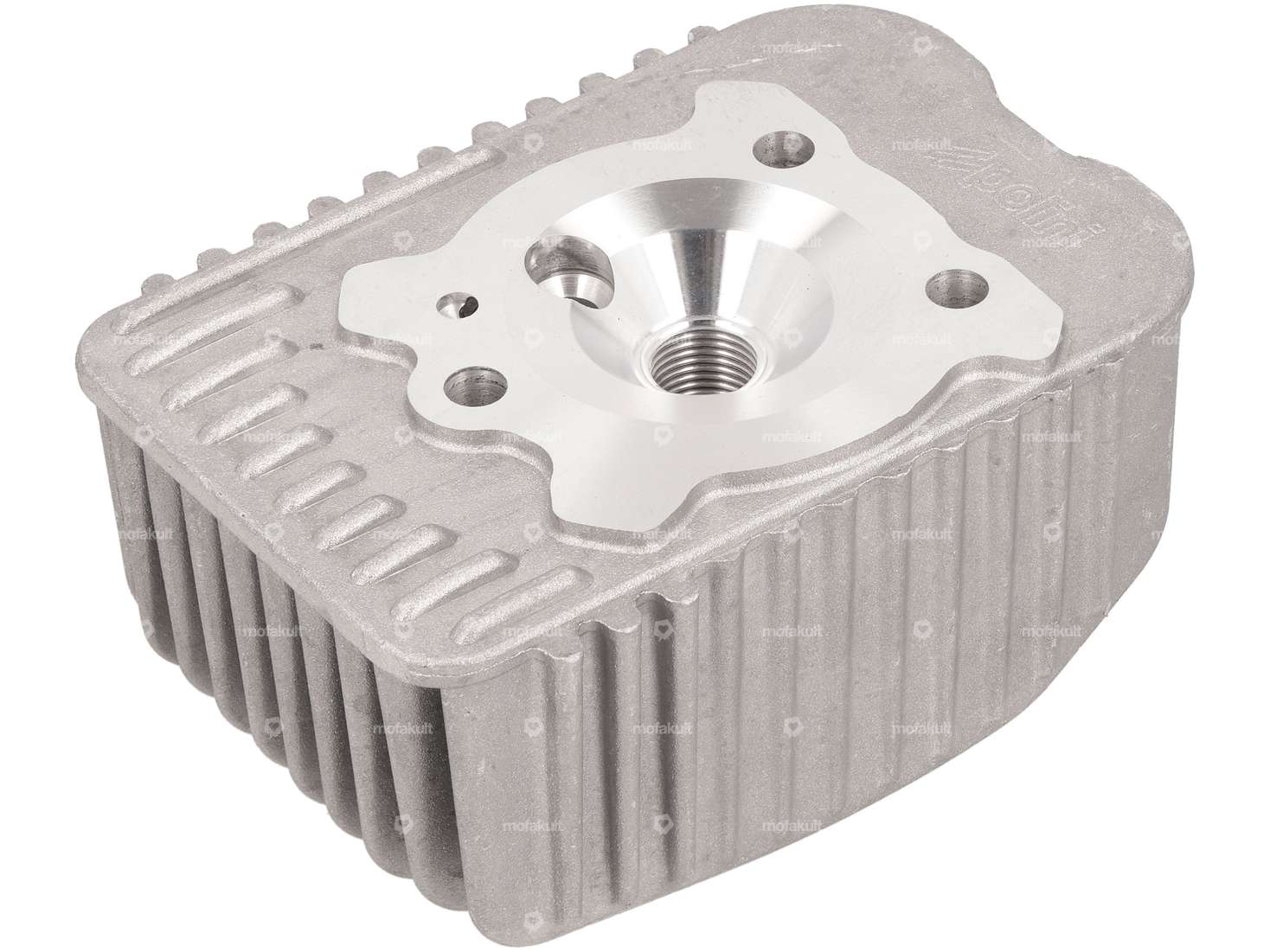

In addition to the cylinder, piston, piston pins, and piston pin clips, the cylinder head is also included in the package.

Note: Please observe the installation direction during assembly. The piston is installed with the arrow pointing toward the exhaust on the exhaust side.

You can find additional components useful for installation in the accessories section.

A quality product from the Italian manufacturer Polini.

Nominal diameter46 mm
ManufacturerPolini
MaterialGray cast iron
Displacement70 ccm
Crankshaft stroke43 mm
Ø piston pin (B)10 mm
Outlet typeclamped
Number of fixing points3 pcs
DecompressorYes
CamouflagedNo
Area of applicationTuning
Piaggio

Ciao - P , SC , PX , C24

Bravo / Super Bravo

Boxer
