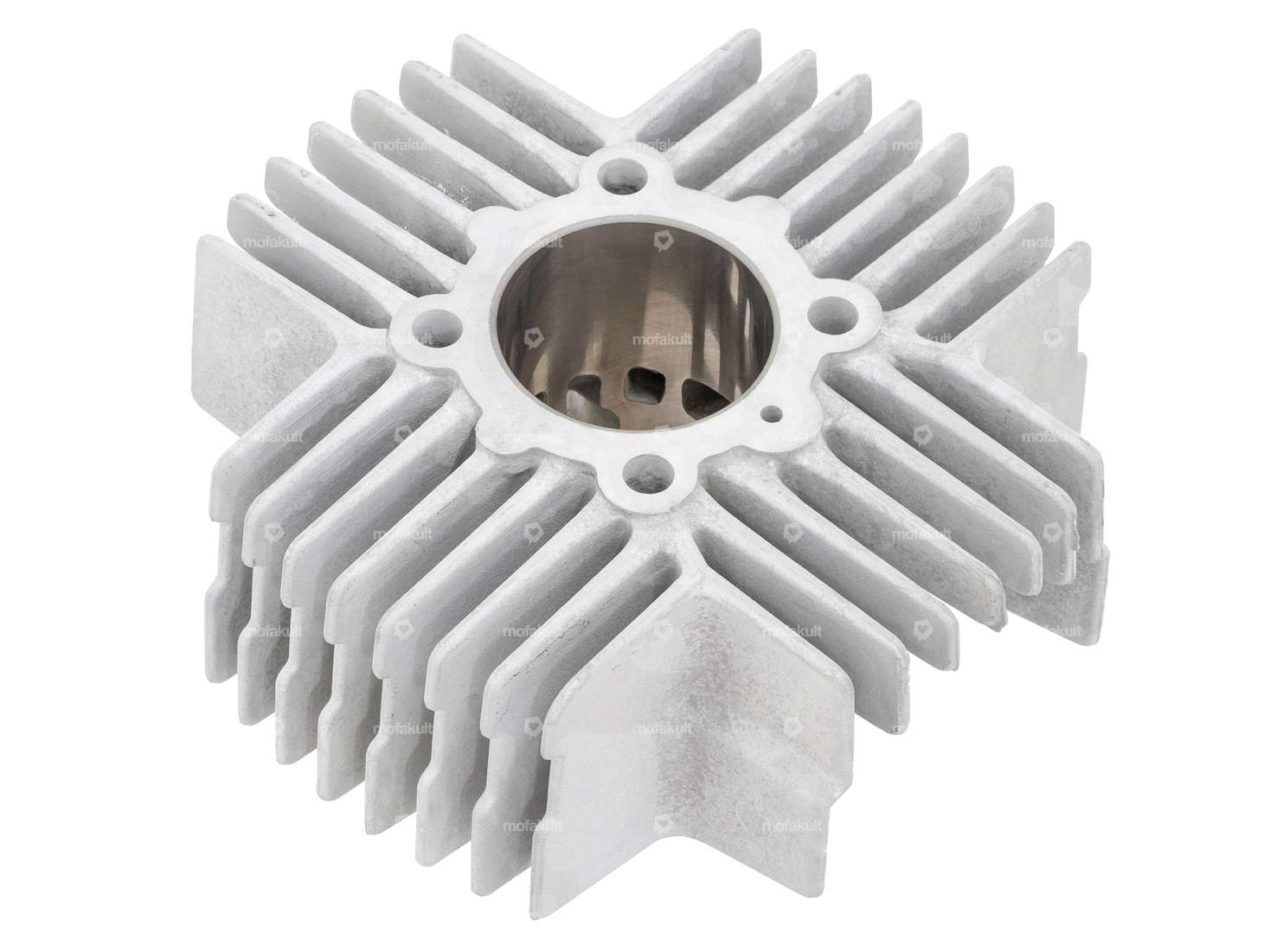

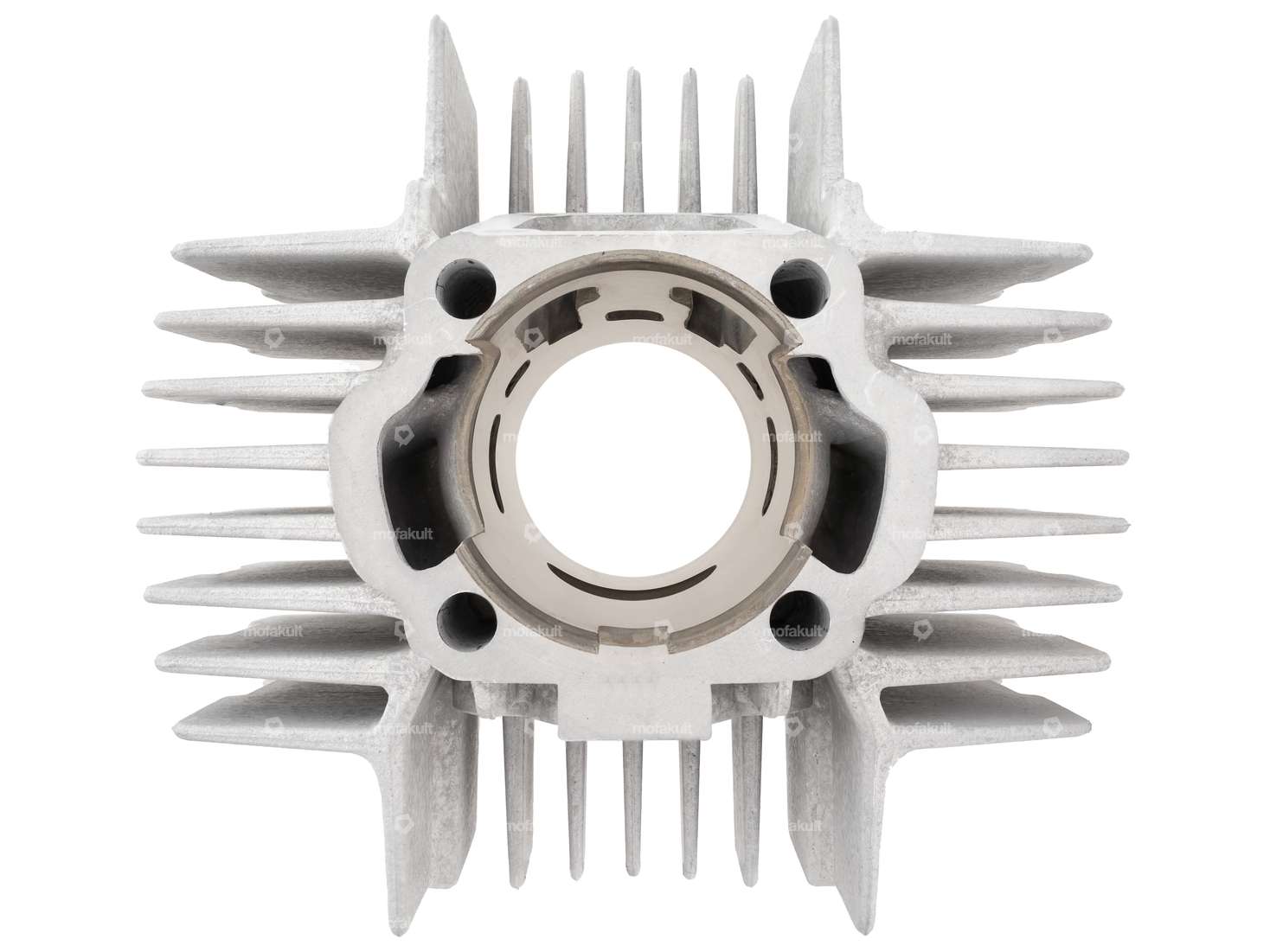

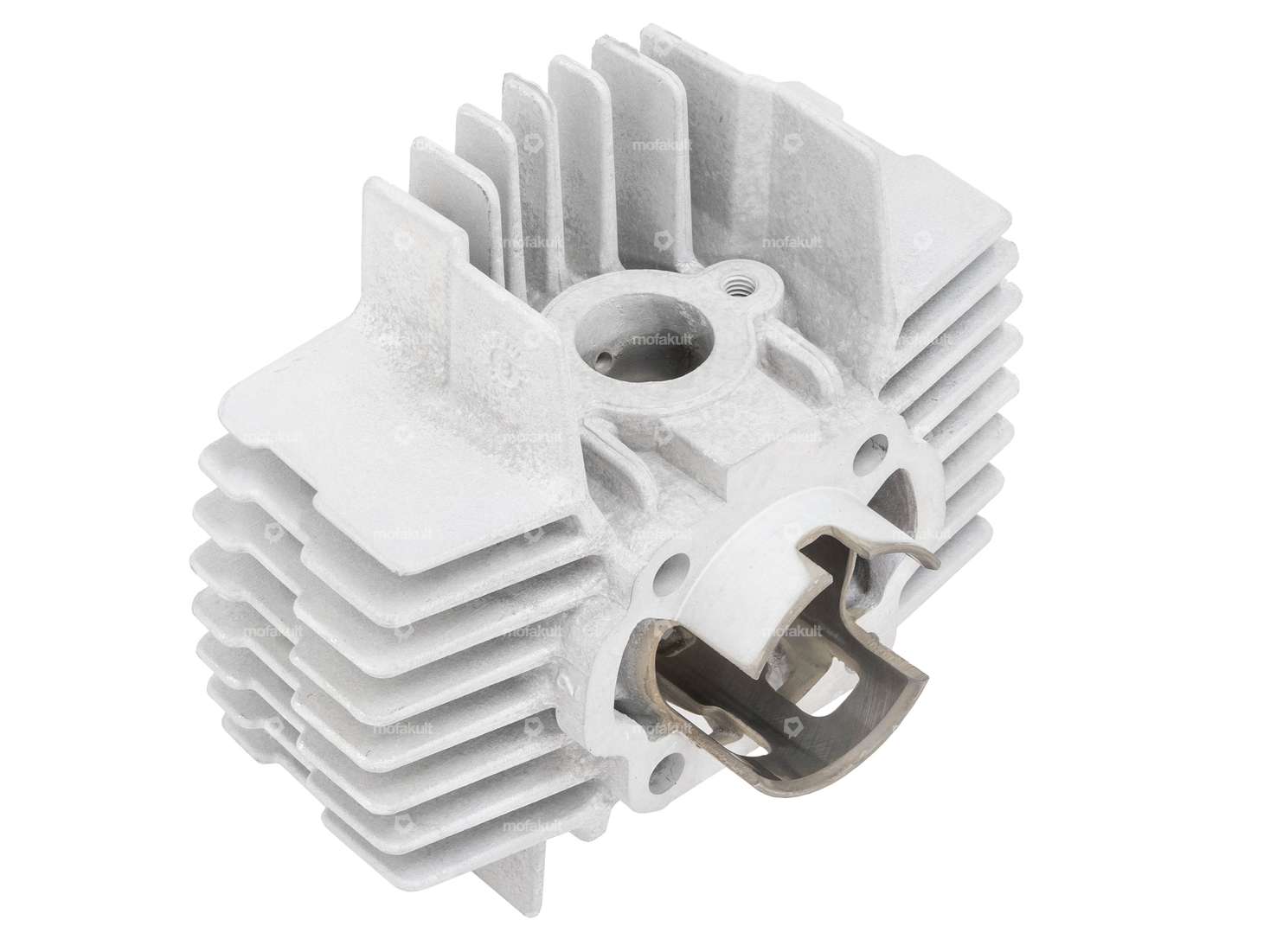

First-class racing kit with 64 cc displacement – the preferred choice of many racers with Puch mopeds / mopeds.
The cylinder fits your Maxi with E50 engine or X30 Sport with Z50 engine, among others.
In combination with the supplied 2-valve reed valve system, the racing cylinder will give you plenty of torque even from low revs. Thanks to the use of a single piston ring, the tuning cylinder is also extremely high revving and aggressive. The performance often exceeds that of 45 mm cylinder heads. The workmanship is high quality and the nickel-silicon carbide coating (colloquially known as Nikasil) ensures durability and longevity.

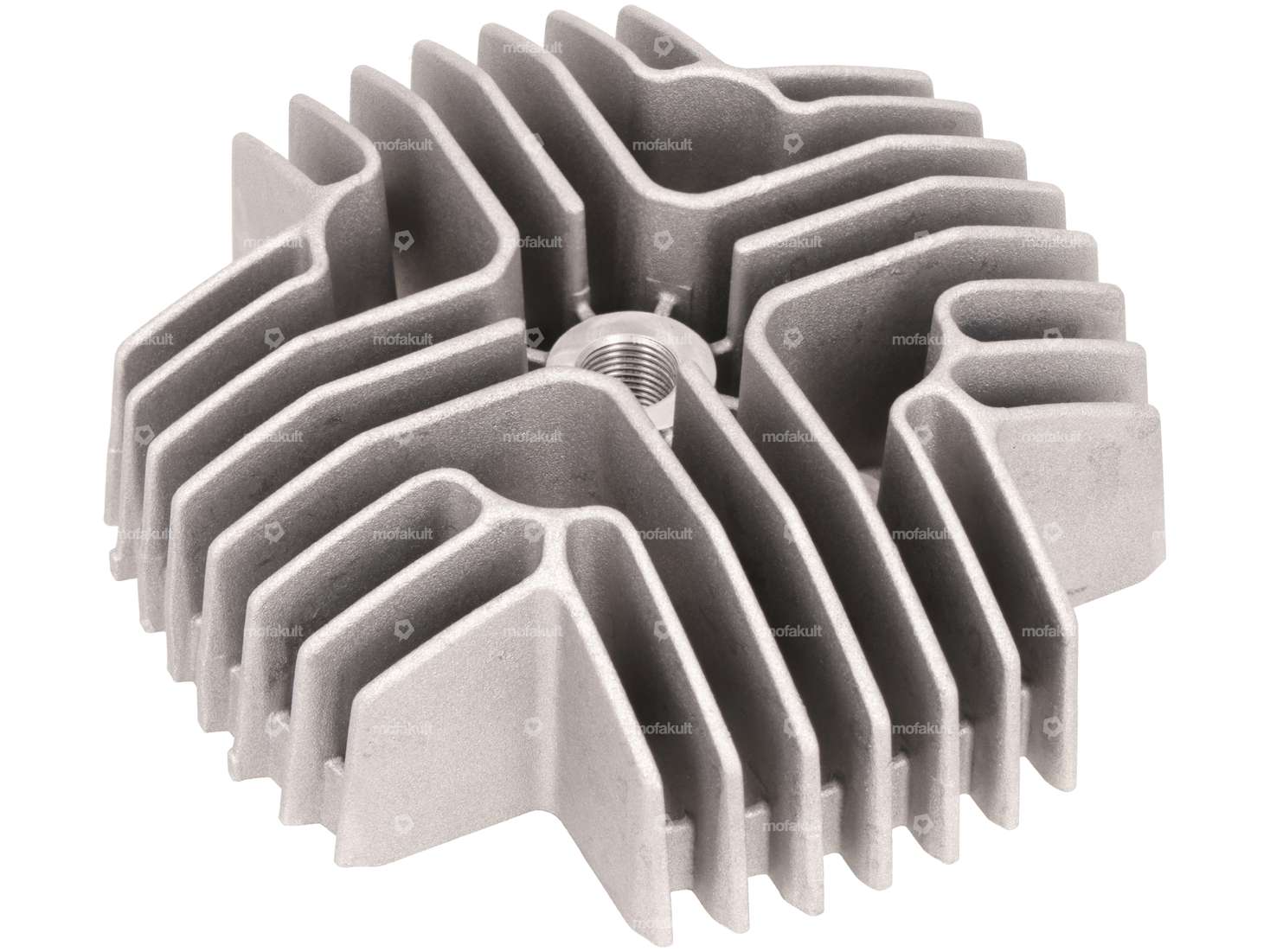

The piston has a lubrication slot on the inlet side. These slots enable an improved lubricant flow and help to reduce friction and improve heat dissipation. For the first time, Polini is also supplying its own matching cylinder head.

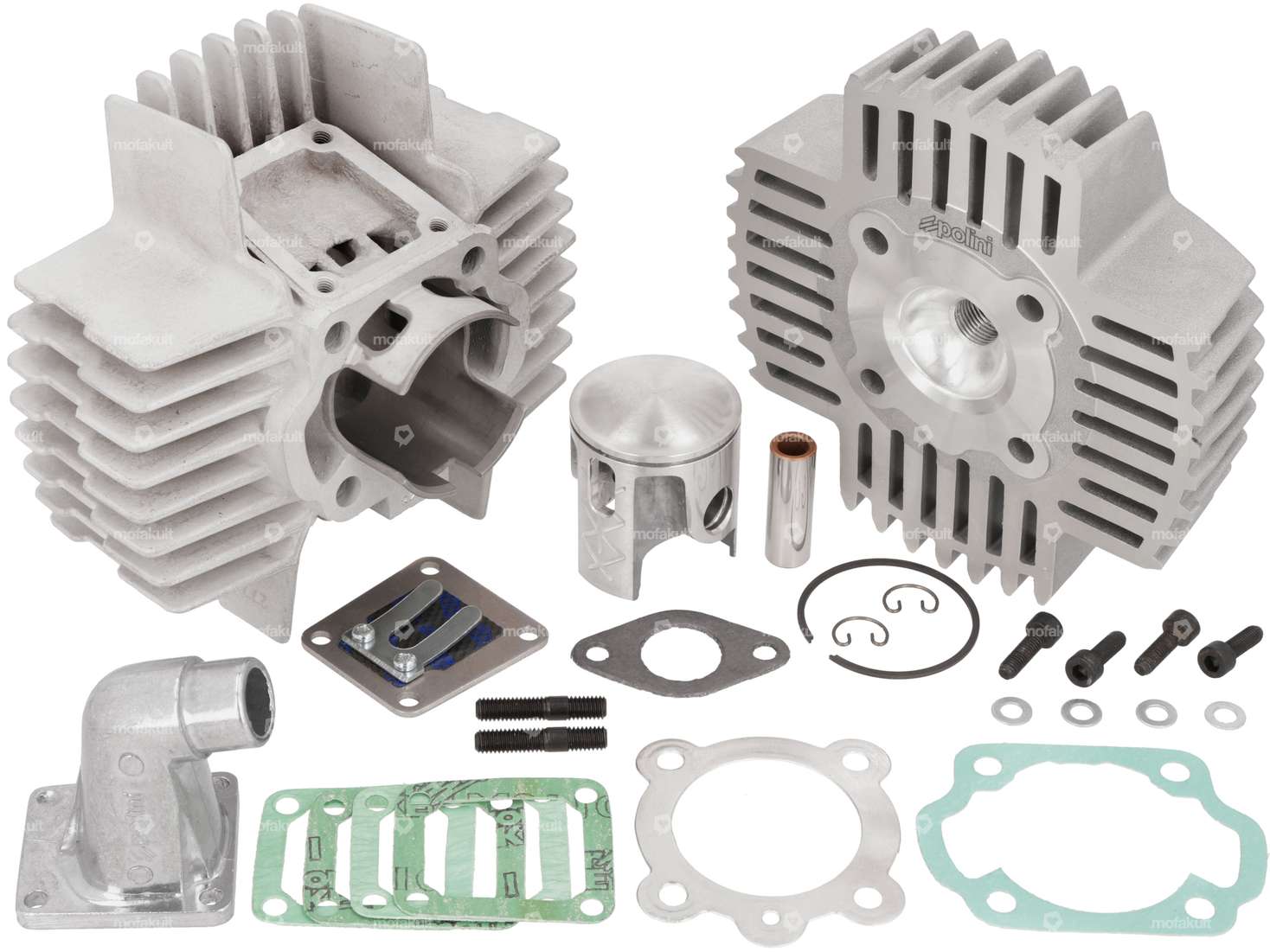

In addition to the cylinder head, the scope of delivery also includes the piston, clips, bolts and a piston ring. The base gasket and head gasket as well as the complete diaphragm system are also included.
| Manufacturer | Polini |
| Material | Aluminum |
| Camouflaged | No |
| Surface | Nickel silicon carbide (colloquially known as Nikasil) |
| Displacement | 65 ccm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 43.5 mm |
| Ø cylinder neck | 48 mm |
| Hole spacing inlet | 32 mm, 39 mm |
| Ø outlet inside | 22 mm |
| Inlet window | 26 x 21 mm |
| Thread inlet | M5x0.8 (standard thread) |
| Hole spacing outlet | 42 mm |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 44 x 44 |
| Outlet type | straight |
| Area of application | Tuning, Racing |
| Thread outlet | M6x1 (standard thread) |
| Puch | E50 ZA50 (fan-cooled) Z50 (X30 Sport) |
Accessories & related products
Polini 43.5 mm cylinder kit reed | Puch
Material: Aluminum · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Manufacturer: Polini · Area of application: Racing · Area of application: Tuning · Nominal diameter: 43.5 mm · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Number of fixing points: 4 pcs · Inlet window: 26 x 21 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Outlet type: straight · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Camouflaged: No
EUR 358.80
GPO 43.5 mm cylinder head with O-ring, Polini Tuning new version | Puch
Height: 55 mm · Width: 135 mm · Manufacturer: GPO · Material: Aluminum · Area of application: Tuning · Surface: sandblasted · Ø cylinder: 43.5 mm · Total length: 140 mm · Hole pattern [mm]: 44 x 44 · Candle thread: short · Number of fixing points: 4 pcs · Decompressor: No
EUR 64.50
Polini piston 43.5 mm type A | Puch
Manufacturer: Polini · Nominal diameter: 43.5 mm · Ø outside piston (A): 43.45 mm · Ø piston pin (B): 12 mm · Compression height (C): 23 mm · Curvature (D): 3.6 mm · Total piston height (E): 50.55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Tolerance group: A · Weight piston kit: 93 g
EUR 113.50
Membrane transpacer Polini Trapez 12 mm aluminum | Puch ZA50
Width: 42.5 mm · Width: 46 mm · Thickness: 12 mm · Material: Aluminum · Area of application: Tuning · Surface: blank · Total length: 50 mm · Mounting type: Screws · Hole pattern [mm]: 32 / 36 x 39 · Number of fixing points: 4 pcs · Ø mounting hole: 5.4 mm
EUR 35.80

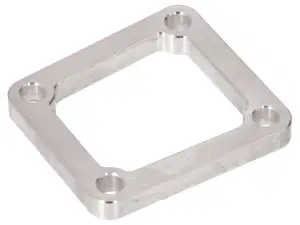

Membrane transpacer Polini Trapez 6 mm aluminum | Puch ZA50
