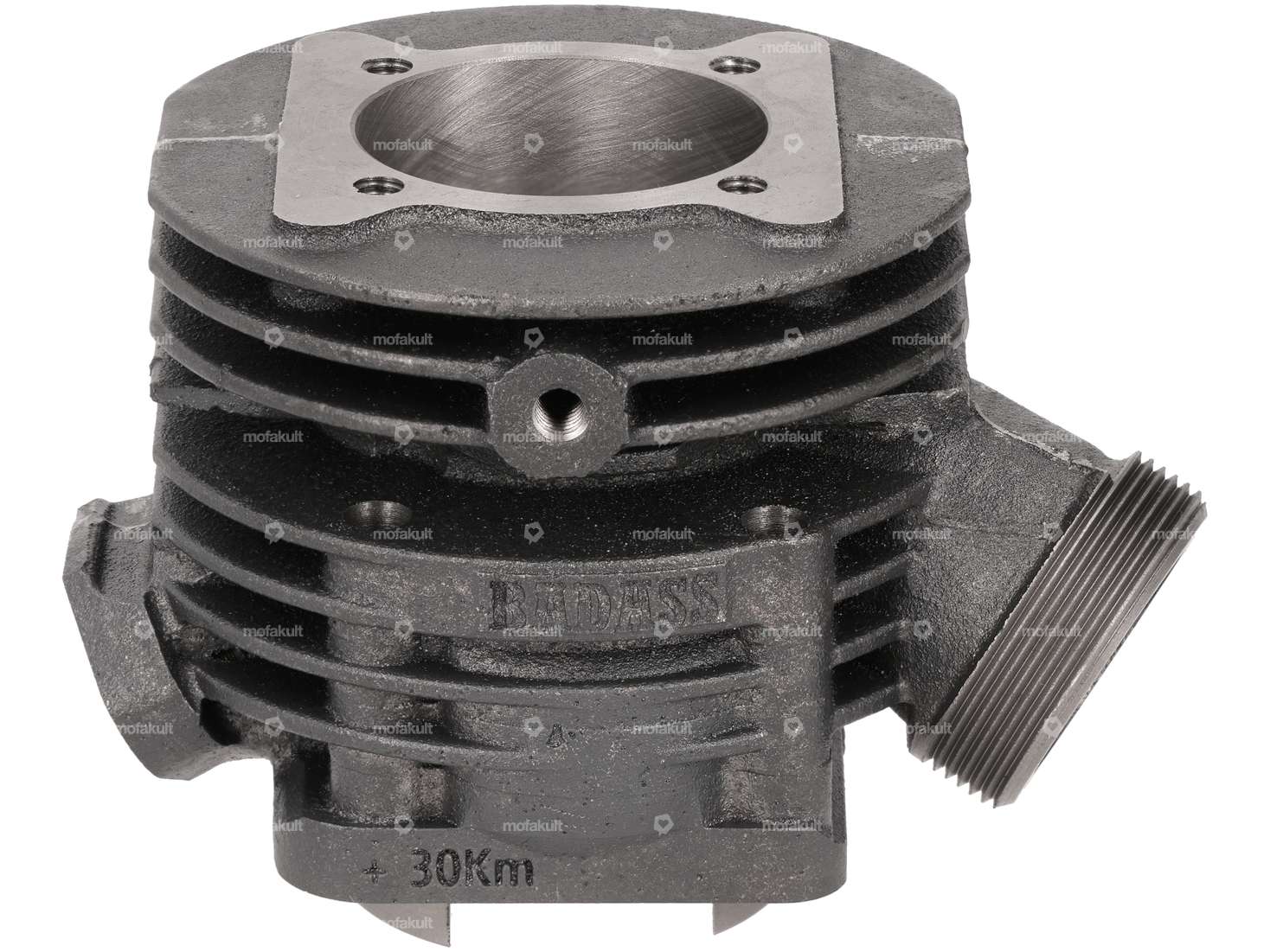

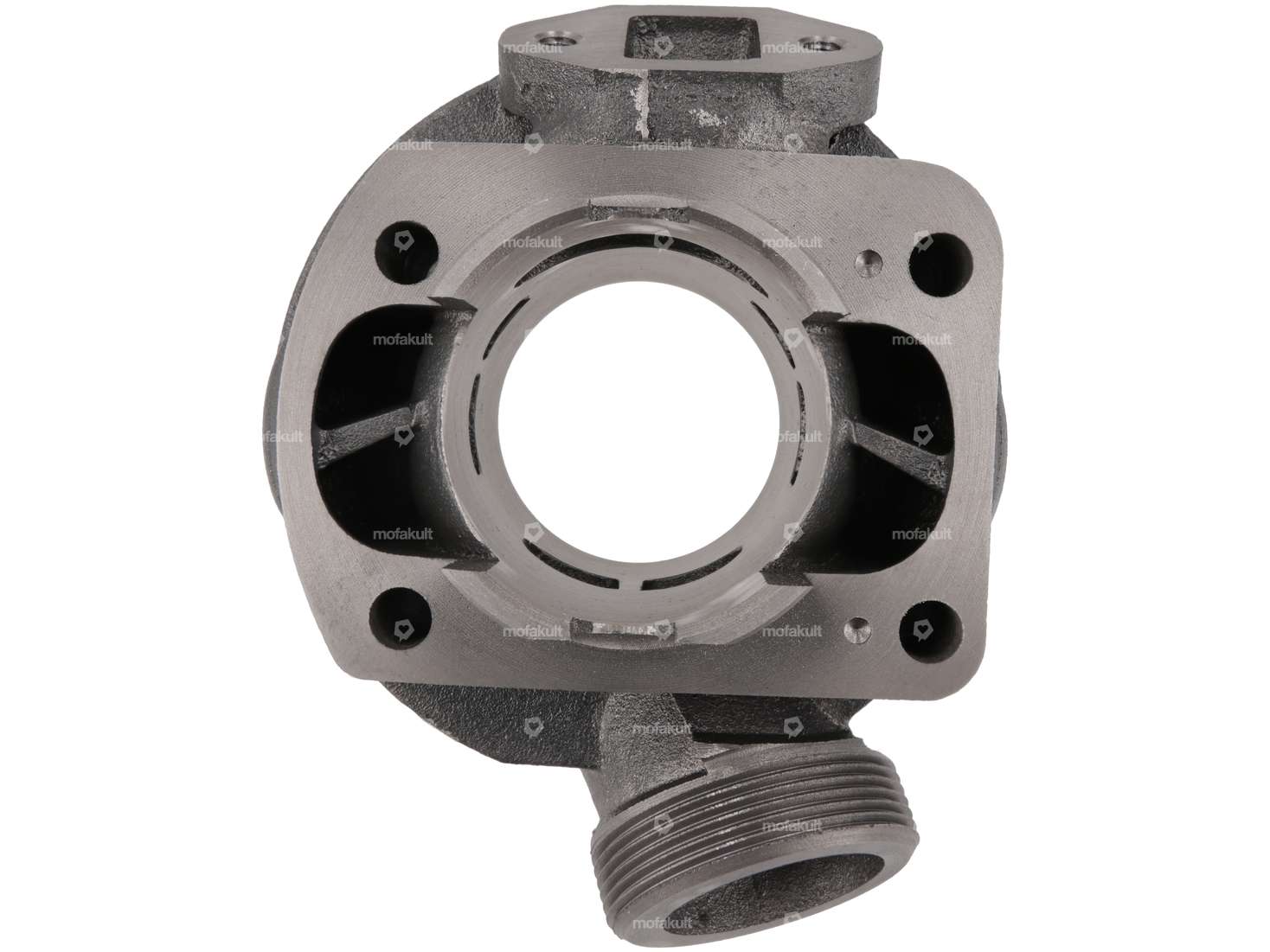

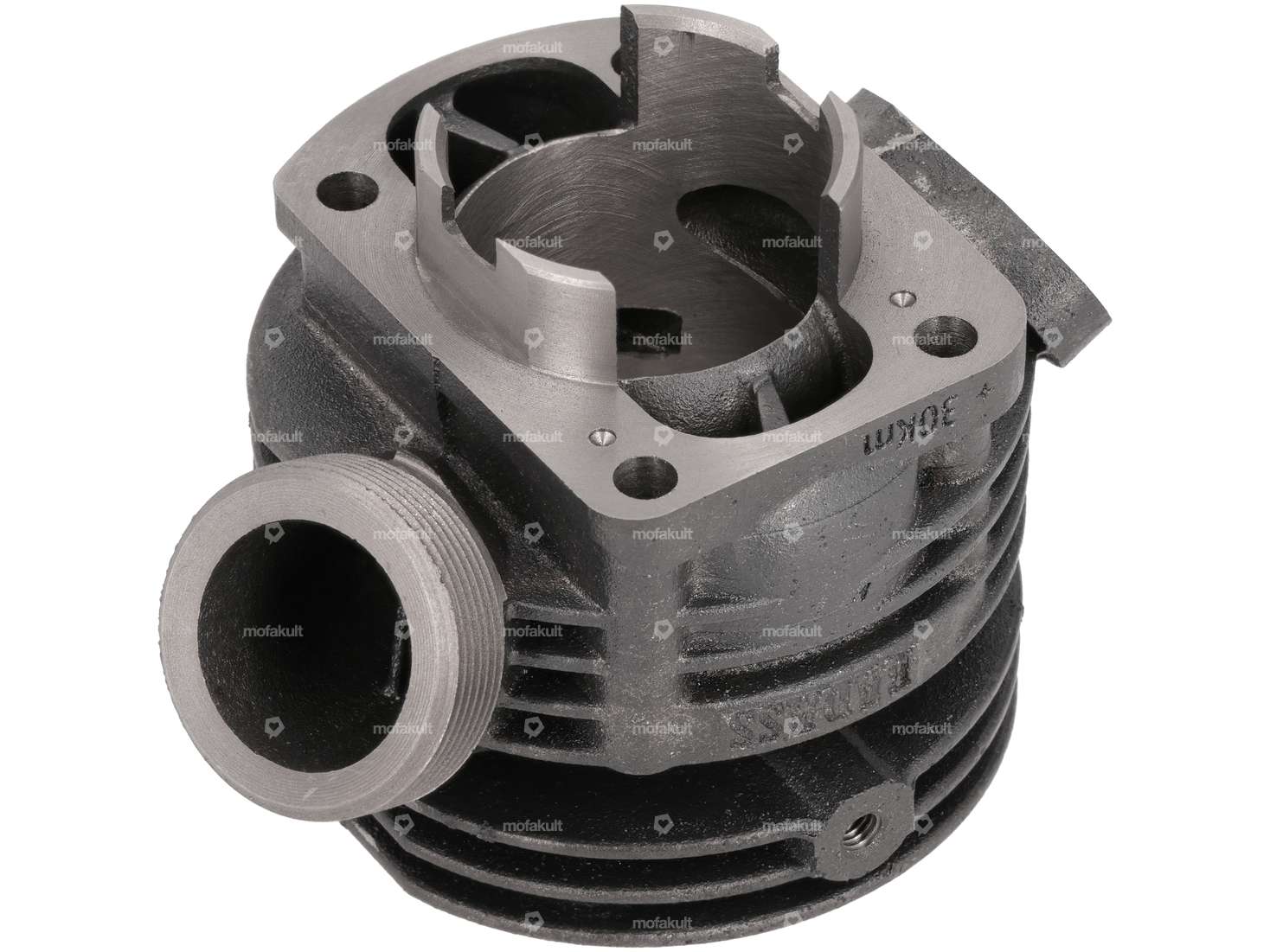

BAD ASS Diablo cylinder Ø 43 mm | Sachs 502, 50/2, 50/3, 50/4

EUR 285.90

Incl. 22% VAT.

Product description

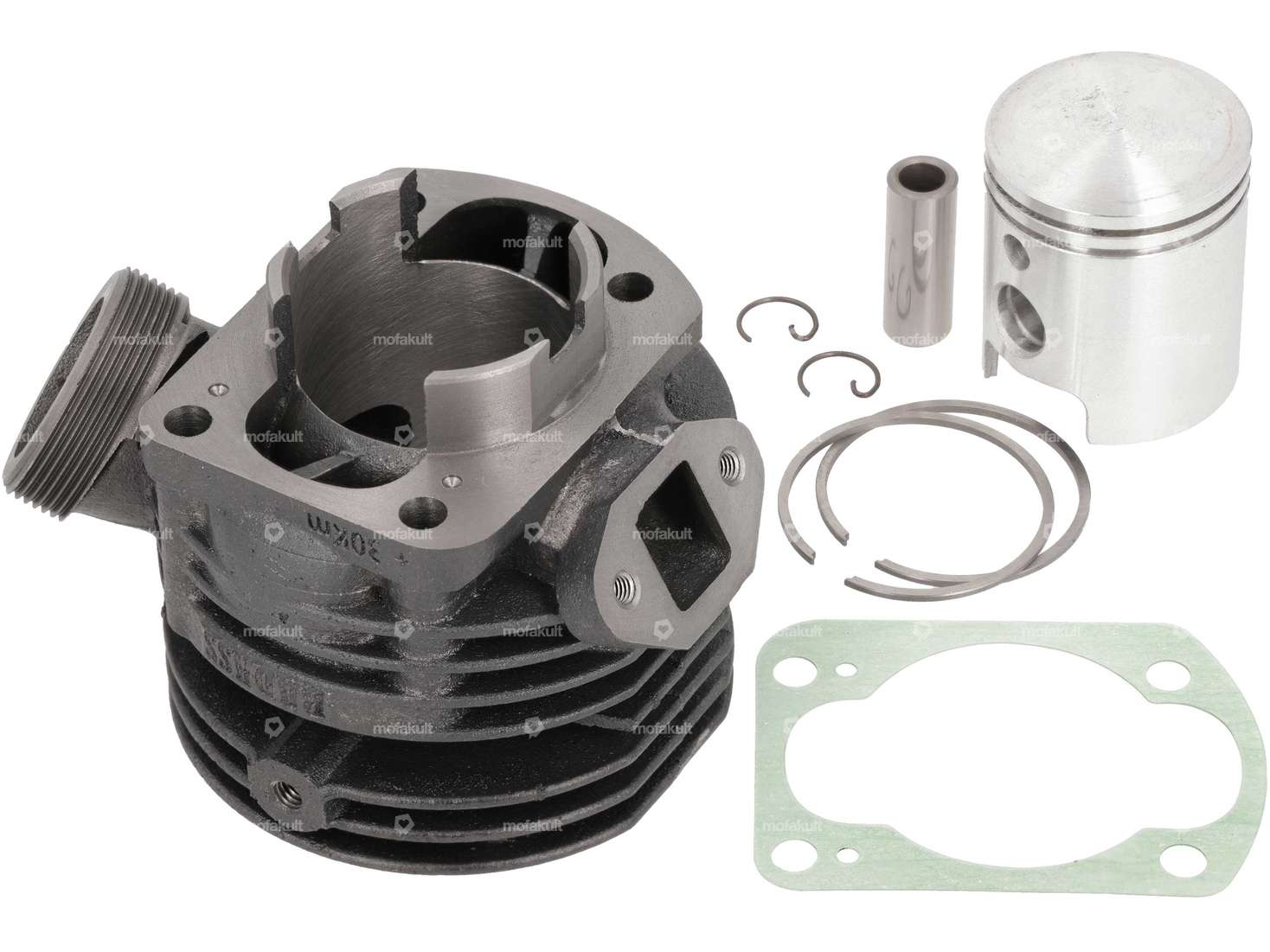

Blade-cooled 43 mm (61 cc) cylinder kit with 12 mm piston pin, suitable for your Sachs 50, 502, 50/2, 50/3, 50/4 moped / moped.

The timing of the cylinder was kept rather low, which is characterized by a very nice torque in the lower speed range.
The racing cylinder kit without sealing includes cylinder & piston kit without gaskets.

  • Grey cast iron tuning cylinder with & 43.0 mm bore
  • Slot-controlled
  • 17x15 mm intake, 31 mm stud spacing
  • Optimized overflow channels
  • 2-piece outlet
  • Improved control times
  • No spindling of the engine housing necessary (Ø cylinder neck 46.0 mm)
  • Exhaust thread: M40 x 1.5 mm
  • Hole pattern for stud bolts: 60 x 40 mm for CH engines
  • Pre-drilled hole pattern for stud bolts: 51 x 40 mm for DE engines
  • Cylinder head hole pattern: 37 x 37 mm
  • Incl. Ø 43 mm piston from the Italian manufacturer -GOL-

Note: 60 mm long M6 stud bolts must be used to install the cylinder.
Full installation instructions are included.

Corresponding accessories such as gaskets, cylinder head, exhaust system etc. can be found in the accessories section.

Made by the BADASS brand.

ManufacturerBAD ASS
CamouflagedNo
Displacement61 ccm
Crankshaft stroke42 mm
MaterialGray cast iron
Nominal diameter43 mm
Ø cylinder neck46 mm
Ø Outlet outside40 mm
Ø outlet inside28 mm
Inlet window17 x 15 mm
Ø piston pin (B)12 mm
Thread inletM5x0.8 (standard thread)
Hole spacing inlet31 mm
Number of fixing points4 pcs
Outlet typeUnion nut
Area of applicationTuning
Thread outletMF40x1.5 (fine pitch thread)
Hole pattern [mm]60 x 40 / 51 x 40 / 37 x 37
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL, AML

50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS)

50/3

50/4 - MLFB (2.6 PS), LKH (4.5 PS)

Accessories & related products

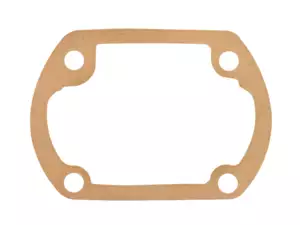

swiing® revival gasket cylinder base 0.3 mm | Sachs 50, 50/3, 50/4 DE engines
