For: Sachs

38473

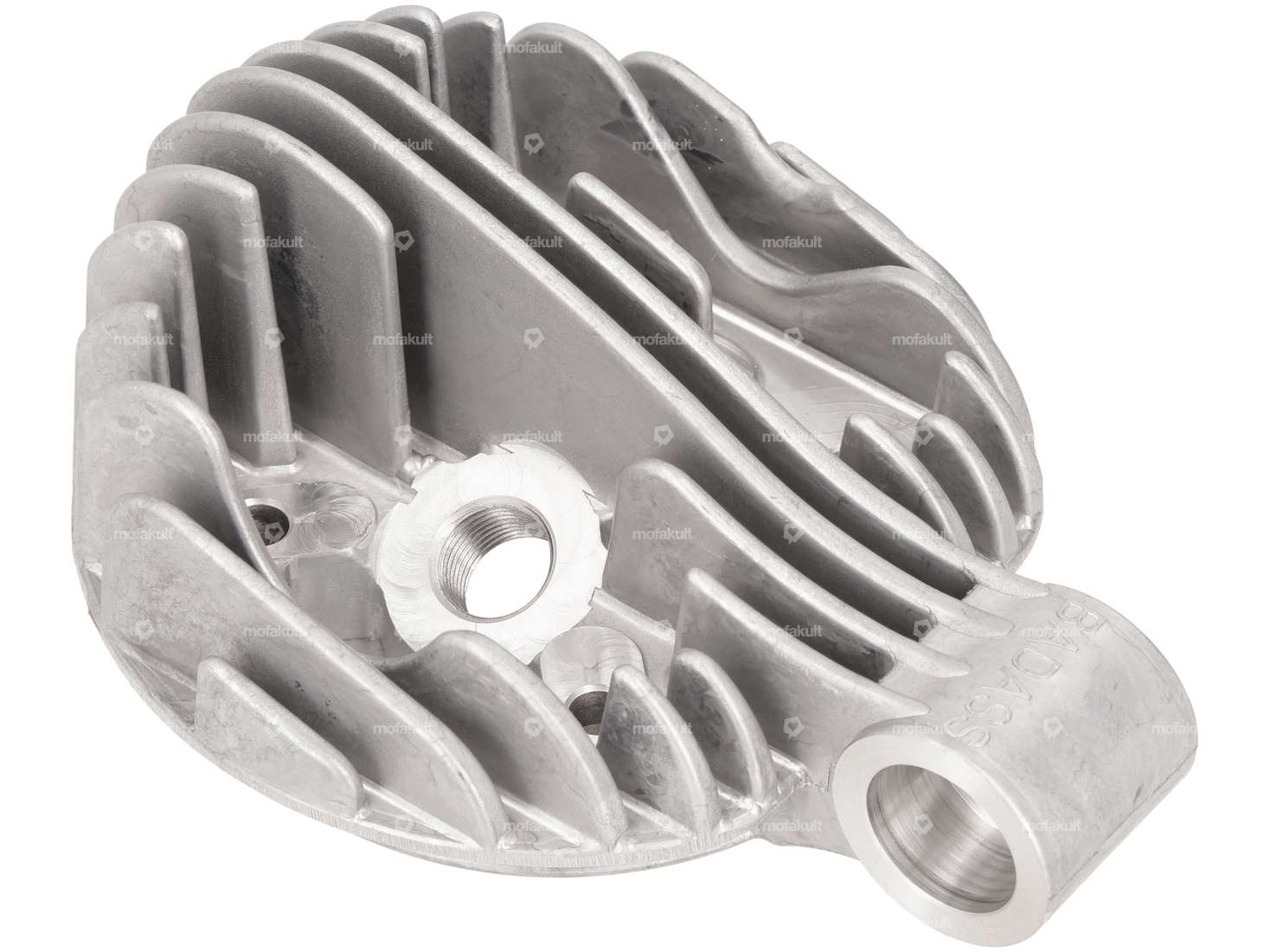

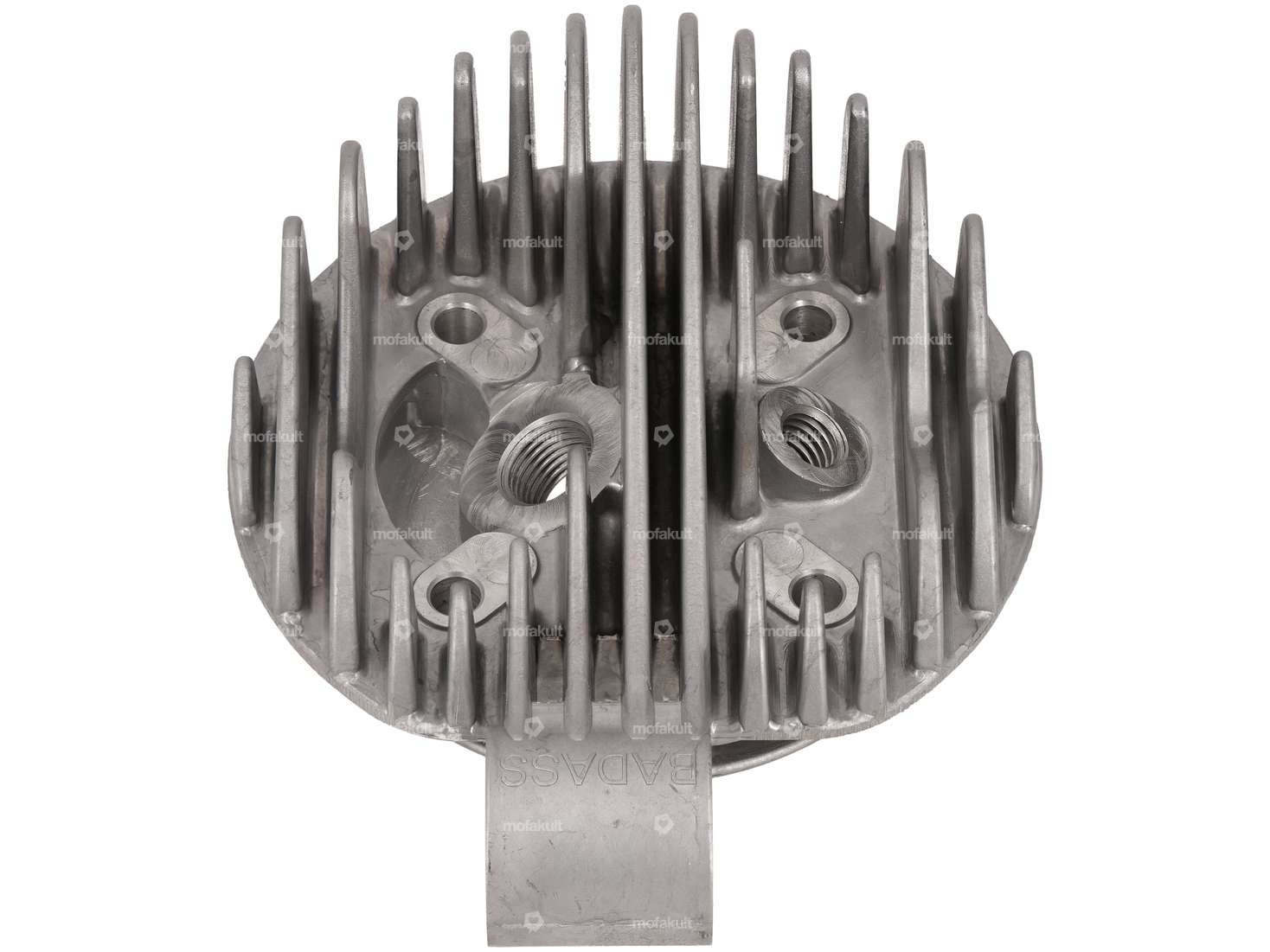

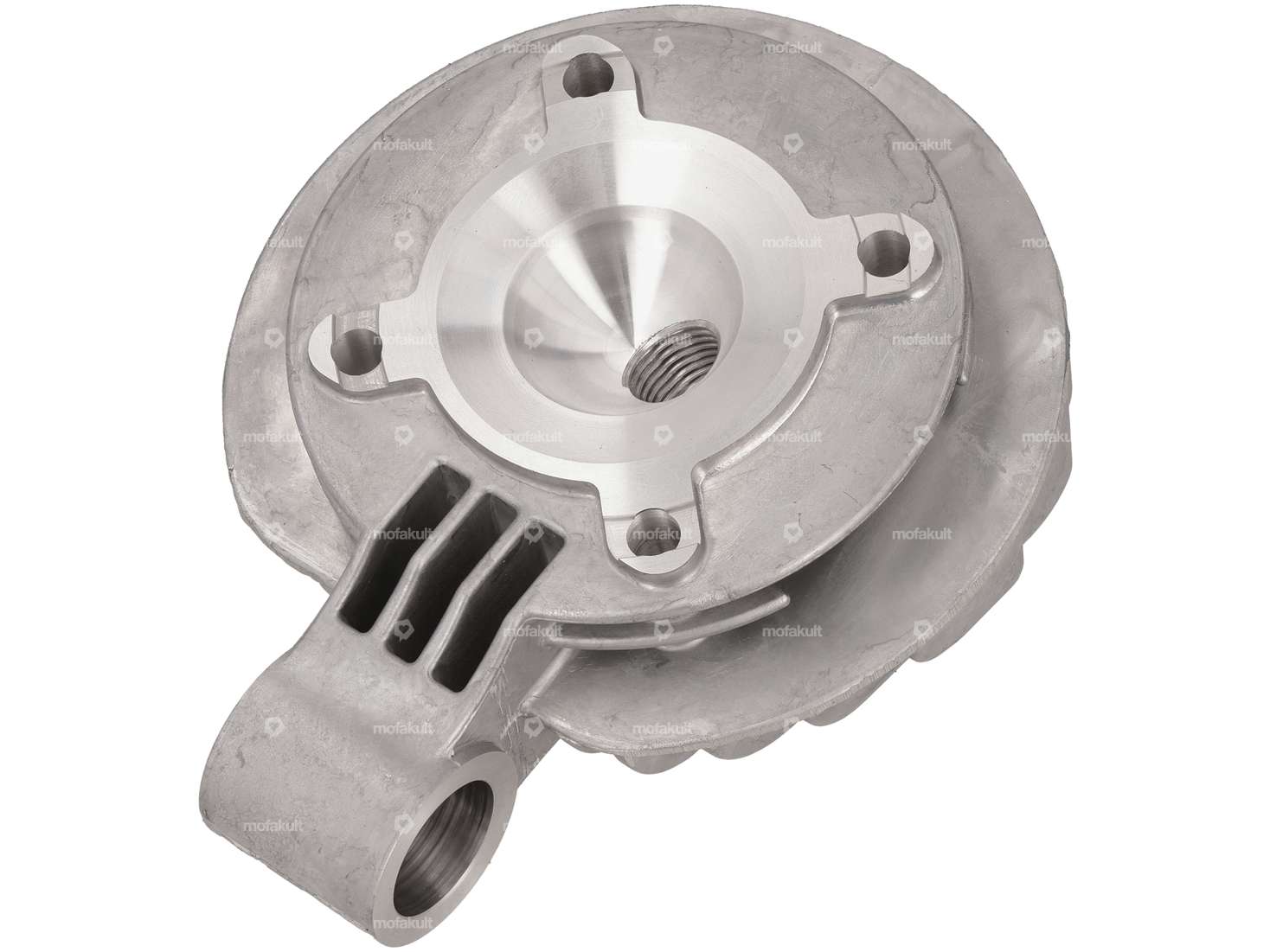

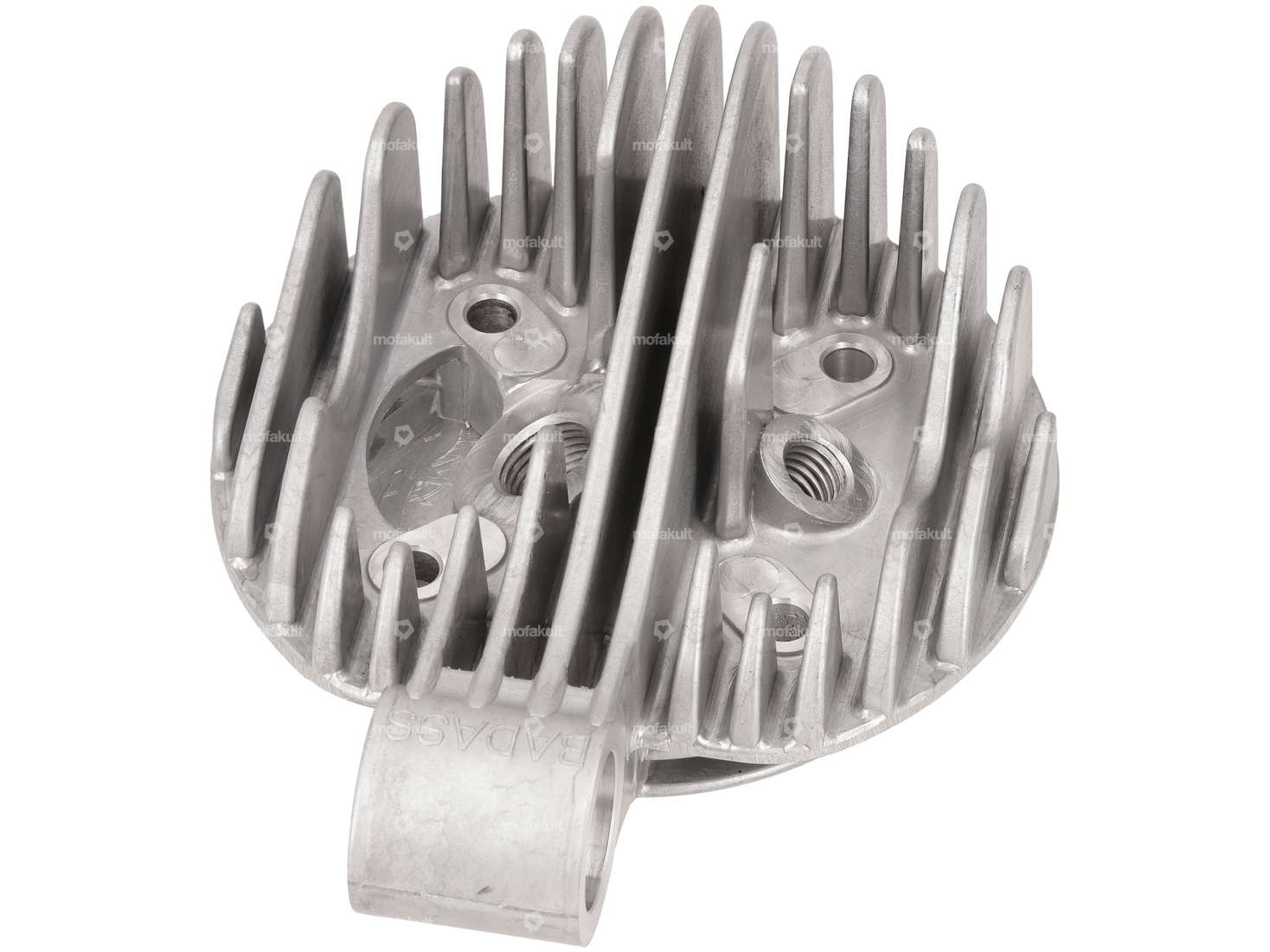

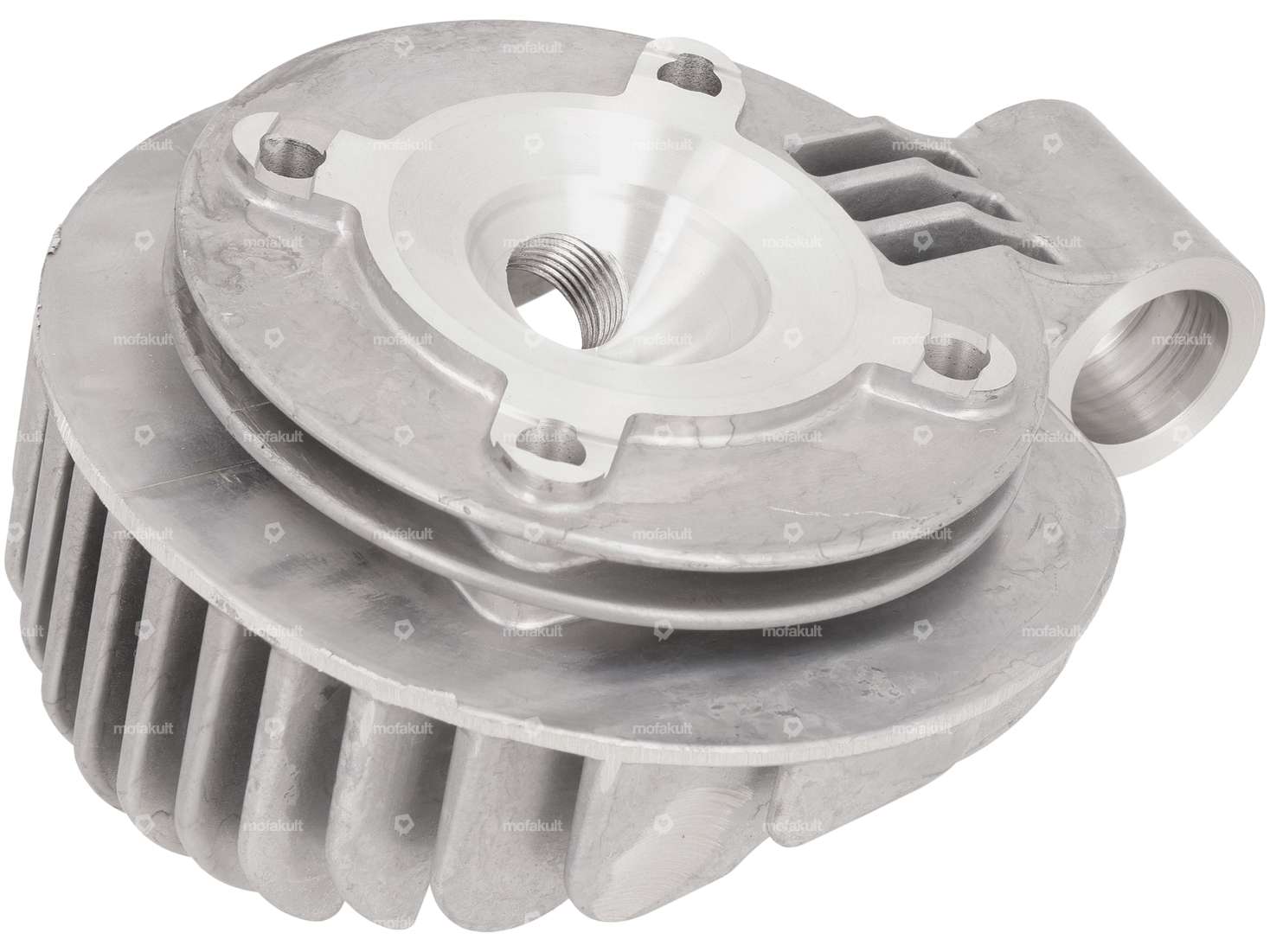

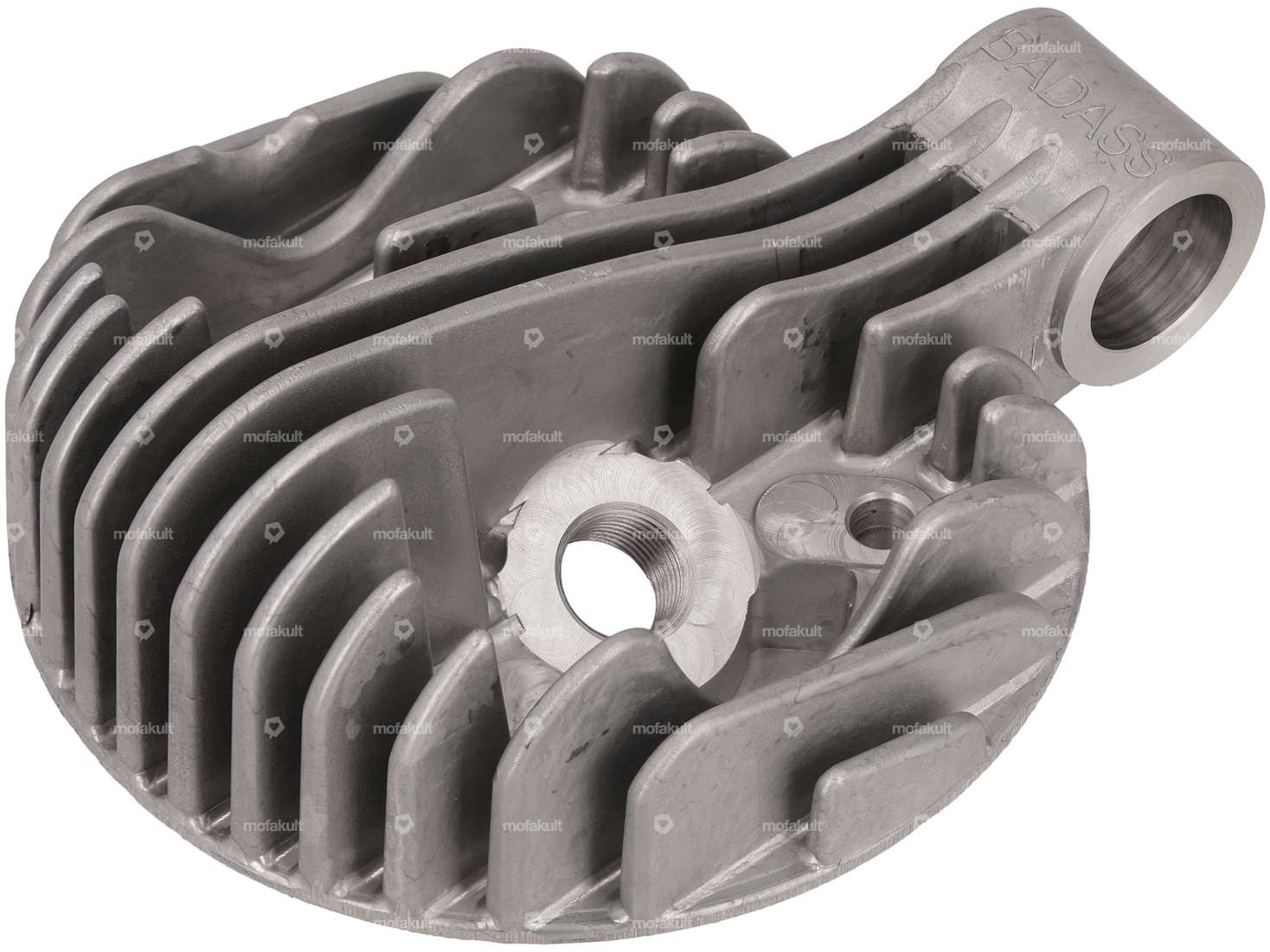

BAD ASS cylinder head XL Ø 45-47 mm | Sachs 502, 50/2, 50/3, 50/4

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 167.40

Incl. 22% VAT.

Description

Ø 45 - 47 mm XL cylinder head in original look with enlarged cooling fins, suitable for your moped / moped with Sachs 502, 50/2, 50/3, 50/4 engine.

This tuning head was specially developed for the BAD ASS Diablo Ø 45 mm racing cylinder. Thanks to the larger cooling fin design, the cylinder head can optimally dissipate heat even at high temperatures and when driving slowly uphill.

The hole for the decompressor is prepared and provided with a thread (M10 x 1.5 mm). If this is installed, it only needs to be drilled through with a 3 mm drill bit.

ManufacturerBAD ASS
MaterialAluminum
Ø cylinder45 - 47 mm
Ø outside108 mm, 85.5 mm
Height61 mm
Number of fixing points4 pcs
Candle threadshort
Area of applicationTuning, Racing
Hole pattern [mm]47 x 47
Ø screw holder19.3 mm
DecompressorM10x1.5
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL , AML

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

50/3

50/4 - MLFB (2.6 PS) , LKH (4.5 PS)

Accessories & related products

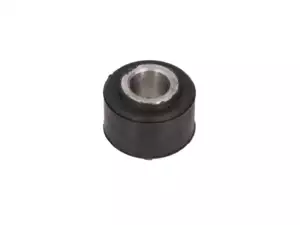

swiing® revival Silentblock Ø 19.3 x 15 | Sachs 50/2, 50/3
