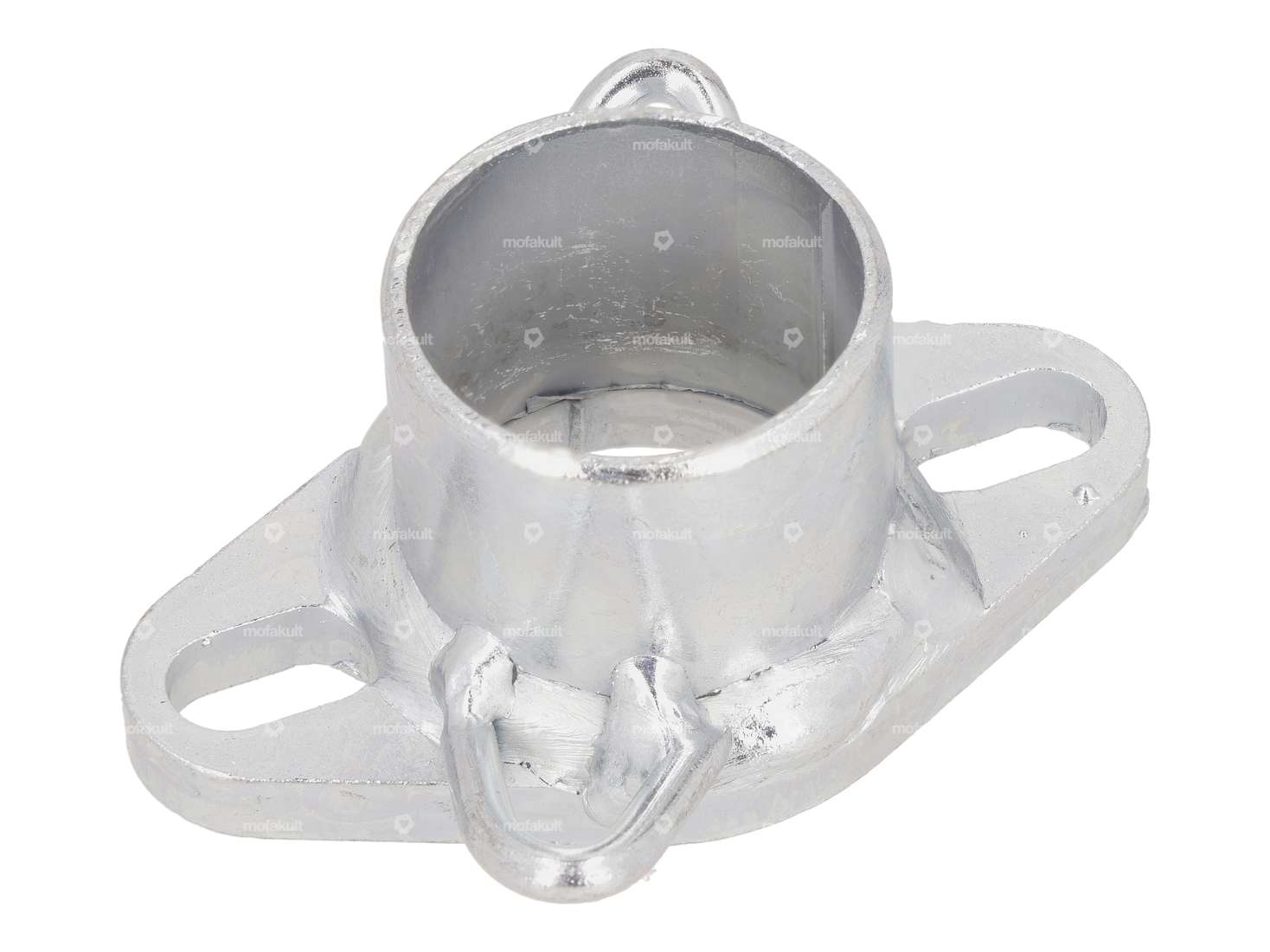

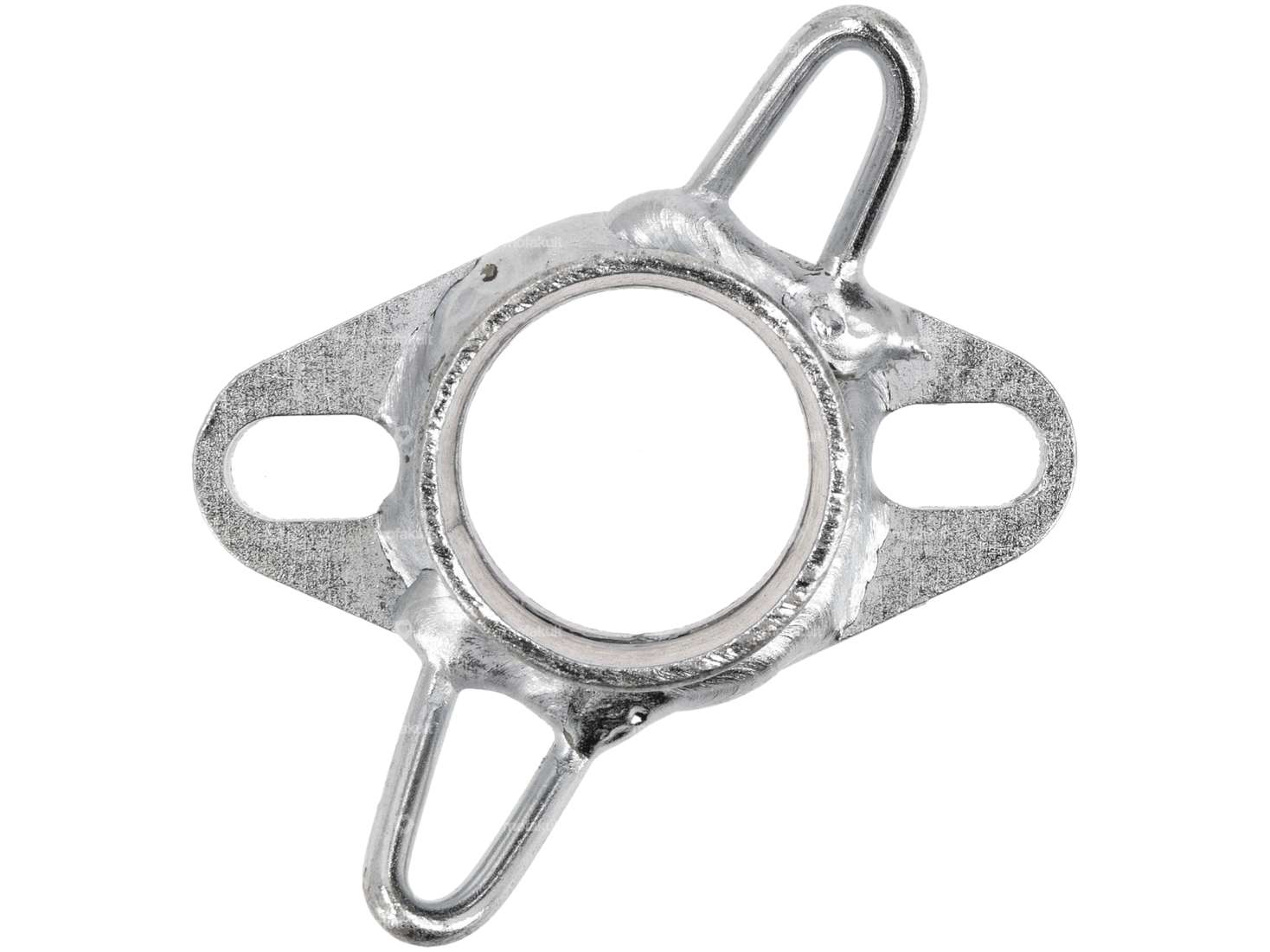

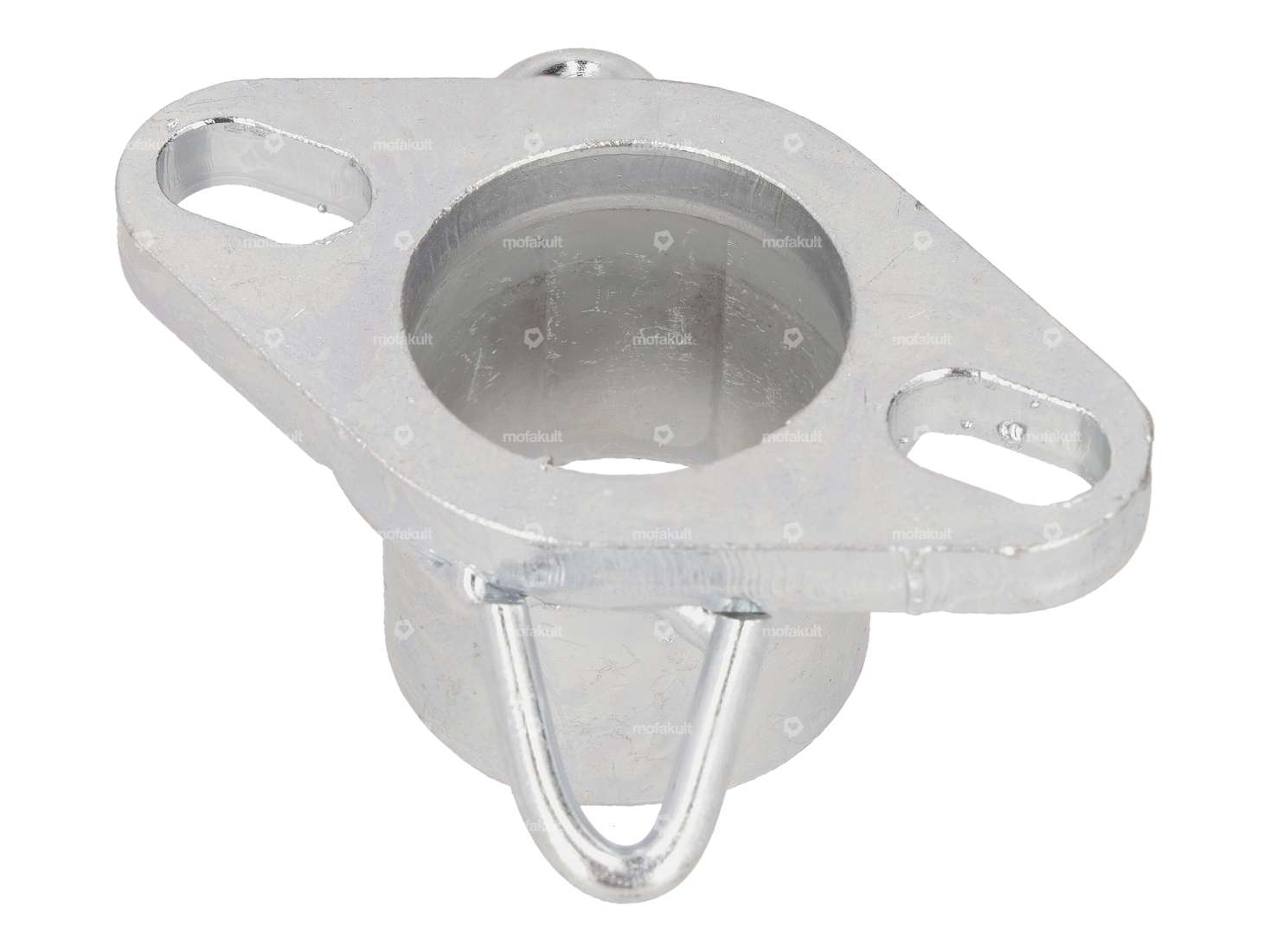

Exhaust adapter to attach a large 32 mm flame tube. The adapter has retaining tabs for springs to additionally secure the flame tube.
The matching Sachs cylinder kits from the Athena brand can be found in the accessories section.
Quality product from the Italian manufacturer Athena.
| Ø inside | 28.5 mm |
| Total length | 31 mm |
| Manufacturer | Athena |
| Material | Steel |
| Surface | galvanized (blue) |
| Ø External connection | 32 mm |
| Ø mounting hole | 8.3 mm |
| Hole spacing | 46 - 56 mm |
| Sachs | 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT) , 2A (HG) 508 - 1 A 535 |
