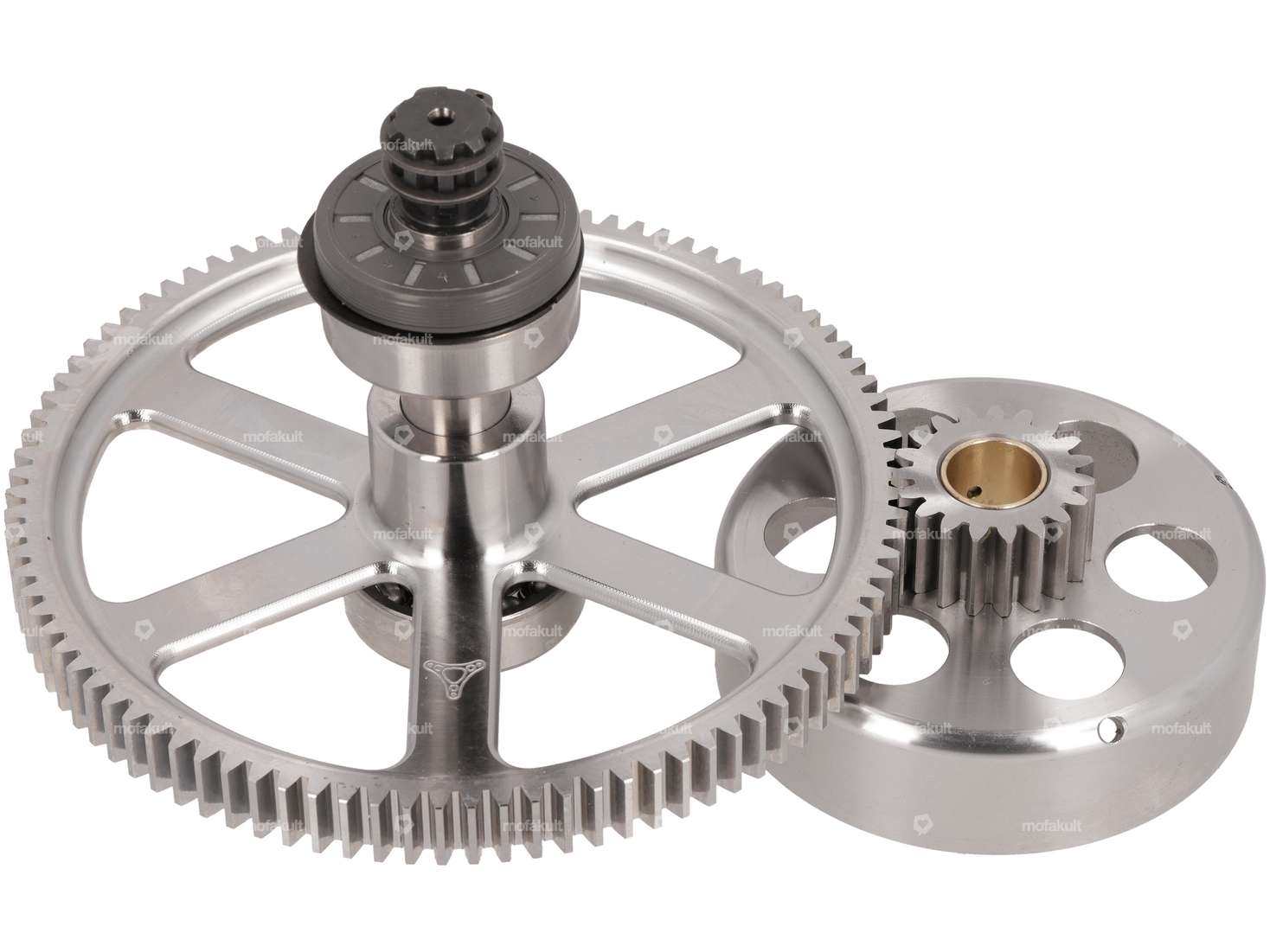

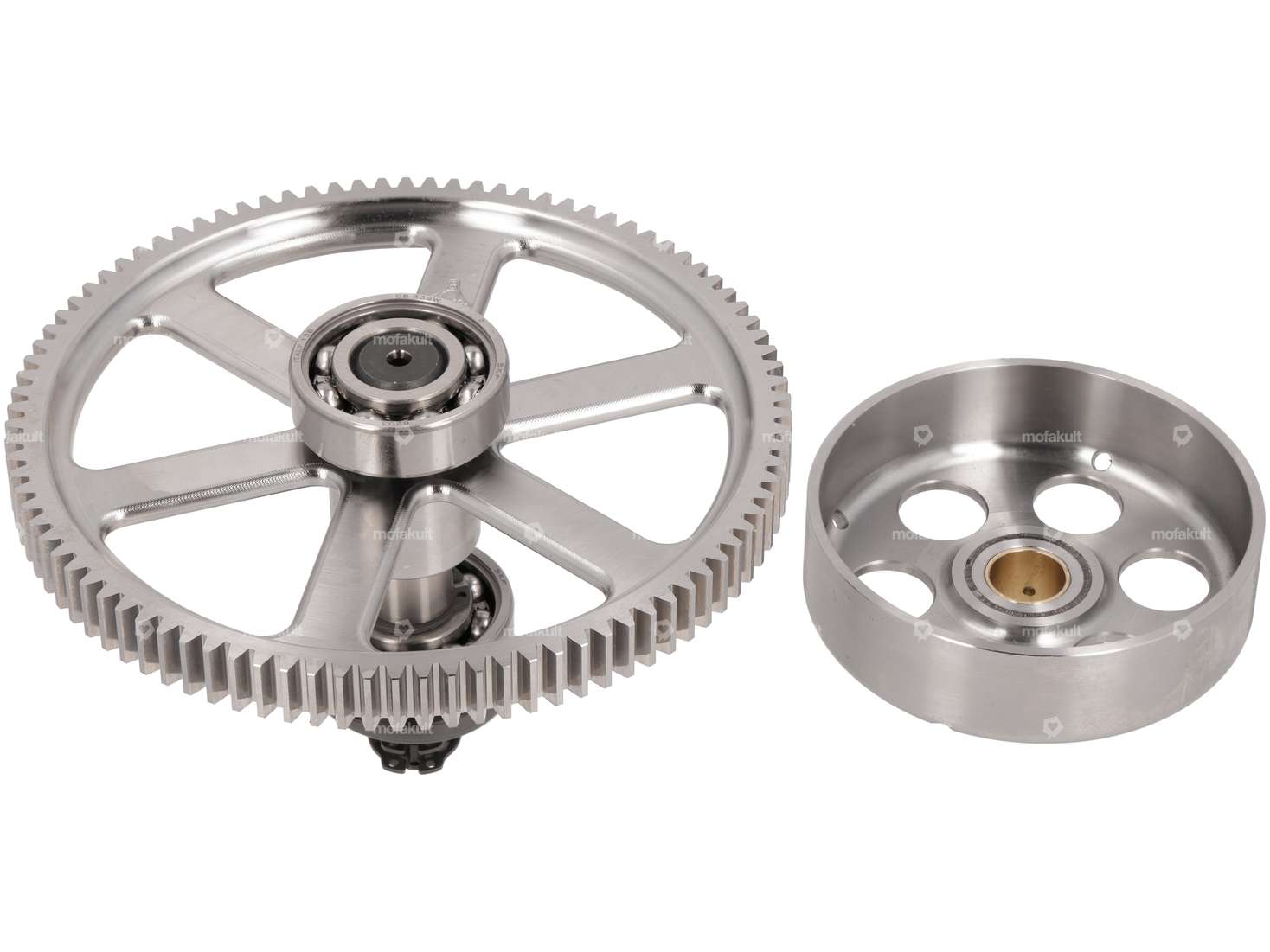

High-quality clutch basket with spur gear suitable for your Puch moped / moped with E50 3- and 4-bearing engine and KTM SX50 clutch
.This set contains CNC-machined parts made of hardened steel, which have been specially designed for high loads. The straight-toothed gear wheel made of special steel impresses thanks to the finely ground teeth for optimum running smoothness and very low wear.
The small gear wheel attached to the clutch basket is firmly welded to the clutch basket and thus offers the optimum conditions for both an original setup and a tuning setup.
| Manufacturer | ASP |
| Material | Steel |
| Surface | hardened & ground |
| Number of teeth | 19 pcs, 94 pcs |
| Toothing type | straight toothed |
| Area of application | Tuning, Racing |
| Puch | E50 |
