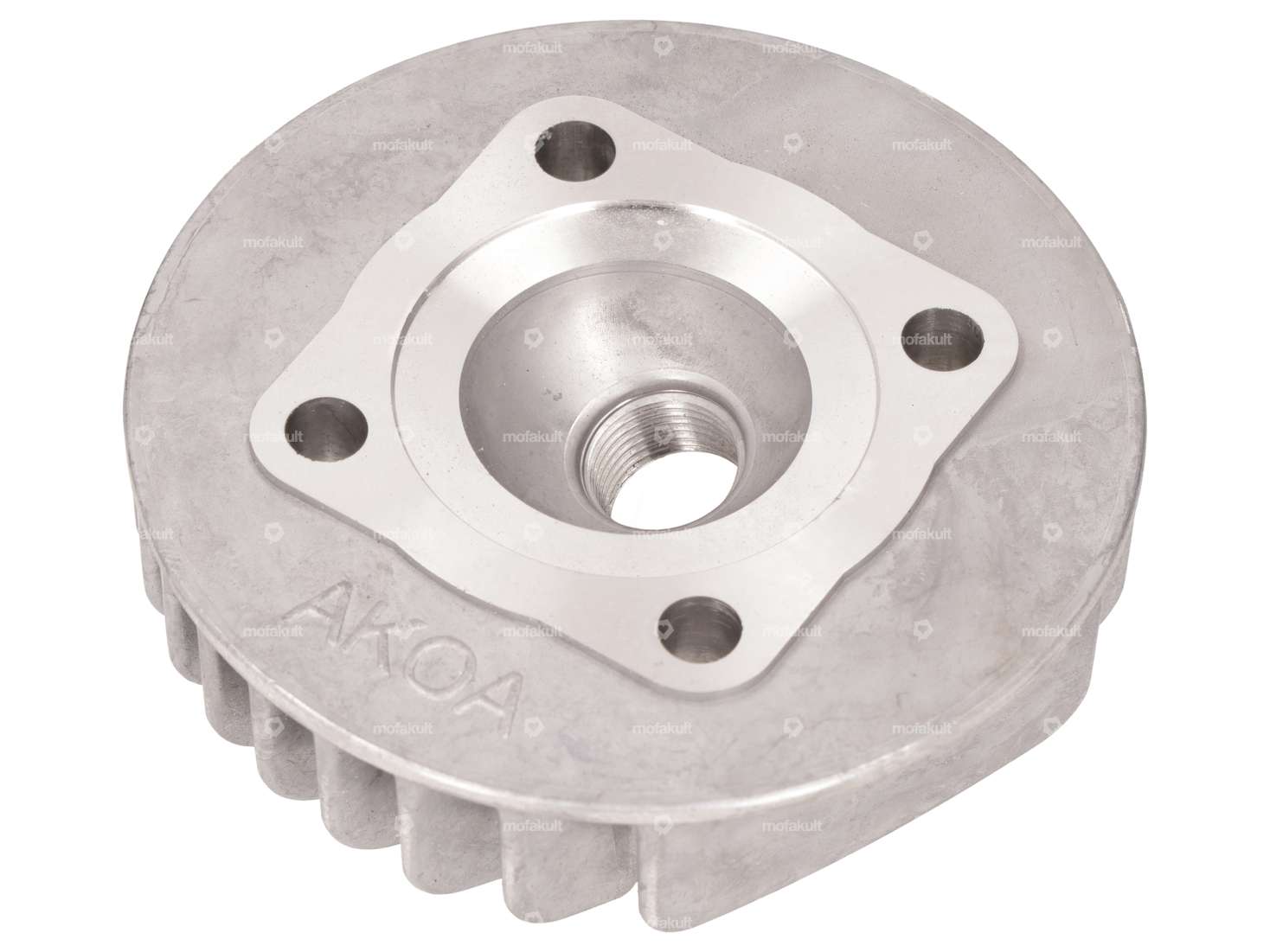

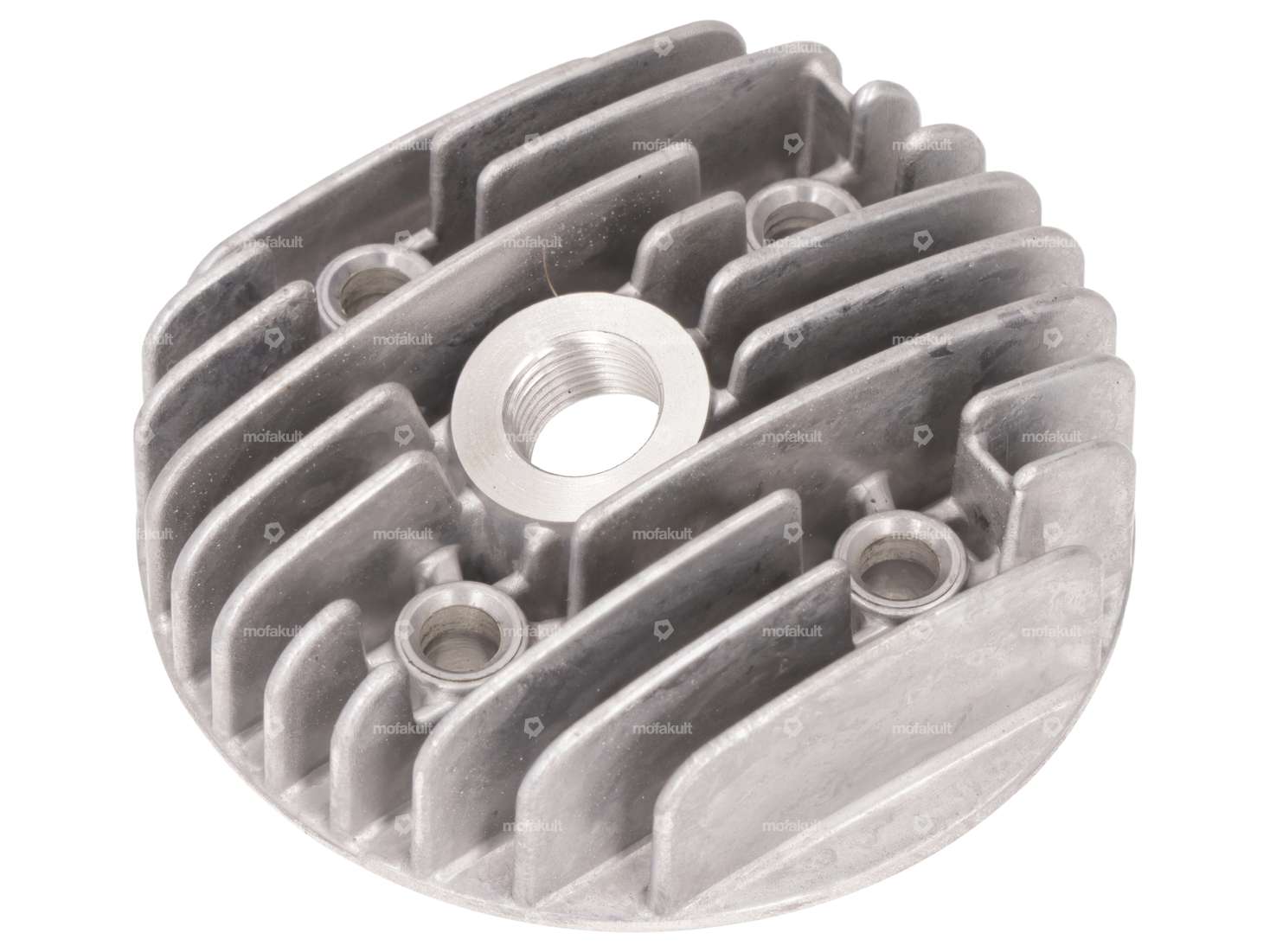

Cylinder cover with a combustion chamber diameter of 40 mm suitable for mopeds / mopeds with Sachs 503 2AL, AAL, 2BL, ABL CH engine.
The flat milled head without decompression port is cleanly finished and fits both bored original Sachs cylinders and tuning cylinders with a diameter of 40 mm.
Material: Cast aluminum
Ø outer: 84 mm
Ø combustion chamber: 40 mm
Hole pattern: 38 x 38 mm
Further parts such as the matching racing cylinder / racing kit can be found under accessories.
Brand product of the manufacturer AKOA.
| Manufacturer | AKOA |
| Material | Aluminum |
| Area of application | Tuning |
| Ø outside | 84 mm |
| Ø cylinder | 40 mm |
| Hole pattern [mm] | 37 x 37 |
| Height | 30 mm |
| Candle thread | short |
| Number of fixing points | 4 pcs |
| Decompressor | No |
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
Accessories & related products

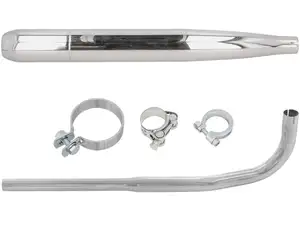

GPO exhaust set cigar Ø 28 / 60 mm chrome | Sachs 503 2AL, 2BL
