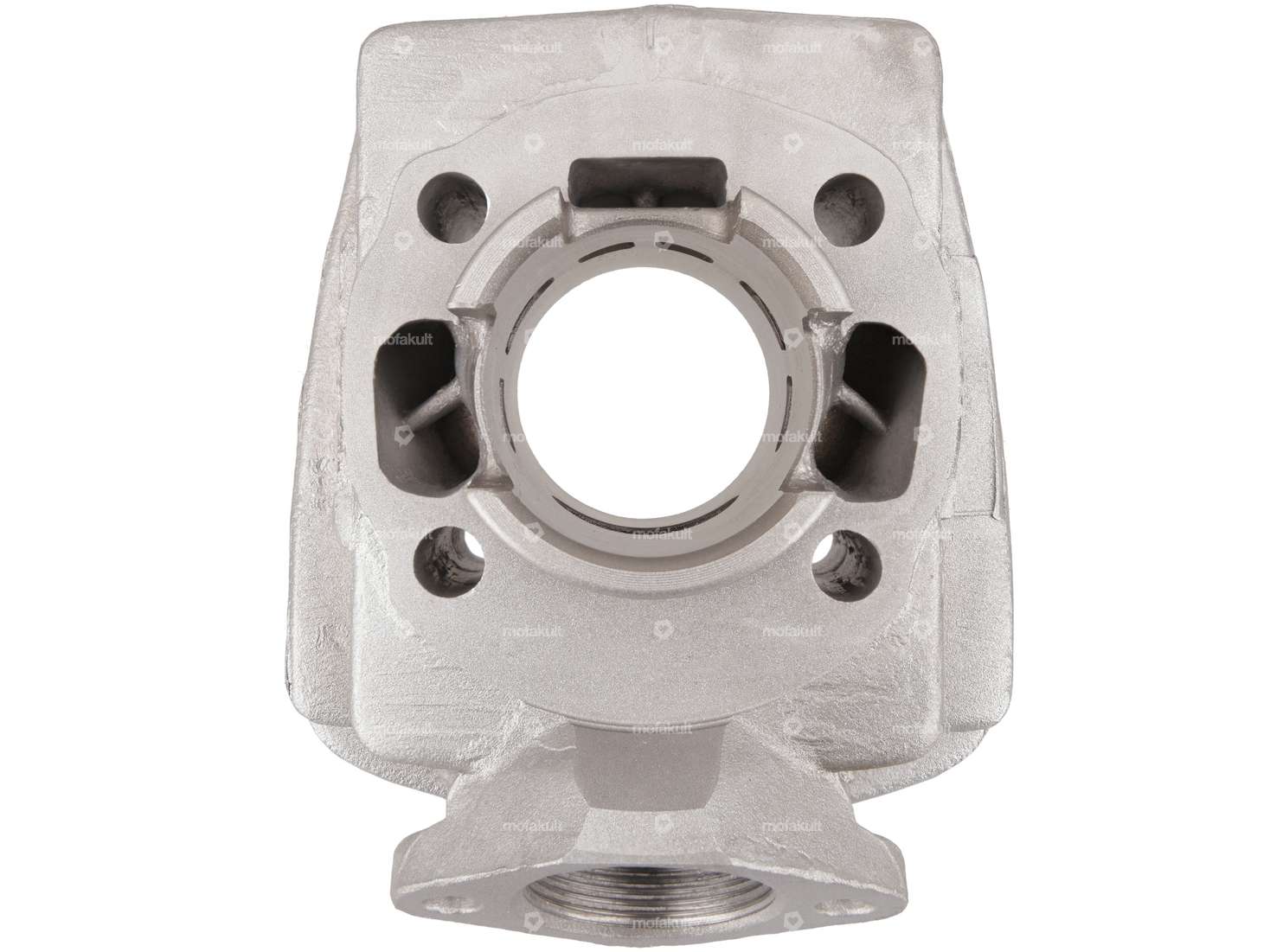

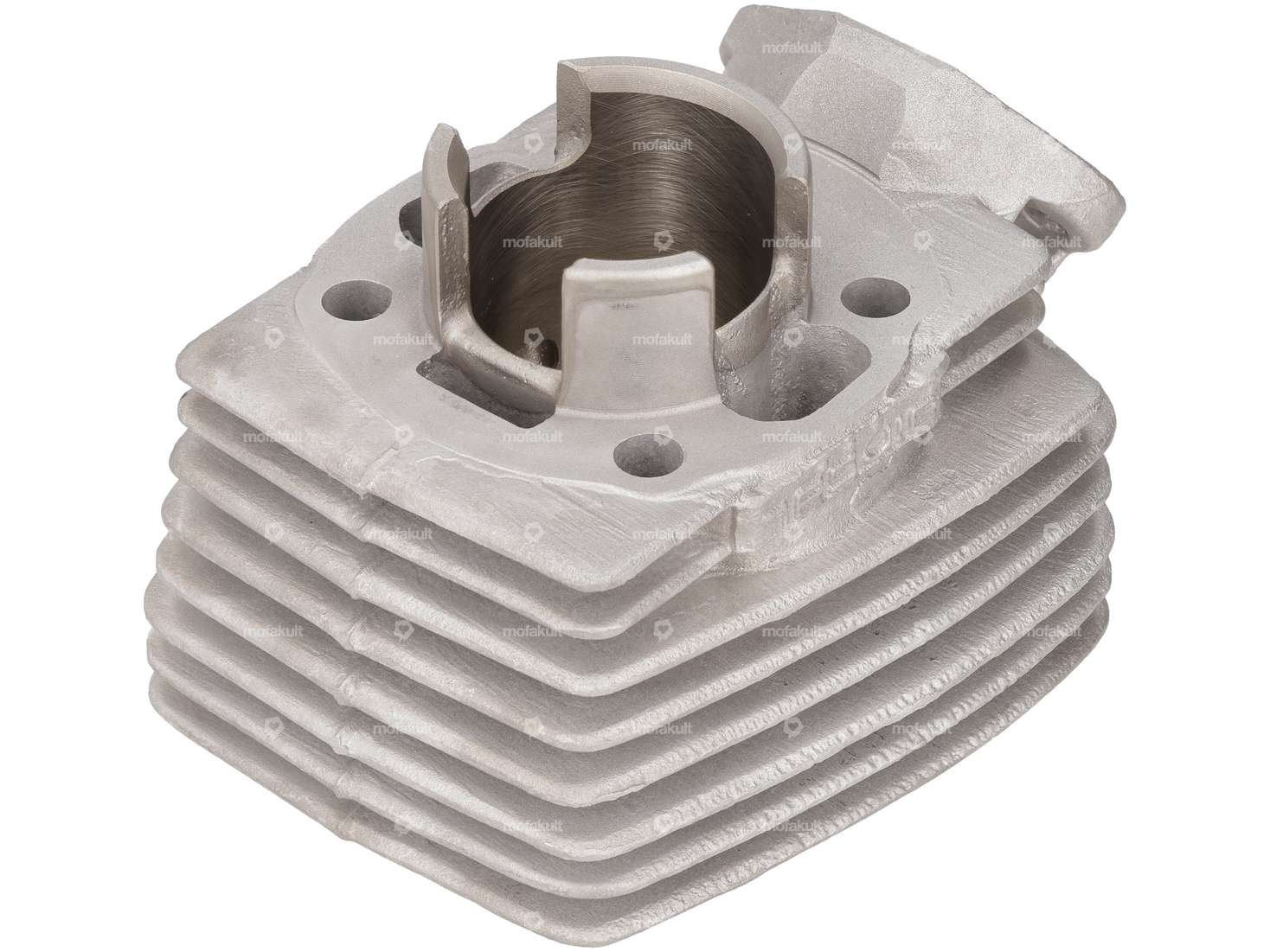

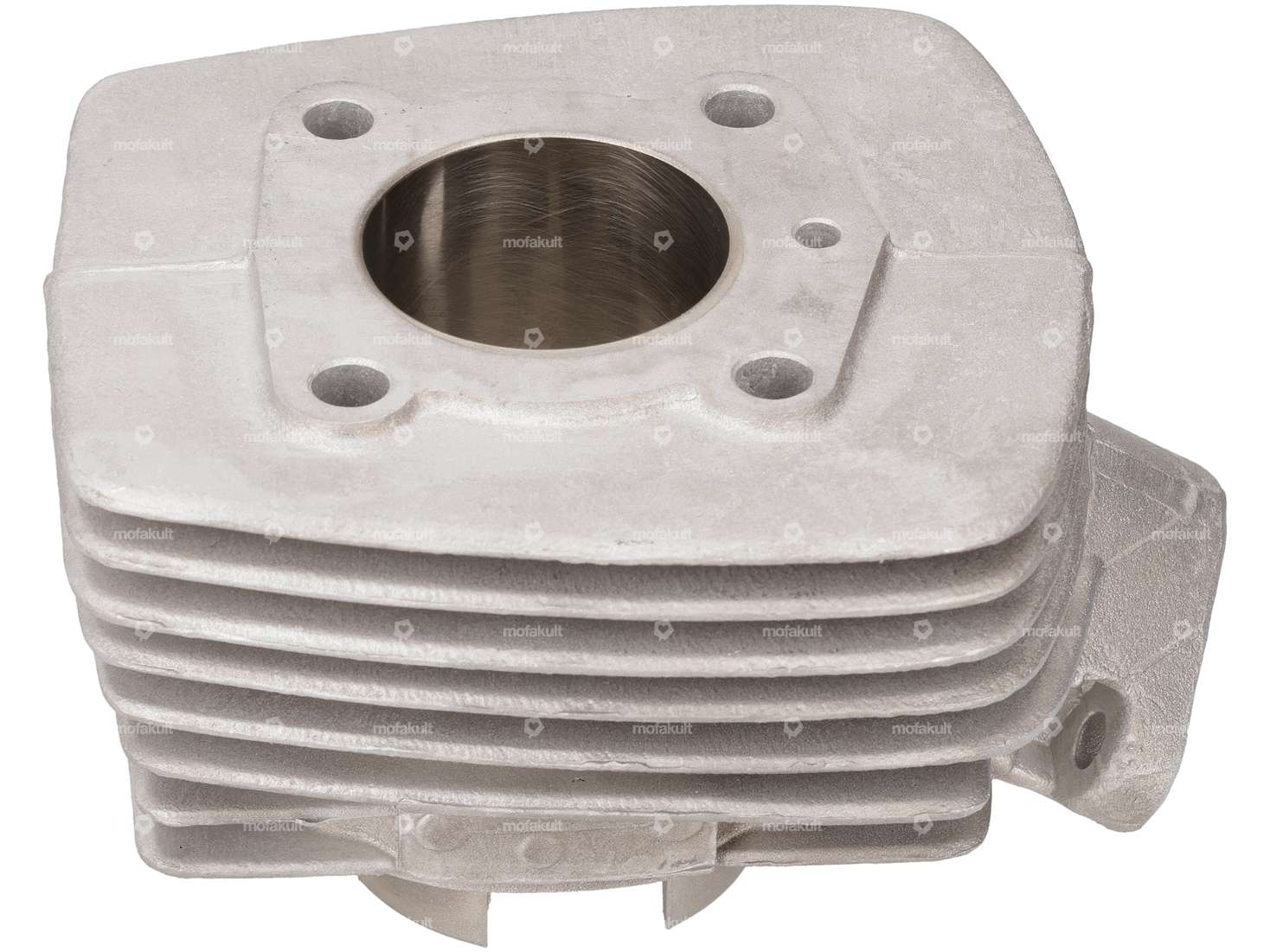

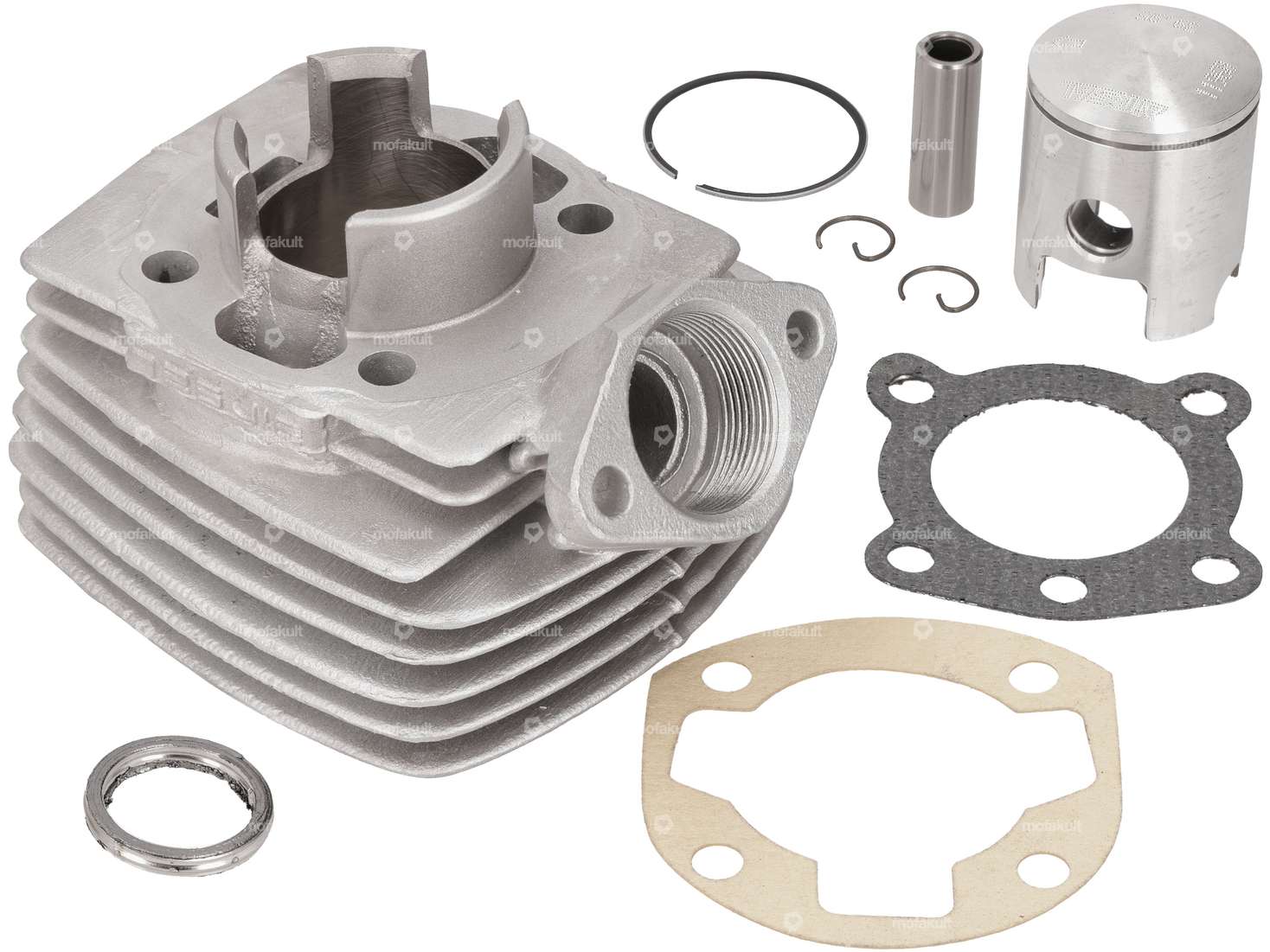

Airsal 40 mm cylinder kit | Peugeot 103

Malossi 40 mm cylinder head Peugeot 103 (with deco mount)

Manufacturer: Malossi · Ø cylinder: 40 mm · Area of application: Racing · Decompressor: Yes

Crankshaft full cheeks Peugeot 103 SP-MVL

Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Thread type: MF11x1 (fine pitch thread) · Crankshaft stroke: 39.1 mm · Total length of crankpin on clutch side: 97.8 mm · Total length crankpin ignition side: 70 mm · Area of application: Tuning

Dell'Orto 16/16 SHA carburetor hand choke

Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: black · Material: Aluminum · Carburetor type: SHA · Nominal diameter: 16 mm · Total length: 82 mm · Width: 72 mm · Ø without reducing sleeve: 21 mm · Nozzle size: 82 · Height: 111 mm · Ø Inside entrance: 16 mm · Ø Output inside: 16 mm · Ø Air filter connection: 56 mm · Ø Air filter connection: 58.5 mm · Mounting type: Plug connection clamped · Ø Internal connection: 19 mm · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Area of application: Tuning · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread)

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.2 mm · Cable length: 1650 mm · Nipple shape: Ball · Area of application: Standard · Number of components: 1 pcs

15 mm intake manifold Dell'Orto SHA

Material: Aluminum · Ø External connection: 19 mm · Hole spacing inlet: 38 mm · Ø inside: 15 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Height flange center hole: 41 mm · Area of application: Tuning

Airsal intake gasket 0.45 mm racing kit | Puch

Manufacturer: Airsal · Place of use: Admission · Material: Sealing paper · Reinforced: No · Hole spacing inlet: 38 mm · Thickness: 0.4 mm · Area of application: Standard · Ø screw holder: 6.7 mm

Dell'Orto carburetor set SHA 16/16 | Puch Maxi S, N

Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Carburetor type: SHA · Nominal diameter: 16 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Flange · Mounting type: Plug connection clamped · Hole spacing inlet: 38 mm · Area of application: Tuning

Airsal 40 mm cylinder head | Peugeot 103

Manufacturer: Airsal · Surface: sandblasted · Material: Aluminum · Ø cylinder: 40 mm · Width: 105 mm · Height: 110 mm · Hole pattern [mm]: 49.5 x 45 · Candle thread: short · Number of fixing points: 4 pcs · Area of application: Standard · Decompressor: Yes

Airsal engine housing Racing 40 mm | Peugeot 103

Stock number: 6203 · Stock number: 6204 · Manufacturer: Airsal · Material: Aluminum · Hole pattern [mm]: 49.50 x 45

Airsal crankshaft "Racing" 3 BAL WH | Peugeot 103

Dimension needle bearing: 12 / 15 x 15.6 mm (axe 12) · Manufacturer: Airsal · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Thread type: MF11x1 (fine pitch thread) · Material: Steel · Crankshaft stroke: 39 mm · Connecting rod length center-center: 76 mm · Number of gears: 1 pcs · Thread length: 10 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 100 mm · Total length crankpin ignition side: 72.3 mm · Ø crank webs: 68.5 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 20 mm · Weight: 935 g · Ø Bearing seat (ignition side): 17 mm · Area of application: Racing · Wide crank webs: 36 mm · Length 1st paragraph: 22 mm · Length 2nd paragraph: 9 mm · Length 3rd paragraph: 57 mm · Ø 1st step (on the coupling side): 20 mm · Ø 2nd shoulder (on the clutch side): 15.9 mm · Ø 3rd step (on the clutch side): 10.9 mm · Length of shoulder (ignition side): 12 mm
