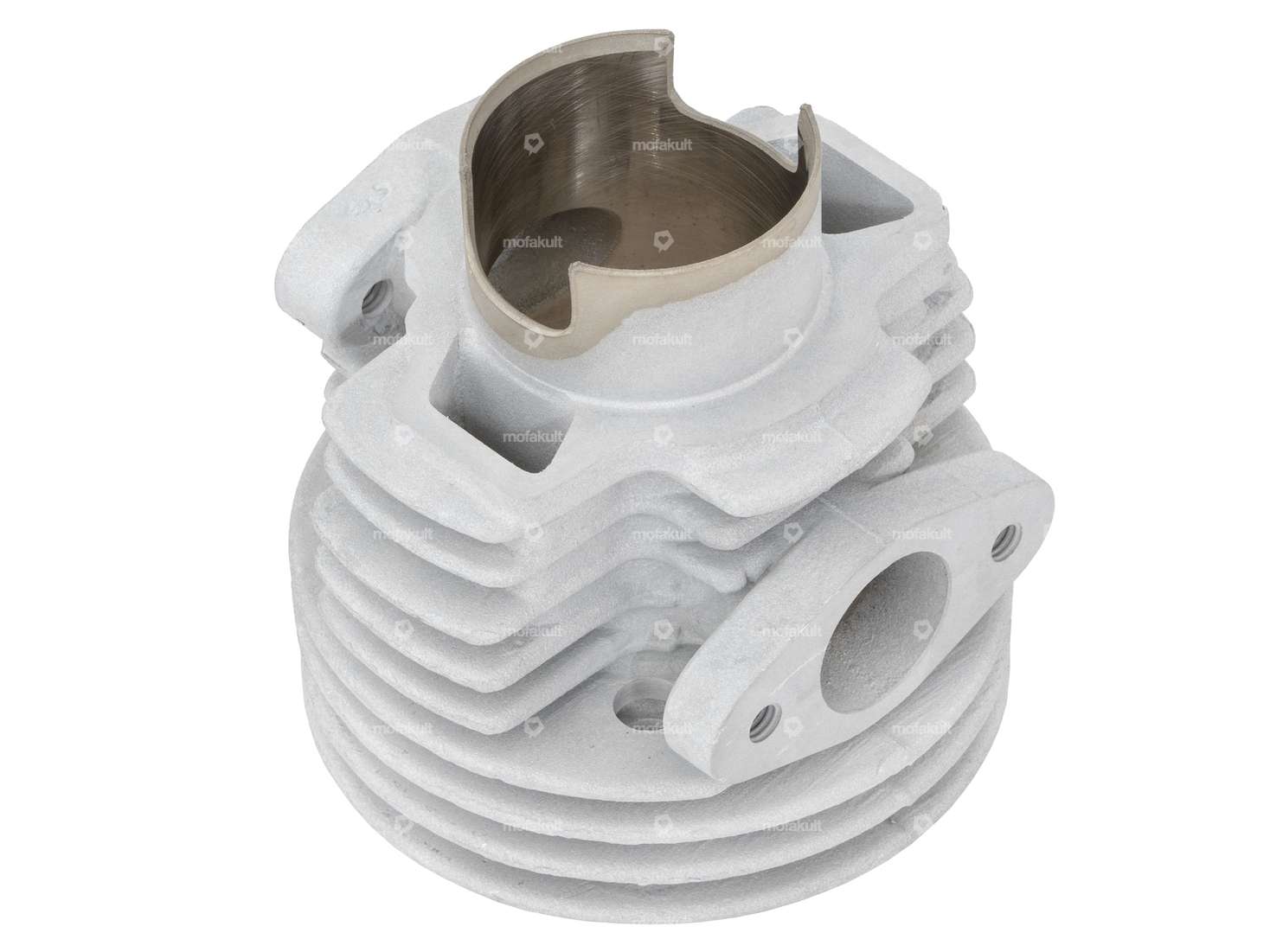

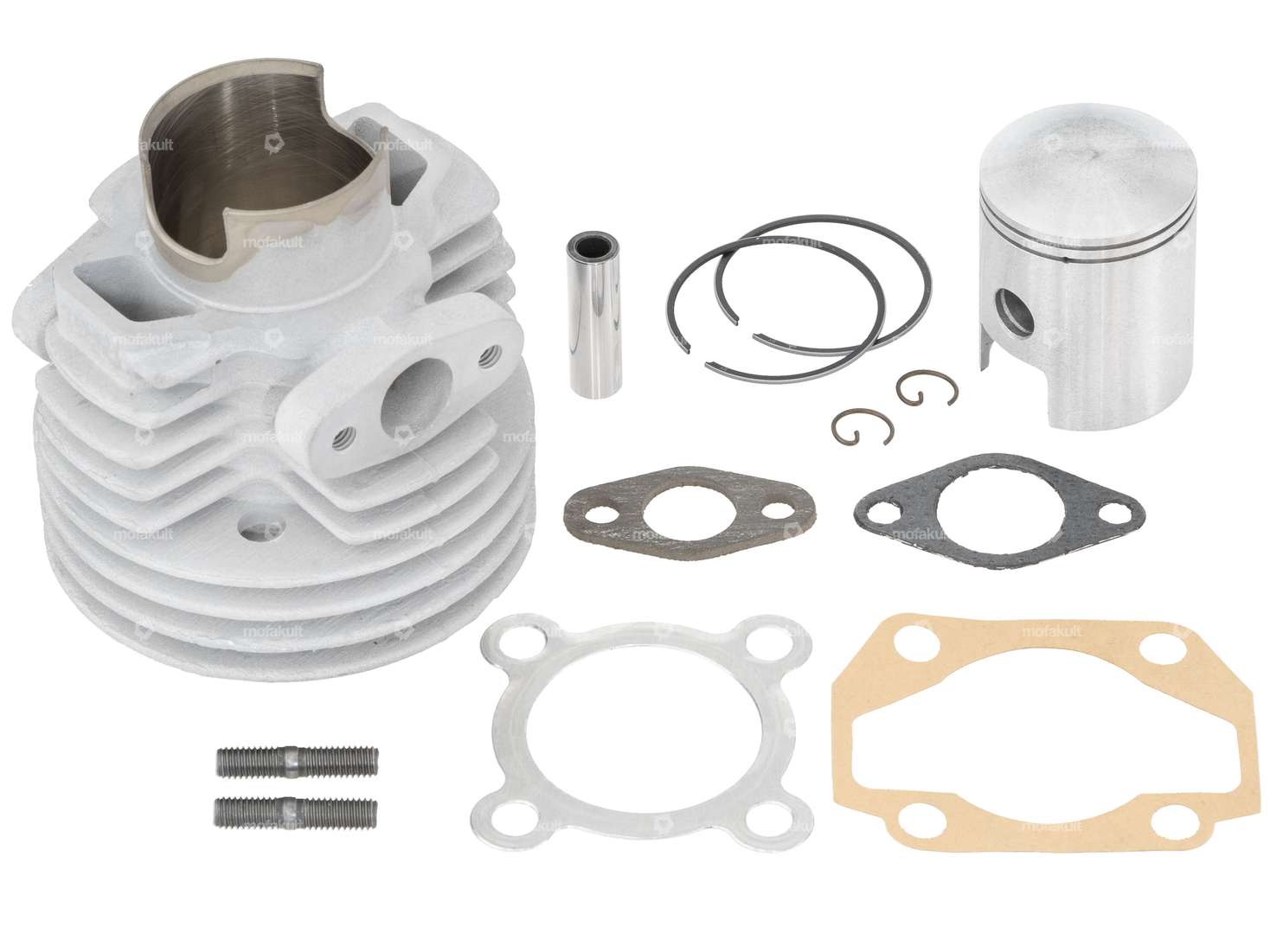

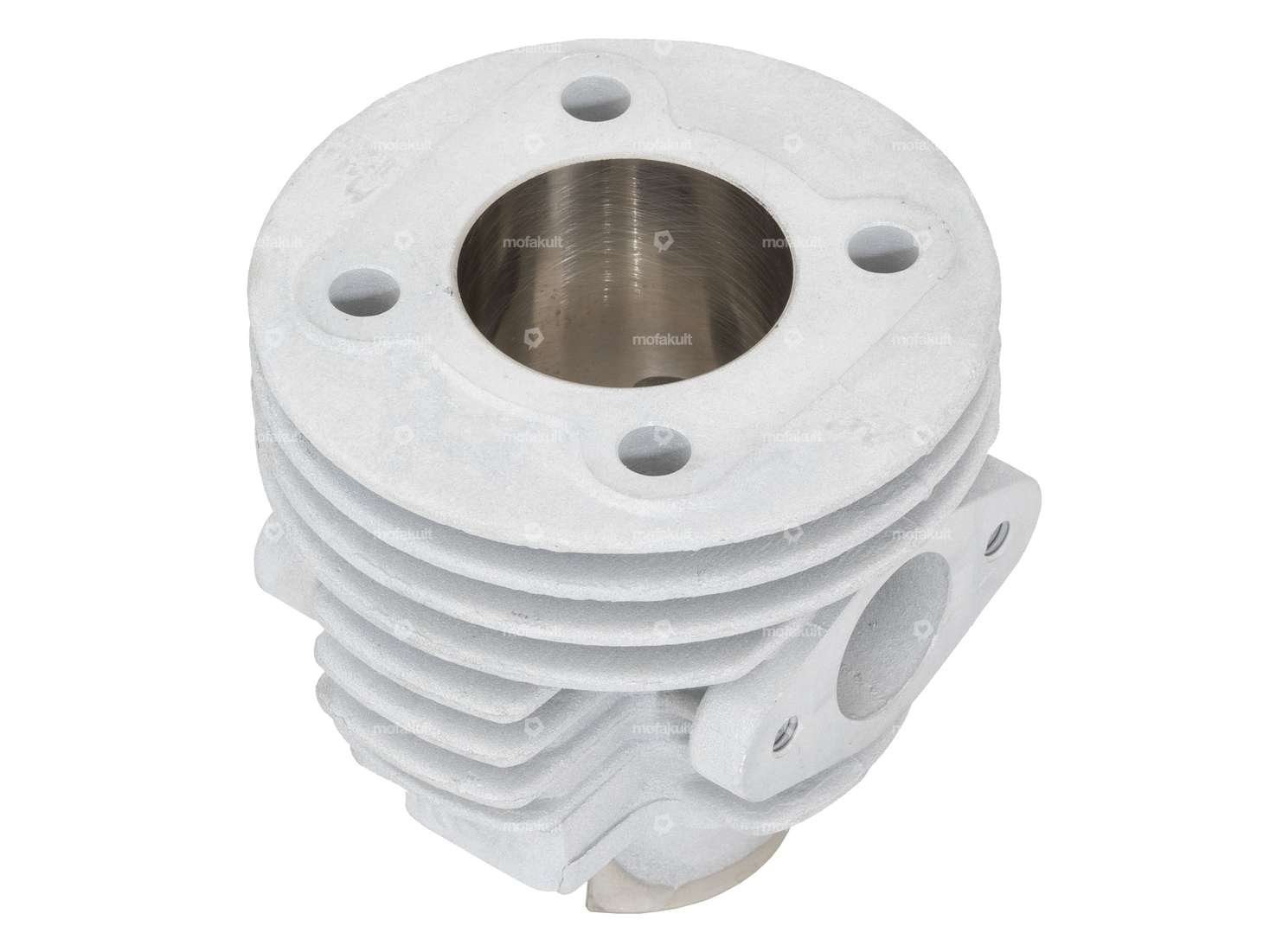

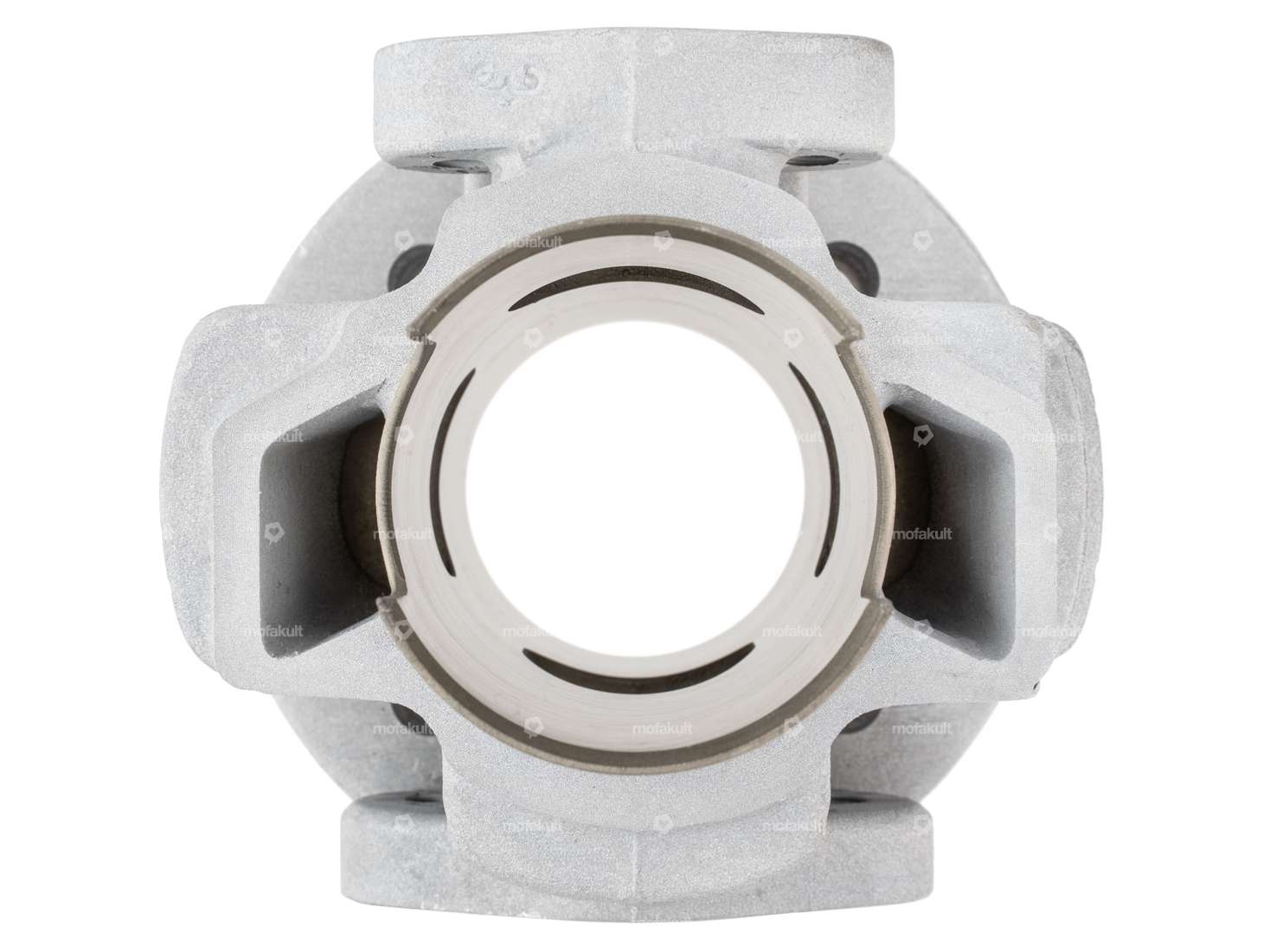

Airsal 40 mm cylinder kit 12 mm KoBo | Puch X30 Velux, NG-2AH

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Total length: 30 mm · Thread length: 12 mm · Thread type: M6x1 (standard thread) · Strength class: 10.9

swiing® revival stud bolt M6 x 106 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 106 mm · Thread length: 12 mm · Thread length: 20 mm · Thread type: M6x1 (standard thread) · Puch OEM number: 360.1.10.034.1

WEKEM 2K liquid metal

Manufacturer: WEKEM · Material to be used: Aluminum · Material to be used: Ceramics · Material to be used: Metal · Material to be used: Steel · Material to be used: Wood · Type of application: 2K · Contents [ml]: 24 ml · Area of application: Chemistry · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: Toxic to aquatic organisms (with long-term effects) · Color: gray · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Temperature resistance (min.): -20 - 80 °C · Alignment time: 240 sec

Piston 40 mm (10 mm KoBo) | Puch X30 Velux fan-cooled

Nominal diameter: 40 mm · Ø outside piston (A): 39.95 mm · Compression height (C): 23.6 mm · Curvature (D): 3.4 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 10 mm · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Piston weight: 78 g

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Area of application: Standard · Color: green

GPO gasket set 40 - 41 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux

Manufacturer: GPO · Number of components: 4 pcs · Area of application: Tuning · Ø cylinder: 40 mm · Ø cylinder: 41 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Manufacturer: Malossi · Bearing cage: Sheet steel cage · Ø inside: 13 mm · Bearing type: Needle roller and cage assembly · Ø outside: 1 mm · Width: 14.5 mm · Dimension needle bearing: 10/13 x 14.5

swiing® revival cylinder base gasket 40 mm 0.45 mm | Puch Velux / NG-2AH

Material: Oiled paper · Thickness: 0.45 mm · Place of use: Cylinder base · Manufacturer: swiing® revival parts · Ø cylinder: 40 mm

GPO clutch plates (pair) | Puch X30

Manufacturer: GPO · Area of application: Standard · Number of slats: 2 pcs

Magura cable clamp Ø 8 x 15 mm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Area of application: Standard · Ø outside: 8 mm · Total length: 15 mm · Ø Cable bushing: 2.3 mm · Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Thread length: 7 mm · Ø Bundle: 6 mm · Thread type: M6x1 (standard thread) · Width across flats SW: 7 mm

GPO control bearing set M26x1 mm | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Ø inside: 26.8 mm · Bearing type: Bearing ring · Ø outside: 41 mm · Ø mounting frame: 31 mm · Color: silver · Thread type: MF26x1 (fine pitch thread)

Wippermann drive chain No.18 (double reinforced)

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: Wippermann · Material: Steel · Surface: blank / oiled · Number of chain links: 114 pcs · Rolling circumference: 1448 mm · Chain lock type: Spring lock · Color: gray · Ø bore: 4.2 mm · Ø Pin: 4.15 mm

Pedestal bearing shell | Puch

Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Surface: raw · Total length: 70 mm · Color: silver · Number of fixing points: 3 pcs · Width: 46 mm · Mounting type: Screws · Height: 20 mm · Hole spacing: 41 mm

swiing® revival gasket set | Puch X30 Velux

Manufacturer: swiing® revival parts · Number of components: 11 pcs · Area of application: Standard · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44

Magura cable holder

Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Area of application: Standard · Ø outside: 8 mm · Total length: 14.5 mm · Ø Cable bushing: 4 mm · Color: silver · Ø Nipple hole: 6.2 mm · Ø Bundle: 10 mm

swiing centering sleeves cylinder head (M7 stud bolt) | Puch X30 Velux

Manufacturer: swiing · Material: Aluminum · Ø inside: 7.1 mm · Ø outside: 8 mm · Total length: 17 mm · Nominal diameter inside: 7 mm

swiing® ingenious cylinder head tuning (38 - 41 mm of your choice) | Puch X30 Velux

Manufacturer: swiing® ingenious parts · Ø cylinder: 38 - 41 mm · Ø outside: 90 mm · Number of fixing points: 4 pcs · Decompressor: No · Height: 35 mm · Area of application: Tuning

swiing® ingenious cylinder head "Racing" with O-ring (38 - 41 mm of your choice) | Puch X30 Velux

Manufacturer: swiing® ingenious parts · Area of application: Racing · Ø outside: 90 mm · Ø cylinder: 38 - 41 mm · Number of fixing points: 4 pcs · Height: 35 mm · Decompressor: No
