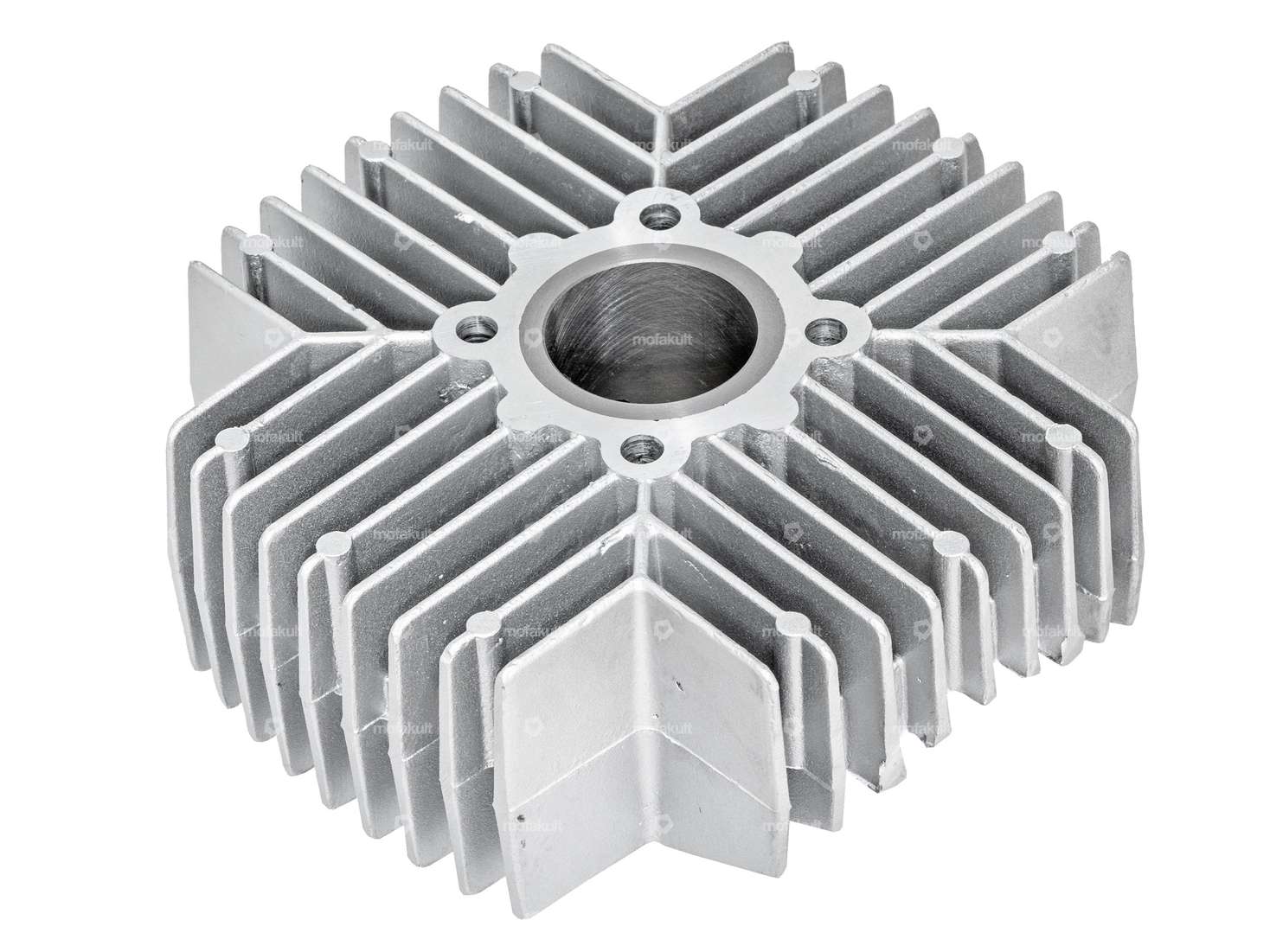

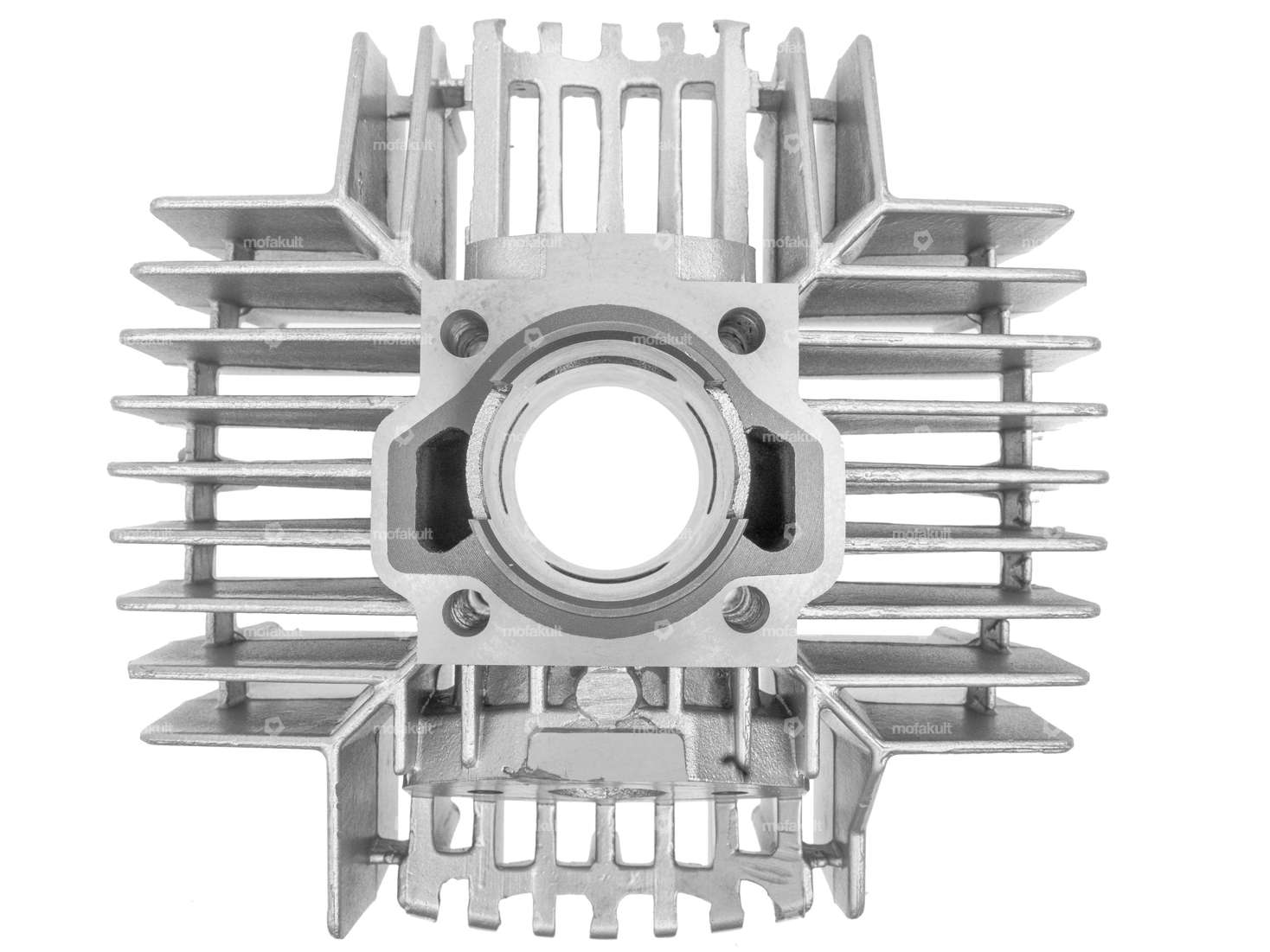

Original reproduction cylinder kit for Puch Supermaxi LG1 / LG2 mopeds. This cylinder also fits Puch Maxi or Puch X30 mopeds, as it is equipped with smaller exhaust ports. In this case, however, the corresponding exhaust with a narrow outlet must be fitted.

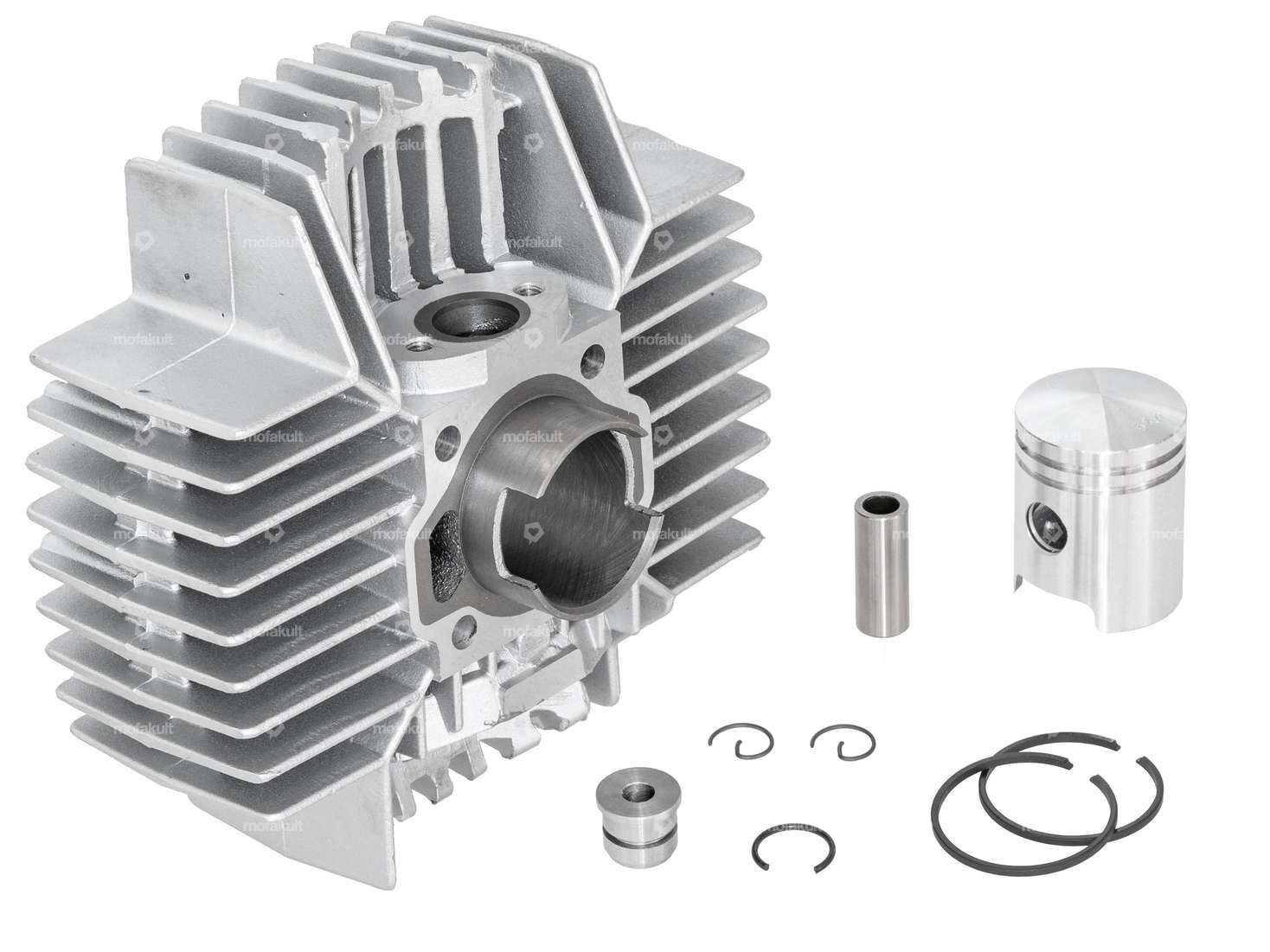

Scope of delivery:
- Cylinder
- Seal
- Seal lock
- 2 x circlip
- Piston pin Ø 12 mm
- Piston
- 2 x piston ring
Notes:

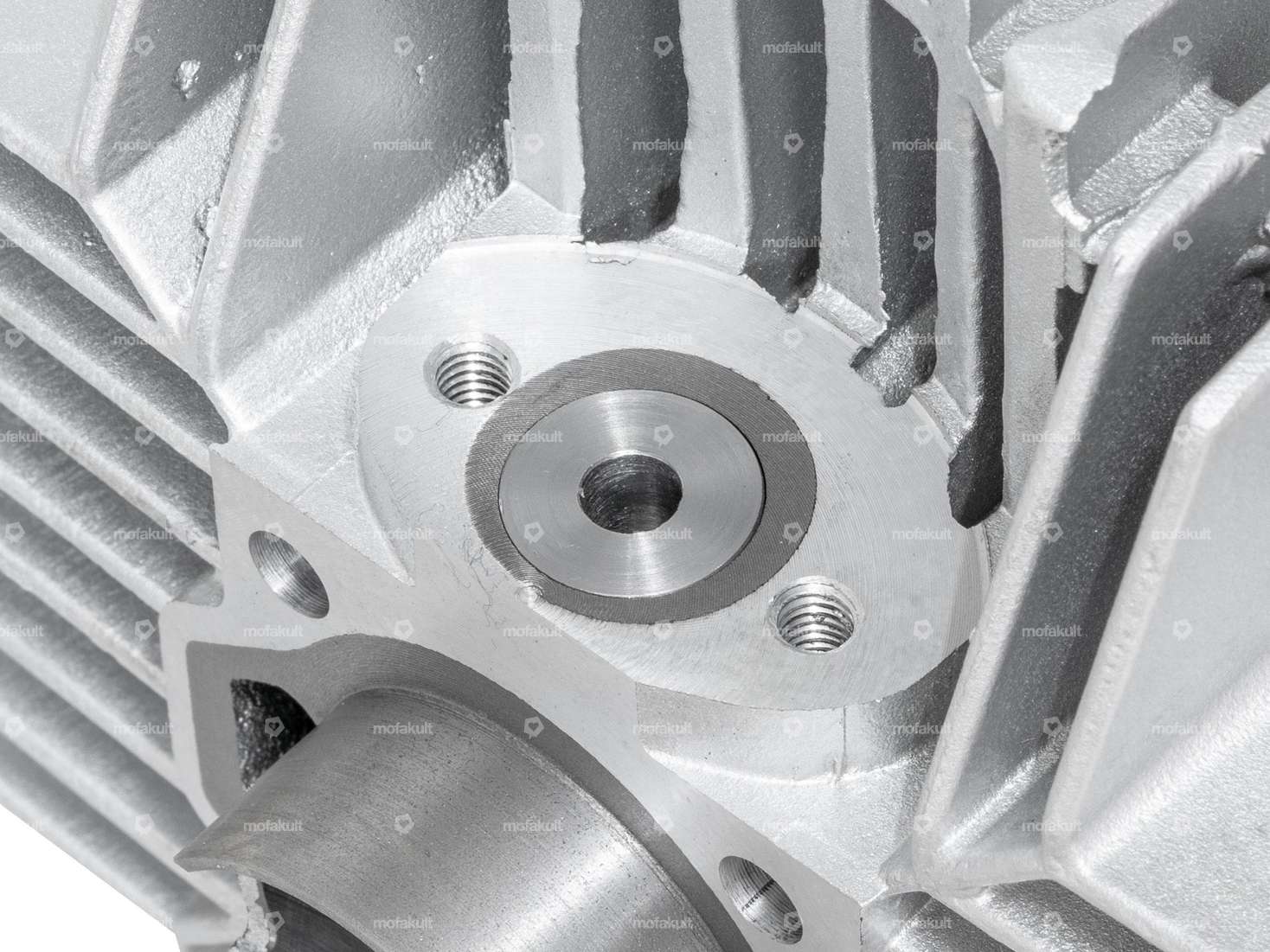

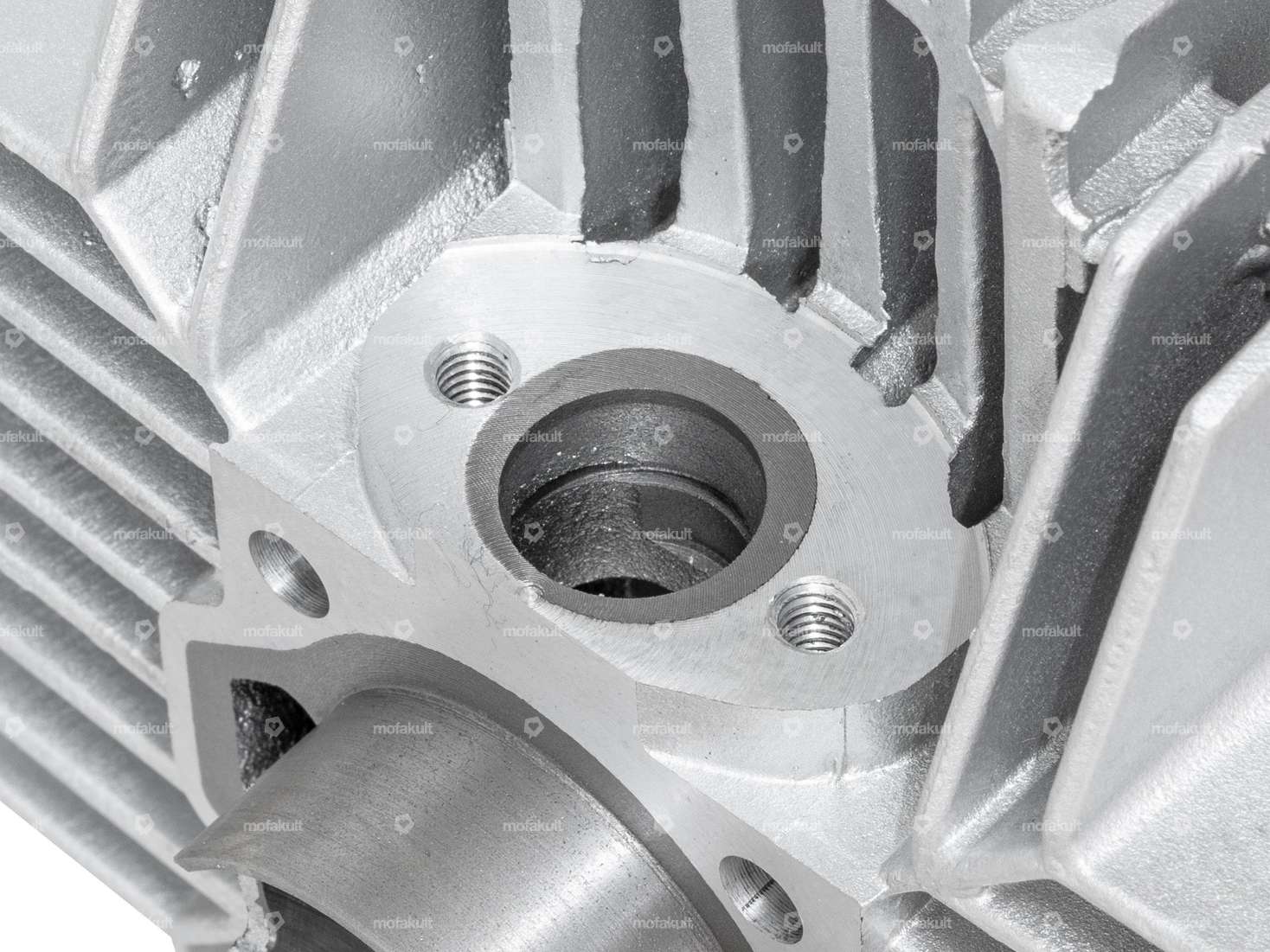

The seal is not yet installed and can be omitted if required.

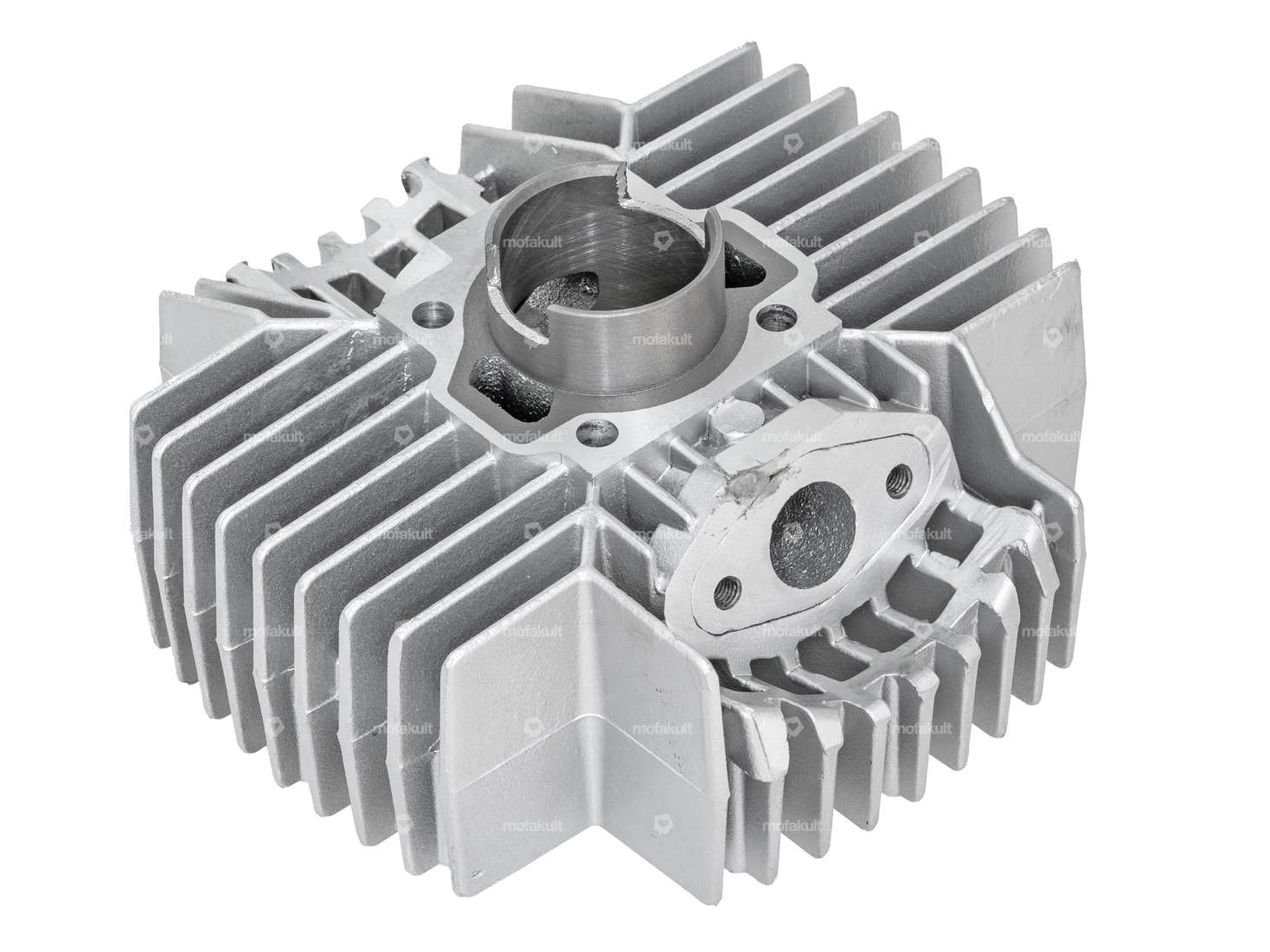

The stud bolt distance on the intake side is only 32 mm. On the original cylinder this is 38 mm. The holes on the intake manifold must therefore be widened slightly in order to be able to fit it. Please note the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Nominal diameter | 38 mm |
| Area of application | Standard |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Number of fixing points | 4 pcs |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 32 mm |
| Outlet type | slanted |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Camouflaged | Yes |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
