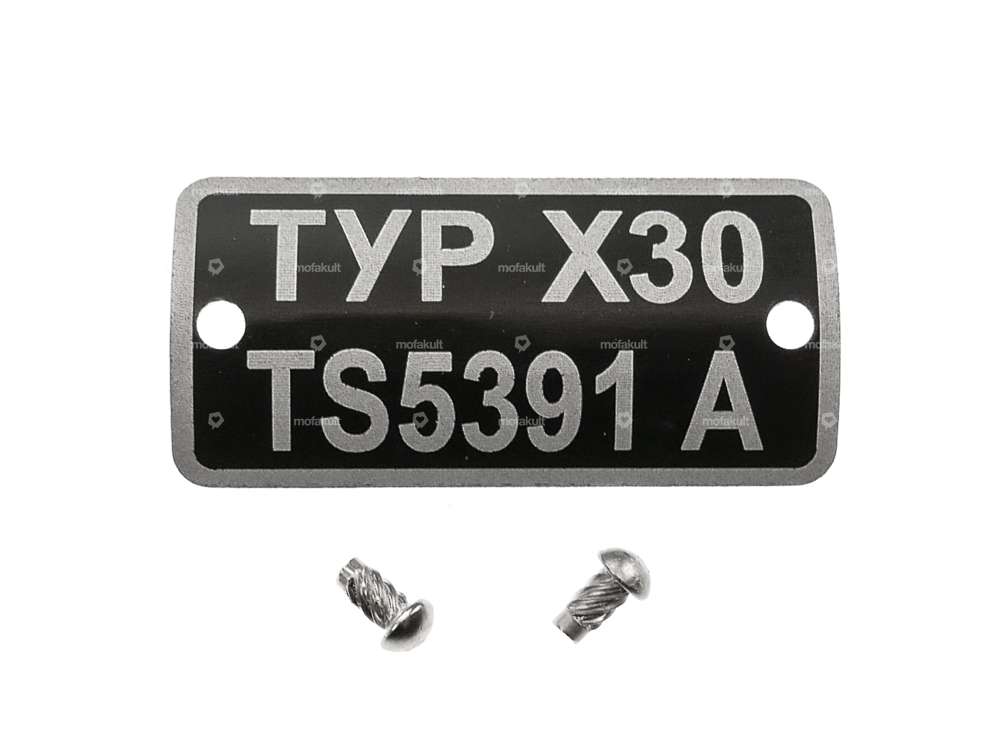

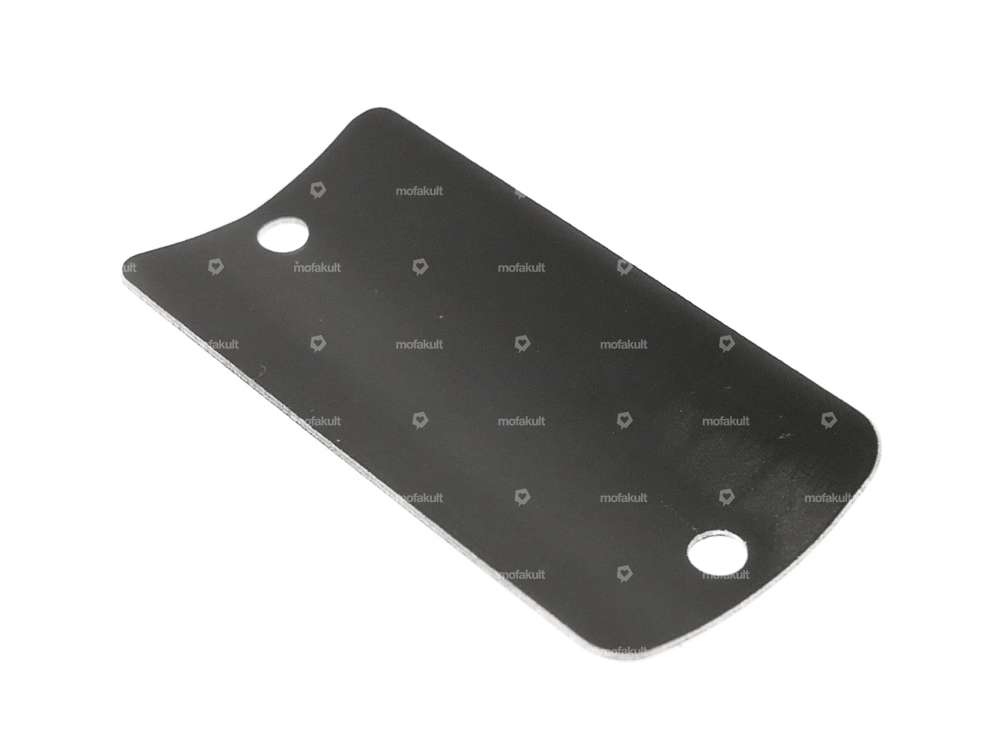

swiing® revival type plate TYPE X30 TS5391A | Puch Velux

Hammer screw Ø 2.5/4.2 x 6.3 mm (X30)

Ø outside: 2.5 mm · Ø bore: 2.2 mm · Ø External head: 4.2 mm · Total length: 6.3 mm · Material: Steel · Surface: galvanized (blue)

Return spring brake plate | Puch Maxi

Spring design: Nose feather · Spring design: Torsion spring · Ø wire: 2.4 mm · Ø inside: 25.5 mm · Ø outside: 30 mm · Total length: 125 mm · Leg length: 45 mm · Length spring hook: 50 mm · Material: Spring steel · Surface: galvanized (blue) · Area of application: Original · Area of application: Standard

Magura cable clamp Ø 8 x 15 mm

Manufacturer: Magura · Material: Brass · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Thread type: M6x1 (standard thread) · Ø outside: 8 mm · Drive: External hexagon · Drive: Slot · Ø Cable bushing: 2.3 mm · Ø Bundle: 6 mm · Screw head: Hexagon · Total length: 15 mm · Thread length: 7 mm · Width across flats SW: 7 mm

Pedestal bearing shell | Puch

Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Height: 20 mm · Total length: 70 mm · Number of fixing points: 3 pcs · Width: 46 mm · Hole spacing: 41 mm · Mounting type: Screws

swiing® revival gasket set | Puch X30 Velux

Manufacturer: swiing® revival parts · Number of components: 11 pcs · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Area of application: Standard

Magura adjusting screw brake long

Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Color: silver · Thread type: MF6x0.75 (fine pitch thread) · Drive: Knurled screw · Ø shaft: 6 mm · Ø External head: 9.1 mm · Total length: 47 mm · Total length: 65 mm · Thread length: 24 mm · Shank length: 11 mm

swiing® revival spring washer pedal axle 0.6 mm

Spring design: Special spring · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Total length: 1.7 mm · Ø inside: 17 mm · Ø outside: 29 mm · Material thickness: 0.6 mm

Heidenau 2.25 x 17" tires M4 Allround

Manufacturer: Heidenau · Tire width [inch]: 2.25 " · Width [inch]: 2 1/4 · Wheel size [inch]: 17 " · Color: black · Old designation: 21 x 2.25 · Speed index: B = 50 km/h · Load capacity index: 28 = 100 kg · Profile type: M4 · Tire type: Allround · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)

Puch brand plate head tube (bent)

Material: Brass · Width: 42 mm · Height: 65 mm · Surface: etched · Shape: curved · Mounting type: Rivets · Number of fixing points: 2 pcs · Ø mounting hole: 3.9 mm

swiing® revival screw-in condenser | Bosch / Ducati

Manufacturer: swiing® revival parts · Area of application: Original · Area of application: Standard · Capacity: 0.16 µF · Thread type: M3x0.5 (standard thread) · Mounting type: Plug connection clamped · Connection type: Thread for screwing · Ø outside: 18 mm · Height: 23 mm · BOSCH OEM number: 2 207 330 050
