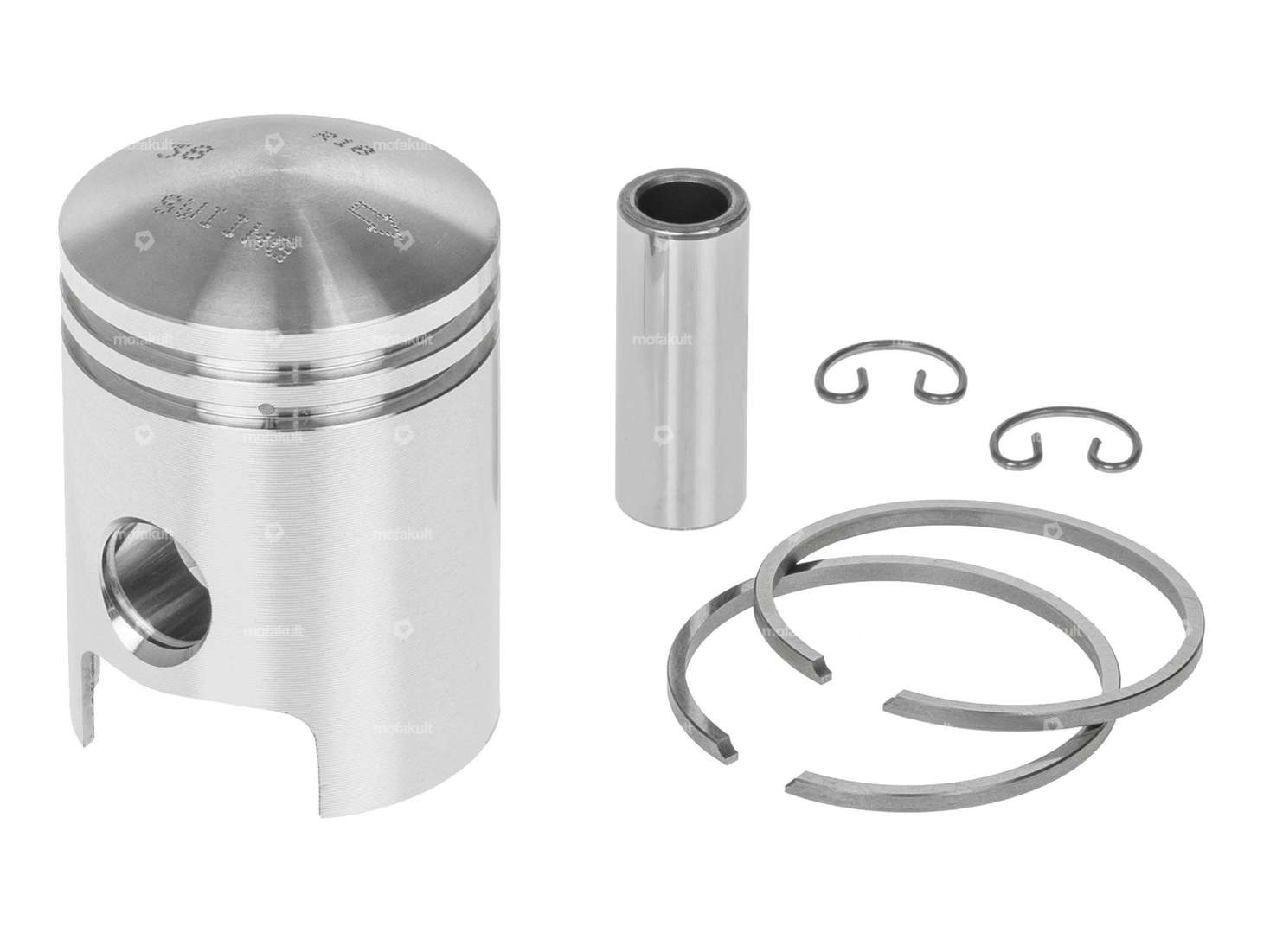

39 mm ¨um dimension piston with two pieces of 2 mm rectangular piston rings with flange lock (FS) suitable for the old Cilo 502 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | swiing® revival parts |
| Ø outside piston (A) | 38.94 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 5.05 mm |
| Nominal diameter | 39 mm |
| Total piston height (E) | 54 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring impact | Flank safety device (FS) |
| Piston ring mold | Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring height | 2 mm |
| Weight piston kit | 85 g |
| Cilo | 502 / 502t |
