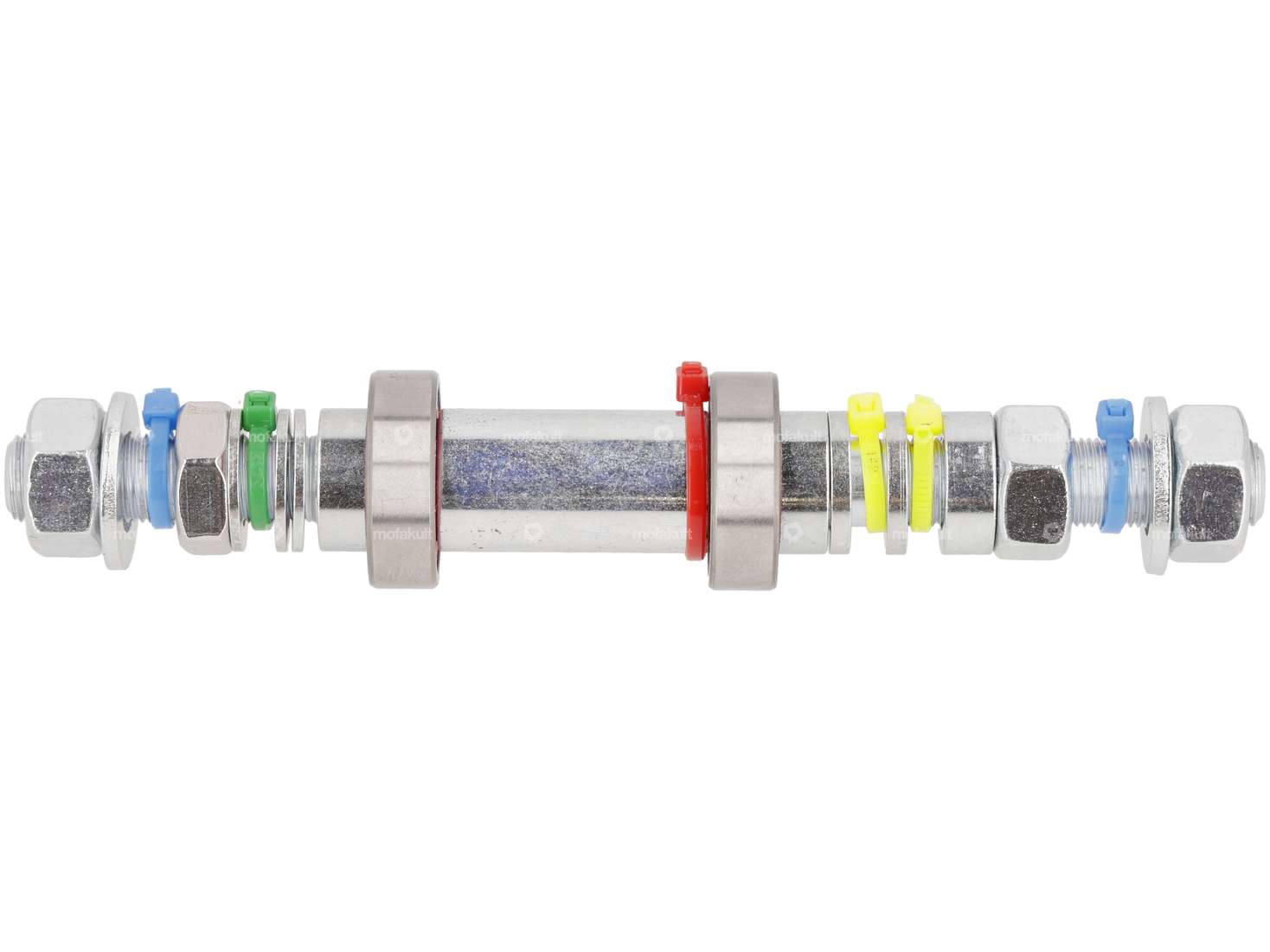

Wheel axle set with closed groove ball bearings (Ø 29 mm) for front wire spoke wheels on your Puch moped / moped.
The set consists of a 165 mm long wheel axle, two special ball bearings and all required nuts and spacers.
The innovation set works with spoke hubs (spoke rims).

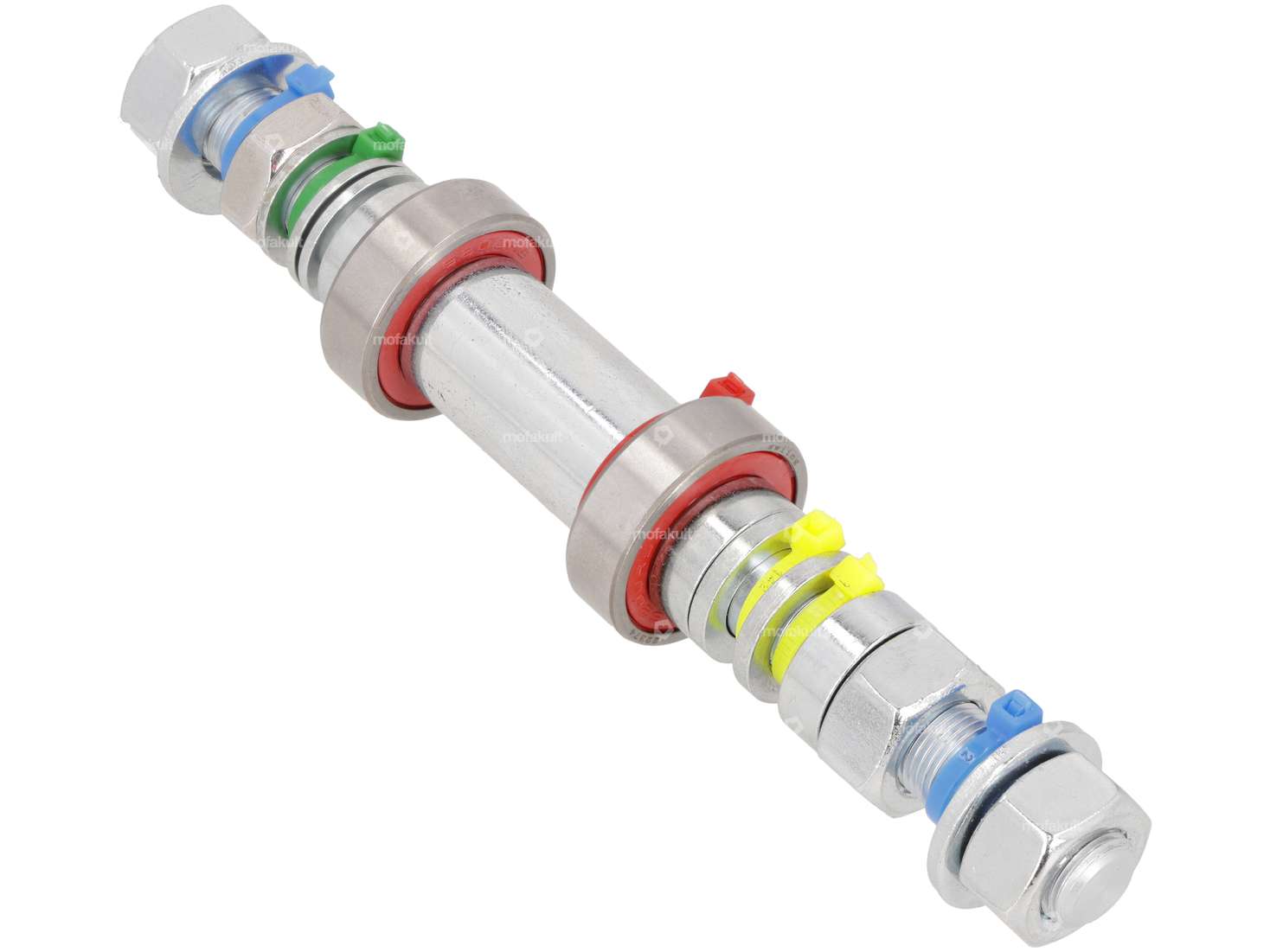

The cable ties show you where to fit what:
- Red cable tie: wheel hub
- green cable tie: brake anchor plate
- Yellow cable tie: Replacement disk for the speedometer drive (the disk is removed if a drive is fitted)
- Blue cable ties: fork braces
Note: When mounting the ball bearings, it is important to ensure that the long spacer between the two ball bearings is mounted without play to ensure that the two bearings press with the inner ring on the bushing. If this is not observed, the ball bearings will inevitably jam.
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Surface | galvanized (blue) |
| Thread type | MF12x1 (fine pitch thread) |
| Ø shaft | 11.95 mm |
| Ø outside | 29.02 mm |
| Ø inside | 12 mm |
| Total length | 165 mm |
| Thread length | 40.5 mm, 50 mm |
| Shank length | 74.5 mm |
| Width | 35.7 mm, 6.6 mm, 11 mm, 2.7 mm |
| Height | 9.9 mm, 5.9 mm |
| Width across flats | 19 mm |
| Ball bearing closed | Yes |
| Puch |
