logo_swiing ingenious parts

For: Puch

15779

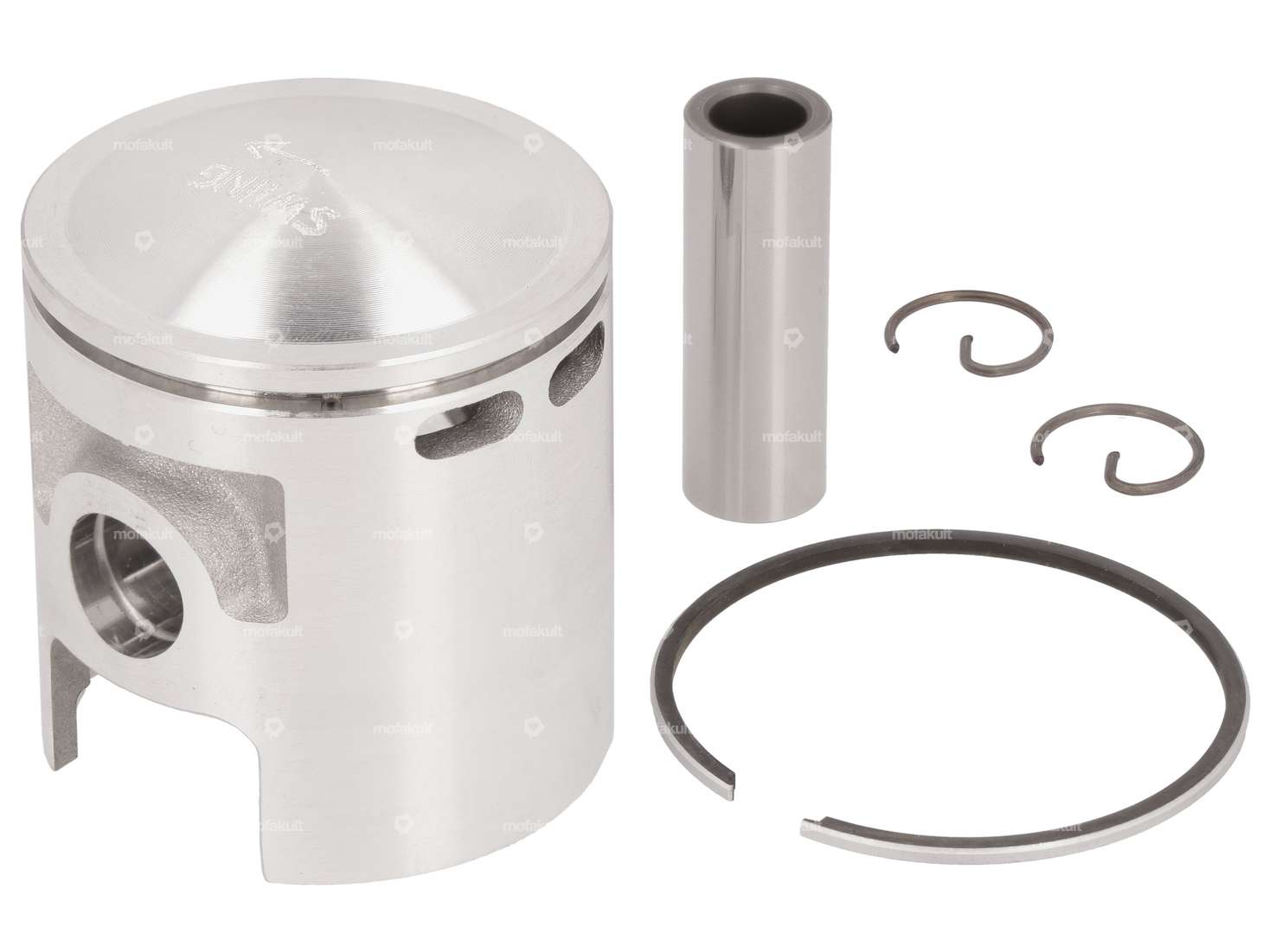

swiing® ingenious piston 45 mm | Puch

EUR 53.70

Incl. 22% VAT.

Description

45 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for the 45 mm swiing cylinder for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter45 mm
Manufacturerswiing® ingenious parts
Thick piston ring1.9 mm
Ø outside piston (A)44.95 mm
Compression height (C)22.4 mm
Curvature (D)4.6 mm
Total piston height (E)50.5 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Weight piston kit91 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
