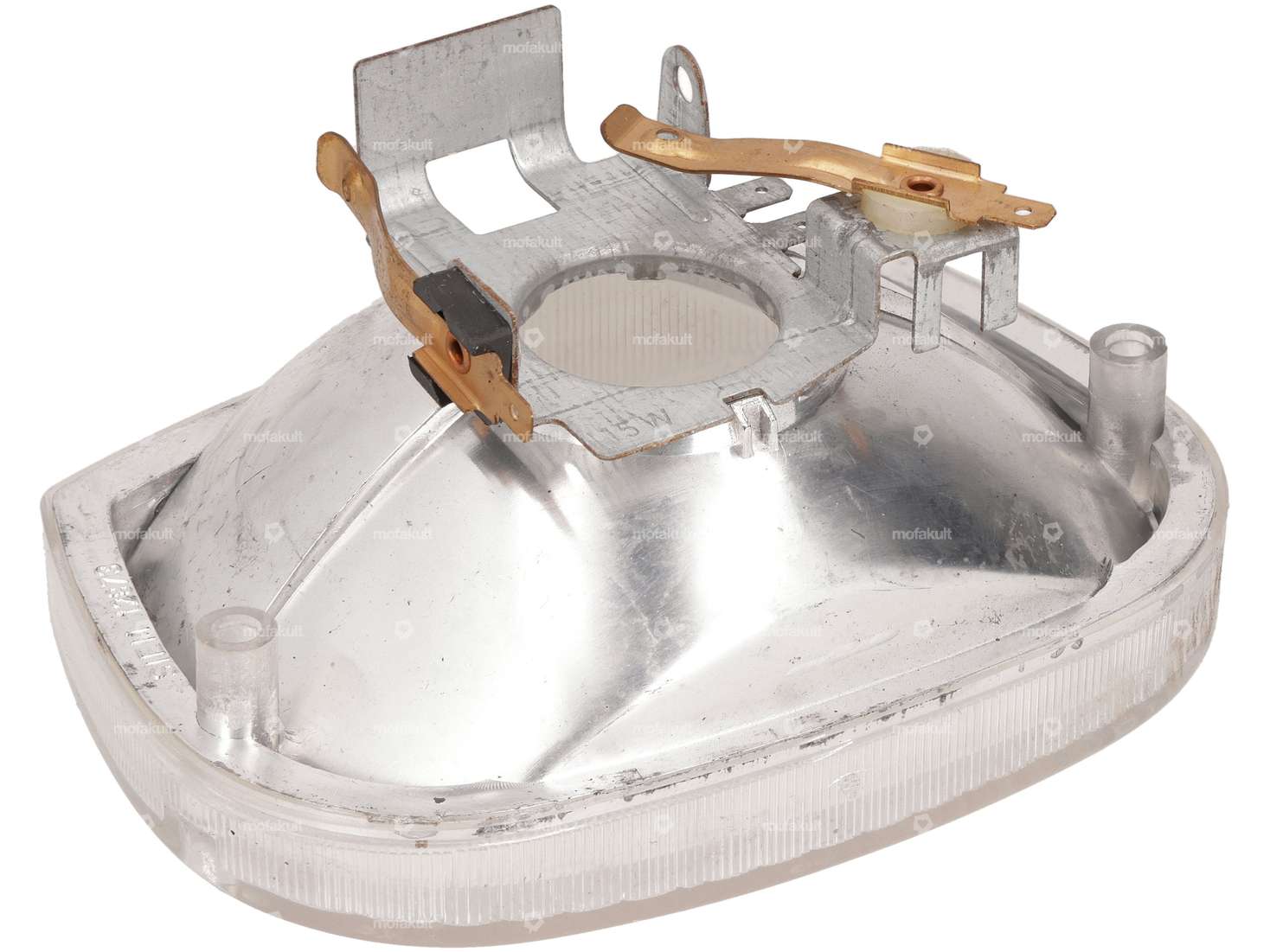

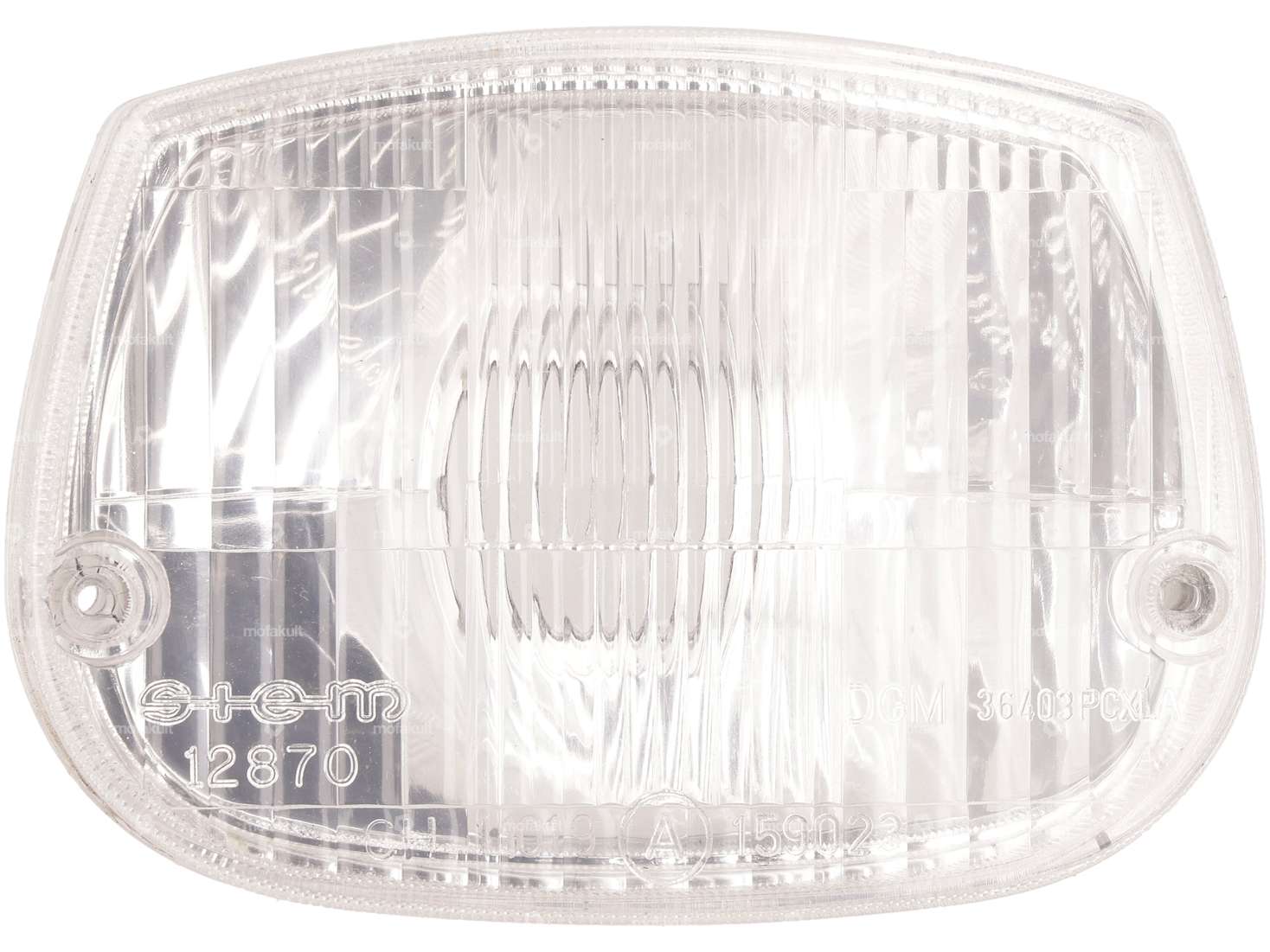

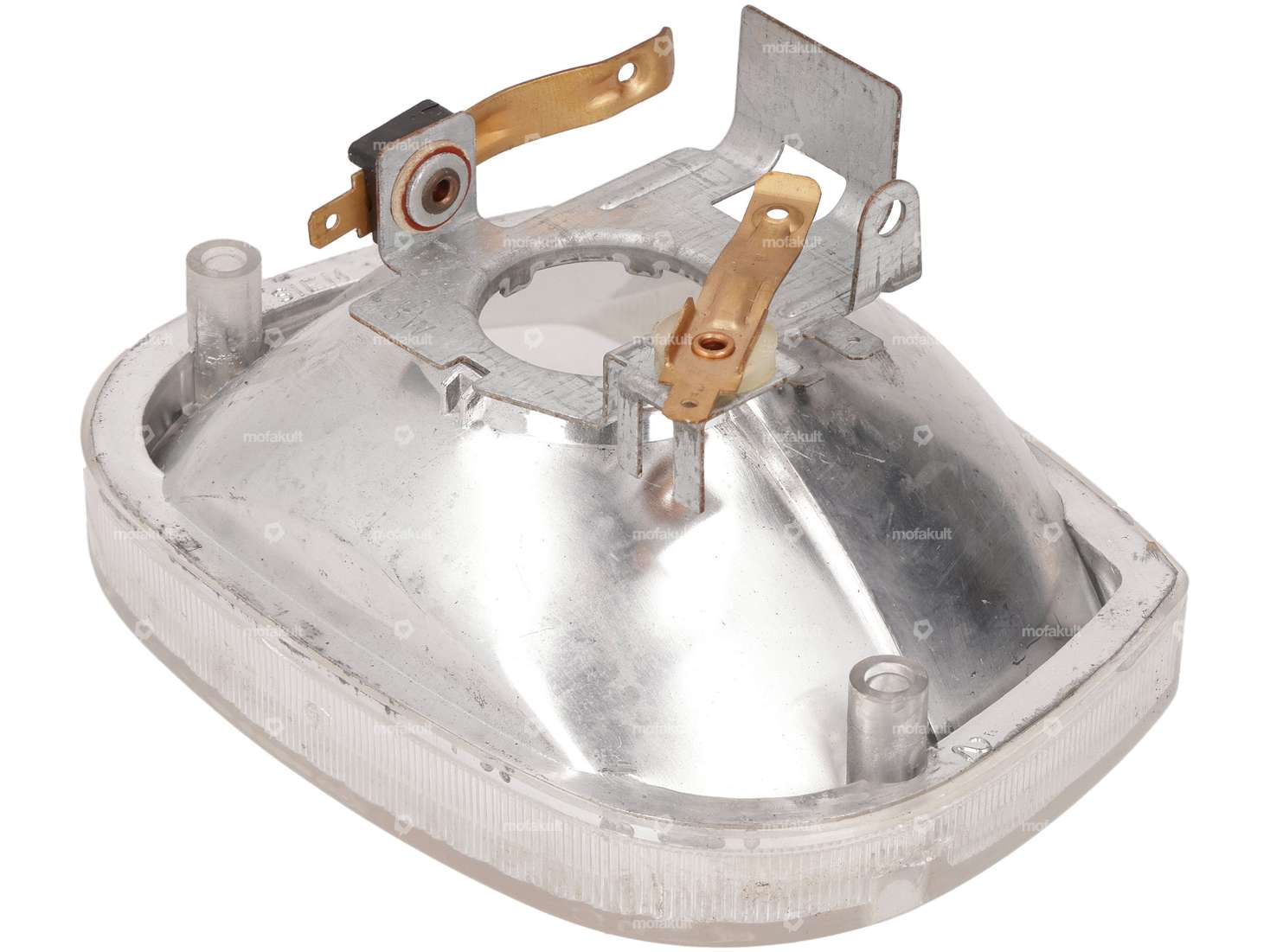

Siem reflector & glass white | Piaggio Ciao PX, C24

Screw Ø 2.9 x 22 Headlight Inox original | Piaggio Ciao, SI

Manufacturer: Piaggio · Material: Chrome steel (colloquially known as stainless steel) · Thread type: Sheet metal screw · Nominal diameter (thread): 2.9 mm · Screw head: Lens head · Total length: 22 mm

swiing® revival festoon bulb 12V - 5W (SV8.5) Ø 11x36 mm

Manufacturer: swiing® revival parts · Performance: 5 W · Tension: 12 V · Total length: 38 mm · Color: white · Bulb holder: Soffit pear · Test mark: C5W · Test mark: E1 · Ø Lamp head: 11 mm · LED: No

Siem headlight gray | Piaggio Ciao PX, C24

Manufacturer: Siem · Material: Plastic · Housing material: Plastic · Color: gray · Bulb holder: P26s · Bulb holder: Soffit pear · Speedometer recording: 48 mm · Switch included: Yes · Battery operated: No · Width: 125 mm · Height: 90 mm · Depth: 147 mm · Mounting type: Nuts & bolts · Number of fixing points: 2 pcs · Area of application: Original · Piaggio OEM number: 584240, 188143, 242852

swiing® revival bulb 6V - 15W (P26s) 1-filament

Manufacturer: swiing® revival parts · Test mark: ECE S3 · Bulb holder: P26s · Tension: 6 V · Performance: 15 W · Color: white · Ø base: 15 mm · Ø base: 30 mm · Total length: 45 mm · Ø Lamp head: 25 mm · LED: No

swiing® revival bulb 12V - 15W (P26s) 1-filament

Manufacturer: swiing® revival parts · Test mark: ECE S3 · Bulb holder: P26s · Tension: 12 V · Performance: 15 W · Color: white · Ø base: 26 mm · Total length: 45 mm · Ø Lamp head: 25 mm · LED: No

Screw lamp grille slot M3x35 galvanized original | Piaggio Ciao, SI

Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Thread type: M3x0.5 (standard thread) · Nominal diameter (thread): 3 mm · Drive: Slot · Screw head: Cylinder head · Ø External head: 5.5 mm · Thread length: 35 mm · Strength class: 4.8

GPO license plate holder Inox (CH version)

Manufacturer: GPO · Material: Chrome steel (colloquially known as stainless steel) · Thread type: M5x0.8 (standard thread) · Width: 105 mm · Total length: 145 mm · Color: silver · Height: 5.3 mm · Ø mounting hole: 5 mm · Mounting type: Nuts & bolts · Number of fixing points: 2 pcs · Thread length: 8 mm · Hole spacing: 30 mm · Hole spacing: 50 mm

EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Capacity: 0.26 µF · Area of application: Original · Area of application: Standard · Mounting type: Tab for screwing · Connection type: Cable for screwing · Ø mounting hole: 4.4 mm · Ø outside: 18 mm · Height: 26 mm · Total height: 31 mm · Piaggio OEM number: 102939

Lubricating felt flywheel / contact breaker ignition

Material: Felt · Color: white · Area of application: Original · Pony OEM number: A4665 · Sachs OEM no.: 2865 008 000

CIF screw set side protection | Piaggio Ciao

Manufacturer: CIF · Material: Spring steel · Material: Steel · Surface: galvanized (blue) · Surface: raw · Drive: Slot · Color: silver · Screw head: Lens head · Number of components: 12 pcs · Area of application: Standard

Self-tapping screw, Ø 2.9 x 22, pan head, Phillips, stainless steel

Material: Chrome steel (colloquially known as stainless steel) · Thread type: Sheet metal screw · Nominal diameter (thread): 2.9 mm · Screw head: Lens head · Total length: 22 mm

Screw Ø 2.9 x 22 Headlight Inox original | Piaggio Ciao, SI

Manufacturer: Piaggio · Material: Chrome steel (colloquially known as stainless steel) · Thread type: Sheet metal screw · Nominal diameter (thread): 2.9 mm · Screw head: Lens head · Total length: 22 mm

Bearing ring 26.5/37.5/4 fork 14 balls | Piaggio Ciao

Bearing type: Bearing ring · Ø inside: 26.5 mm · Ø outside: 37.5 mm · Ø ball: 4 mm

swiing® revival bulb rear light 6V - 4W (BA9s) 1-filament

Manufacturer: swiing® revival parts · Test mark: E1 · Test mark: T4W · Bulb holder: BA9s · Tension: 6 V · Performance: 4 W · Color: white · Ø base: 9 mm · Total length: 26 mm · Ø Lamp head: 9 mm · LED: No

GPO adapter cable voltage regulator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Number of cables: 2 pcs · Cable cross-section: 1.5 mm² · Cable bifurcation to motor: 150 mm
