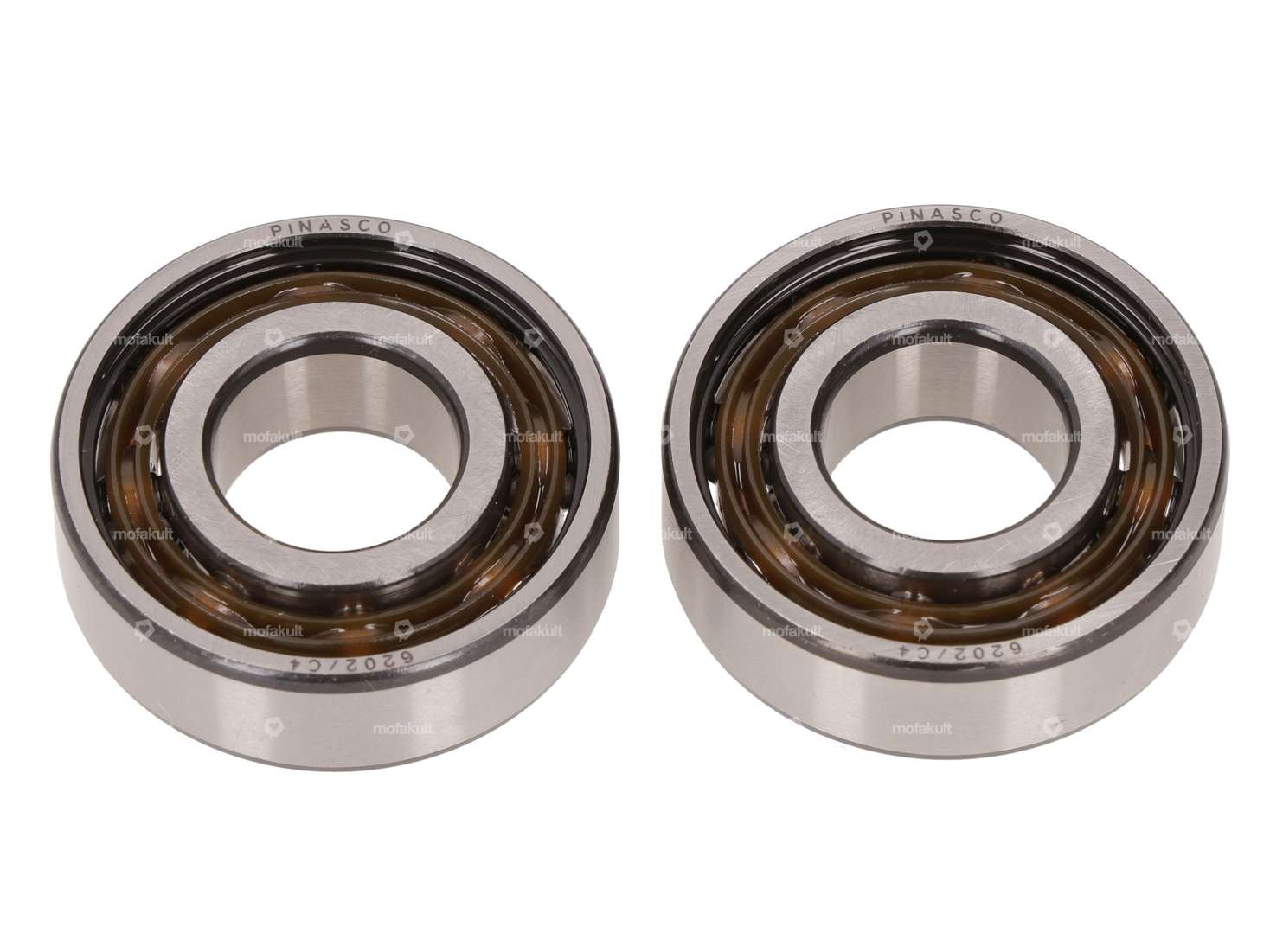

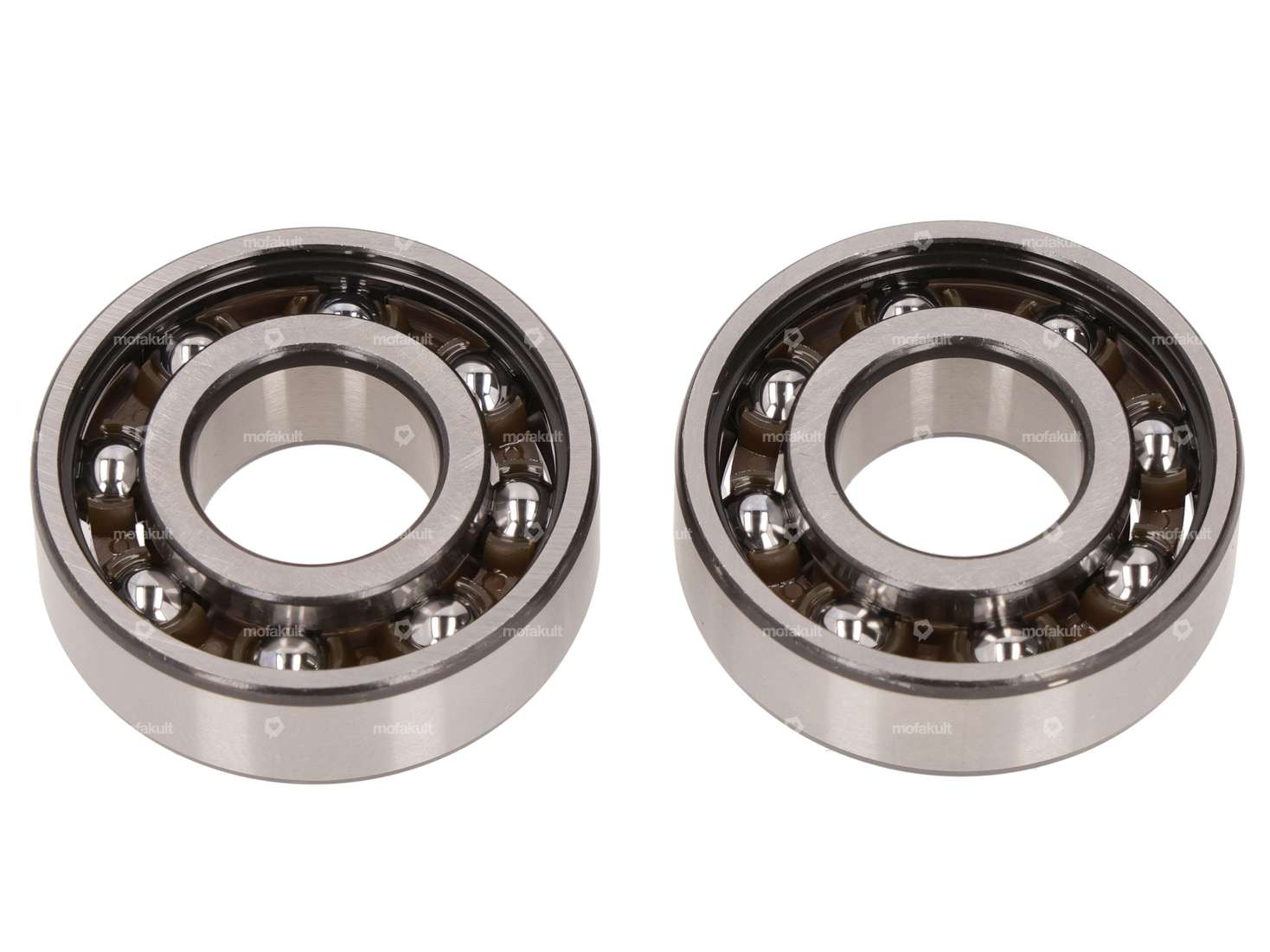

Two 6202 C4 deep groove ball bearings with polyamide core and increased bearing clearance from the manufacturer Pinasco for various applications. The radial bearing with low rolling resistance is designed for engines with increased speed.
For use as a crankshaft bearing in racing bikes with diaphragm intake on your Piaggio Ciao, Si, Bravo and Boxer moped / moped.
Notes:
The open side is installed on the oil side.
Due to the increased bearing clearance, this bearing should only be used in Piaggio cases with diaphragm or side intake. In the case of crankshaft-controlled intakes, the intake window may be damaged.
Price per pair.
Quality product from the Italian manufacturer Pinasco.
| Ø inside | 15 mm |
| Ø outside | 35 mm |
| Bearing cage | Plastic cage ball-guided |
| Manufacturer | Pinasco |
| Bearing clearance | C4 |
| Material | Steel, Polyamide (PA) |
| Area of application | Tuning |
| Stock number | 6202 |
| Bearing type | Deep groove ball bearing |
| Width | 11 mm |
| Ball bearing closed | No |
| Universal | |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
