Pinasco «Slave» engine case with crankshaft (43 mm stroke / 12 mm KoBo) and double intake suitable for your Piaggio Ciao, Si, Bravo, Boxer, Grillo moped / moped.

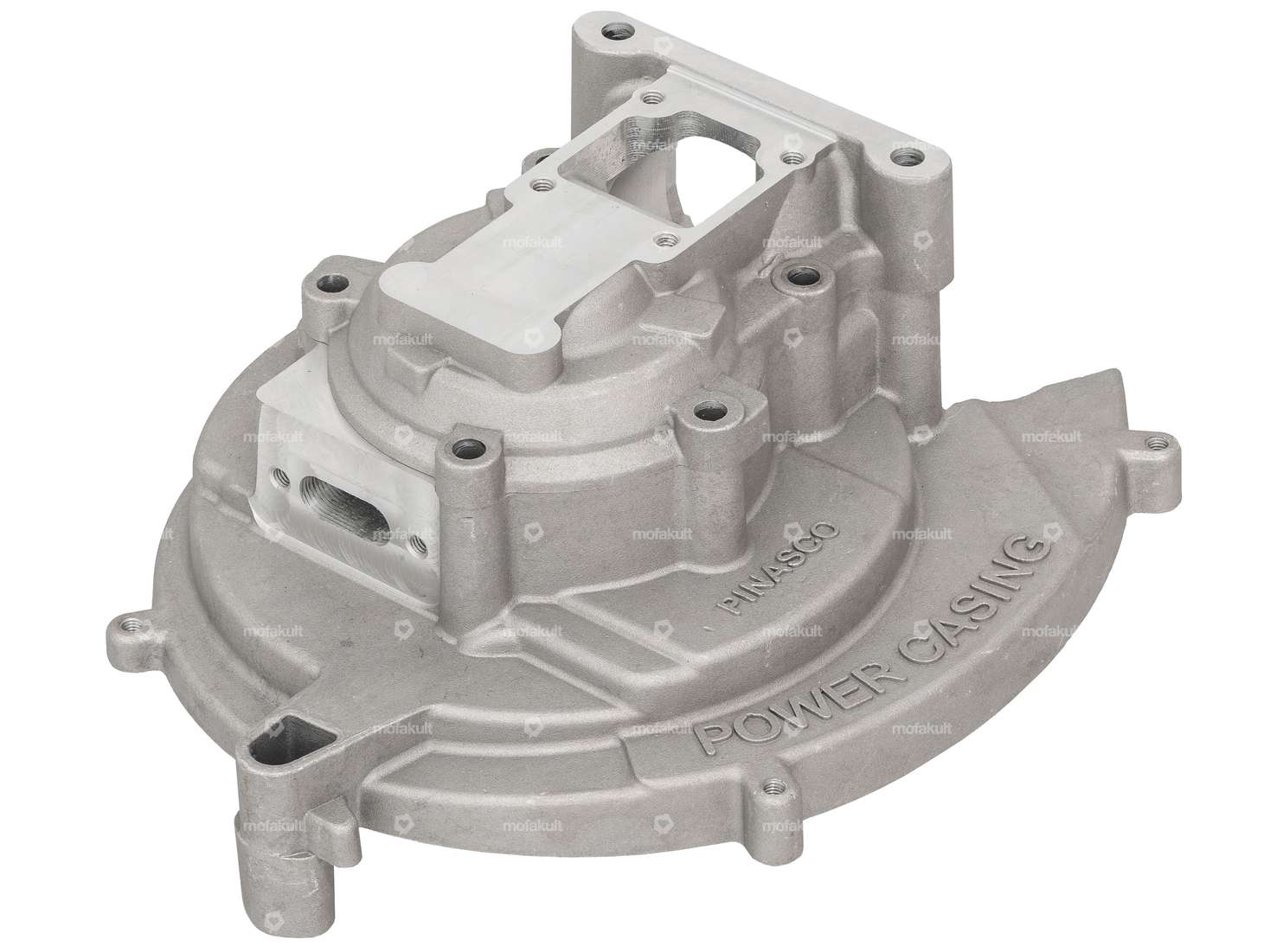

The Pinasco «Power Casing» engine case is supplied with a specially developed crankshaft, which has a wider cheek for controlling the intake at the rear intake.
A standard 13 mm Dellorto SHA carburettor can be fitted to the rear of this case, as well as any side-mounted carburettor with a 24 mm connection on the reed system. The frame may have to be adapted in this case.
This dual carburettor system can be used to tease the last horsepower out of your motorcycle.

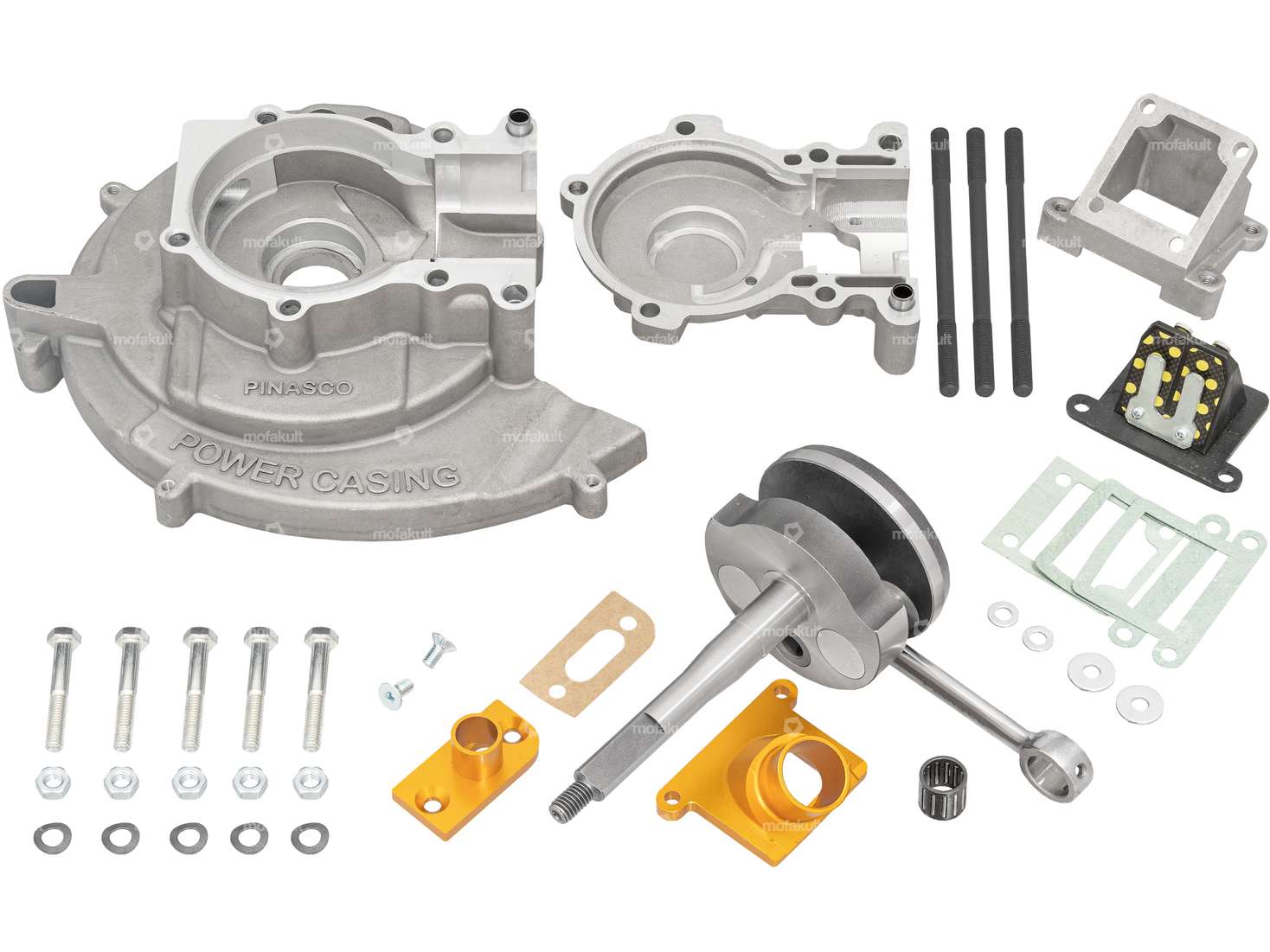

The following parts are included in the scope of delivery:
- Rear intake flange (connection 16 mm, &slash; inside 13 mm)
- Side diaphragm system incl. sealing plug for the 13 mm flange if this is not used.
- Mounting material for diaphragm flange (connection 24 mm, Ø inside 20 mm)
- Cylinder stud bolts
- Engine housing (Ø for cylinder neck up to 46 mm outside diameter)
- Engine housing screws

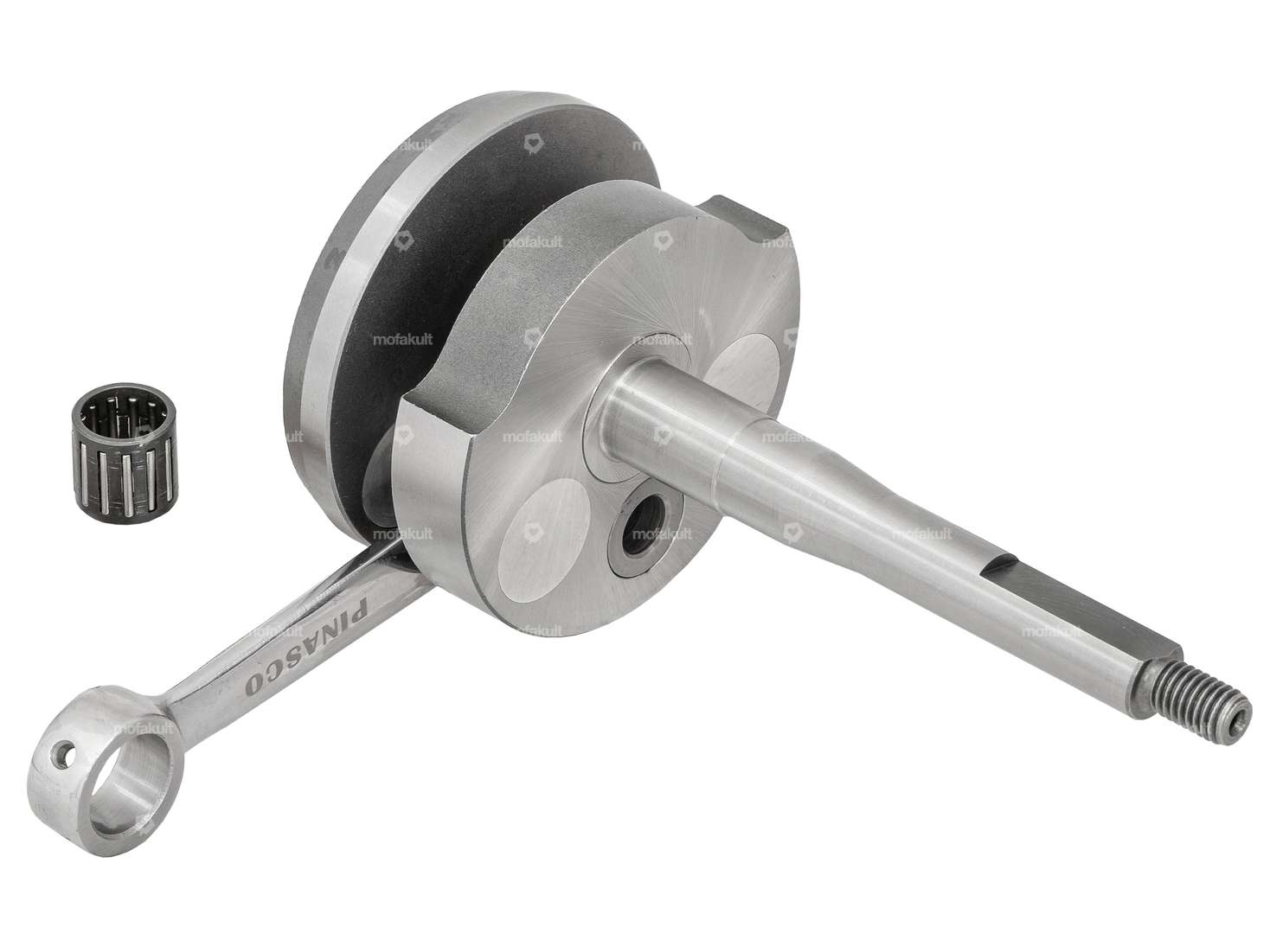

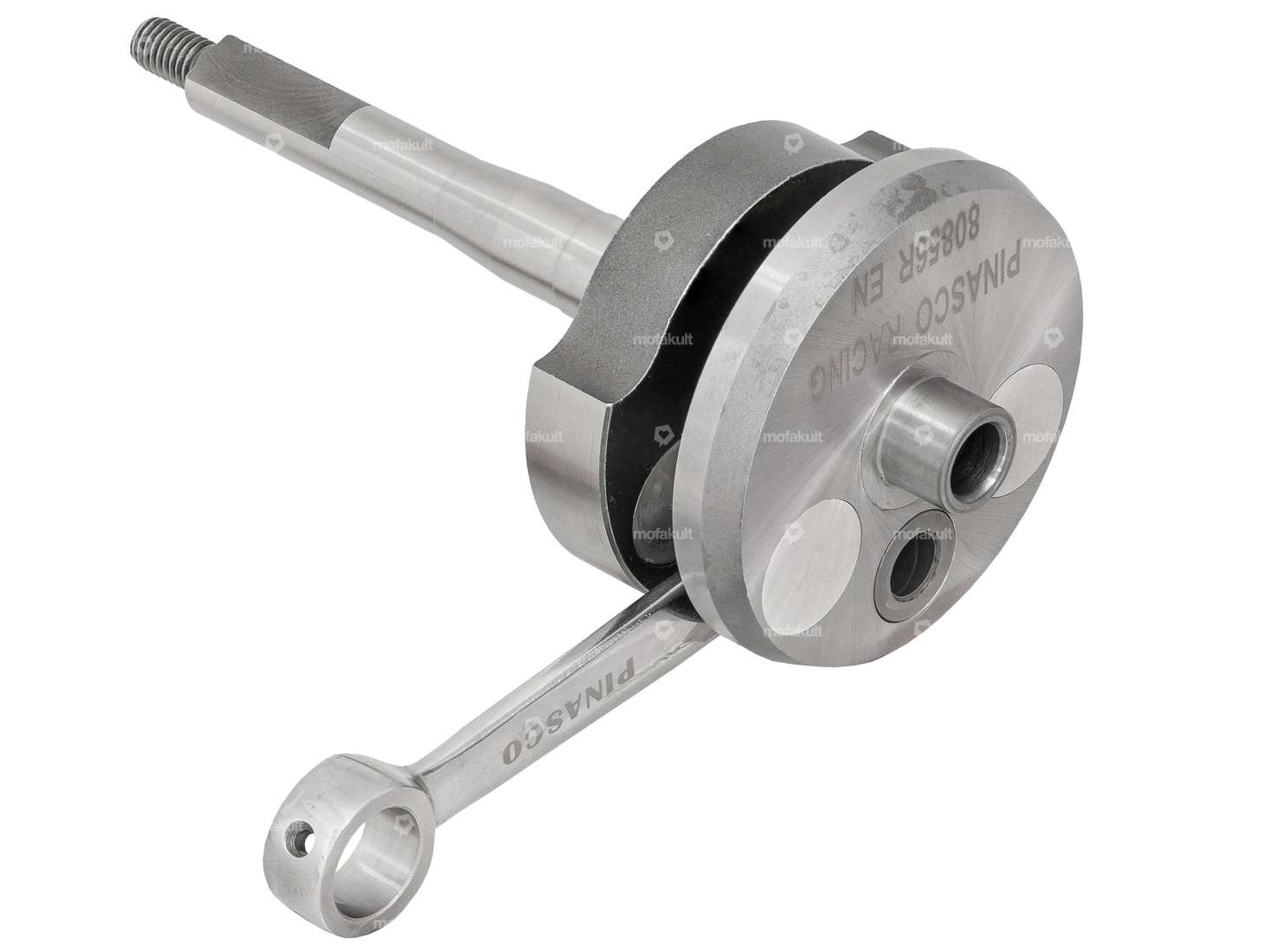

- ;crankshaft Pinasco Competition with 43 mm stroke and 12 mm piston pin (axe 12)
- Installation instructions in English & Italian
No housing gasket is supplied. Sealing compound is used for sealing.
We recommend using the 42 mm Pinasco cylinder kit for this racing gear. In addition, only electronic ignitions can be fitted to this housing.
If the engine is installed in a Piaggio Ciao frame, some material must be removed from the right-hand side of the housing and cylinder, as described in the installation instructions.
Corresponding add-on parts such as sealant, racing kit, racing ignition etc. can be found in the accessories section.
Quality product from the Italian manufacturer Pinasco.
Details
| Manufacturer | Pinasco |
| Material | Aluminum |
| Crankshaft stroke | 43 mm |
| Ignition type | Electronic |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
