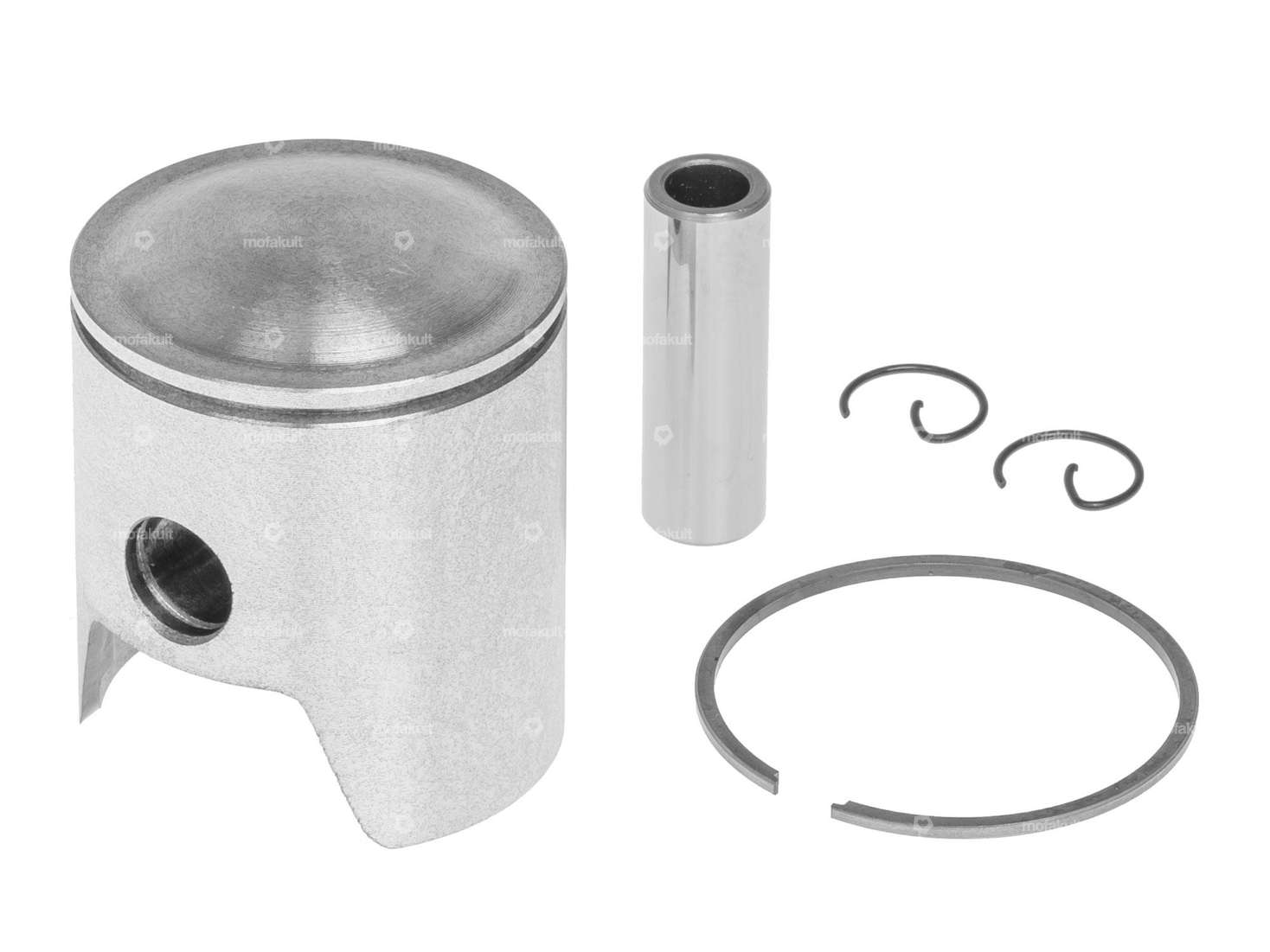

45 mm replacement piston with a 1.5 mm rectangular piston ring featuring an internal lock (IS) for the 45 mm cylinder kits for various Puch mopeds.
You can find the detailed dimensions of the piston, as shown in the technical drawing, in the product details. You can also find information about common piston rings, their joints, and retaining types in the legend accompanying the images.
Tolerance type: C
The piston kit includes a piston pin, piston clips, and piston rings.
Note: Please observe the installation direction during assembly. The piston is installed with the arrow pointing toward the exhaust on the exhaust side.
You’ll find the necessary installation tools, piston pin retainers, and, if needed, the corresponding cylinder among the accessories.
Product from the Italian manufacturer Parmakit.
| Nominal diameter | 45 mm |
| Manufacturer | Parmakit |
| Ø outside piston (A) | 44.95 mm |
| Compression height (C) | 22.45 mm |
| Curvature (D) | 4.5 mm |
| Total piston height (E) | 53.98 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | C |
| Weight piston kit | 97 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH
Width: 125 mm · Manufacturer: GPO · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Ø cylinder: 45 mm · Height: 55 mm · Total length: 135 mm · Number of fixing points: 4 pcs · Area of application: Tuning · Candle thread: short · Decompressor: No · Hole pattern [mm]: 44 x 44
EUR 39.40
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Number of components: 7 pcs · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Area of application: (Dis)assembly tool · Width across flats: 10 mm · Width across flats: 17 mm
EUR 23.80
Parmakit 45 mm cylinder kit (large ribs) | Puch
Manufacturer: Parmakit · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Displacement: 70 ccm · Camouflaged: No · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Area of application: Tuning
EUR 287.00
Parmakit 45 mm cylinder kit 70 ccm camouflaged | Puch
Manufacturer: Parmakit · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Displacement: 70 ccm · Hole spacing inlet: 38 mm · Ø cylinder neck: 47.8 mm · Camouflaged: No · Number of fixing points: 4 pcs · Ø outlet inside: 26.5 mm · Ø piston pin (B): 12 mm · Inlet window: 23.7 x 15 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Area of application: Tuning
EUR 251.10
Not in stock
Parmakit piston 45 mm #B | Puch
Manufacturer: Parmakit · Nominal diameter: 45 mm · Ø outside piston (A): 44.94 mm · Compression height (C): 22.38 mm · Curvature (D): 4.5 mm · Total piston height (E): 53.9 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: B · Weight piston kit: 98 g
EUR 88.40

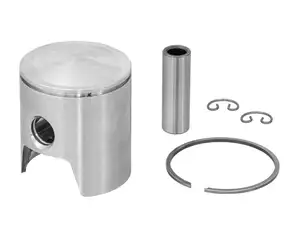

Parmakit piston 45 mm #A | Puch
