Operating instructions | Sachs 503 2 AL (2-speed manual)

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 35.80

Incl. 22% VAT.

Description

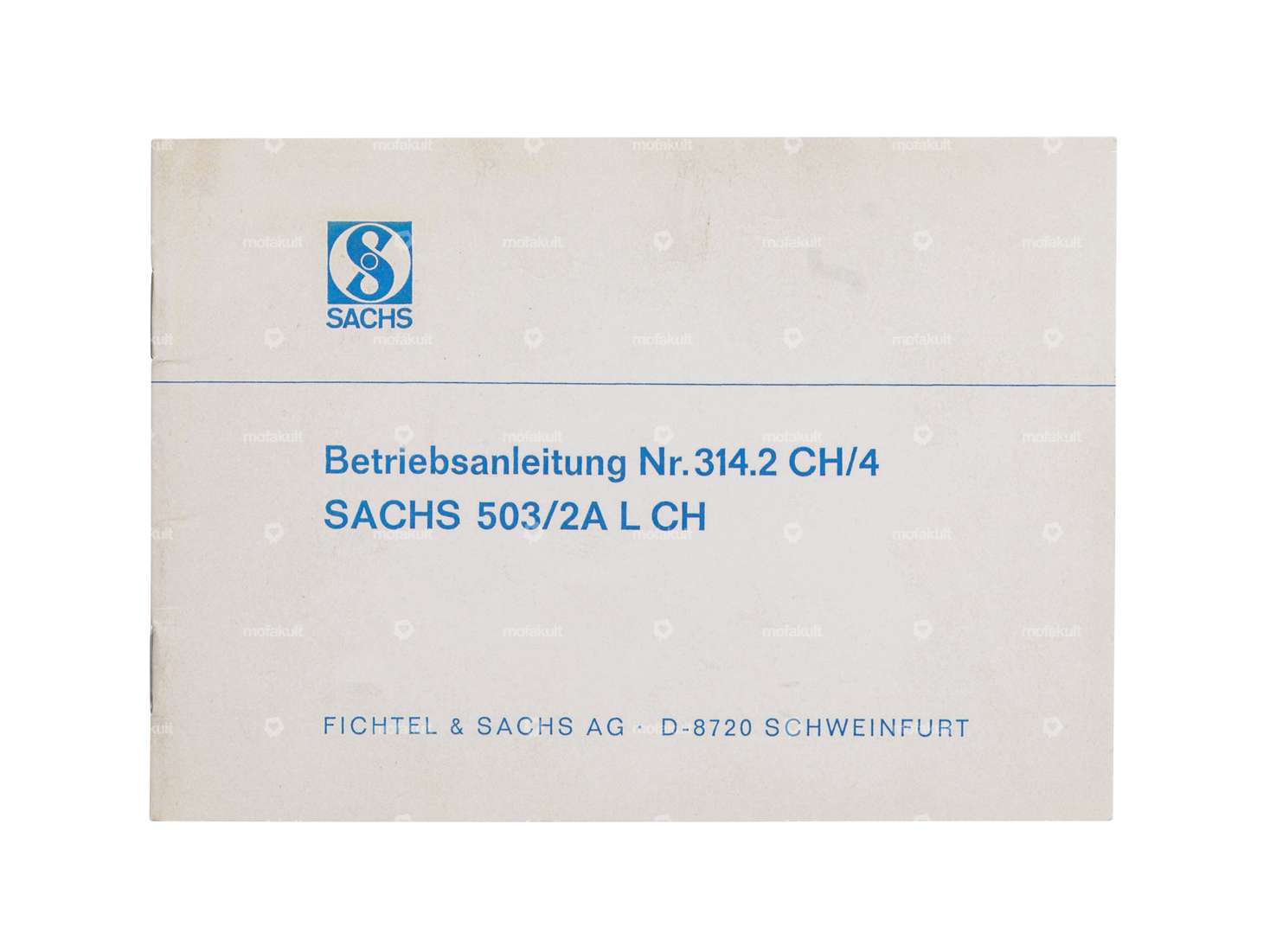

Operator's manual for the hand-shifted 2-speed Sachs 503 2AL CH engine from Fichtel & Sachs AG.

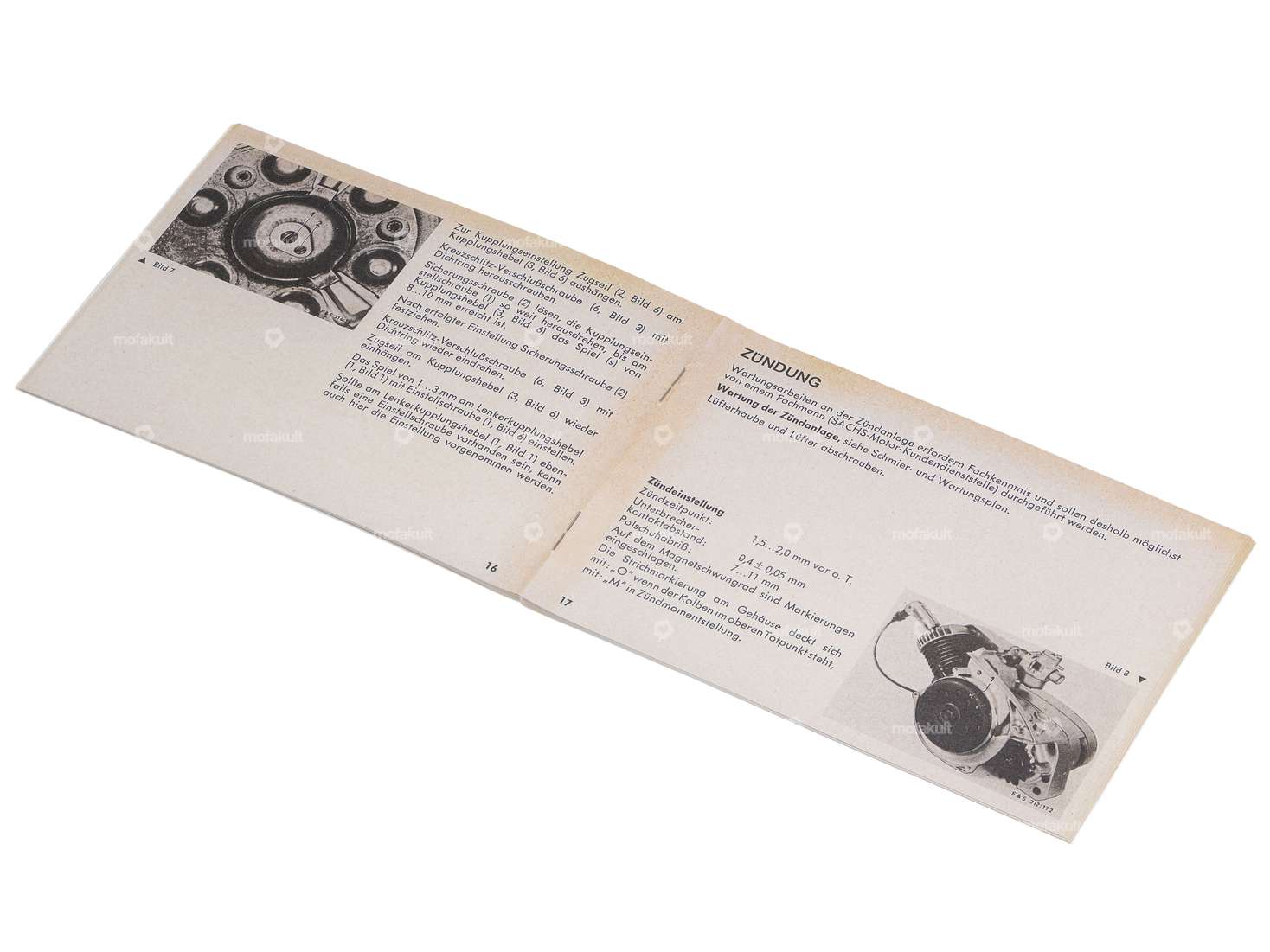

Very helpful, informative booklet. Among other things, it explains the operating elements, repair, maintenance and adjustment work. This detailed instruction manual should not be missing in any workshop with Sachs mopeds / mopeds.

Size: A6 (148 x 105 mm)
Pages: 30

High-quality new edition in used look, only available from us!
Further spare parts catalogs and repair manuals can be found in the accessories section.

ManufacturerSachs
MaterialPaper
Width148 mm
DIN formatA6
Number of pages30 pcs
LanguageGerman
Height105 mm
Sachs

503 - 2AL / 2BL
