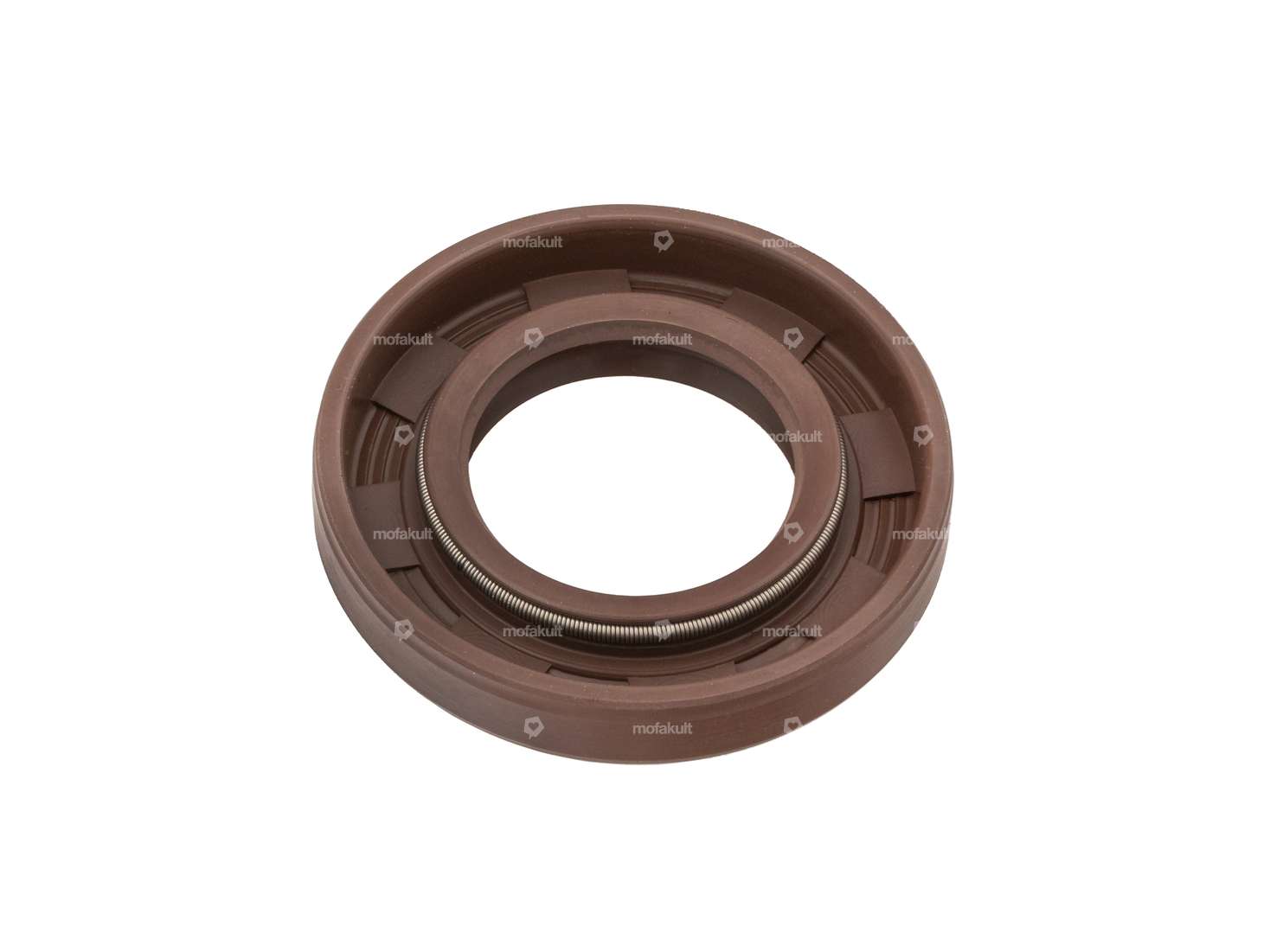

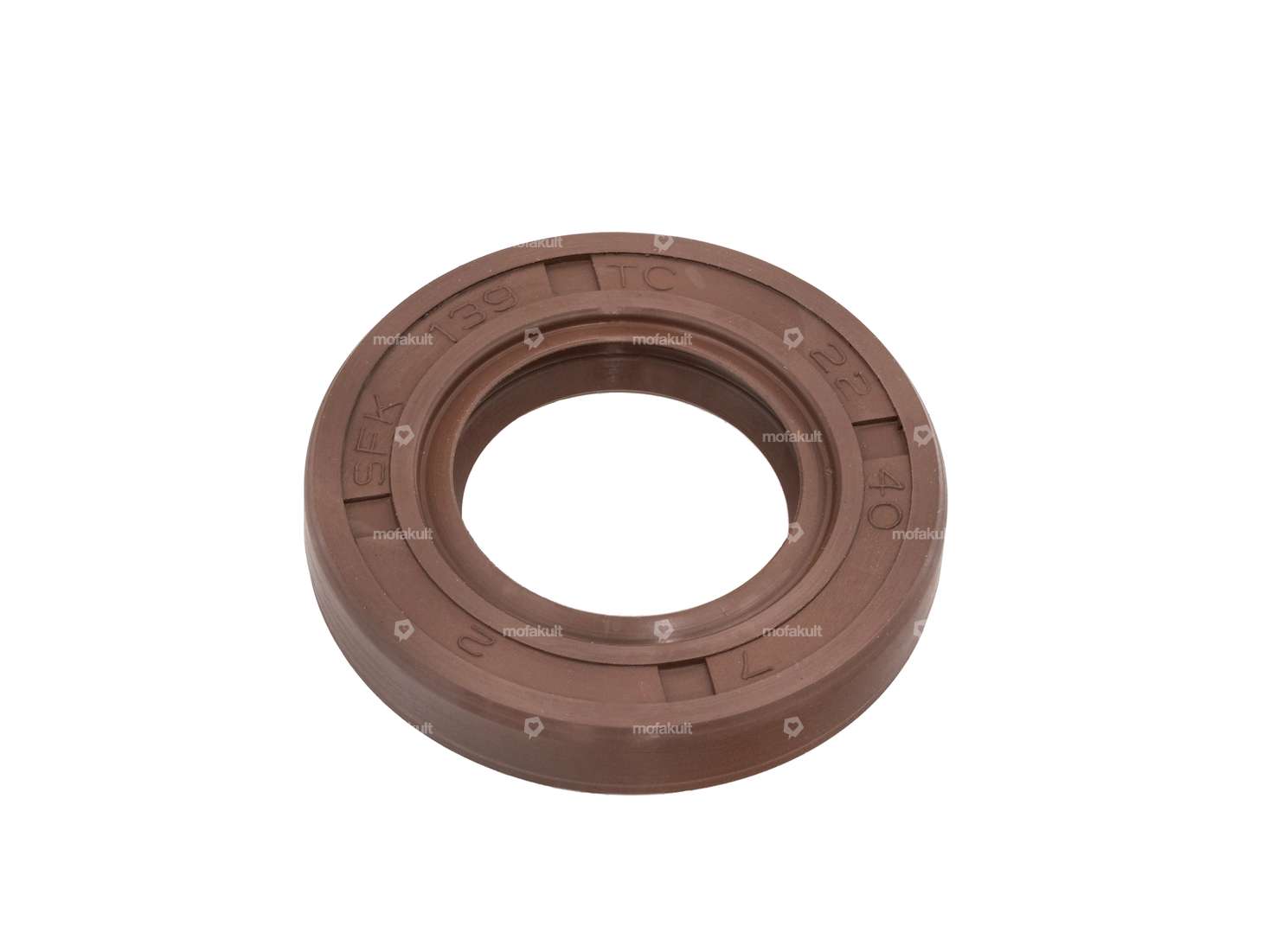

Shaft seal ring (colloquially known as a radial shaft seal) 22x40x7 mm for use on the clutch side of your Puch moped / moped with E50 engine and large crankshaft seat.
Lower resistance than with double-lip shaft seals.
This radial shaft seal ring with fluorine rubber outer jacket is best suited for use in the clutch.
| Material | FPM - Fluororubber |
| Simmering type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Manufacturer | Puch |
| Surface | rubberized |
| Ø outside | 40 mm |
| Ø inside | 22 mm |
| Temperature resistance (min.) | -30 - 200 °C |
| Width | 7 mm |
| Puch | E50 |
