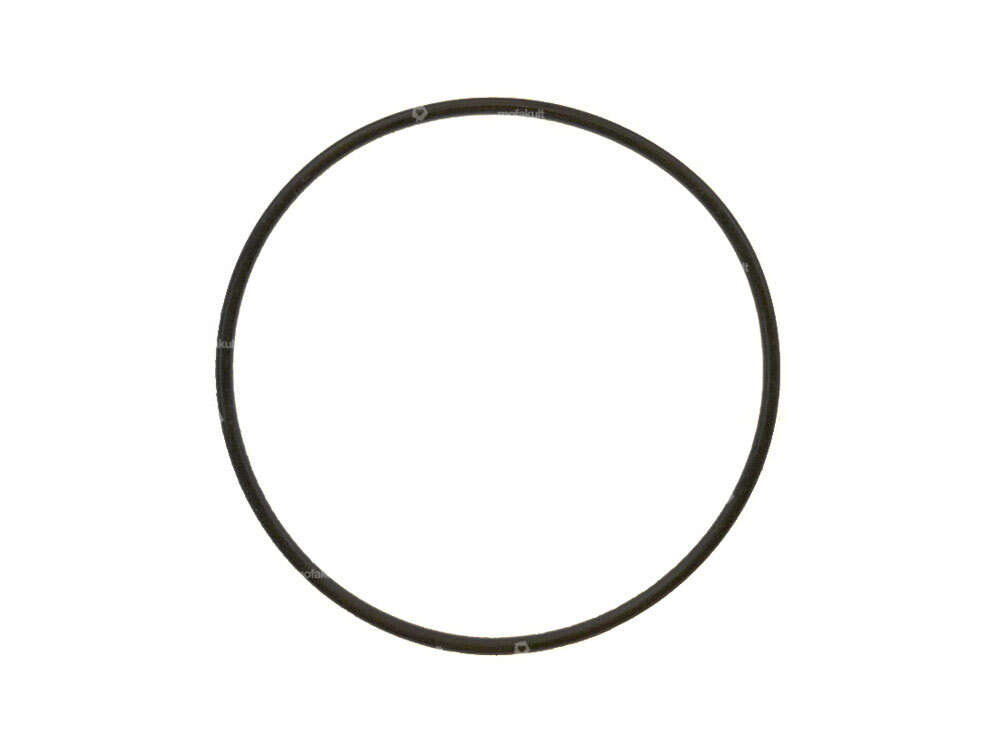

O-ring cylinder head FPM (up to 200°C) 44 x 1.8 mm | Puch

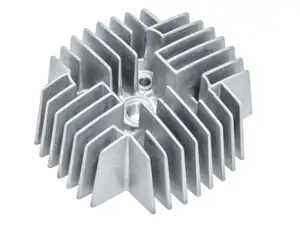

GPO 38 mm cylinder head with O-ring | Puch Maxi S, N / X30 NS, NL, N-2AH

Material: Aluminum · Manufacturer: GPO · Number of fixing points: 4 pcs · Ø cylinder: 38 mm

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Number of components: 4 pcs · Ø outlet inside: 22 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 1.8 mm · Ø cylinder: 38 mm · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Area of application: Standard

NGK (B5HS - B10HS) spark plug short thread

Manufacturer: NGK · Candle thread type: short · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Width across flats SW: 21 mm

Dirko Dichtmasse rot (Silikon) Hochtemperatur 70 ml dauerelastisc

Manufacturer: Elring · Area of application: Chemistry · Contents [ml]: 70 ml · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Temperature resistance (min.): -60 - 300 °C · Gap dimension (max.): 2 mm

GPO cylinder stud bolt set special M6x106 mm galvanized | Puch

Manufacturer: GPO · Strength class: 10 · Strength class: 10.9 · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Diameter: 7 mm · Drive: External hexagon · Total length: 106 mm · Thread length: 15 mm · Thread length: 19 mm · Width across flats SW: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Nipple length: 5 mm

Sliding bush fork original | Puch

Manufacturer: Made in Italy · Material: Plastic · Color: white · Ø outside: 27 mm · Ø inside: 23 mm · Total length: 30 mm · Puch OEM number: 349.1.30.126.1

Inner cable Ø 1.2 mm x 200 cm with barrel nipple Ø 6 mm

Ø nipple: 6 mm · Manufacturer: Made in Germany · Area of application: Standard · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.2 mm · Cable length: 2000 mm · Material: Brass · Material: Steel · Nipple shape: Barrel (transverse) · Nipple length: 5.5 mm

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Oil type: GL4 · Viscosity (SAE): 80W · Area of application: Gearbox lubrication with clutch · Contents [ml]: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C

swiing® revival gearbox cover gasket | Puch Velux X30

Manufacturer: swiing® revival parts · Thickness: 0.4 mm · Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 7 pcs

GPO piston 41 mm (12 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50

Nominal diameter: 41 mm · Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Compression height (C): 23.2 mm · Curvature (D): 3.7 mm · Total piston height (E): 49.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston weight: 85 g

Magura cable clamp Sachs shift/clutch arm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Thread type: M4x0.7 (standard thread) · Number of components: 2 pcs · Ø shaft: 4 mm · Ø Cable bushing: 2.8 mm · Drive: External hexagon · Drive: Slot · Ø outside: 7 mm · Screw head: Hexagon · Ø Bundle: 7 mm · Total length: 11 mm · Thread length: 7 mm · Width across flats SW: 6 mm

Alligator end piece for indoor cable, aluminum (per piece)

Manufacturer: Alligator · Material: Aluminum · Area of application: Standard · Surface: raw · Number of connections: 1 pcs · Color: silver · Number of components: 1 pcs · Ø outside: 3.1 - 4 mm · Ø inside: 2.2 mm · Total length: 12 mm

swiing O-ring cylinder head FPM (up to 200°C) 46 x 3 mm (old version) | Puch

Temperature resistance (min.): 0 - 200 °C · Material: FPM - Fluororubber · Place of use: Cylinder head · Manufacturer: swiing · Ø outside: 52 mm · Ø inside: 46 mm · Cord thickness: 3 mm

swiing® revival Ø 9.5 mm wedge 4.5° pedal crank galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Color: silver · Ø outside: 9.5 mm · Angle crank wedge: 4.5° · Total length: 43 mm
