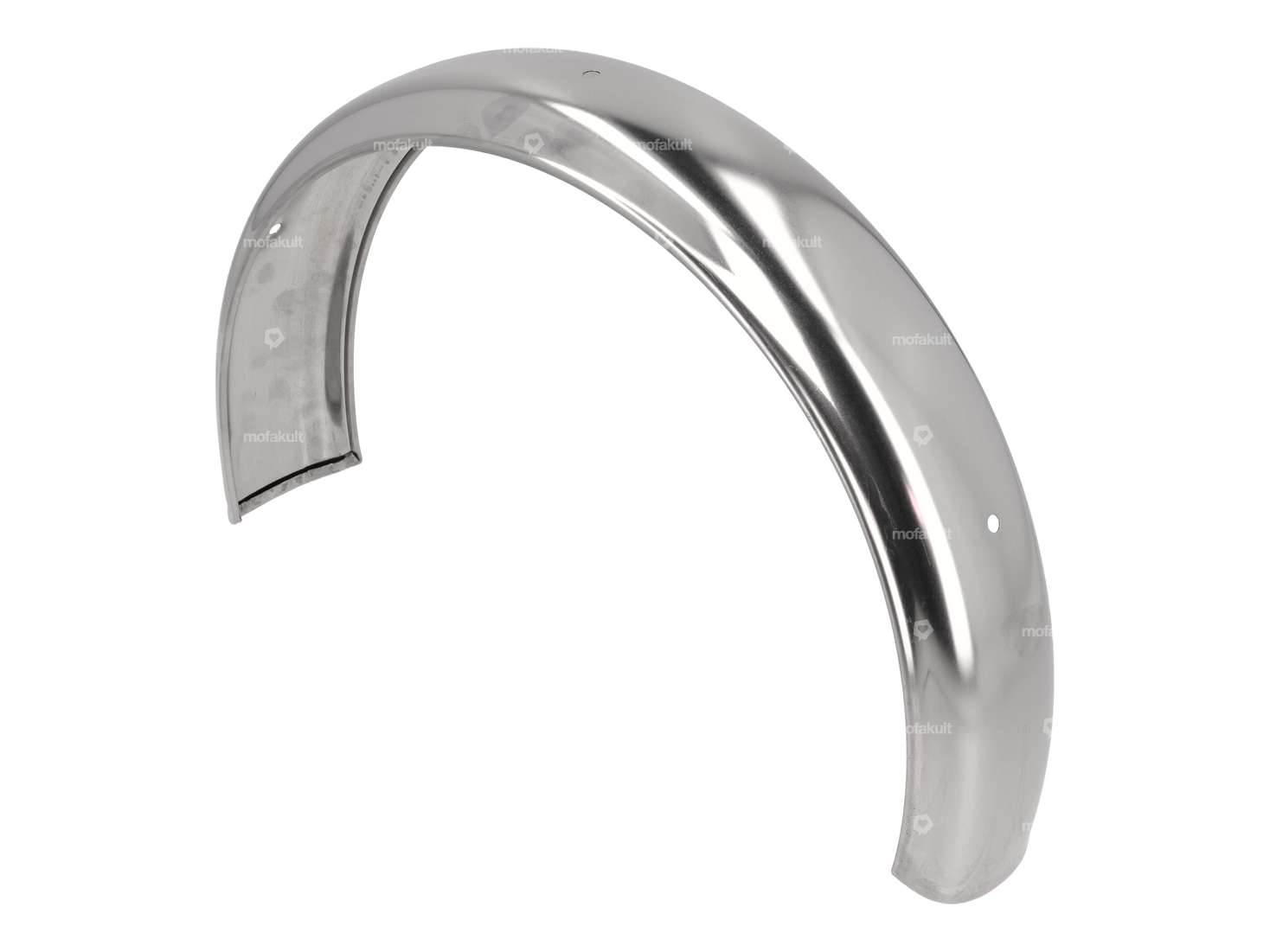

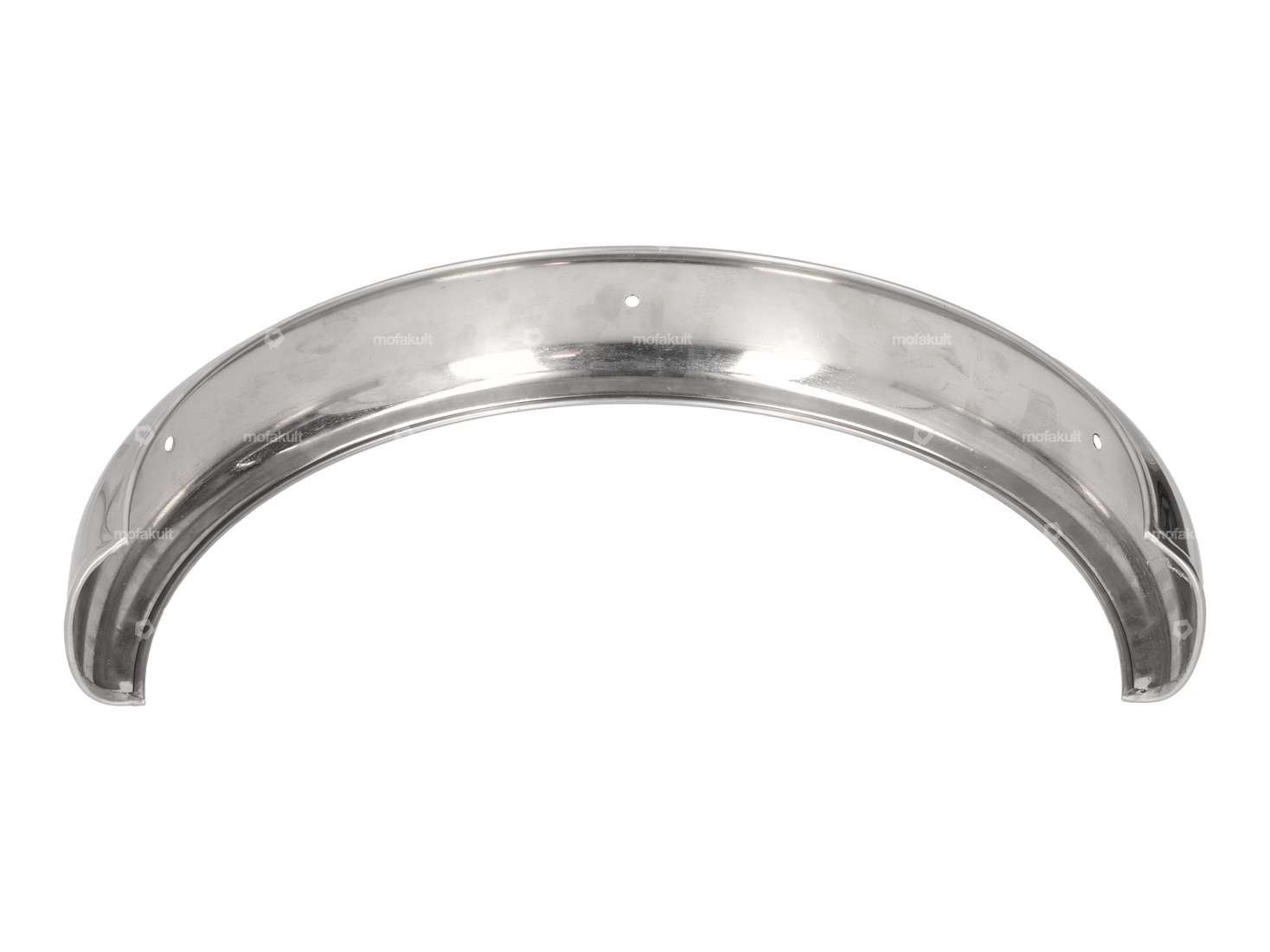

Mudguard 12" galvanized

swiing® revival 17" front fender round Inox | Puch Maxi S, N

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: polished · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: folded · Folding the ends: not folded · Shape of the mudguard: partly round · Total length over ends: 570 mm · Scope: 715 mm · Wide mudguard profile: 80 mm · Height of mudguard profile: 40 mm · Total height from support surface to top edge: 185 mm · Mounting type: Nuts & bolts

swiing® revival 17" rear fender Inox | Puch X30 NS, NL, NG-2AH, N-2AH, Sprinter

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: polished · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: closed folded · Folding the ends: not folded · Shape of the mudguard: partly round · Total length over ends: 635 mm · Scope: 1005 mm · Wide mudguard profile: 80 mm · Height of mudguard profile: 40 mm · Total height from support surface to top edge: 320 mm · Mounting type: Screws

swiing® revival 17" rear fender "Retro" Inox | Puch X30 NS, NL, NG-2AH, N-2AH, Sprinter

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: polished · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: closed folded · Folding the ends: not folded · Shape of the mudguard: round · Total length over ends: 623 mm · Scope: 1020 mm · Wide mudguard profile: 80 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 320 mm · Mounting type: Nuts & bolts

Washer M5 plastic black

Ø inside: 5.3 mm · Ø outside: 11.8 mm · Manufacturer: Made in Germany · Material: Polyamide (PA) · Thread size: M5 · Nominal diameter (thread): 5 mm · Thickness: 1.5 mm

Mitas 3.00 x 12" tires MC5 Allround (Scooter)

Manufacturer: Mitas · Tire width [inch]: 3 " · Width [inch]: 3 · Tire width [mm]: 76.2 · Wheel size [inch]: 12 " · Speed index: J = 100 km/h · Load capacity index: 47 = 175 kg · Profile type: MC5 · Tire type: Allround · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)

Flange nut M5 galvanized (10 strength)

Material: Steel · Surface: galvanized (blue) · Nut type: Flange nut · Thread type: M5x0.8 (standard thread) · Drive: External hexagon · Height: 5 mm · Width across flats SW: 8 mm · Strength class: 10 · Pony OEM number: A1501 · Sachs OEM no.: 0242 024 104

Washer M5 (5.3/12/1.3) Rubber | Side panel Sheet metal

Ø inside: 5.3 mm · Ø outside: 12 mm · Material: Rubber · Thread size: M5 · Nominal diameter (thread): 5 mm · Thickness: 1.3 mm

CHROMINOX 17" front fender NOS | Puch Velux X30S / Allegro APN

Material: Chrome steel (known as Nirosta®) · Surface: chrome-plated · Folding the ends: not folded · Wheel size [inch]: 17 " · Shape of the mudguard: partly round · Total length over ends: 575 mm · Scope: 690 mm · Wide mudguard profile: 78 mm · Height of mudguard profile: 40 mm · Total height from support surface to top edge: 165 mm · Mounting type: Nuts & bolts · Color: Chrome

M5x12 hexagon head screw, galvanized

Total length: 15.5 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Shank: No · Number of components: 1 pcs · Thread length: 12 mm · Width across flats SW: 8 mm · Strength class: 8.8

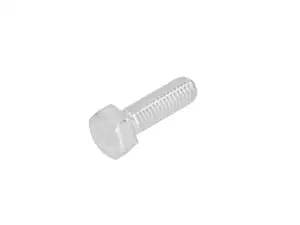

M5x16 hexagon head screw, galvanized

Total length: 19.5 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Shank: No · Number of components: 1 pcs · Thread length: 16 mm · Width across flats SW: 8 mm · Strength class: 8.8

Washer M5 large 5.3/15/1.2 Inox

Ø inside: 5.3 mm · Ø outside: 15 mm · Material: Chrome steel (known as Nirosta®) · Thread size: M5 · Nominal diameter (thread): 5 mm · Thickness: 1.2 mm · Number of components: 1 pcs

Screw M5x16 cylinder head low hexagon socket, galvanized

Total length: 19.2 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Drive: Hexagon socket · Screw head: Cylinder head · Ø External head: 8.4 mm · Shank: No · Number of components: 1 pcs · Thread length: 16 mm · Width across flats SW: 3 mm · Strength class: 8.8
