40.00 mm oversize piston with an L-shaped piston ring with internal circlip (IS) and a rectangular piston ring with flank circlip (FS) for blown cylinders of Puch X30 Velux mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
The tuning piston is used for bored and honed cylinders.

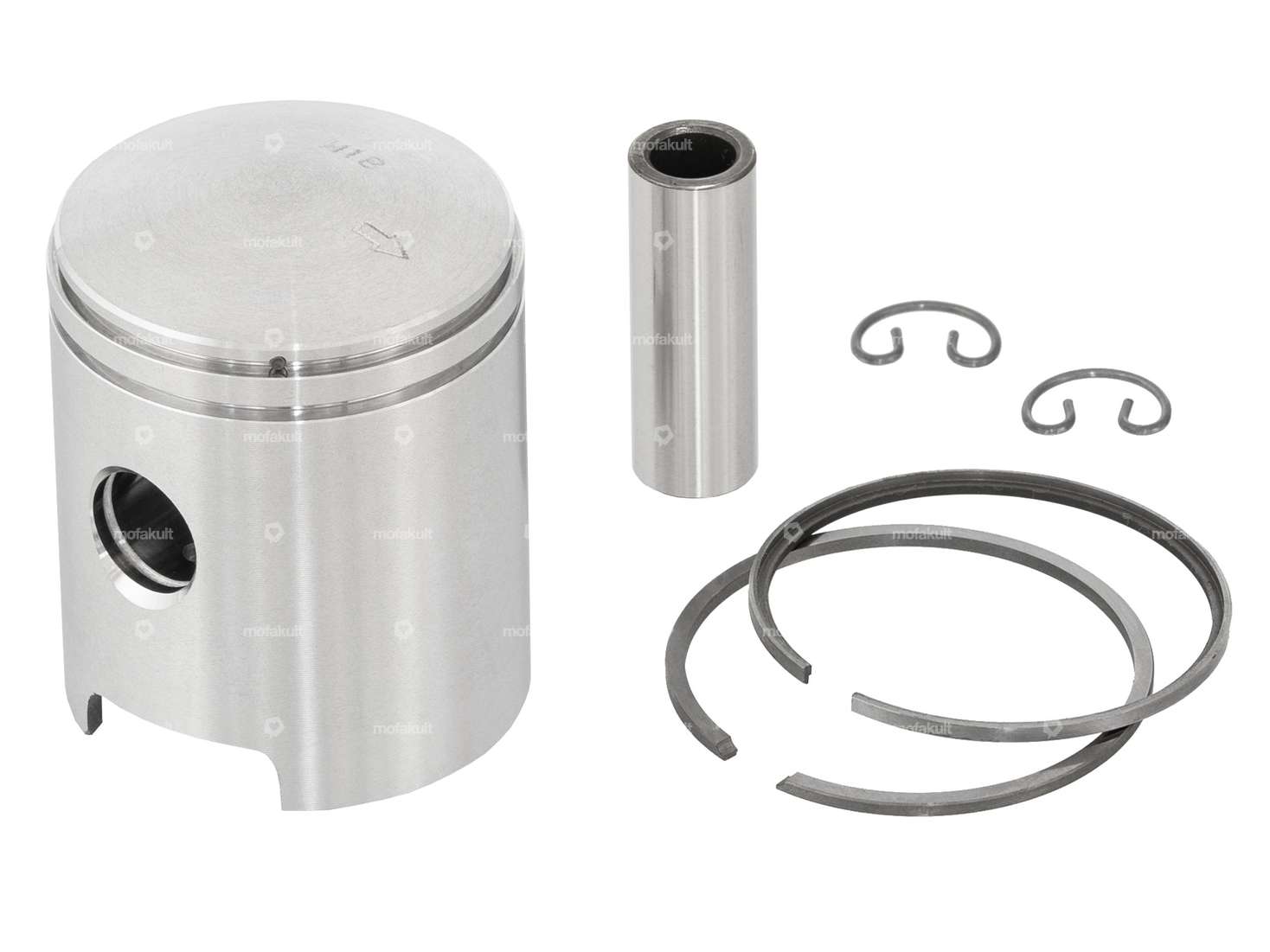

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding installation tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Meteor.
| Manufacturer | Meteor |
| Nominal diameter | 40 mm |
| Ø outside piston (A) | 39.94 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 23 mm |
| Curvature (D) | 3.3 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | L-ring |
| Piston ring impact | Internal fuse (IS) |
| Weight piston kit | 88 g |
| Puch | ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
