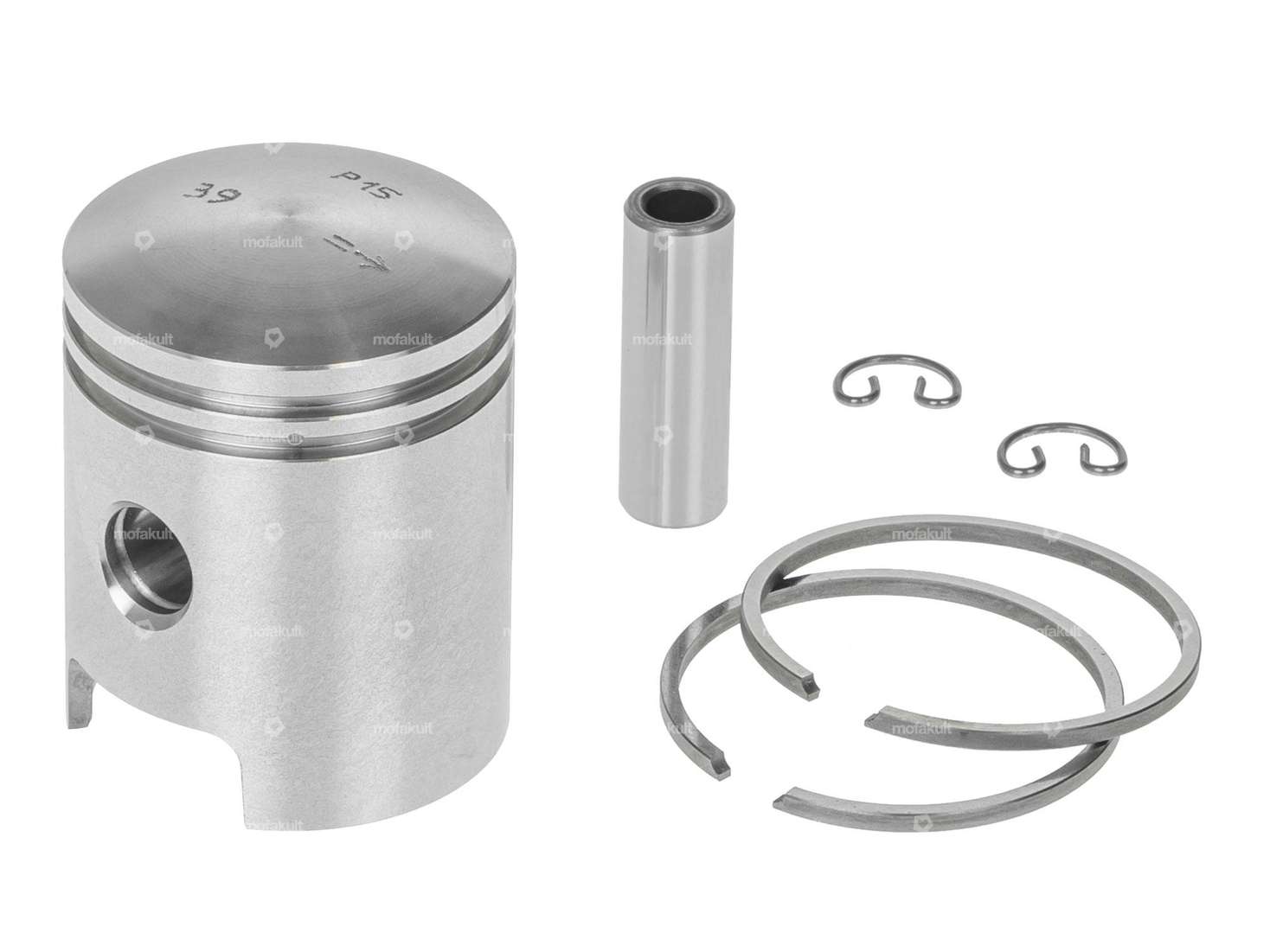

39.0 mm piston with two 2.0 x 1.65 mm rectangular piston rings with flank lock (FS) suitable for Puch Maxi S / N, Puch X30 Sport NS / NL and Puch X30 Velux mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | Meteor |
| Ø piston pin (B) | 10 mm |
| Ø outside piston (A) | 38.94 mm |
| Compression height (C) | 22.6 mm |
| Curvature (D) | 3.6 mm |
| Total piston height (E) | 50 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 39 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Weight piston kit | 82 g |
| Puch | Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
