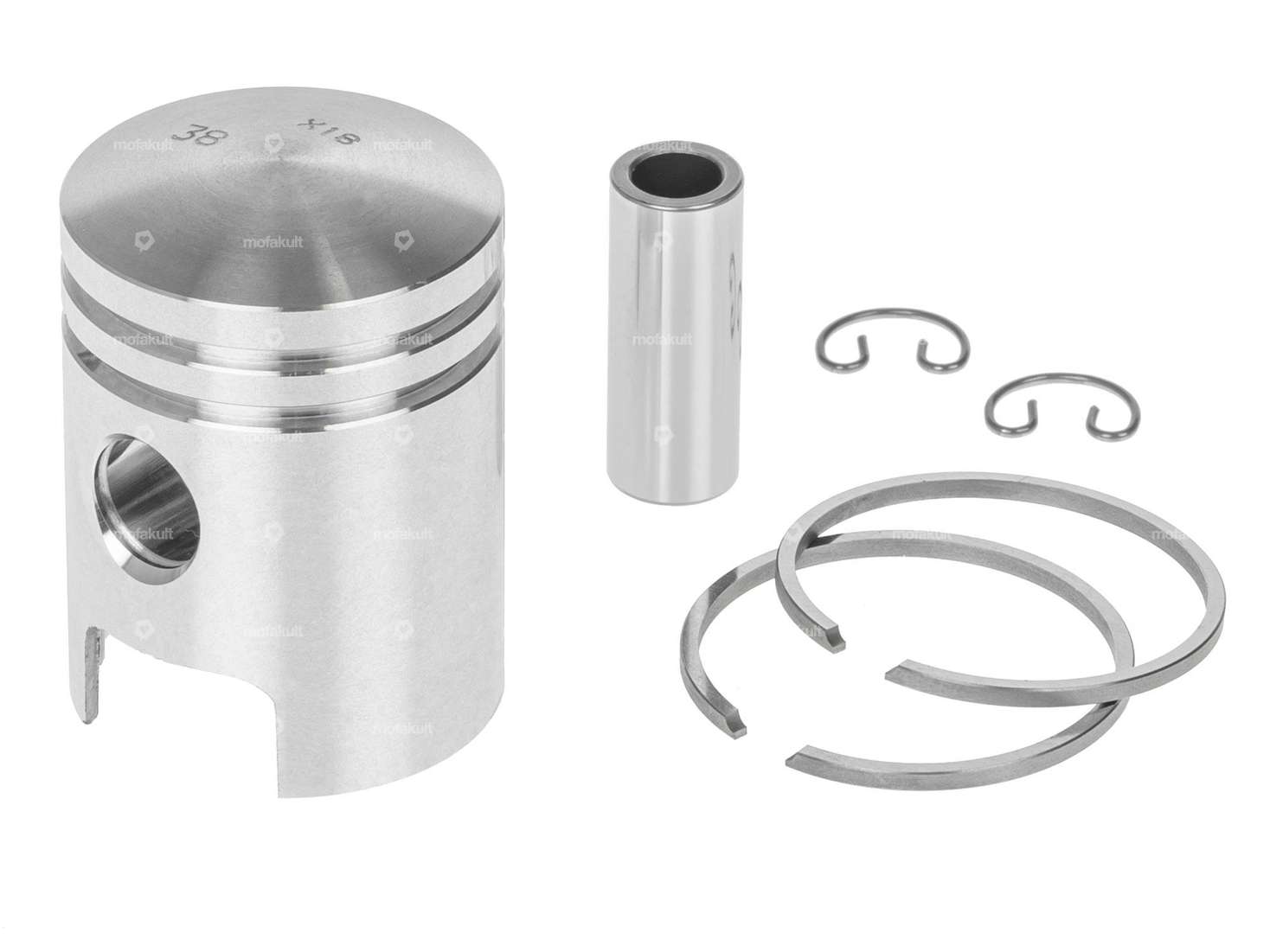

38.0 mm piston with two 2 mm rectangular piston rings with flank lock (FS) for original Puch Maxi, X30 Sport mopeds / mopeds. The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
Tolerance no. 2
The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin locks etc. can be found under accessories.
Quality product from the Italian manufacturer Meteor.
| Manufacturer | Meteor |
| Ø outside piston (A) | 37.96 mm |
| Compression height (C) | 22.7 mm |
| Curvature (D) | 3.3 mm |
| Total piston height (E) | 52.5 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 38 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | 2 |
| Piston weight | 79 g |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
