Puch engine & gearbox

swiing® revival thrust washer 12.5/18/2.5 gearbox | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 12.5 mm · Ø outside: 18 mm · Thickness: 2.5 mm

swiing® revival thrust washer 12.5/18/2 gearbox | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 12.5 mm · Ø outside: 18 mm · Thickness: 2 mm

Crescent ring decoupling shaft X30

Fuse type: Inside · Manufacturer: Puch · Place of use: Uncoupling shaft

HK Clutch "Racing" Kickstarter Aramid | Puch E50

Manufacturer: HK Clutches · Material: Steel · Material addition: Aluminum · Recording type: Cone mounting · Number of jaws: 3 pcs · Number of springs: 3 pcs · Ø inside: 13.6 mm · Ø inside: 14.6 mm · Ø outside: 93 mm · Thickness: 20.3 mm · Area of application: Racing

swiing® revival engine seal | Puch Velux X30

Manufacturer: swiing® revival parts · Material: Sealing paper · Number of components: 1 pcs · Thickness: 0.4 mm · Number of fixing points: 9 pcs

swiing® revival gearbox cover gasket | Puch Velux X30

Manufacturer: swiing® revival parts · Material: Sealing paper · Number of components: 1 pcs · Thickness: 0.4 mm · Number of fixing points: 7 pcs

Gasket cylinder base 2 mm | Puch

Material: Sealing carton · Place of use: Cylinder base · Thickness: 2 mm · Nominal diameter: 49 mm · Ø inside: 49 mm · Hole pattern [mm]: 44 x 44

Motor cable routing | Z50

Puch OEM number: 128.6305

HK clutch "Racing" Aramid | Puch E50

Manufacturer: HK Clutches · Material: Steel · Material addition: Chrome steel (known as Nirosta®) · Recording type: Cone mounting · Number of jaws: 3 pcs · Number of springs: 3 pcs · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning

swiing® revival neck nut M7 fan cover | Puch X30 Velux

Manufacturer: swiing® revival parts · Nut type: Neck nut · Thread type: M7x1 (standard thread) · Drive: External hexagon

Base plate fan cooling Occ. | Puch X30 NG-2AH

Manufacturer: Puch · Material: Aluminum

swiing® revival clutch shaft Ø 14 mm | Puch E50

Manufacturer: swiing® revival parts · Total length: 79.2 mm · Ø outside: 13.95 mm · Area of application: Standard

Jasil crankshaft full cheeks (new model) | Puch E50

Manufacturer: Jasil · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 10 mm · Thread length: 13.5 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 23.3 mm · Length 2nd paragraph: 25 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 964 g · Number of gears: 1 pcs · Area of application: Racing

Clutch basket 21 teeth kickstarter | Puch E50

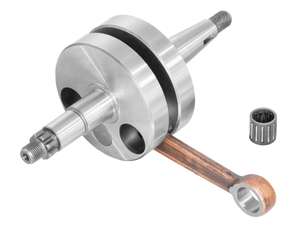

Jasil crankshaft | Puch 3- & 4-speed models

Manufacturer: Jasil · Total length of crankpin on clutch side: 73 mm · Number of gears: 3 pcs · Number of gears: 4 pcs · Area of application: Standard

Rito Crankshaft Racing | Puch E50

Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 14 mm · Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 970 g · Number of gears: 1 pcs · Area of application: Racing · Area of application: Tuning

Shaft seal NBR 16/25/7 A Kickstarter | Puch E50

Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 16 mm · Ø outside: 25 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized

swiing® revival thrust washer 12.5/18/1.4 gearbox | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 12.5 mm · Ø outside: 18 mm · Thickness: 1.4 mm

swiing® revival thrust washer 15/22/1.7 clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 22 mm · Thickness: 1.7 mm · Puch OEM number: 050.1213

swiing® revival clutch spring 2-disc version (Version 2.0) | Puch Z50

Spring design: Pressure spring · Ø wire: 4 mm · Ø inside: 30.5 mm · Ø outside: 39 mm · Total length: 19.5 mm · Color: gray · Manufacturer: swiing® revival parts · Number of components: 1 pcs · Material: Spring steel · Surface: raw · Area of application: Original · Area of application: Standard

swiing® revival nut & washer for clutch (kickstart) | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Height: 5 mm · Width across flats SW: 19 mm · Strength class: 8

Surflex clutch 1st gear | Puch ZA50

Manufacturer: Surflex · Material: Composite materials · Material: Steel · Recording type: Interlocking · Number of jaws: 3 pcs · Number of springs: 3 pcs · Ø inside: 14 mm · Ø inside: 17 mm · Ø outside: 83.5 mm · Thickness: 12 mm · Area of application: Original · Area of application: Standard

45 mm gasket cylinder head 0.4 mm | Puch

Material: Aluminum · Place of use: Cylinder head · Thickness: 0.4 mm · Ø cylinder: 45 mm

NTN 6203 NR C3 ball bearing with outer ring (old model) | Puch E50

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Ø outside: 44 mm · Width: 12 mm · Inner ring width: 12 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: Yes · Material: Steel · Surface: blank · Area of application: Standard

NTN 6005 ball bearing 25/47/12 | ZA50 motor

Bearing type: Deep groove ball bearing · Stock number: 6005 · Ø inside: 25 mm · Ø outside: 47 mm · Width: 12 mm · Inner ring width: 12 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: CM (special/noise-reduced) · Bearing cage: "-" Sheet steel cage ball-guided · Material: Steel · Area of application: Standard

Gasket gearbox cover Puch Maxi Kickstarter

Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 5 pcs

Cover plate clutch torsion spring metal | Puch MS, DS, VS

Ø inside: 8 mm · Ø outside: 21 mm

M22 sealing ring 22.5/26.6/1.5 Fiber

Ø inside: 22 mm · Ø outside: 27 mm · Thickness: 1.5 mm · Material: Fiber · Surface: raw

HK replacement jaws racing clutch

Manufacturer: HK Clutches · Number of jaws: 3 pcs · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning

Clutch basket Z50 19 teeth | Puch X30

Material: Steel · Toothing type: helical toothed · Number of teeth: 19 pcs · Area of application: Standard

swiing® revival gasket set | Puch X30 Velux

Manufacturer: swiing® revival parts · Number of components: 11 pcs · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Area of application: Standard

swiing® revival thrust washer 15/26/1 clutch | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 26 mm · Thickness: 1 mm

NSK 16100 Ball bearing 10/28/8 | ZA50 Motor

Bearing type: Deep groove ball bearing · Stock number: 16100 · Ø inside: 10 mm · Ø outside: 28 mm · Width: 8 mm · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided

swiing® revival press-in bolt bearings & shaft seals | Puch Z50

Manufacturer: swiing® revival parts · Area of application: Special tool · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Total length: 79.9 mm · Diameter: 34.6 mm · Ø inside: 17.4 mm · Ø outside: 39.5 mm · Ø Pin: 16.5 mm

NSK 6002 ball bearing 15/32/9 | ZA50 motor

Bearing type: Deep groove ball bearing · Stock number: 6002 · Ø inside: 15 mm · Ø outside: 32 mm · Width: 9 mm · Inner ring width: 9 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing clearance: CM (special/noise-reduced) · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Surface: blank · Area of application: Standard

DMP gasket set 45 mm cylinder | Puch

Manufacturer: DMP · Number of components: 4 pcs · Ø cylinder: 42 mm · Ø cylinder: 43.5 mm · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Area of application: Tuning

swiing snapper to gearshift | Puch Z50

Manufacturer: swiing · Material: Steel · Surface: gas nitrided · Puch OEM number: 050.1.1421

swiing® revival snapping spring | Puch Z50

Spring design: Pressure spring · Manufacturer: swiing® revival parts · Puch OEM number: 320.1.14.023.1

swiing® revival fitting sleeve engine housing | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø outside: 10 mm · Total length: 20 mm

Jasil connecting rod | Puch

Manufacturer: Jasil · Material: Steel · Surface: copper-coated · Connecting rod length center-center: 90 mm · Total length: 114.5 mm · Ø piston pin (B): 12 mm · Ø Connecting rod bolt: 14 mm · Ø lower connecting rod eye outside: 24.6 mm · Ø upper connecting rod eye outside: 20.9 mm · Ø lower bearing inside: 18 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 14/15 x 9.75 mm · Dimension upper bearing: 12/15 x 14.7 mm · Connecting rod pin length: 34 mm · Thickness: 10 mm · Area of application: Standard · Area of application: Tuning

GPO reinforcement plate 1.5 mm clutch (2-/ 3-jaw) Inox | Puch E50

Manufacturer: GPO · Material: Chrome steel (known as Nirosta®) · Ø inside: 40 mm · Ø outside: 90.5 mm · Height: 1.5 mm · Area of application: Road use

Gilardoni italkit diaphragm seal | Puch

Manufacturer: Gilardoni italkit · Material: Sealing paper · Place of use: Admission · Hole pattern [mm]: 34 x 60 · Thickness: 0.5 mm · Area of application: Racing · Area of application: Tuning

Clutch hub Z50 engine Occ. | X30 Sport, Velux

Manufacturer: Puch · Recording type: Interlocking · Toothing type: straight toothed · Area of application: Original

swiing® revival decoupling shaft | Puch X30 Velux old + new version

Manufacturer: swiing® revival parts · Surface: gas nitrided · Total length: 88.8 mm · Ø outside: 10 mm · Area of application: High End

Puch clutch cover ZA50 engine | Puch 30 NG-2AH

Manufacturer: Puch · Material: ABS plastic · Number of fixing points: 7 pcs

Oil seal NBR 16/28/7 BS Kickstarter | Puch Z50

Temperature resistance (min.): -30 - 100 °C · Simmering type: BS - With sheet metal outer casing / one sealing lip / one dust lip. · Ø inside: 16 mm · Ø outside: 28 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR

NSK E20 shoulder ball bearing

Bearing type: Deep groove ball bearing · Stock number: E20 · Ø inside: 20 mm · Ø outside: 47 mm · Width: 12 mm · Inner ring width: 12 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Material: Brass · Surface: blank

Connecting rod bushing reduction 10/14/12 bronze | Puch

Ø inside: 10 mm · Nominal diameter inside: 10 mm · Ø outside: 14 mm · Total height: 12 mm · Material: special bearing bronze

Clutch Surflex Puch Supermaxi E50 (long pads)

Connecting rod bushing 10/12/13 bronze | Puch

Ø inside: 10 mm · Nominal diameter inside: 10 mm · Ø outside: 12 mm · Total height: 13 mm · Manufacturer: Puch · Material: special bearing bronze
