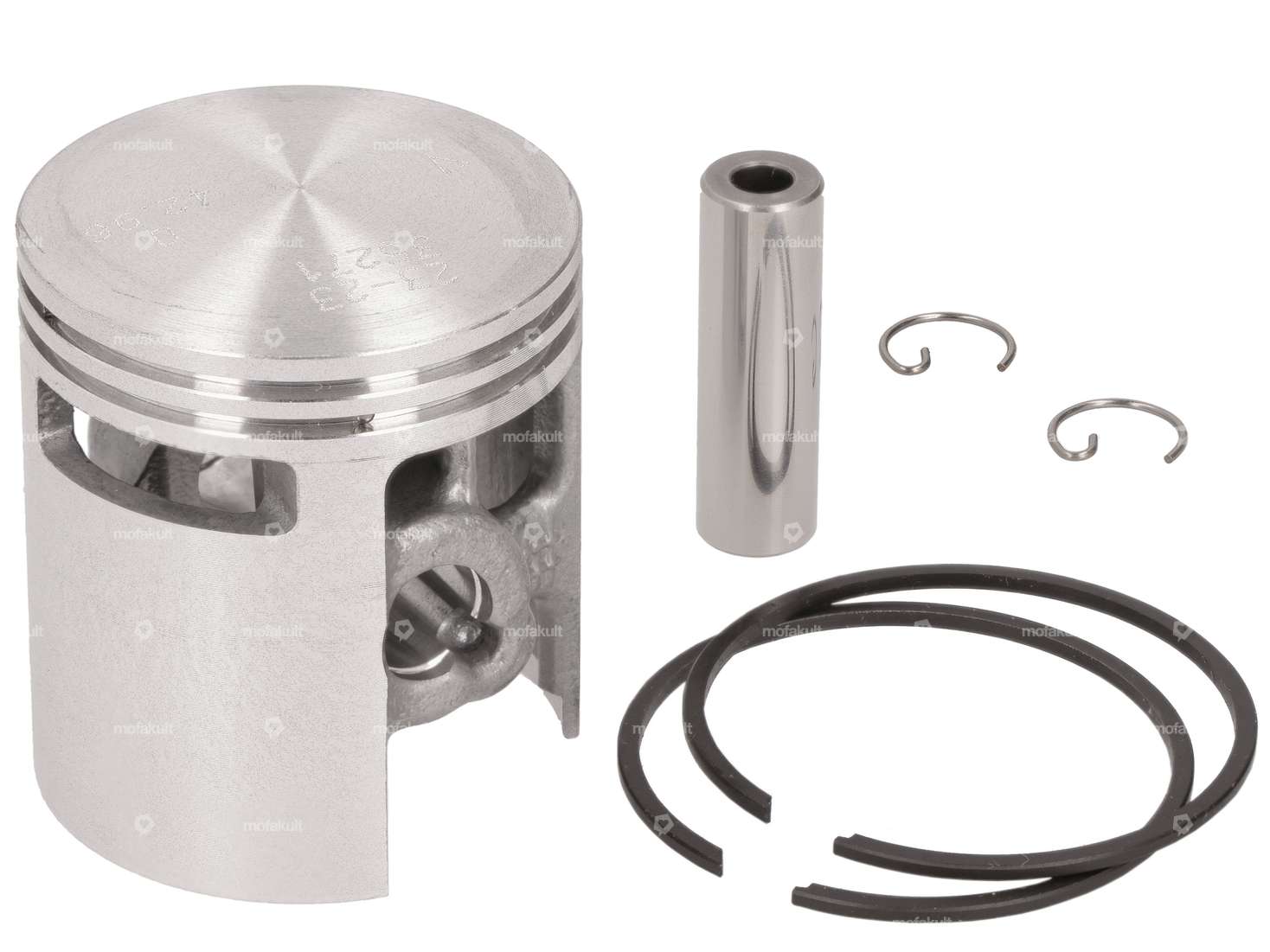

43.0 mm piston kit with two pieces of 1.5 mm rectangular piston ring with internal circlip (IS) for the new version of the 43 mm Malossi cylinder suitable for your Piaggio Ciao, Si, Bravo, Boxer moped / moped.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | Malossi |
| Ø outside piston (A) | 42.96 mm |
| Compression height (C) | 26 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 51 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 43 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston ring mold | Rectangular ring |
| Piston ring height | 1.5 mm |
| Thick piston ring | 1.75 mm |
| Ø piston pin (B) | 10 mm |
| Piston weight | 88 g |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo Gilera CBA Gilera Citta |
