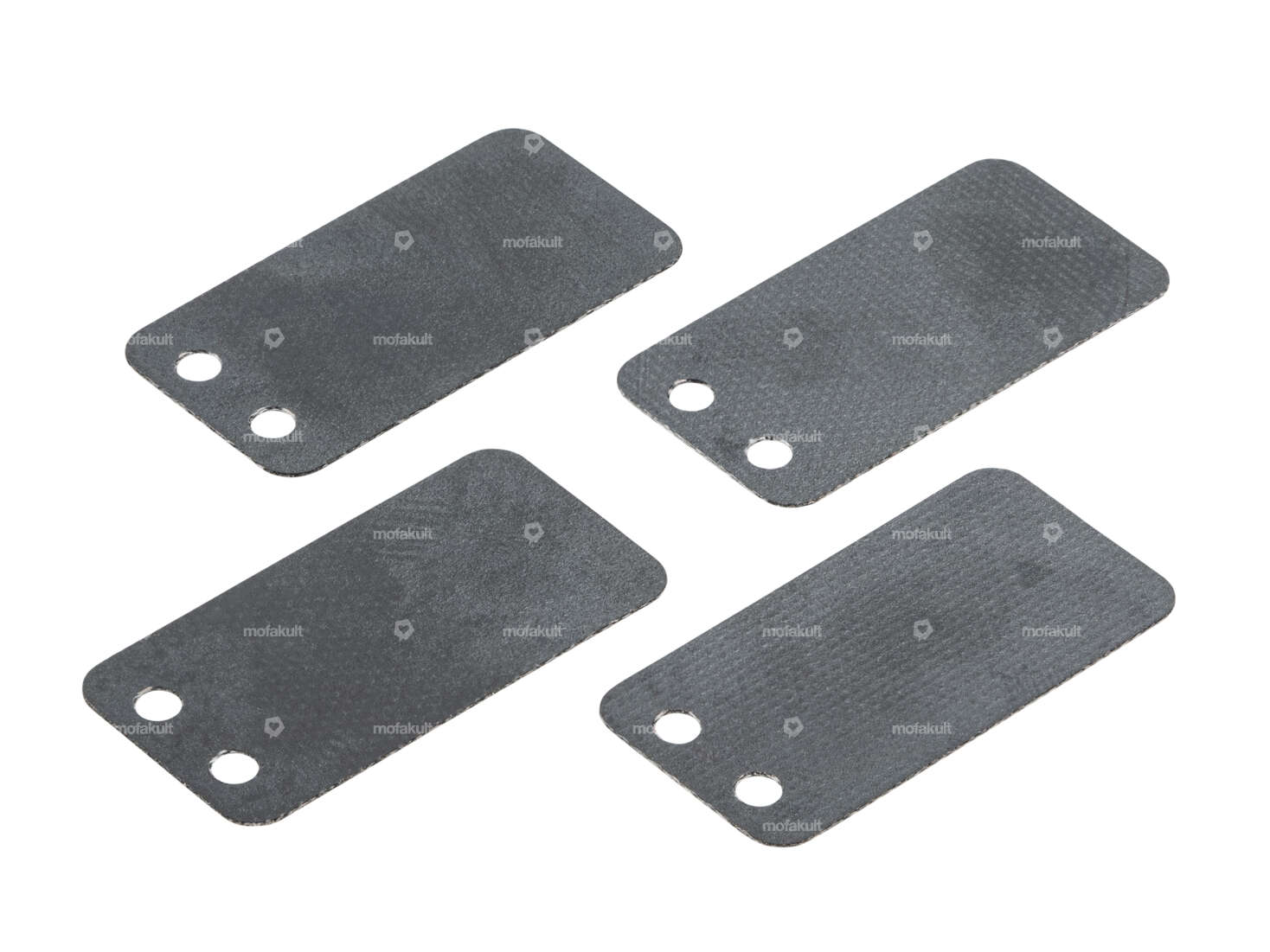

Four diaphragm plates made of black carbonite for your moped / moped such as Alpa Turbo / Chopper, Malaguti Fifty with a Franco Morini M01, as well as Fantic Issimo & Yamaha mopeds with the Minarelli V1 engine.
The set with diaphragm plates includes two different thicknesses.
2 pcs. with 0.3 mm
2 pcs. with 0.35 mm
Ø holes: 3 mm
Hole spacing: 8 mm
Dimension (l x w): 38 x 20 mm
You can find the matching reed block in the accessories section.
Quality product from the Italian manufacturer Malossi.
| Material | Carbonite |
| Manufacturer | Malossi |
| Membrane material | Carbonite |
| Thick membrane platelets | 0.3 mm, 0.35 mm |
| Ø mounting hole | 3 mm |
| Number of fixing points | 2 pcs |
| Hole spacing | 8 mm |
| Mounting type | Screws |
| Total length | 38 mm |
| Width | 20 mm |
| Area of application | Tuning |
| Alpa Chopper / Turbo | |
| Fantic | |
| Malaguti | |
| Yamaha |
