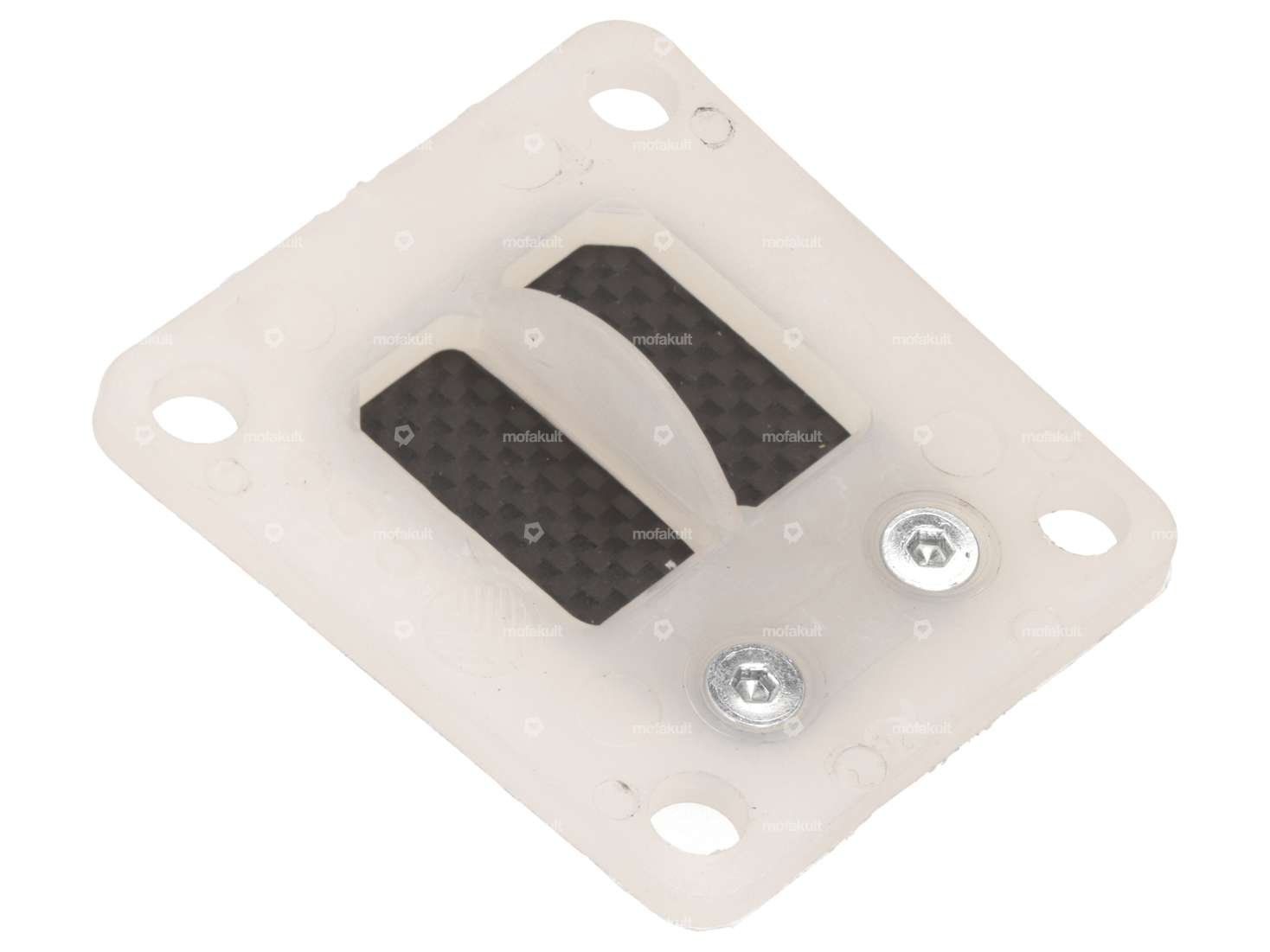

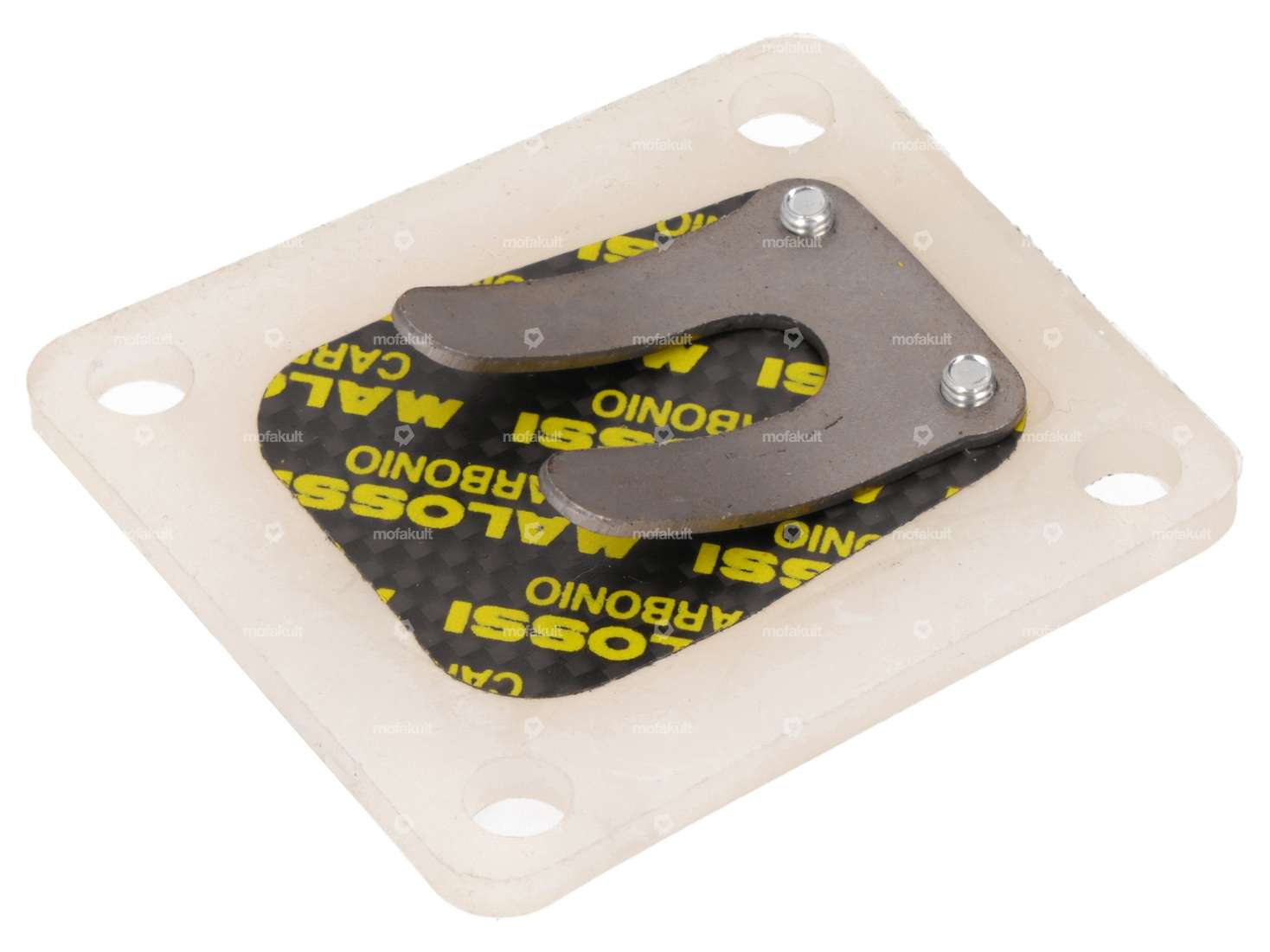

Diaphragm insert with carbon plates suitable for Peugeot 103 and ByeBike mopeds / mopeds.
Also fits various other combinations such as Tomos and Polini; compare the dimensions.
Dimensions:
Hole spacing height: 39 mm
Hole spacing width: 32 / 36 mm
Hole diameter: 5.3 mm
Base plate thickness: 2 mm
Single reed plates and other great products can be found in the accessories section.
Quality product from the Italian manufacturer Malossi.
| Manufacturer | Malossi |
| Total length | 50 mm |
| Camouflaged | No |
| Material | Plastic |
| Surface | raw |
| Area of application | Tuning |
| Number of flaps | 1 pcs |
| Mounting type | Screws |
| Membrane material | Carbon |
| Thick membrane platelets | 0.3 mm |
| Width | 47 mm, 43 mm |
| Thickness | 3 mm |
| Ø mounting hole | 5.4 mm |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 32 / 36 x 39 |
| Universal |
| Bye Bike |
| Peugeot |
Ratings
Accessories & related products

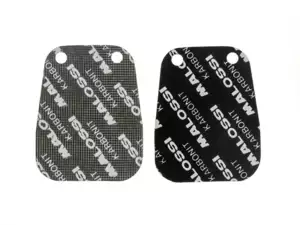

Malossi reed valve carbonite 0.3 / 0.35 mm VL1 Peugeot 103
Manufacturer: Malossi · Area of application: Tuning · Total length: 37 mm · Membrane material: Carbonite · Width: 29 mm · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Hole spacing: 15 mm
EUR 21.60

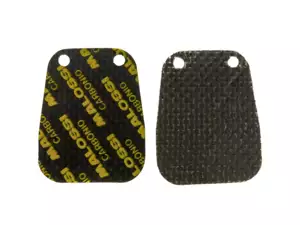

Malossi reed valve carbon 0.3 / 0.35 mm VL1 Peugeot 103
