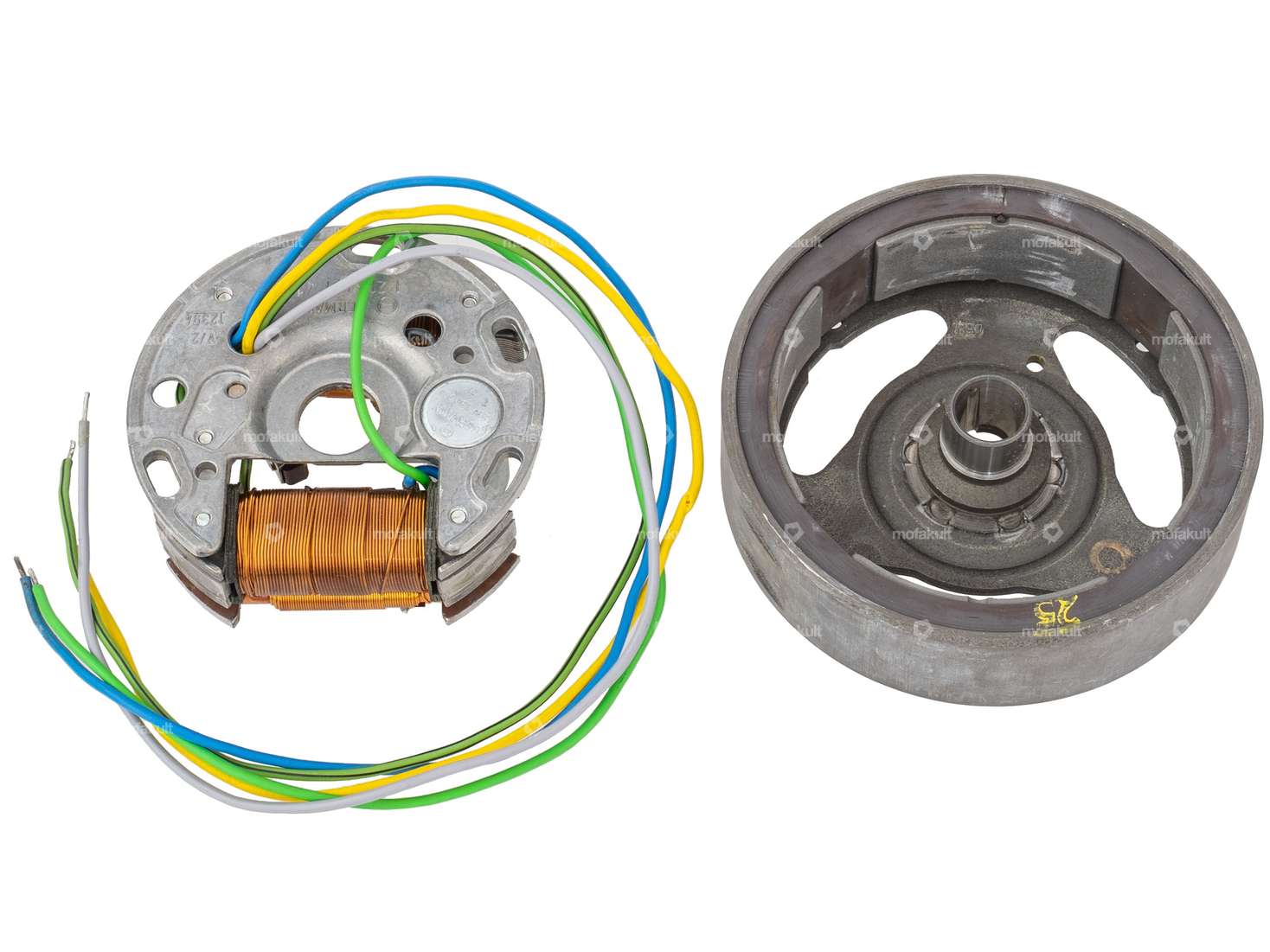

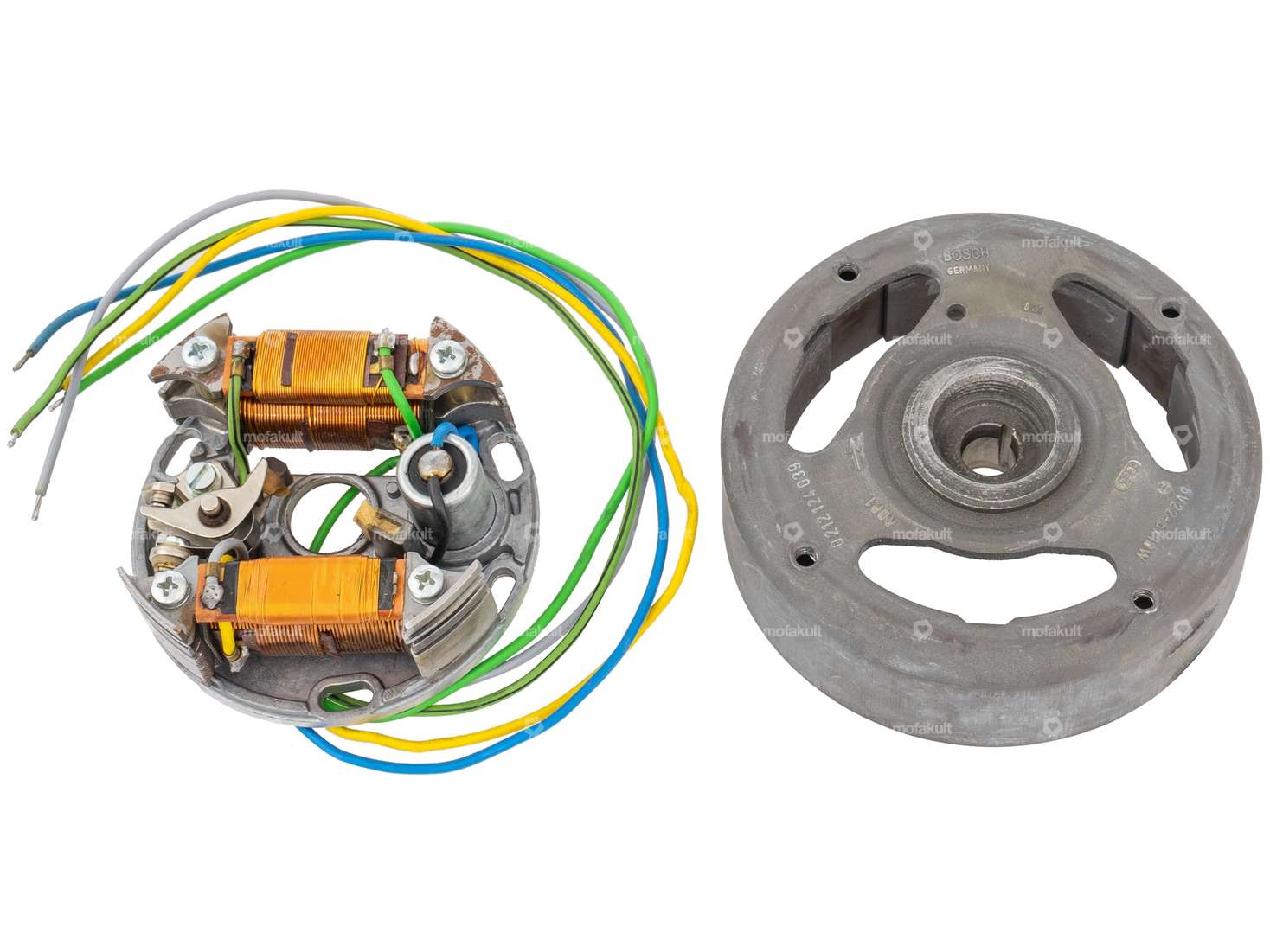

Original right-hand Bosch ignition, which is installed on Puch Maxi S / N mopeds with single-automatic E50 engine, among others.
An external ignition coil as used on some old Puch Maxi mopeds is required for this breaker ignition.
The ignition is equipped with brake light and other power consumers.
Connection diagram:
Blue cable: external ignition coil (excitation current)
Yellow cable: light 6 Volt 22 Watt
Grey cable: additional consumer 6 Volt 5 Watt (e.g. brake light)
Green / black cable: ground
Green cable: Additional consumer 6 volt 10 watt (e.g. horn)
You can find the matching external ignition coil and other add-on parts in the accessories section.
The following number is stamped on the pole wheel: 0 212 124 039
NOS – new from old stock.
| Manufacturer | Puch |
| Material | Aluminum |
| Area of application | Standard, Original, Security, Custom |
| Tension | 6 V |
| Direction of rotation | right |
| Performance | 5 W, 10 W, 22 W |
| Ø mounting plate | 90 mm |
| Mounting type | Screws |
| Number of fixing points | 4 pcs |
| Ø Internal flywheel | 90 mm |
| Puch |
