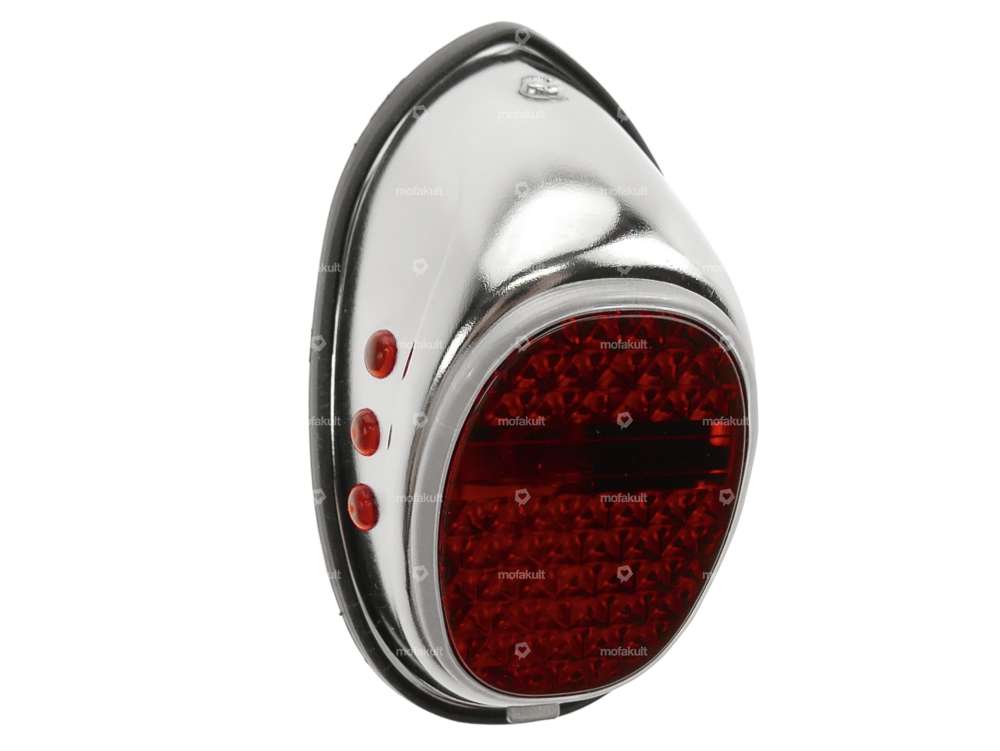

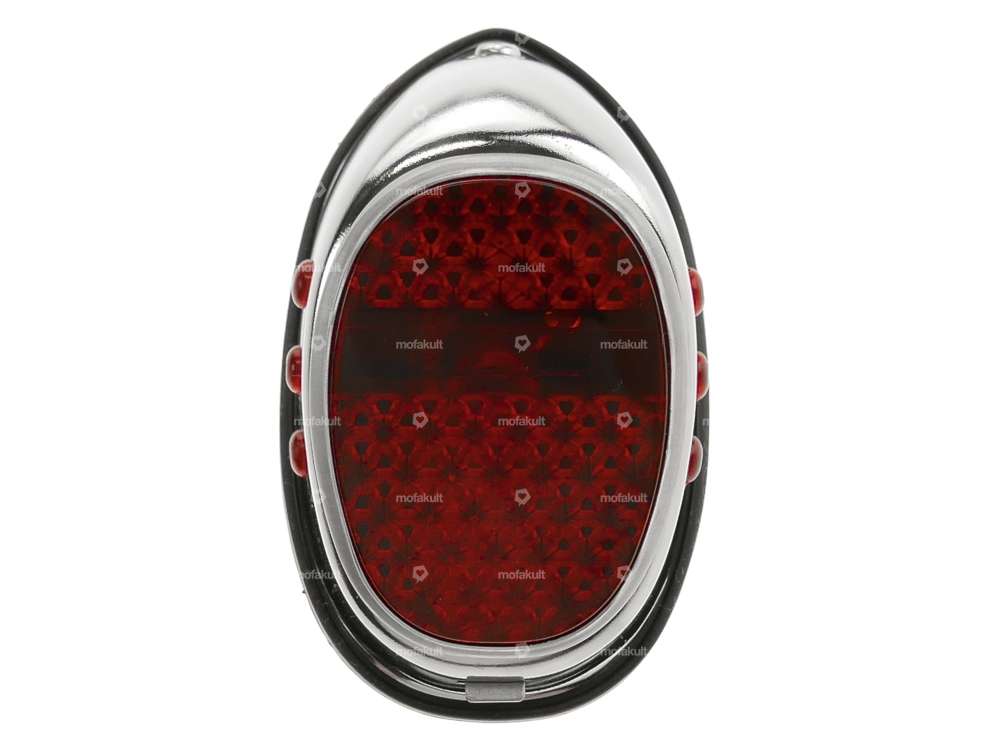

Simple, chrome-plated tail light in "old-school design". Very similar to the old Hella, ULO or CEV rear lights.

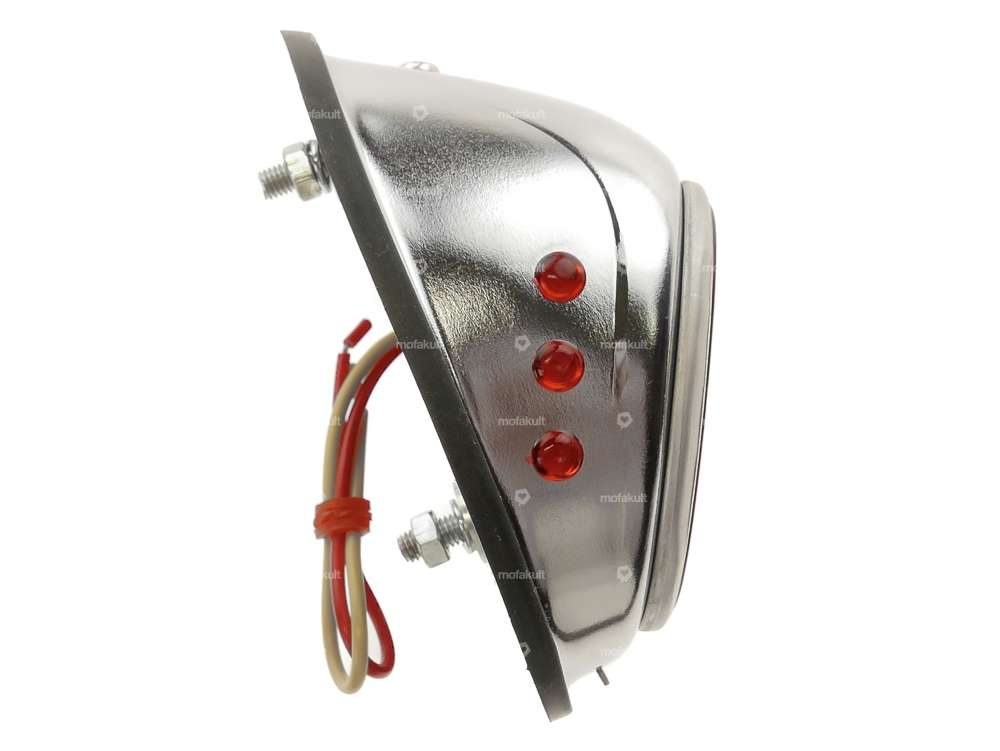

Three plastic dots are attached to each side, through which the light shimmers.
Total height: 115 mm
Total width: 60 mm
Depth: 50 mm
Screw spacing: 57 mm
Fixing thread: M6

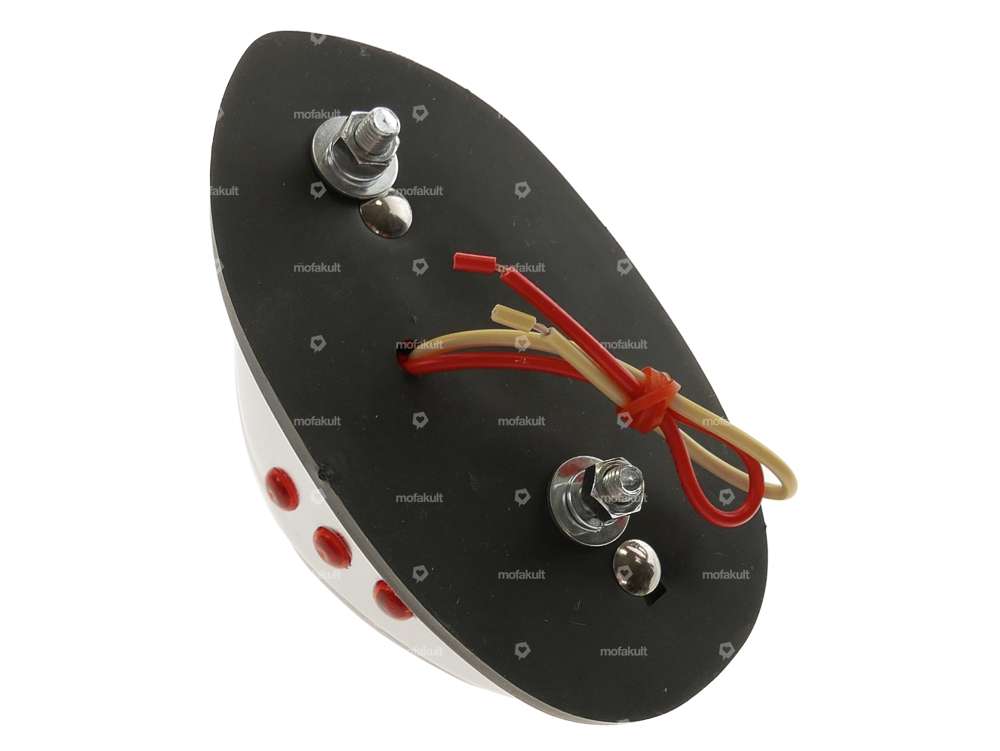

Cable assignment:
Ground: screw connection
Rücklight: yellow
Brake light: red
The rubber base is already fitted.
The glass is embedded in an aluminum socket.

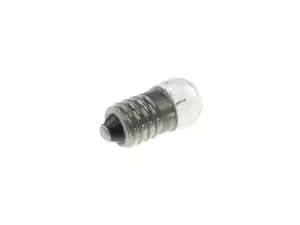

Two threaded bulbs are already installed (6V 3W / 6V 5W).
You can find suitable replacement bulbs in the accessories section.
| Material | Aluminum |
| Manufacturer | GPO |
| Color | red, Chrome |
| Bulb holder | E10 |
| Depth | 50 mm |
| Test mark | none |
| Brake light | Yes |
| Reflectors | Yes |
| Battery operated | No |
| Number of fixing points | 2 pcs |
| Mounting type | Nuts & bolts |
| Width | 60 mm |
| Height | 115 mm |
Accessories & related products
Moped fans also bought
Magura cable clamp Ø 8 x 15 mm
Manufacturer: Magura · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Thread type: M6x1 (standard thread) · Ø Cable bushing: 2.3 mm · Drive: External hexagon · Drive: Slot · Ø outside: 8 mm · Screw head: Hexagon · Ø Bundle: 6 mm · Total length: 15 mm · Thread length: 7 mm · Width across flats SW: 7 mm · Area of application: Standard
EUR 3.00

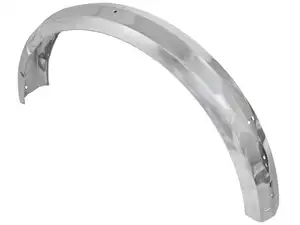

swiing® revival 17" rear fender Inox | Puch Maxi N
