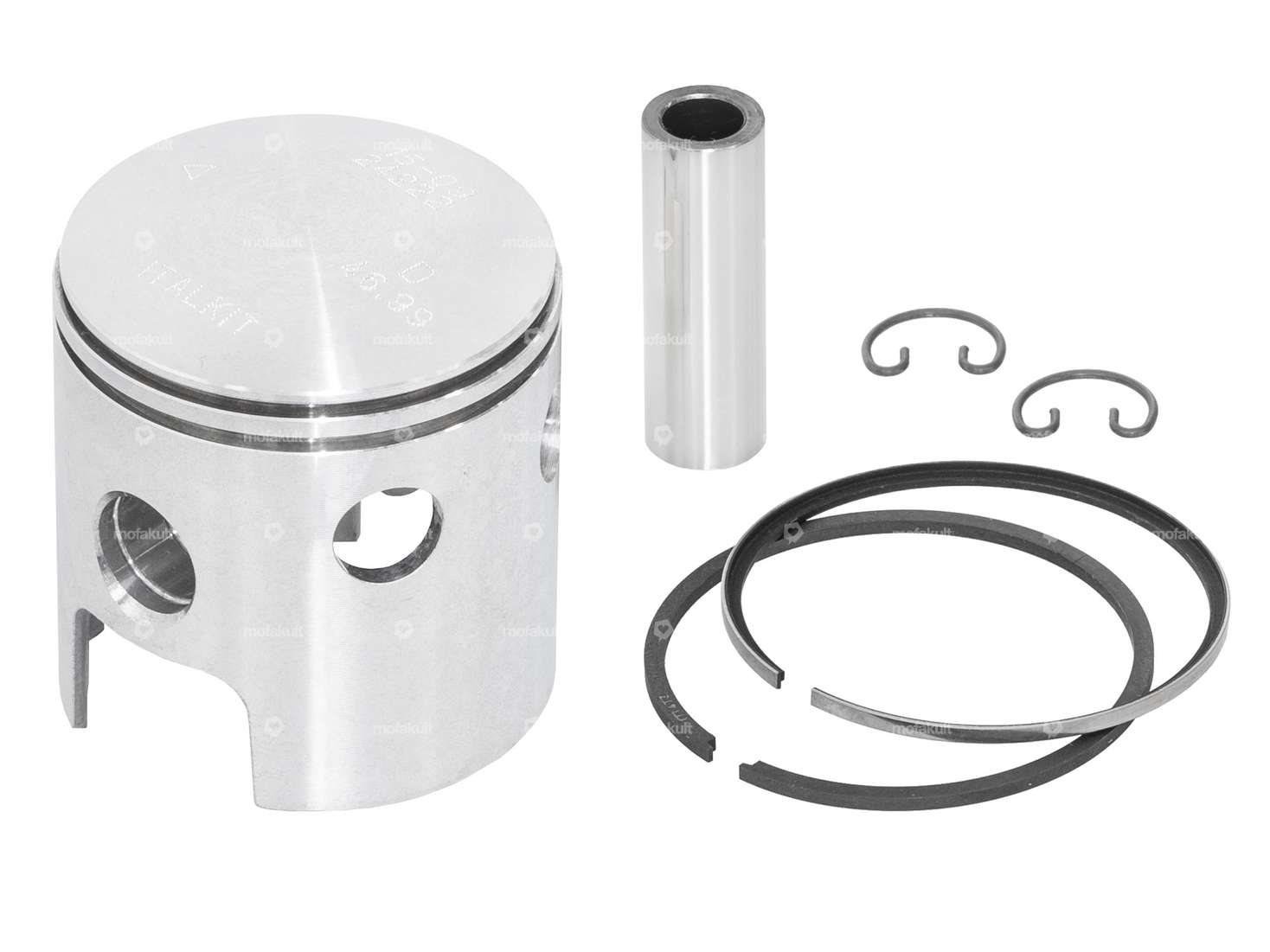

47.0 mm replacement piston / piston kit with a 2 mm L-piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with internal circlip (IS) to fit the Gilardoni italkit cylinder for your Puch moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | Gilardoni italkit |
| Ø outside piston (A) | 46.99 mm |
| Compression height (C) | 22.5 mm |
| Curvature (D) | 3.2 mm |
| Total piston height (E) | 52.5 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 47 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 2 mm, 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | D |
| Weight piston kit | 102 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
