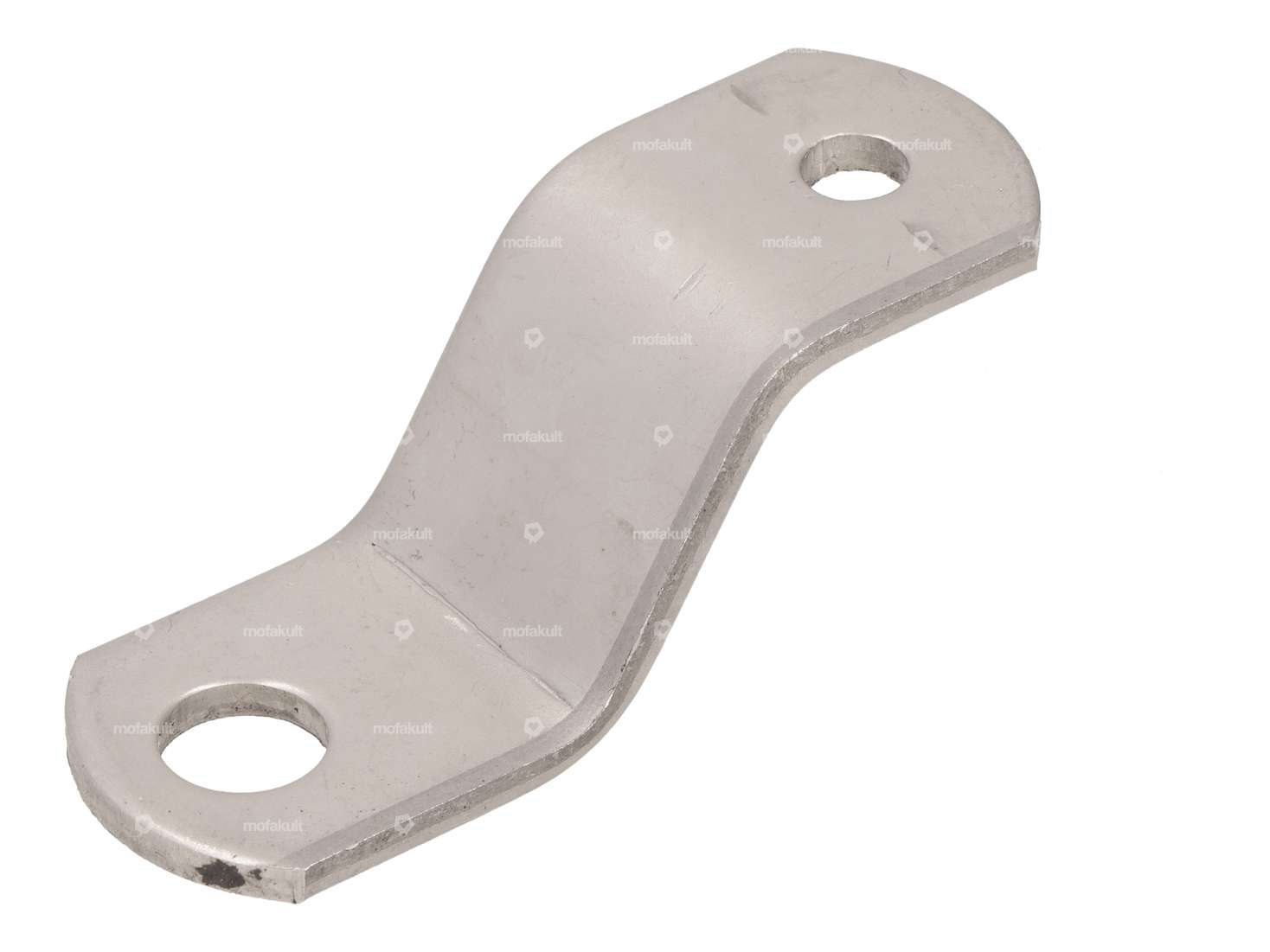

Exhaust mounting plate Inox | Puch Maxi N

Exhaust mounting plate | Puch Maxi N

Manufacturer: Made in Portugal · Material: Steel · Surface: galvanized (blue) · Ø mounting hole: 8.5 mm · Ø mounting hole: 11 mm · Cranking (offset): 23 mm · Number of fixing points: 2 pcs

Exhaust clamp 70 mm chrome wide version.

Nominal diameter: 70 mm · Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Clamping diameter: 67 - 71 mm · Thickness: 2 mm · Ø mounting hole: 8.2 mm · Width: 28 mm · Number of fixing points: 1 pcs

Bent exhaust bracket

Material: Steel · Surface: galvanized (blue) · Thickness: 3 mm · Number of fixing points: 2 pcs · Hole spacing: 38 mm · Cranking (offset): 15 mm

swiing® ingenious resonance exhaust set Ø 28 / 70 mm | Puch Maxi, X30 Sport

Manufacturer: swiing · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 730 mm · Flame tube attachment: Flange · Mounting type: Screwed clamp · Ø outside: 70 mm · Ø Internal connection: 28 mm · Exhaust type: Cigar

Exhaust bracket Inox | Puch Maxi N

Thickness: 3 mm · Manufacturer: Made in Netherlands · Material: Chrome steel (colloquially known as stainless steel) · Ø mounting hole: 7 mm · Ø mounting hole: 10 mm · Number of fixing points: 2 pcs · Hole spacing: 50 mm · Cranking (offset): 20 mm

Magura cable clamp Ø 8 x 15 mm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Ø Cable bushing: 2.3 mm · Ø Bundle: 6 mm · Thread length: 7 mm · Screw head: Hexagon · Ø outside: 8 mm · Total length: 15 mm · Width across flats: 7 mm · Drive: External hexagon · Drive: Slot · Area of application: Standard · Thread type: M6x1 (standard thread)

swiing® revival 17" rear fender Inox | Puch Maxi N

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: polished · Color: Chrome · Folding the ends: closed folded · Folding the ends: not folded · Wheel size: 17 " · Shape of the mudguard: angular · Total length over ends: 625 mm · Scope: 940 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 285 mm · Mounting type: Nuts & bolts

Pedestal bearing shell | Puch

Height: 20 mm · Width: 46 mm · Total length: 70 mm · Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Mounting type: Screws · Hole spacing: 41 mm · Number of fixing points: 3 pcs

Side panels black | Puch Maxi N

Total length: 560 mm · Total length: 670 mm · Width: 45 mm · Height: 155 mm · Height: 185 mm · Material: Plastic · Color: black · Ø mounting hole: 6 mm · Number of fixing points: 5 pcs

Oil filler plug with sealing ring | Puch E50

Total length: 14.6 mm · Material: Steel · Surface: galvanized (blue) · Number of components: 2 pcs · Thread type: M10x1.5 (standard thread) · Drive: Slot · Screw head: Lens head · Thread length: 6 mm · Ø External head: 14 mm · Puch OEM number: 364.1.10.660.1

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut

GPO cable duct black | Puch Maxi, Supermaxi

Total length: 320 mm · Width: 58 mm · Height: 22 mm · Manufacturer: GPO · Material: Plastic · Color: black · Ø mounting hole: 5.3 mm · Number of fixing points: 2 pcs

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Surface: blank · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

swiing® revival side protection screw set black | Puch Maxi N

Manufacturer: swiing® revival parts · Material: Plastic · Material: Steel · Color: black · Drive: Slot · Drive: Triangular head · Thread type: M5x0.8 (standard thread) · Thread length: 13 mm · Thread length: 50 mm · Total length: 24.5 mm · Total length: 63 mm

Workshop card Premium Partner

Material: Paper · Color: white · Width: 100 mm · Height: 280 mm
