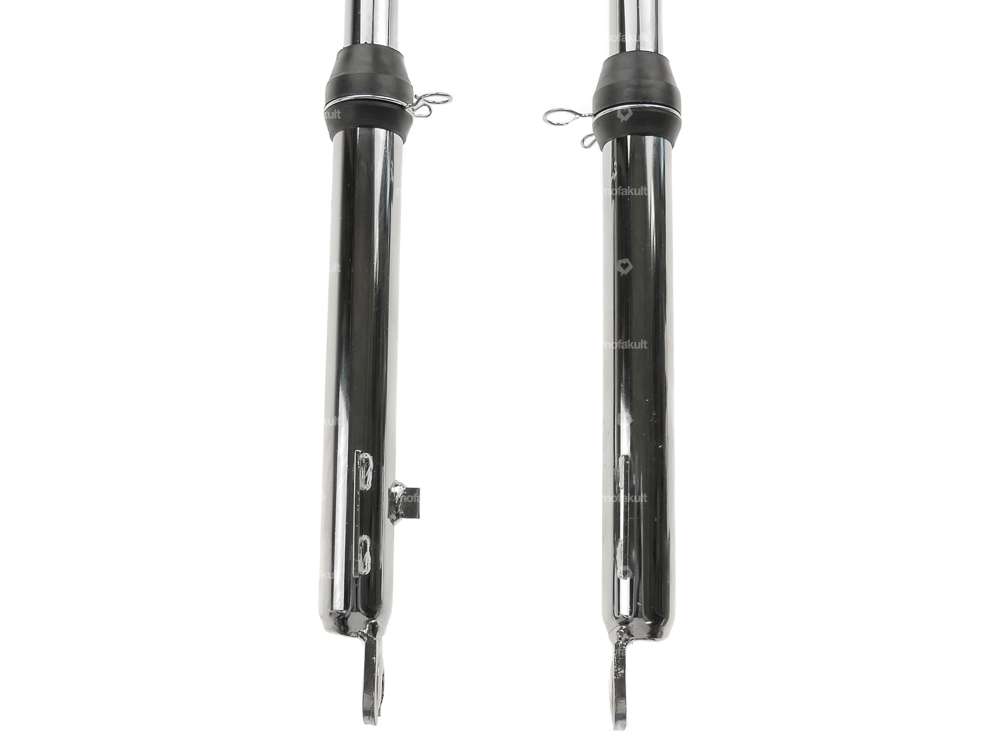

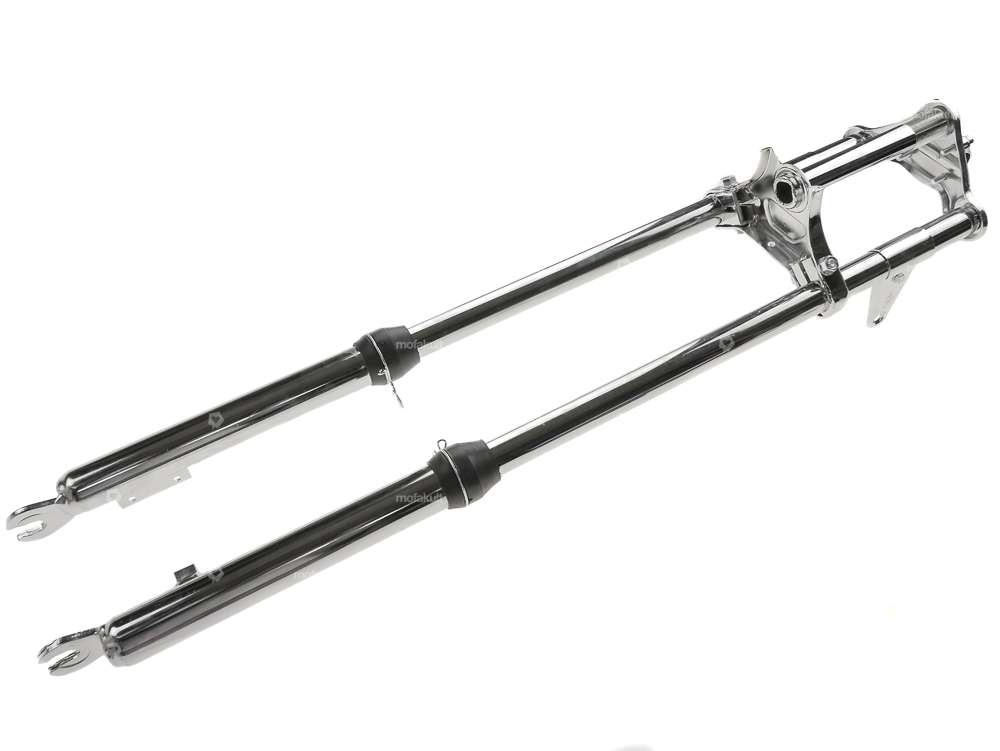

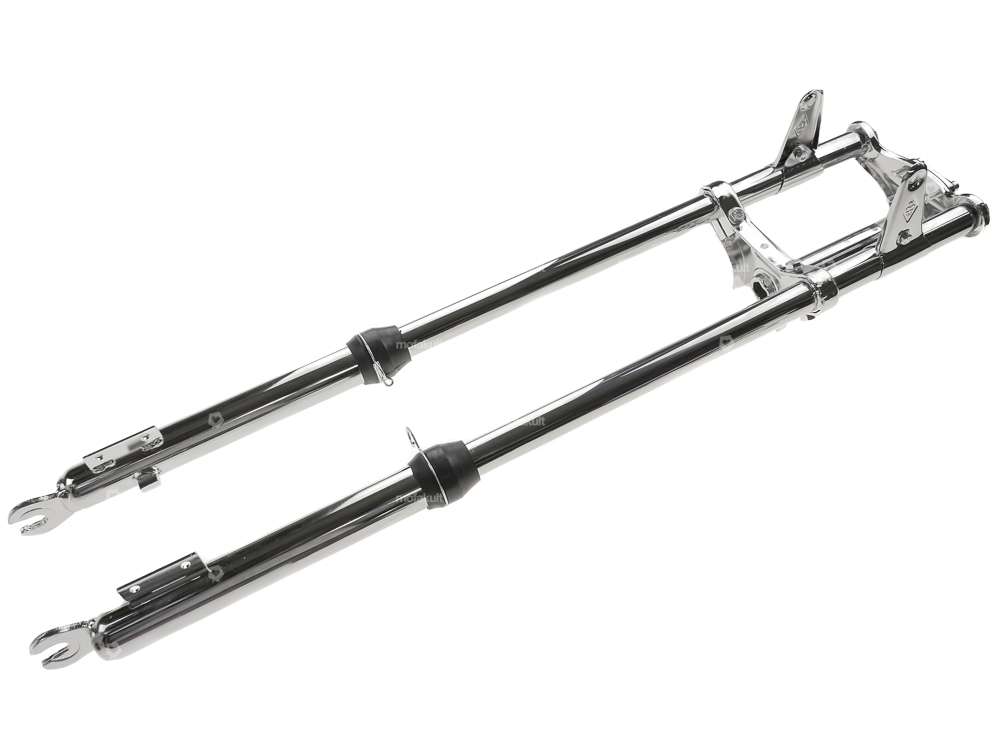

Chrome-plated chopper fork suitable for various mopeds such as Zündapp Belmondo, Sachs 50/2, etc.
The fork is 18 cm longer than the conventional EBR fork.
Strengthened stanchions have been installed to ensure stabilization of the greatly elongated fork.
If you want to be on the safe side, you can find appropriate stabilizers in the accessories.
The guide block for the brake anchor plate is located on the right-hand side.
Ø stanchion tube: 28 mm
Head tube length: 190 mm
Ø inner head tube: 21.5 mm (for stem mounting)
Total length: 860 mm
Thread: M26 x 1 mm
Center mounting brake anchor plate - center wheel axle: 8.5 mm
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Adjustable | No |
| Spar end distance (center-center) | 137 mm |
| Ø outer head tube | 26.1 mm |
| Ø spars | 28 mm |
| Ø head tube inside | 22.4 mm |
| Head tube length | 192 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Total length | 860 mm |
| Fork bridge - center wheel axle | 635 mm |
| Distance brake cam to wheel axle center-center | 85 mm |
| Thread length | 58 mm |
| Sachs |
| Zündapp Belmondo |
Ratings
Accessories & related products
Moped fans also bought
Motorex engine oil (gear oil) manual 450 ml
Temperature resistance (min.): -30 - 220 °C · Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Area of application: Gearbox lubrication with clutch
EUR 11.80
EUR 26.22/l
Inox
Hot
Bumm mirror round Inox
Manufacturer: Bumm · Material: Chrome steel (colloquially known as stainless steel) · Material: Steel · Surface: chrome-plated · Color: Chrome · Thread size: M8 · Clamping diameter: 22 mm · Ø mirror surface: 107 mm · Ø mirror rod: 8 mm · Mirror rod length: 300 mm · Total length: 360 mm · Thread type: M8x1.25 (standard thread)
EUR 29.70

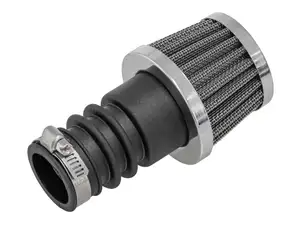

GPO mushroom air filter grille chrome 28 - 32 mm
