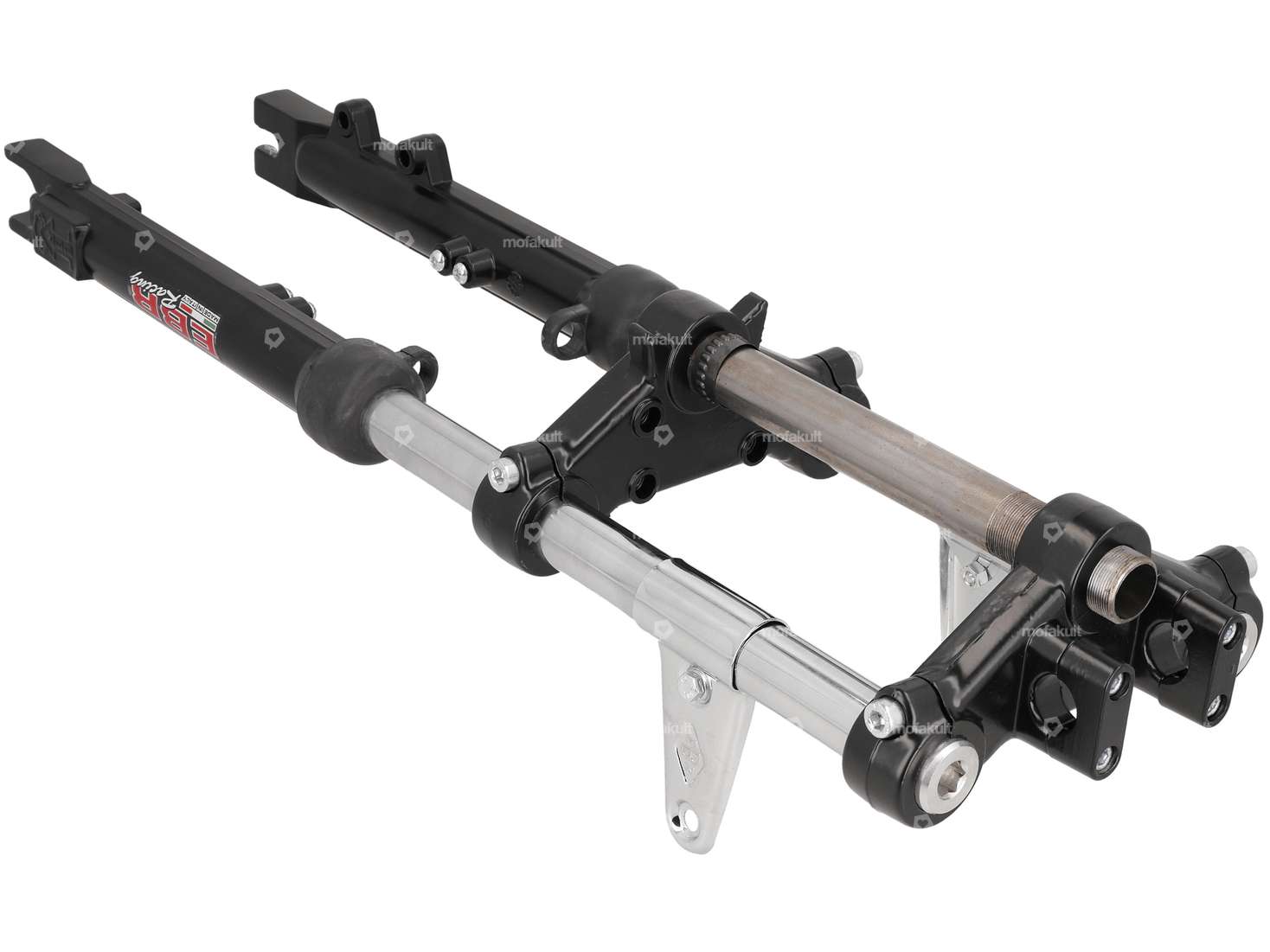

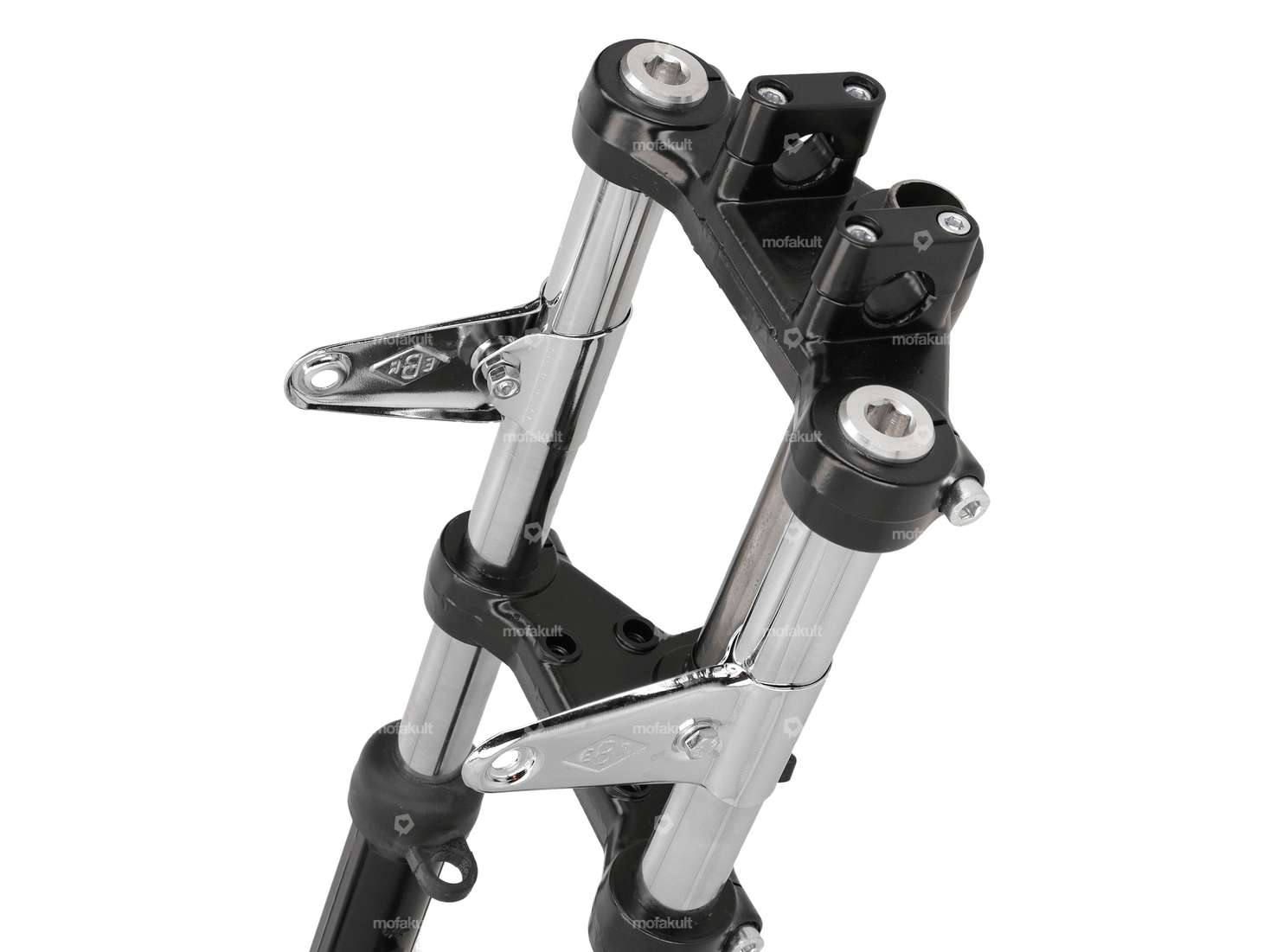

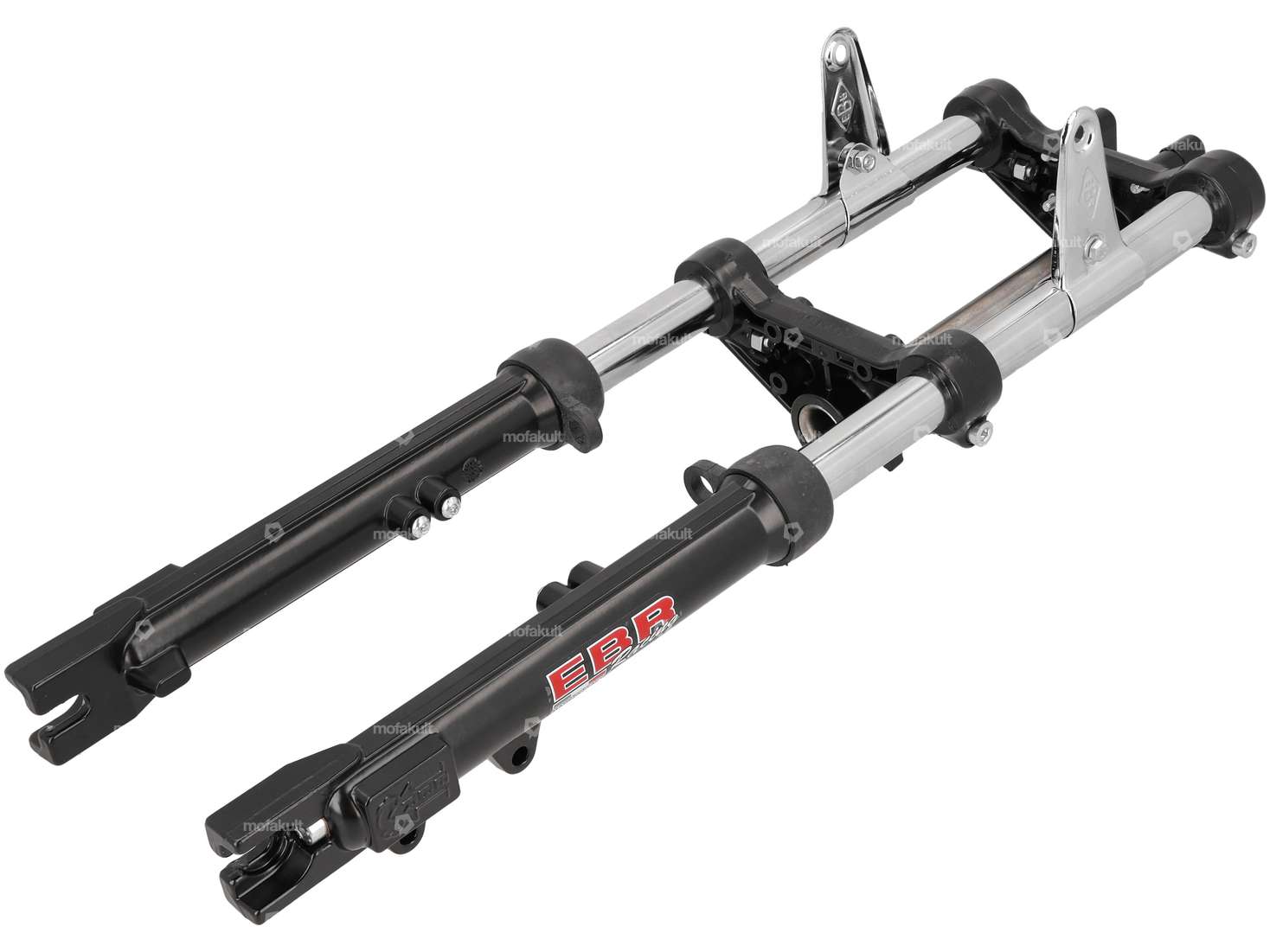

Hydraulic telescopic fork of the EBR brand suitable for Piaggio Ciao mopeds.
Special bracket for mounting a disc brake system. The lower mounting hole is 53 mm above the wheel axle.
The two mounting holes with Ø8.7 mm are 61 mm apart. The upper hole is therefore 114 mm above the wheel axle.

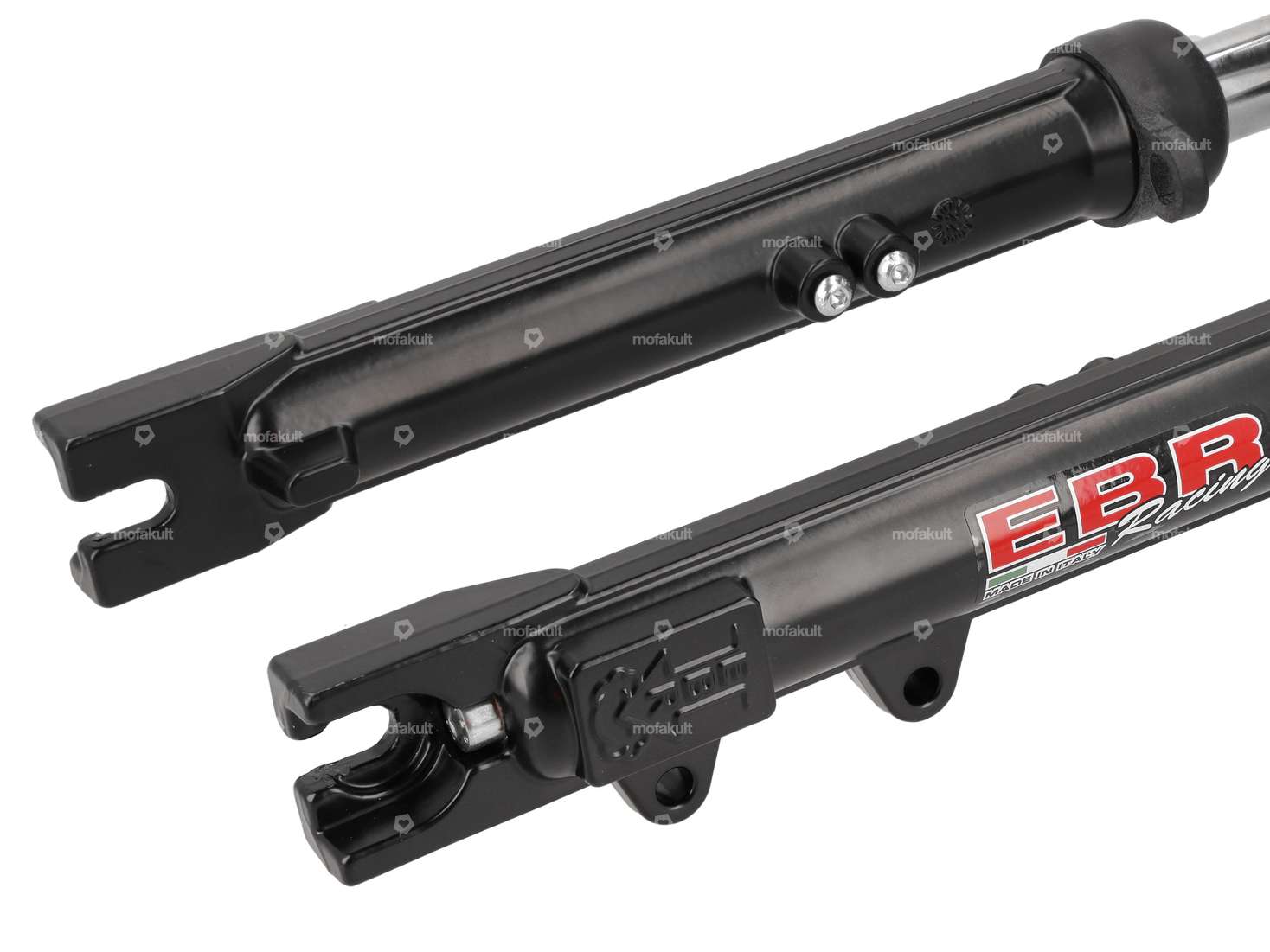

The two aluminum end bolts on the fork legs make it much easier to change the oil.
The solid fork is largely made of aluminum.
The snap ring is included in the scope of delivery. Further accessories can be found below.
Total length: 67 cm
Head tube length: 220 mm
Internal diameter of head tube (for stem mounting): 21.5 mm
Internal distance between fork legs (for mounting the rear axle): 120 mm
Head tube thread: 1" / 24G
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Aluminum, Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Adjustable | Yes |
| Total length | 660 mm, 635 mm |
| Spar end distance (center-center) | 150 mm |
| Ø outer head tube | 25.4 mm |
| Ø spars | 28 mm |
| Ø head tube inside | 21 mm |
| Head tube length | 220 mm |
| Thread type | FG25.4 (1" 24G) |
| Thread length | 58 mm |
| Fork bridge - center wheel axle | 390 mm |
| Distance brake cam to wheel axle center-center | 35 mm |
| Piaggio | Ciao - P, SC, PX, C24 |
