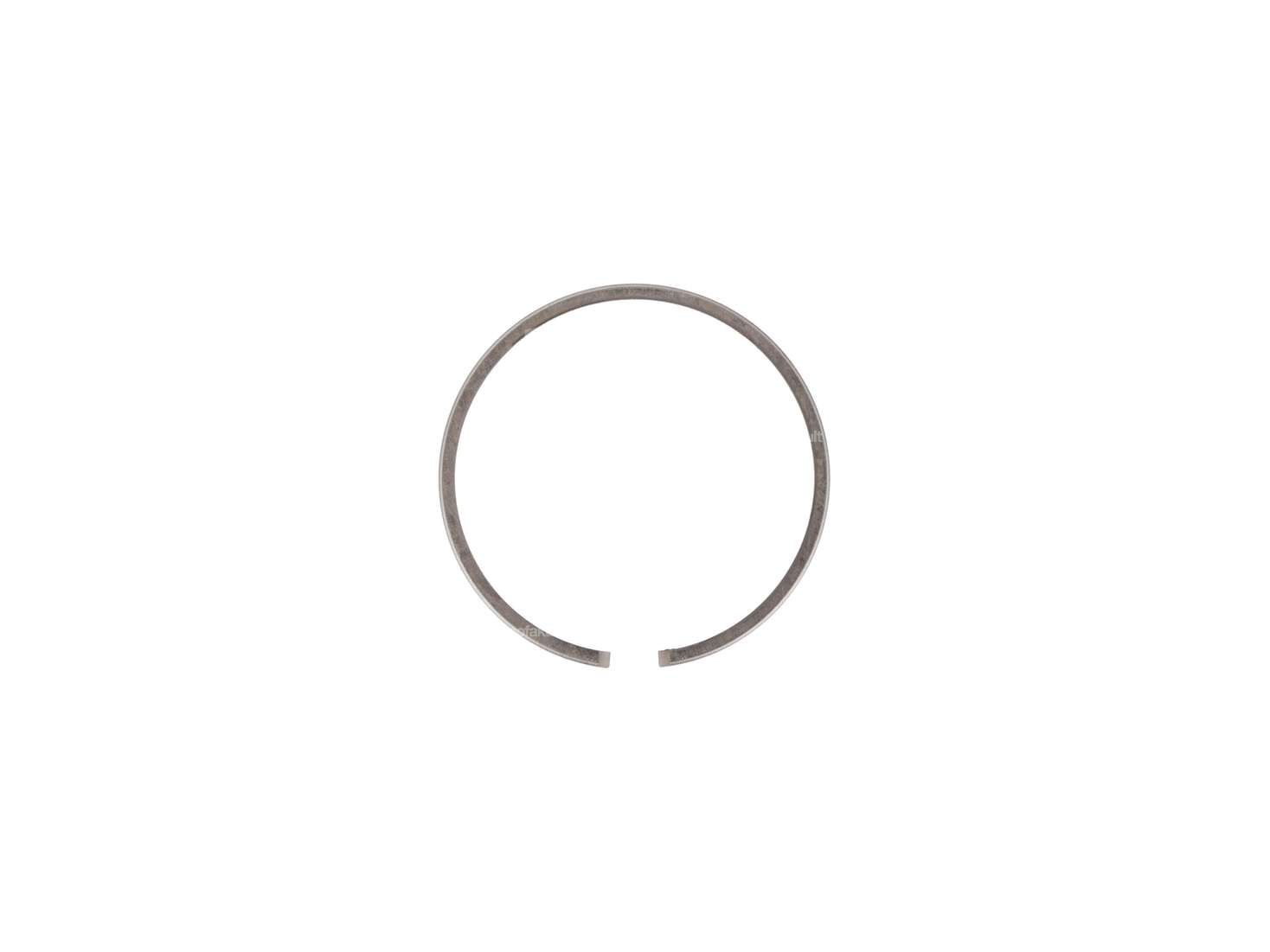

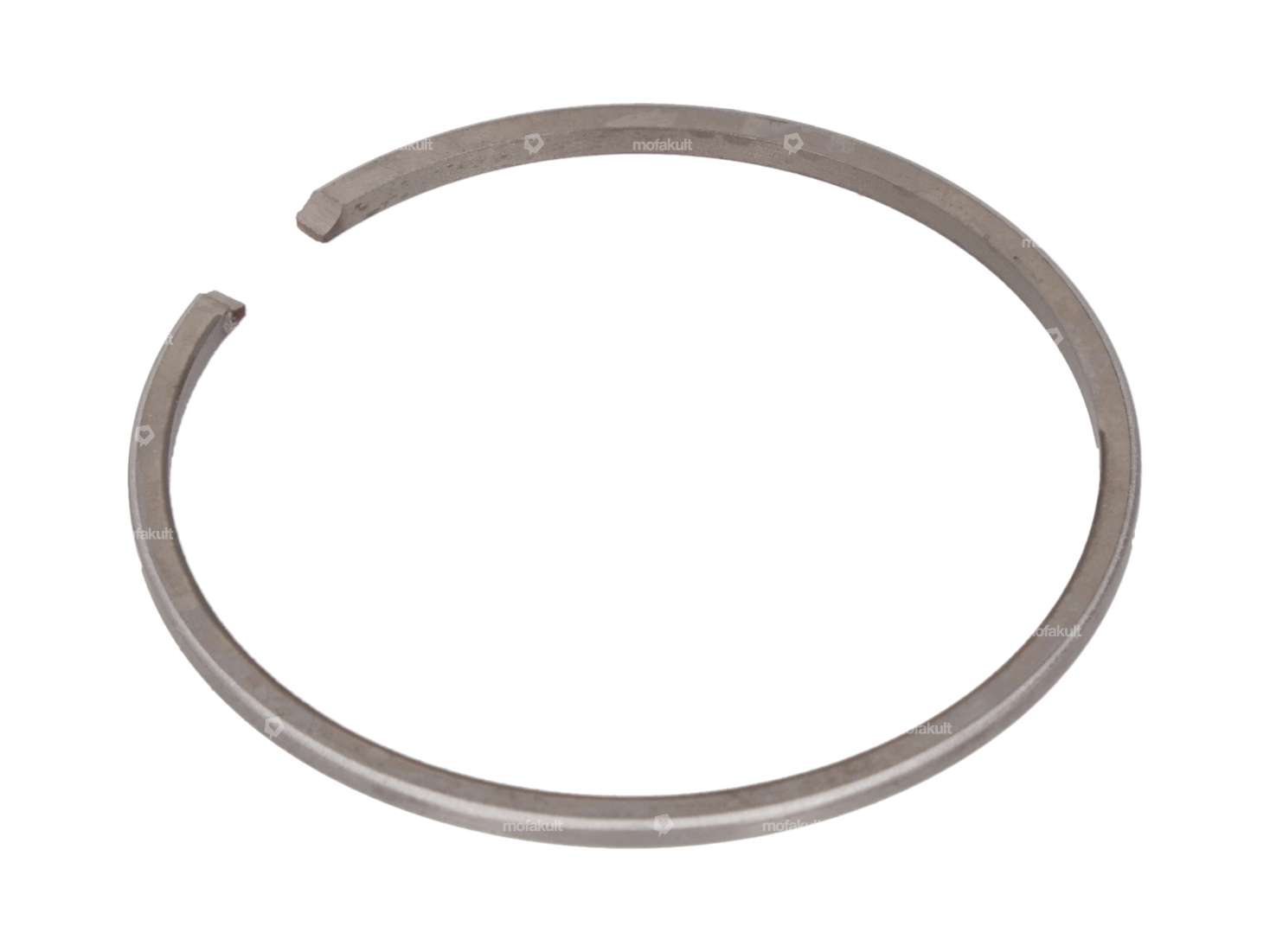

Athena piston ring 38.4 x 1.5 mm | Piaggio Ciao, SI, Bravo, Boxer

Athena 38.4 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: Athena · Camouflaged: No · Material: Aluminum · Displacement: 50 ccm · Surface: sandblasted · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.7 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 18 mm · Decompressor: Yes · Ø piston pin (B): 10 mm · Outlet type: clamped · Hole pattern [mm]: 35 x 55 · Area of application: Tuning · Number of fixing points: 3 pcs

Athena piston 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Ø outside piston (A): 38.355 mm · Compression height (C): 26.3 mm · Curvature (D): 3.9 mm · Total piston height (E): 51.85 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38.4 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 10 mm · Weight piston kit: 80 g

GPO fork lock | Puch

Ø rotating part: 12 mm · Manufacturer: GPO · Wide locking block: 4.1 mm · Locking block length: 15.3 mm · Material: Brass · Material: Spring steel · Material: Steel · Total length: 40.8 mm · Ø outside: 12 mm · Length of turned part: 25.6 mm · Width: 17 mm · Ø Pin: 8 mm

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Cable length: 2200 mm · Nipple length: 5 mm · Number of components: 1 pcs

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: GPO · Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Reserve level: 70 mm

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Thread type: M4x0.7 (standard thread) · Ø Cable bushing: 1.6 mm · Drive: Slot · Screw head: Lens head · Thread length: 4 mm · Total length: 6 mm · Ø outside: 5 mm · Number of components: 2 pcs

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

GPO Tank cap plastic black | Puch Maxi N

Manufacturer: GPO · Material: Plastic · Color: black · Fuel filler cap: Plug 30 mm · Lockable: No · Vented: Yes · Ø External head: 46.9 mm · Height: 35.2 mm

Washer M7 7.4/14/1.6 galvanized

Material: Steel · Surface: galvanized (blue) · Thread size: M7 · Nominal diameter inside: 7 mm · Nominal diameter (thread): 7 mm · Piaggio OEM number: 003057, 3057, S.13842

Meteor piston pin lock Ø 10 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 10 mm

Athena gasket set 38.4 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Number of components: 2 pcs · Ø cylinder: 38.4 mm · Area of application: Tuning · Decompressor: Yes

38.4 mm gasket cylinder head graphite | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.6 mm · Manufacturer: Made in Netherlands · Number of components: 1 pcs · Material: Graphite / Graphite · Ø cylinder: 38.4 mm · Area of application: Original · Area of application: Standard
